Маанилүү коопсуздук нускамалары
Please read and save these important safety instructions before using this fan. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.
- Тазалоодон же тейлөөдөн мурун желдеткичти ар дайым сууруп коюңуз.
- Зымы же сайы бузулган желдеткичти иштетпеңиз.
- Keep the fan away from water and moisture.
- Оңдоп кетүүдөн сактануу үчүн желдеткич туруктуу, түз бетке коюлганын текшериңиз.
- Вентилятор иштеп жатканда манжаларыңызды же башка буюмдарды торчого киргизбеңиз.
- Бул желдеткич имараттын ичинде колдонуу үчүн гана.
Продукт бүттүview
The PELONIS FS40-8JR is a 16-inch oscillating pedestal fan designed to provide efficient airflow and cooling in various indoor environments. Its adjustable height and wide-angle oscillation ensure comprehensive air distribution.

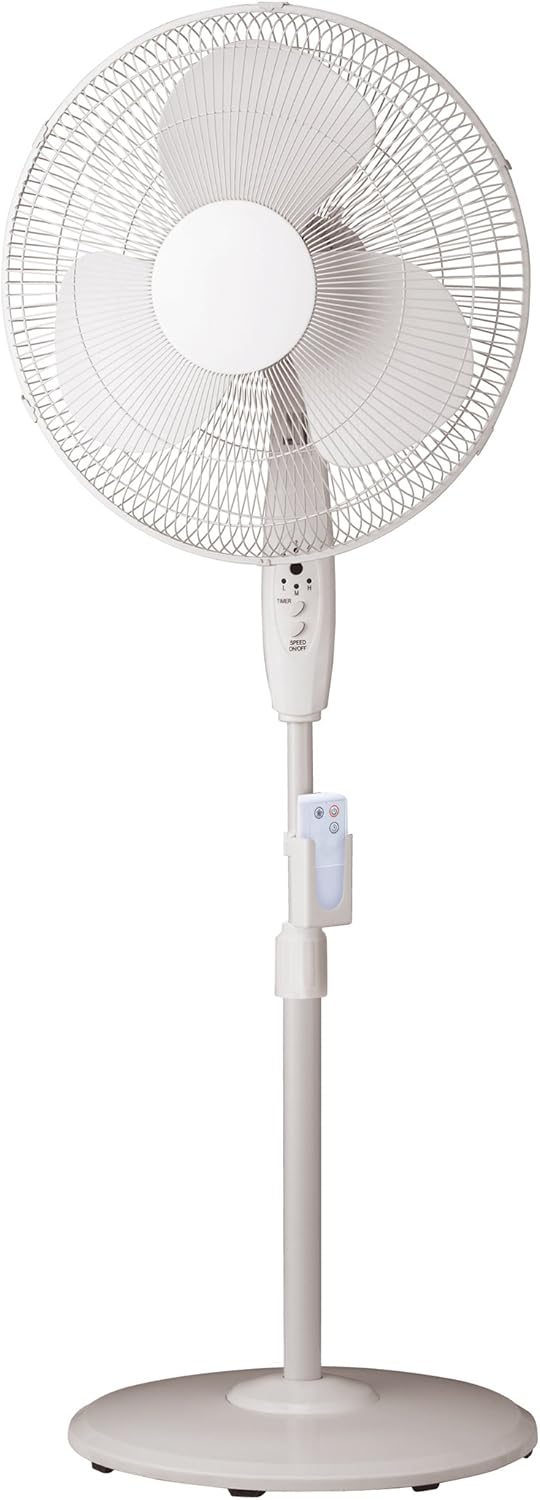

Figure 1: PELONIS FS40-8JR Pedestal Fan. This image displays the complete fan assembly, highlighting its white finish, the protective grille, fan blades, central control panel, the adjustable stand with a remote control holder, and the stable round base.
Негизги өзгөчөлүктөрү:
- Wide-angle oscillation and tilt for broad air coverage.
- Convenient 4-hour timer function.
- Remote control with a dedicated holder for easy access.
- Adjustable height to suit different cooling needs.
- Stable round base for secure placement.
- Three-speed settings (Low, Medium, High).
Бөлүктөр тизмеси
Before assembly, ensure all parts are present and undamaged. Refer to the diagram in the Product Overview section for visual identification.
- Алдыңкы тор
- Арткы тор
- Fan Blades
- Мотор корпусу
- Башкаруу панели
- Adjustable Stand Pole
- Тегерек база
- Алыстан башкаруу
- Алыстан башкаруу тутуму
- Fasteners (nuts, screws, washers - specific types may vary)
Орнотуу жана чогултуу
Minimal assembly is required to set up your PELONIS pedestal fan. Follow these steps carefully:
- Базаны чогултуу: Attach the adjustable stand pole securely to the round base using the provided fasteners. Ensure it is stable and upright.
- Attach Motor Housing: Mount the motor housing onto the top of the adjustable stand pole. Secure it firmly.
- Арткы торчону орнотуу: Place the rear grille onto the motor housing, aligning it correctly.
- Mount Fan Blades: Carefully slide the fan blades onto the motor shaft. Secure them with the retaining cap or nut.
- Алдыңкы торчону бекитүү: Position the front grille over the fan blades and secure it to the rear grille using the clips or screws provided. Ensure the grille is fully closed and locked for safety.
- Алыскы батареяларды салыңыз: Open the battery compartment on the remote control and insert 3 AAA batteries (not included), observing polarity.
- Attach Remote Holder: Clip the remote control holder onto the adjustable stand pole at a convenient height.
Once assembled, place the fan on a firm, level surface and plug it into a standard electrical outlet.
Иштөө нускамалары
Your PELONIS fan can be operated using the control panel on the fan unit or the included remote control.
Башкаруу панелинин функциялары:
- Күйгүзүү/өчүрүү: Press the "ON/OFF" button to turn the fan on or off.
- Ылдамдыкты көзөмөлдөө: Press the "SPEED" button repeatedly to cycle through Low (L), Medium (M), and High (H) speed settings.
- Таймер: Press the "TIMER" button to set the fan to operate for a specific duration (e.g., 1, 2, 4 hours). The fan will automatically turn off after the set time.
- Термелүү: Press the "OSC" button (if present on the panel, otherwise use remote) to activate or deactivate the oscillation function, allowing the fan head to sweep from side to side.
Алыстан башкаруу функциялары:
The remote control provides convenient operation from a distance. Ensure the remote is pointed towards the fan's control panel for optimal response.
- Кубат баскычы: Желдеткичти күйгүзөт же өчүрөт.
- Ылдамдык баскычтары: Separate buttons for Low, Medium, and High speeds, or a single button to cycle through them.
- Таймер баскычы: Иштөө таймерин орнотот.
- Термелүү баскычы: Activates or deactivates the oscillation feature.
Бийиктикти жана кыйшайууну тууралоо:
- Бийиктиги: Loosen the height adjustment knob on the stand pole, raise or lower the fan to the desired height, and then tighten the knob securely.
- Россия: Gently push the fan head up or down to adjust the vertical angle of airflow.
Тейлөө жана тазалоо
Regular cleaning and maintenance will help ensure the longevity and optimal performance of your fan.
- Ар дайым желдеткичти сууруп туруңуз тазалоодон мурун электр розеткасынан.
- Тышкы тазалоо: жумшак колдонуу, damp вентилятордун сырткы беттерин сүртүү үчүн чүпүрөк. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Грильди тазалоо: Dust and lint can accumulate on the grilles and blades. Periodically remove the front grille (refer to assembly instructions in reverse) to clean the fan blades and inside of the grilles with a soft cloth or vacuum cleaner. Ensure all parts are dry before reassembling.
- Сактагыч: Вентилятор көпкө чейин колдонулбаган учурда, аны чаңдан жана бузулуудан коргоо үчүн салкын, кургак жерде, мүмкүн болсо, баштапкы таңгагында сактаңыз.
Проблемаларды чечүү
If you experience issues with your fan, consult the following table for common problems and solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Желдеткич күйбөйт. | Not plugged in; Power outlet not working; Fan switch off. | Ensure fan is securely plugged into a working outlet; Check household circuit breaker; Press the power button on the fan or remote. |
| Алсыз аба агымы. | Fan speed set too low; Grilles or blades are dirty. | Increase fan speed; Clean the fan grilles and blades as per maintenance instructions. |
| Желдетүүчү ызы-чуу. | Loose parts; Fan not on a level surface; Obstruction. | Check for loose screws or components and tighten; Place fan on a stable, level surface; Ensure nothing is obstructing the fan blades. |
| Пульт иштебей жатат. | Батареялар өлүп калган же туура эмес салынган; Пульт менен желдеткичтин ортосундагы тоскоолдук. | Replace batteries (3 AAA); Ensure correct polarity; Remove any obstructions and point remote directly at the fan's control panel. |
Техникалык шарттар
| Атрибут | Деталь |
|---|---|
| Модель номери | FS40-8JR |
| Бренд | ПЕЛОНИС |
| Желдетүүчү түрү | Пьедесталдын күйөрманы |
| Fan Size | 16 дюйм |
| Ылдамдыктын саны | 3 (Төмөн, Орто, Жогорку) |
| Өзгөчөлүктөр | Oscillating, Adjustable Height, Timer, Remote Control |
| Таймер | 4 саатка чейин |
| Power Source | Электр зымдары |
| Ватtage | 60 ватт |
| Түс | Ак |
| Элемент Салмагы | 8.16 фунт (болжол менен 3.7 кг) |
| Продукциянын өлчөмдөрү (L x W x Y) | 57.71 x 11.99 x 46.41 см |
| Ассамблея талап кылынат | Минималдуу Ассамблея |
| Алыстан башкаруу үчүн батарейкалар | 3 x AAA (киргизилген эмес) |
Кепилдик жана колдоо
Кепилдик жөнүндө маалымат же техникалык колдоо алуу үчүн, өнүмүңүз менен кошо берилген кепилдик картасын караңыз же расмий PELONIS веб-сайтына кириңиз. website. You may also contact customer service for assistance with product operation, parts, or troubleshooting beyond this manual.
Кардарларды тейлөө байланышы: Please refer to the contact information provided on the product packaging or the manufacturer's official webсайт.
