1. Киришүү
Сатып алганыңыз үчүн рахматasing the HYUNDAI L766-BL HiFi/Home Cinema Speaker Pair. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your speakers. Please read this manual thoroughly before use and retain it for future reference.
2. Коопсуздук нускамалары
- Жайгашкан жери: Place speakers on a stable, level surface to prevent tipping. Ensure adequate ventilation around the speakers.
- Күч: These speakers are passive and require an external ampөмүрлүү. Камсыз кылуу amplifier's power output matches the speaker's specifications to prevent damage.
- Байланыштары: Always turn off your amplifier before making any connections to avoid electrical shock or equipment damage.
- Нымдуулук: Do not expose speakers to water, moisture, or extreme temperatures.
- Тазалоо: Disconnect from power and amplifier before cleaning. Use a soft, dry cloth. Avoid liquid cleaners.
- Демонтаж: Do not attempt to open or service the speakers yourself. Refer all servicing to qualified personnel.
3. Пакеттин мазмуну
Таңгактан чыгаргандан кийин, төмөндө көрсөтүлгөн нерселердин бардыгы бар экенин жана жакшы абалда экендигин текшериңиз:
- 2 x HYUNDAI L766-BL Floorstanding Speakers
- 2 x Protective Grilles
Эгерде кандайдыр бир буюмдар жок же бузулуп калса, дароо сатуучуга кайрылыңыз.
4. Продукт бүтүп калдыview
The HYUNDAI L766-BL speakers are designed for HiFi audio reproduction and Home Cinema systems, featuring a 2-way bass-reflex design for balanced sound.

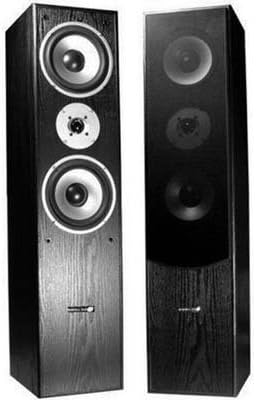

Сүрөт 1: Фронт view of the HYUNDAI L766-BL speaker pair. One speaker is shown with its protective grille removed, revealing the two woofers and the central tweeter. The other speaker has its grille attached, providing a sleek, uniform appearance.
Спикер компоненттери
- Вуферлер: Two 165 mm high-efficiency woofers per speaker handle low and mid-range frequencies.
- Твиттер: A 35 mm directional dome tweeter is responsible for clear high-frequency reproduction.
- Басс рефлекс порту: Located at the rear of the speaker, this port enhances bass response.
- Туташуу терминалдары: Located on the rear panel, these terminals allow connection to an amplifier using screw terminals or banana plugs.
Сүрөт 2: Жакын план view of one of the 165 mm woofers. It features a silver-colored cone and a black dust cap, designed for efficient reproduction of bass and mid-range audio.
Сүрөт 3: Жакын план view of the 35 mm directional dome tweeter. It is centrally mounted on a silver-colored plate, designed to deliver crisp and detailed high frequencies.
Сүрөт 4: Арткы view of a single speaker, showing the bass reflex port at the bottom and the connection terminal panel. A separate close-up of the connection terminals highlights the red (positive) and black (negative) posts, suitable for both screw-type and banana plug connections.
5. Орнотуу
5.1 Спикерди жайгаштыруу
- For optimal stereo imaging, place the speakers equidistant from your primary listening position, forming an equilateral triangle.
- Keep speakers at least 20-30 cm (8-12 inches) away from walls to allow the rear bass reflex port to function effectively and prevent excessive bass buildup.
- Ensure both speakers are placed at the same height.
5.2 Ampөмүрлүү
Булар пассивдүү динамиктер жана тышкы amplifier. Ensure your amplifier is turned OFF before making connections.
- Use high-quality speaker wire. Strip approximately 1-2 cm (0.4-0.8 inches) of insulation from the ends of the speaker wire.
- Connect the positive (+) terminal (red) on the speaker to the positive (+) terminal (red) on your ampөмүрлүү.
- Connect the negative (-) terminal (black) on the speaker to the negative (-) terminal (black) on your ampөмүрлүү.
- Ensure that the polarity is consistent for both speakers (red to red, black to black). Incorrect polarity will result in poor sound quality, especially in bass response.
- Tighten the screw terminals securely or insert banana plugs firmly.
6. Иштөө нускамалары
Once the speakers are correctly connected to your ampөмүр берүүчү:
- Сиздин камсыз кылуу amplifier's volume is set to minimum before powering it on.
- Кубат сиздин ampөмүрлүү.
- Түзмөгүңүздө каалаган аудио булагын тандаңыз ampөмүрлүү.
- Gradually increase the volume to a comfortable listening level.
- These speakers are designed for wired connectivity only.
7. Техникалык тейлөө
- Тазалоо: Use a soft, dry, lint-free cloth to wipe the speaker cabinets. For stubborn marks, a slightly damp чүпүрөктү, андан кийин кургак чүпүрөктү колдонсо болот. Абразивдүү тазалагычтардан же эриткичтерден качыңыз.
- Торлор: The protective grilles can be removed for cleaning or for a different aesthetic. Handle them carefully to avoid bending or damaging the fabric.
- Чаң: Regularly dust the speaker cones and tweeter with a soft brush or compressed air to prevent accumulation.
- Сактагыч: If storing the speakers for an extended period, keep them in a cool, dry place, ideally in their original packaging, to protect them from dust and physical damage.
8. Кыйынчылыктарды
- Үн жок:
- Check all speaker wire connections at both the amplifier and the speakers. Ensure they are secure and correctly polarized (+ to +, - to -).
- Текшериңиз ampкөтөргүч күйгүзүлгөн жана туура киргизүү булагы тандалып алынган.
- Башка аудио булак менен сынап көрүңүз же ampмүмкүн болсо, көтөргүч.
- Бурмаланган үн:
- Сиздин үнүңүздү азайтыңыз amplifier. Overdriving the speakers can cause distortion.
- Check speaker wire connections for loose strands that might be shorting.
- камсыз кылуу amplifier's impedance rating is compatible with the speakers (8 ohms).
- Алсыз же басаңдатылган бас:
- Confirm correct speaker polarity (+ to +, - to -). Incorrect polarity is a common cause of weak bass.
- Adjust speaker placement, ensuring they are not too close to walls or corners, which can sometimes over-emphasize or cancel bass.
- Consider adding a dedicated subwoofer to your system if you desire deeper or more impactful bass, as these speakers are designed for balanced HiFi and Home Cinema use.
9. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Динамик түрү | 2-way Floorstanding, Rear Bass Reflex |
| Woofers | 2 x 165 mm high-efficiency per speaker |
| Midrange/Tweeter | 1 x 35 mm directional dome per speaker |
| Maximum Power (per speaker) | 350 Вт |
| RMS Power (per speaker) | 180 Вт |
| Сезимталдуулук | 93 дБ |
| Frequency Response | 20 Гц - 20 000 Гц |
| Импеданс | 8 Ом |
| Байланыш | Wired (Screw terminals / Banana plugs) |
| Өлчөмдөрү (L x Y x P) | 200 x 865 x 250 мм (7.87 x 34.06 x 9.84 дюйм) |
| Бирдик Салмагы | 8.12 кг (17.9 фунт) |
| Power Source | Тышкы Amplifier (Electric cable for ampөмүрлүү) |
| Сунушталган колдонуу | Үй кинотеатры |
| Шайкеш түзмөктөр | Laptop, Projector, Tablet, Television (via ampөмүрлүү) |
10. Кепилдик жана колдоо
The HYUNDAI L766-BL speakers come with a limited warranty. Please refer to the warranty card included with your purchase or contact your retailer for specific terms and conditions.
For technical support, troubleshooting assistance, or warranty claims, please contact your point of purchase or the authorized HYUNDAI service center in your region. Keep your proof of purchase for warranty validation.
