Продукт бүттүview
The Ideal Standard Moments A3912AA is a single-lever built-in shower mixer designed for modern bathrooms. This mixer includes the concealed part necessary for installation, ensuring a sleek and minimalist aesthetic. It provides precise control over water flow and temperature for a comfortable showering experience.

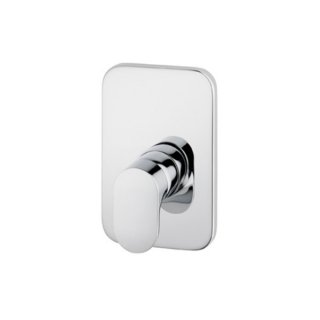

Image: Ideal Standard Moments A3912AA Single-Lever Built-in Shower Mixer. This image shows the external components of the mixer, likely including the handle and faceplate, which are visible after installation.
Орнотуу жана орнотуу
Installation of the Ideal Standard Moments A3912AA built-in shower mixer requires professional plumbing expertise. Incorrect installation can lead to leaks, damage, or improper operation. Always ensure that water supply is turned off before beginning any installation work.
Key Installation Steps (Professional Guidance Recommended):
- Prepare the Wall Cavity: Ensure the wall cavity is appropriately sized and prepared for the concealed part of the mixer. Refer to the detailed installation template provided with the product packaging.
- Mount the Concealed Body: Securely mount the concealed mixer body within the wall cavity, ensuring it is level and at the correct depth relative to the finished wall surface.
- Суу менен камсыздоону туташтырыңыз: Connect the hot and cold water supply lines to the designated inlets on the concealed body. Ensure all connections are watertight.
- Connect Shower Outlet: Connect the shower outlet pipe to the concealed body.
- Агышуу үчүн сыноо: Before closing the wall, turn on the water supply and thoroughly check all connections for leaks.
- Кесүү комплектин орнотуу: Once the wall is finished, install the visible trim kit, including the handle and faceplate, onto the concealed body.
Note: Specific dimensions and detailed diagrams are provided in the physical installation guide included with your product.
Иштөө нускамалары
The Ideal Standard Moments A3912AA is a single-lever mixer, offering intuitive control over water flow and temperature.
Суу агымын көзөмөлдөө:
- To turn the water on, lift the lever handle.
- To increase water flow, lift the lever further.
- To decrease water flow, lower the lever.
- To turn the water off, push the lever fully down.
Температураны көзөмөлдөө:
- To adjust water temperature, pivot the lever handle horizontally.
- Рычагды солго жылдыруу, адатта, ысык суу менен камсыздоону көбөйтөт.
- Рычагды оңго жылдыруу, адатта, муздак суунун агымын көбөйтөт.
- Find your desired temperature by adjusting the lever's horizontal position.
Always test the water temperature with your hand before stepping into the shower to prevent scalding.
Техникалык тейлөө жана кам көрүү
Proper care will ensure the longevity and aesthetic appeal of your Ideal Standard shower mixer. The chrome finish is durable but requires gentle cleaning.
Тазалоо көрсөтмөлөрү:
- Use only mild soap and water with a soft cloth or sponge.
- Тазалагандан кийин самын калдыктарын кетирүү үчүн таза суу менен жакшылап чайкаңыз.
- Dry the surface with a soft, dry cloth to prevent water spots and maintain shine.
Качуу:
- Abrasive cleaners, scouring pads, or harsh chemicals (e.g., ammonia-based cleaners, bleach, acidic cleaners) as these can damage the chrome finish.
- Leaving water spots or soap residue for extended periods, as this can lead to mineral buildup.
Проблемаларды чечүү
If you encounter issues with your shower mixer, refer to the common problems and solutions below. For complex issues, contact a qualified plumber.
Жалпы маселелер:
- Төмөн суунун агымы:
- Негизги суу менен камсыз кылуучу клапан толугу менен ачык экенин текшериңиз.
- Inspect the showerhead for blockages or mineral buildup; clean or descale if necessary.
- Ensure there are no kinks in the supply lines.
- Ыңгайсыз суунун температурасы:
- Ысык жана муздак суу менен камсыздоо системаларынын экөө тең туура иштеп жатканын текшериңиз.
- If the mixer has a thermostatic cartridge, it might need calibration or replacement by a professional.
- Leaking from Handle or Spout:
- A persistent drip usually indicates a worn-out cartridge. This requires replacement, which should be performed by a qualified plumber.
- Ensure all connections were properly tightened during installation.
Always turn off the main water supply before attempting any repairs.
Техникалык шарттар
Below are the technical specifications for the Ideal Standard Moments A3912AA Single-Lever Built-in Shower Mixer:
- Өндүрүүчү: Идеалдуу стандарт
- Модель номери: A3912AA
- Продукциянын өлчөмдөрү: 20 x 20 x 30 см
- Элемент Салмагы: 2 кг (4.41 фунт)
- Түсү: Chrome (Chromfarben)
- Бүтүрүү: Chrome
- Стиль: Левер
- туткалардын саны: 1
- Монтаж түрү: Built-in (Incasso)
- Камтылган компоненттер: Shower mixer (Rubinetti doccia)
- Батареялар талап кылынат: Жок
- ASIN: B00C1NLRM4
- Биринчи жеткиликтүү датасы: 15-январь, 2016-жыл
Кепилдик маалымат
Ideal Standard products are manufactured to high-quality standards and come with a manufacturer's warranty. Specific warranty terms and conditions, including duration and coverage, are typically provided with the product packaging or can be found on the official Ideal Standard webсайт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
Кардарларды колдоо
For further assistance, technical support, or to inquire about spare parts, please contact Ideal Standard customer service. You can find contact information on the official Ideal Standard webсайтында же продуктуңузга тиркелген документтер аркылуу.
Идеалдуу Стандарттык Расмий Webсайт: www.idealstandard.com
