SpeaKa Professional DL-1117 дубалга орнотулуучу/шыпка орнотулуучу динамиктин колдонуу боюнча колдонмосу

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your SpeaKa Professional DL-1117 In-Wall/Ceiling Speaker. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. Продукт бүтүп калдыview

The SpeaKa Professional DL-1117 is a high-quality in-wall/ceiling speaker designed for various audio applications in both residential and industrial environments. Its robust metallic construction ensures durability and reliable performance.

2.1-сүрөт: Фронт view of the SpeaKa Professional DL-1117 In-Wall/Ceiling Speaker. This image shows the speaker's front grille and mounting frame.

Негизги өзгөчөлүктөрү:

• Ideal for wall and ceiling mounting.
• Suitable for industrial and residential spaces.
• Solid metallic construction for enhanced durability.

3. Техникалык шарттар

3.1-сүрөт: Dimensional drawing of the SpeaKa Professional DL-1117 speaker. This diagram illustrates the speaker's diameter (Ø100mm), depth (49mm), and cutout dimensions (Ø74mm, Ø81mm).

3.2-сүрөт: Артка view of the SpeaKa Professional DL-1117 speaker, showing the product label with model number DL-1117BK8, frequency response, power rating, and impedance.

4. Коопсуздук нускамалары

Төмөнкү коопсуздук чараларын сактаңыз, зыян же буюмдун бузулушуна жол бербөө үчүн:

• Электр коопсуздугу: Ensure all power to the audio system is disconnected before making any connections or performing installation. Incorrect wiring can cause damage to the speaker or ampөмүрлүү.
• Орнотуу: Installation should be performed by a qualified professional if you are unsure about electrical wiring or structural integrity. Ensure the mounting surface (wall or ceiling) can safely support the weight of the speaker.
• Курчап турган чөйрө: Do not expose the speaker to excessive moisture, extreme temperatures, or direct sunlight.
• Тазалоо: Use a soft, dry cloth for cleaning. Do not use liquid cleaners or aerosols.
• Демонтаж: Динамикти ажыратууга же өзгөртүүгө аракет кылбаңыз. Бул кепилдикти жокко чыгарат жана зыянга же жаракатка алып келиши мүмкүн.

5. Орнотуу жана орнотуу

Follow these steps for proper installation of your in-wall/ceiling speaker:

5.1 Керектүү куралдар

• Бургулоо
• Hole saw (matching cutout diameter, approx. Ø74-81mm)
• Screwdriver
• Зымдарды сыйрып алуучулар
• Speaker wire (appropriate gauge for your amplifier and cable length)

5.2 Монтаждалуучу жер

Choose a suitable location in your wall or ceiling. Ensure there are no electrical wires, plumbing, or structural elements behind the chosen area. Use a stud finder if necessary.

5.3 Ачууну кесүү

1. Carefully mark the desired cutout diameter on the wall or ceiling. Refer to the dimensions in Figure 3.1.
2. Using a hole saw, carefully cut the opening.

5.4 Электр зымдары

1. Run speaker wire from your amplifier/receiver to the cutout opening.
2. Динамик зымынын учтарынан болжол менен 1/2 дюйм (12 мм) изоляцияны алып салыңыз.
3. Connect the speaker wires to the terminals on the back of the DL-1117 speaker. Ensure correct polarity (+ to + and - to -) from the amplifier to the speaker. The terminals are typically screw-type or spring-loaded.

5.5 Installing the Speaker

1. Carefully insert the speaker into the cutout opening.
2. Secure the speaker using the integrated mounting clips or screws, if applicable. For this model, the design suggests it is inserted and then secured from the front.

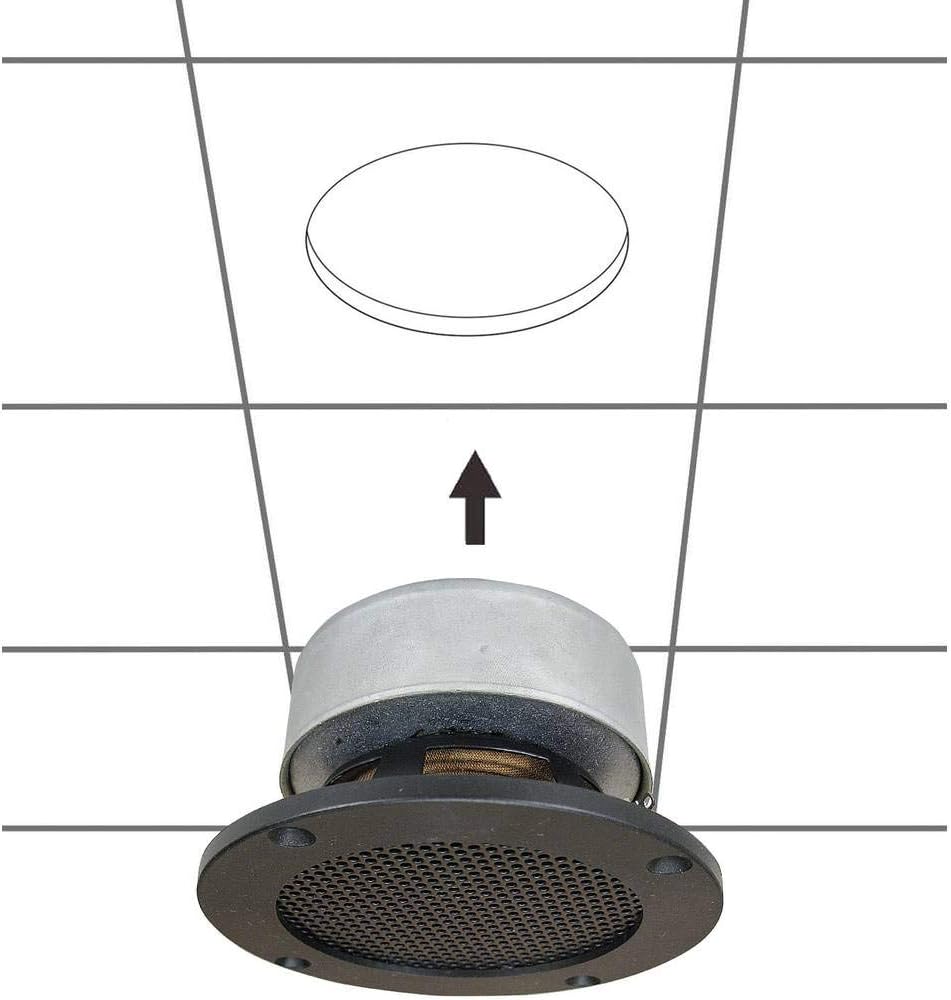

5.1-сүрөт: Diagram illustrating the installation process of the SpeaKa Professional DL-1117 speaker into a ceiling opening. The speaker is inserted from below into the pre-cut hole.

6. Иштөө нускамалары

Once the speaker is correctly installed and wired to your amplifier or receiver:

1. Бардык байланыштар коопсуз экенин текшериңиз.
2. Өзүңүздү күйгүзүңүз ampкөтөргүч/алуучу.
3. Start playing audio through your connected source.
4. Үндү тууралаңыз amplifier/receiver to a comfortable listening level. Avoid excessively high volumes that could distort the sound or damage the speaker.

7. Техникалык тейлөө

The SpeaKa Professional DL-1117 speaker requires minimal maintenance:

• Тазалоо: Periodically wipe the speaker grille and frame with a soft, dry cloth to remove dust. Do not use abrasive cleaners or solvents.
• Текшерүү: Occasionally check the speaker for any visible damage or loose connections.

8. Кыйынчылыктарды

Динамикиңизде көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:

If the problem persists after trying these solutions, please contact SpeaKa Professional customer support.

9. Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official SpeaKa Professional webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.

Өндүрүүчү: SpeaKa адиси

ASIN: B00CS2V1AQ
