1. Продукт бүтүп калдыview
The Yato YT-36012 Pop Rivet Gun is a hand tool designed for securely fastening materials together using pop rivets. It features a durable construction with an aluminium die-cast housing and forged steel handle, ensuring reliable performance for various applications. This manual provides essential information for the safe and effective use of your rivet gun.
Image 1.1: Yato YT-36012 Pop Rivet Gun with its original packaging.
Негизги өзгөчөлүктөрү:
- Туруктуу курулуш: Aluminium die-cast housing and forged steel handle for longevity.
- Secure Grip: Features a 3-jaw design made from heat-treated CrV steel for strong rivet gripping.
- Ар тараптуу: Compatible with various rivet sizes through interchangeable nosepieces.
2. Коопсуздук нускамалары
Always follow these safety guidelines to prevent injury and ensure proper tool function:
- Көздү коргоону кийүү: Учуучу таштандылардан коргоо үчүн ар дайым коргоочу көз айнек же көз айнекти тагыныңыз.
- Колду коргоо үчүн кийим кийиңиз: Use work gloves to protect your hands.
- Текшерүү куралы: Before each use, check the rivet gun for any damage or loose parts. Do not use a damaged tool.
- Use Correct Rivet Size: Ensure the rivet diameter matches the selected nosepiece and the material thickness.
- Катуу кармап туруу: Hold the tool firmly during operation to prevent slippage.
- Жумуш аймагын таза кармоо: Жумуш аймагыңыз таза жана жарыктандырылсын.
- Коопсуз сактоо: Store the rivet gun in a dry, secure place out of reach of children.
3. Орнотуу
3.1. Selecting the Correct Nosepiece
The Yato YT-36012 comes with multiple interchangeable nosepieces to accommodate different rivet diameters. Select the nosepiece that matches the diameter of the rivet you intend to use.

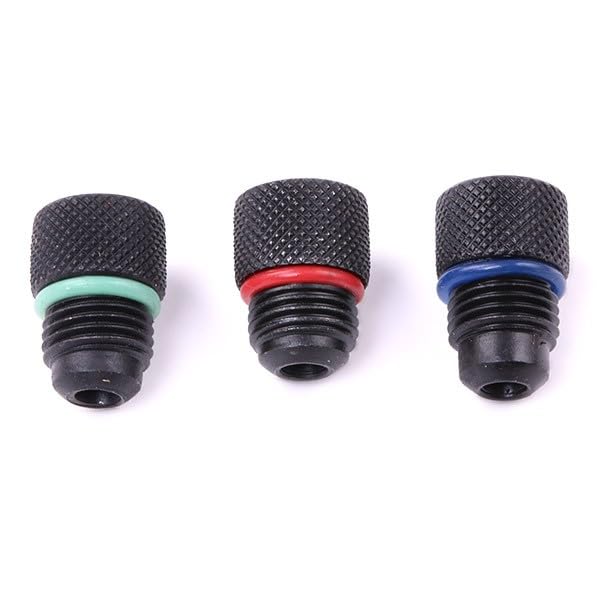

Image 3.1: Various nosepiece sizes for the rivet gun.
3.2. Attaching and Adjusting the Nosepiece
- Identify Nosepiece Rings: The rivet gun head features three knurled rings. The smallest ring is the removable nosepiece. The second ring is the clinch adjuster, and the third ring locks the clinch adjuster.
- Remove Current Nosepiece: Unscrew the currently installed nosepiece by hand.
- Install New Nosepiece: Screw the selected nosepiece firmly into the head of the rivet gun.
- Adjust Clinch (Rivet Grip):
- Loosen the third (locking) ring completely.
- Adjust the second (clinch adjuster) ring by turning it until the tool's jaws feel tight when gripping the rivet shank. This adjustment ensures the tool properly grips and pulls the rivet.
- Once the desired grip is achieved, tighten the third (locking) ring firmly to secure the clinch adjuster in place.

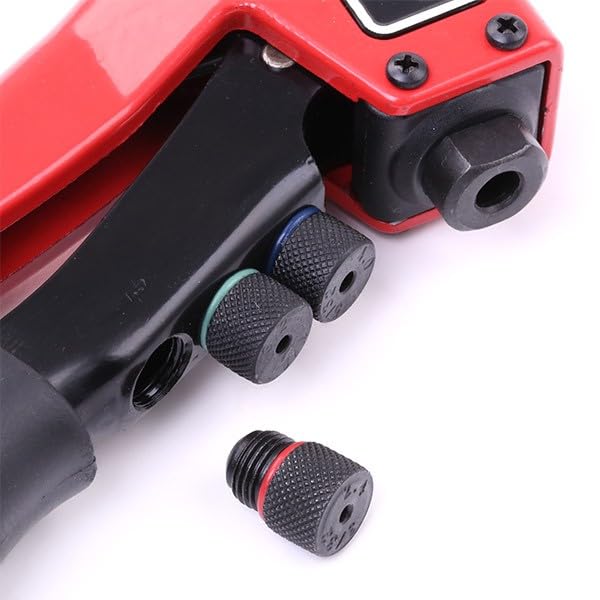

Сүрөт 3.2: Жакын пландан view of the rivet gun head, showing the nosepiece and adjustment rings.
4. Иштөө нускамалары
Follow these steps to effectively use your Yato YT-36012 Pop Rivet Gun:
- Материалдарды даярдоо: Drill a hole through the materials to be joined. The hole diameter should match the rivet diameter.
- Качкын салуу: Place the rivet's body through the prepared hole.
- Load Rivet Gun: Insert the rivet's mandrel (the pin) into the nosepiece of the rivet gun until it is fully seated.
- Позиция куралы: Place the nosepiece firmly against the surface of the material, ensuring the rivet head is flush.
- Actuate Tool: Squeeze the handles of the rivet gun together with firm, steady pressure. You will feel resistance as the tool pulls the mandrel, causing the rivet body to expand and form a blind head on the backside of the materials. Continue squeezing until the mandrel snaps off.
- Мандрелди чыгаруу: After the mandrel snaps, release the handles. The broken mandrel will typically fall out of the back of the tool. If it remains, open the handles fully and shake the tool to eject it.
- Inspect Rivet: Verify that the rivet is securely set and the materials are firmly joined.
Image 4.1: The Yato YT-36012 Pop Rivet Gun with handles open, ready for operation.
5. Техникалык тейлөө
Proper maintenance ensures the longevity and reliable performance of your rivet gun.
- Тазалоо: After each use, wipe down the tool with a clean, dry cloth to remove any dust or debris.
- Майлоо: Periodically apply a small amount of light machine oil to the pivot points and jaw mechanism to ensure smooth operation.
- Inspect Jaws: Regularly check the 3-jaw mechanism for wear or damage. Worn jaws can lead to poor rivet setting. Replace if necessary.
- Сактагыч: Store the rivet gun in a dry environment to prevent rust. Keep the handles closed and secured with the latch (if present) to protect the jaws.
6. Кыйынчылыктарды
Жалпы маселелер жана алардын чечимдери үчүн бул бөлүмдү караңыз.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Качкын мандрели үзүлбөйт. | Incorrect nosepiece size; Worn jaws; Insufficient force applied. | Ensure nosepiece matches rivet diameter. Check and adjust clinch. Apply more force to handles. Inspect and replace jaws if worn. |
| Rivet does not set properly (loose). | Incorrect rivet length for material thickness; Worn jaws; Improper clinch adjustment. | Use correct rivet length. Inspect and replace jaws. Re-adjust clinch as per Section 3.2. |
| Mandrel gets stuck in the tool. | Debris in jaw mechanism; Worn jaws. | Clean the jaw mechanism. Lubricate moving parts. Inspect and replace jaws if worn. |
7. Техникалык шарттар
Detailed technical specifications for the Yato YT-36012 Pop Rivet Gun.
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | YT-36012 |
| Бренд | Ято |
| Башкы материал | Эритме болот |
| Handle Material | Эритме болот |
| Түс | Кызыл |
| Элемент Салмагы | 0.5 килограмм (504 г) |
| Grip Type | Forged Steel |
| Баш стили | Forged 3-jaw |
| Продукциянын өлчөмдөрү (LxWxH) | 20 x 8 x 3 см |
| Power Source | Hand Powered |
| Камтылган компоненттер | 1 YT-36012 pop rivet gun |
| Келип чыккан өлкө | Кытай |
8. Кепилдик жана колдоо
For information regarding warranty coverage, technical support, or spare parts for your Yato YT-36012 Pop Rivet Gun, please contact Yato customer service or refer to the official Yato webсайт. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
