Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Maxxima MWL-01B 6 LED 5" Round Heavy Duty Super Bright Work Light. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
Продукт бүттүview
Компоненттер
- Maxxima MWL-01B Work Light Unit
- Кронштейн орнотуу
- Instruction Guide
Өзгөчөлүктөрү
- 6 LED design for super bright illumination.
- Heavy-duty construction for durability.
- Black housing for robust protection.
- Designed as an auto accessory.
- Compact dimensions for versatile mounting.

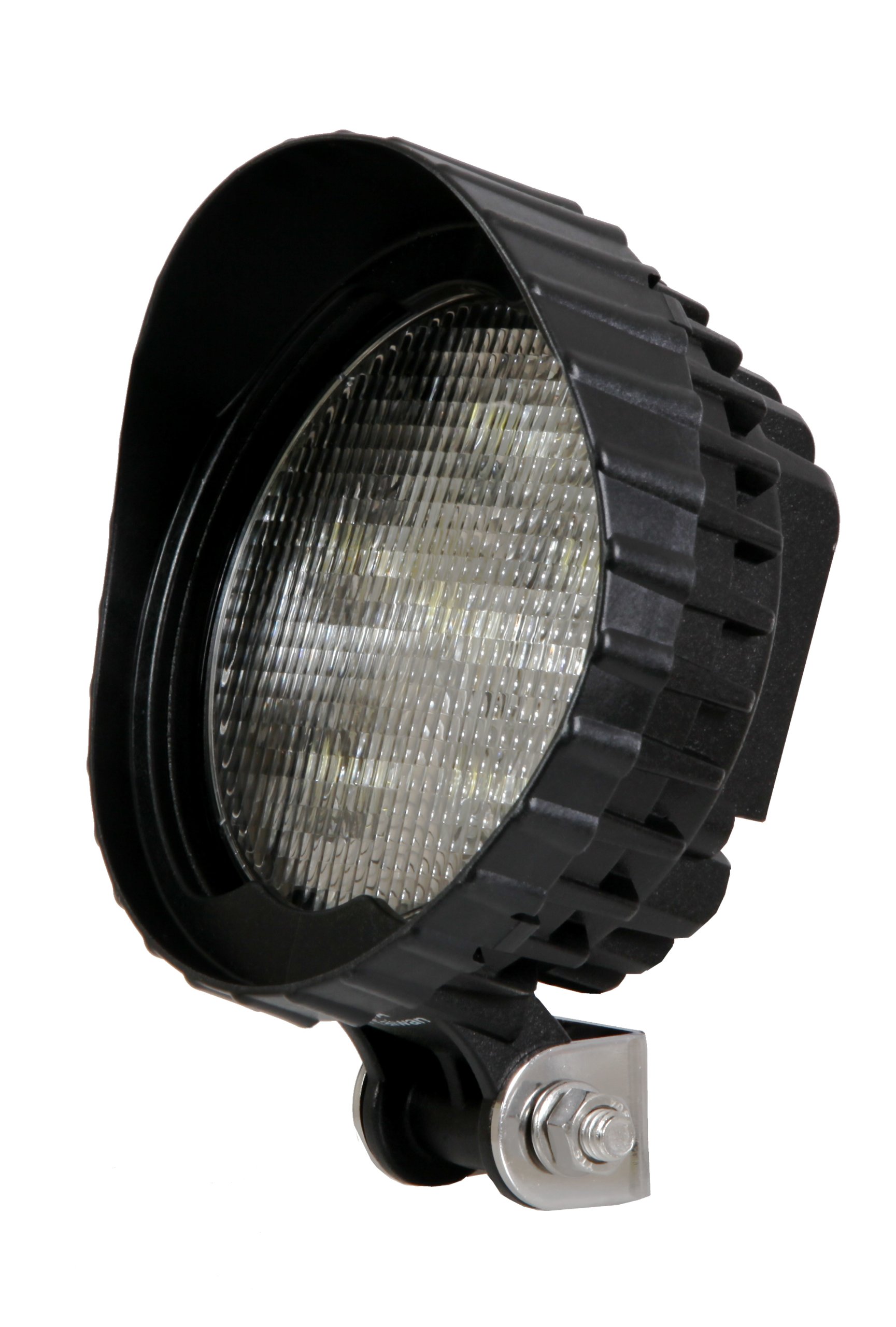

1-сүрөт: Maxxima MWL-01B 6 LED 5" Round Heavy Duty Super Bright Work Light. This image shows the round work light with its black housing, clear polycarbonate lens, and the stainless steel mounting bracket attached at the bottom. The light features a ribbed design on its housing for heat dissipation.
Жайгашуу
Монтаждоо нускамалары
- Монтаждоо ордун тандоо: Choose a sturdy, flat surface on your vehicle or equipment that can support the light's weight and provide optimal illumination. Ensure the location does not obstruct vision or interfere with other vehicle components.
- Бургулоо пункттарын белгилөө: Монтаждык кронштейнди тешиктерди бургулоо үчүн позицияларды белгилөө үчүн шаблон катары колдонуңуз.
- Бургулоо тешиктери: Carefully drill holes of the appropriate size for the mounting hardware.
- Коопсуз кашаа: Attach the stainless steel mounting bracket to the chosen surface using suitable bolts, washers, and nuts (not included). Ensure it is securely fastened.
- Attach Light to Bracket: Mount the work light unit to the bracket using the provided hardware. Adjust the angle of the light as needed before fully tightening the bolts.
Зымдар диаграммасы
The MWL-01B work light operates on 12VDC. Proper wiring is crucial for safe and effective operation.
- Зымдарды аныктоо: The work light typically comes with two wires: a positive (+) wire (usually red) and a negative (-) wire (usually black).
- Позитивдүү туташуу: Connect the positive wire of the light to a fused 12VDC power source. It is recommended to use an inline fuse (not included) appropriate for the light's current draw (1.24A). This can be connected to a switch for easy control.
- Терс туташуу: Connect the negative wire of the light directly to a reliable chassis ground point on your vehicle or equipment.
- Сыноо байланышы: Before finalizing, briefly test the connection to ensure the light functions correctly.
- Коопсуз зымдар: Route and secure all wiring to prevent chafing, pinching, or exposure to excessive heat or moving parts. Use cable ties or conduit as necessary.
Иштөө нускамалары
Once properly installed and wired, operating the Maxxima MWL-01B work light is straightforward:
- Күйгүзүү: Activate the switch connected to the light's positive power supply. The 6 LEDs will illuminate, providing 550 lumens of bright light.
- Өчүрүү: Deactivate the switch to turn off the light.
- Бурчту тууралоо: If needed, loosen the mounting bolts slightly to adjust the light's angle, then re-tighten securely.
The light is designed for heavy-duty use and provides consistent illumination in various conditions.
Техникалык тейлөө
The Maxxima MWL-01B work light is designed for low maintenance. Regular inspection and cleaning will help ensure its longevity and optimal performance.
- Тазалоо: Periodically clean the lens and housing with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the polycarbonate lens or aluminum housing.
- Текшерүү: Regularly check the mounting hardware for tightness. Vibrations from vehicle operation can sometimes loosen bolts. Inspect wiring for any signs of wear, fraying, or corrosion.
- Линзанын абалы: Ensure the lens remains clear and free of significant scratches or cracks that could impede light output.
Проблемаларды чечүү
If you encounter issues with your Maxxima MWL-01B work light, refer to the following table for common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | Электр энергиясы жок. | Check fuse, wiring connections (positive and negative), and switch operation. Ensure 12VDC is present at the light's input. |
| Жарык бүлбүлдөп же күңүрт. | Loose connection or insufficient voltage. | Tighten all wiring connections. Verify battery voltage is adequate (12VDC). Check for corrosion on terminals. |
| Линзанын ичиндеги нымдуулук. | Мөөр компромисс. | Contact Maxxima customer support. Do not attempt to open the sealed unit. |
| Монтаждоо кронштейни бош. | Vibration or improper tightening. | Re-tighten all mounting bolts securely. Consider using thread-locking compound if vibration is severe. |
Техникалык шарттар
| Атрибут | Спецификация |
|---|---|
| Модел | MWL-01B |
| Жарык түрү | LED иш жарык |
| Light Output | 550 Lumens |
| Тtage | 12VDC |
| Учурдагы тартылган | 1.24A |
| Турак жай материалы | Aluminum (Black) |
| Линзанын материалы | Polycarbonate (Clear) |
| Монтаждоо | Surface Bracket |
| Негизги материал | Дат баспаган болот |
| Диаметри | 4-1/2 дюйм |
| Тереңдик | 2-1/4 дюйм |
| Элемент Салмагы | 1.35 фунт |
| Продукциянын өлчөмдөрү | 10.5 x 0.5 x 5.5 дюйм |
| Келип чыккан өлкө | Тайвань, Кытай провинциясы |
Кепилдик жана колдоо
Maxxima products are manufactured to high-quality standards. For specific warranty information regarding your MWL-01B work light, please refer to the warranty card included with your purchase or visit the official Maxxima website. In case of technical issues, questions, or warranty claims, please contact Maxxima customer support through their official channels.
Кошумча колдоо жана продукт тууралуу маалымат алуу үчүн, сиз баш багсаңыз болот Amazon'догу Maxxima дүкөнү.
