Alpha MJ66-2 6 Position Modular Jack Instruction Manual

1. Киришүү

This manual provides detailed instructions for the proper installation, operation, and maintenance of the Alpha MJ66-2 6 Position Modular Jack. Please read this manual thoroughly before proceeding with installation or use to ensure safe and correct application of the product.

2. Продукт бүтүп калдыview

The Alpha MJ66-2 is a 6-position modular jack designed for reliable electrical connections. It features a narrow Insulation Displacement Connector (IDC) type, compatible with specific wire gauges for both solid copper and stranded cables. This product is suitable for various industrial and scientific wiring applications.

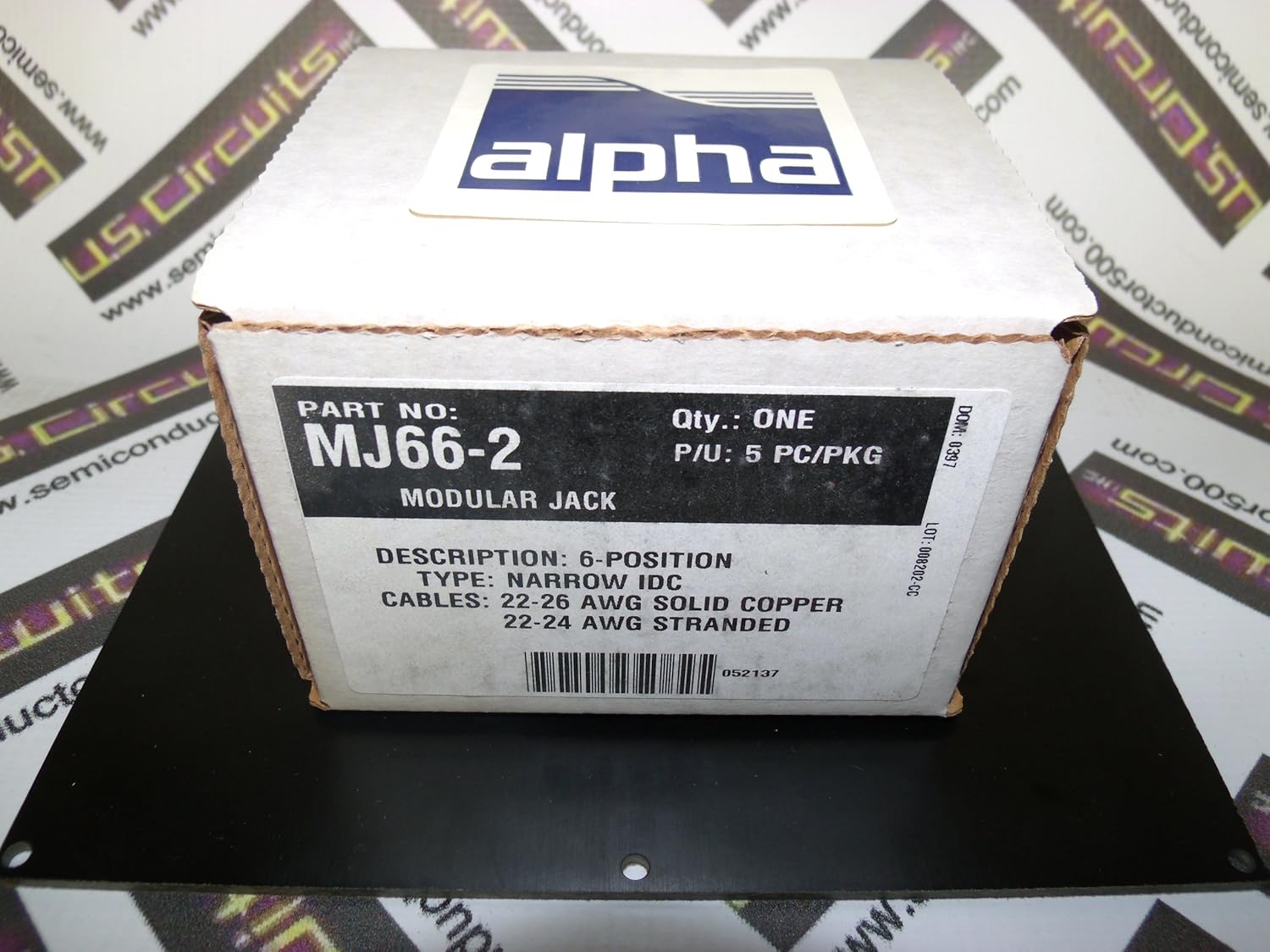

Сүрөт 2.1: Packaging for the Alpha MJ66-2 6 Position Modular Jack. The box displays the Alpha brand logo, part number MJ66-2, description as a 6-position modular jack, narrow IDC type, and compatible cable gauges (22-26 AWG solid copper, 22-24 AWG stranded). A product identifier '052137' is also visible.

3. Коопсуздук маалыматы

Always observe standard electrical safety precautions when working with electrical components. Ensure power is disconnected before installation or maintenance. Improper installation can lead to electrical shock or damage to equipment. If you are unsure about any step, consult a qualified electrician.

4. Орнотуу жана орнотуу

The MJ66-2 modular jack utilizes Insulation Displacement Connector (IDC) technology for quick and secure wire termination without stripping insulation. The package typically includes the modular jack, a compatible modular plug, and mounting hardware.

4.1 Компоненттер бүттүview

Сүрөт 4.1: Individual components of the Alpha MJ66-2 modular jack system. Shown are a clear modular plug, the cream-colored 6-position modular jack with IDC terminals, a mounting screw, and a small adhesive pad.

4.2 Электр зымдары боюнча нускамалар

1. Кабелдерди даярдоо: Ensure the cables are of the correct gauge: 22-26 AWG for solid copper conductors or 22-24 AWG for stranded conductors. Do not strip the wire insulation.
2. Position Wire: Carefully align each insulated wire into its corresponding slot on the IDC terminal block of the modular jack. Refer to the wiring diagram for your specific application (not provided in this manual, typically found in system documentation).
3. Terminate Wire: Use an appropriate IDC punch-down tool to push each wire firmly into its slot. The IDC contacts will displace the insulation and establish an electrical connection. Ensure a secure connection for all wires.
4. Монтаждоо: Secure the modular jack to the desired surface using the provided screw or adhesive pad, if applicable.

5. Иштөө нускамалары

Once installed and wired, the modular jack functions as a connection point for compatible modular plugs. To use:

1. Plug: Align the modular plug with the jack opening. Gently push the plug into the jack until it clicks into place, indicating a secure connection.
2. Plug алып салуу: To disconnect, press the release tab on the modular plug and gently pull the plug straight out from the jack. Avoid pulling by the cable, as this can damage the connection.

6. Техникалык тейлөө

The Alpha MJ66-2 modular jack requires minimal maintenance. Periodically inspect the jack for any signs of physical damage, corrosion, or loose connections. Keep the jack free from dust and debris. Use a soft, dry cloth for cleaning. Do not use liquid cleaners directly on the electrical contacts.

7. Кыйынчылыктарды

If you experience issues with your modular jack, consider the following:

• Байланыш жок: Verify that all wires are correctly terminated into the IDC slots and that the modular plug is fully inserted. Check for proper cable gauge compatibility.
• Үзгүлтүксүз туташуу: Inspect for loose wires or damaged contacts within the jack or on the modular plug. Ensure the cable is not stressed at the connection point.
• Физикалык зыян: If the jack or plug shows signs of physical damage, replacement may be necessary.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information or technical support regarding the Alpha MJ66-2 6 Position Modular Jack, please contact Alpha directly through their official website or customer service channels. Specific warranty terms may vary and are typically provided at the point of purchase or on the manufacturer's official documentation.
