Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Vulcan Hart 714690 Open Top Grate. Please read this manual thoroughly before using the product to ensure safety, optimal performance, and longevity. This grate is a genuine OEM replacement part designed for commercial foodservice equipment.

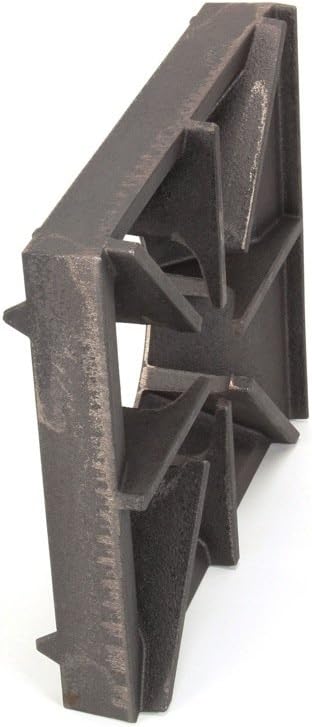

Figure 1: Vulcan Hart 714690 Open Top Grate. This image displays the robust, dark grey cast iron grate, designed with a series of intersecting bars to support cookware over an open flame or heating element. Its sturdy construction is evident, highlighting its purpose as a durable replacement part for commercial kitchen equipment.
Коопсуздук чаралары
- Always ensure the appliance is turned off and cooled before installing or removing the grate.
- Use appropriate personal protective equipment (PPE) such as heat-resistant gloves when handling hot grates.
- Ensure the grate is properly seated and stable before placing cookware on it.
- Do not use damaged or cracked grates, as this can pose a safety hazard.
Орнотуу жана орнотуу
The Vulcan Hart 714690 Open Top Grate is designed as a direct replacement part. Installation typically involves placing the grate into the designated slots or supports on your commercial cooking range or appliance.
- Даярдоо: Ensure the cooking surface is clean and free of debris. Verify that the appliance is powered off and cool to the touch.
- Жайгашкан жери: Carefully align the grate with the support points on your appliance's cooktop.
- Отуруучу: Gently lower the grate into place, ensuring it sits firmly and level without wobbling.
- Текшерүү: Once installed, lightly test the stability of the grate before placing any cookware on it.
Note: Refer to your specific appliance's user manual for detailed instructions on grate replacement if available.
Иштөө нускамалары
The open top grate serves as a stable support surface for various types of cookware (pots, pans, griddles) over the heat source of your commercial range.
- Ensure the grate is clean and properly seated before each use.
- Place cookware centrally on the grate to ensure even heat distribution and stability.
- Avoid dropping heavy items onto the grate, as this may cause damage.
- Do not use the grate for purposes other than supporting cookware.
Тейлөө жана тазалоо
Regular cleaning and maintenance will extend the life of your open top grate and ensure hygienic operation.
- Күнүмдүк тазалоо: After each use, allow the grate to cool completely. Remove any food debris or spills using a stiff brush or scraper.
- Терең тазалоо: For stubborn grease and burnt-on residue, the grate can be washed with warm, soapy water. For heavy-duty cleaning, commercial degreasers designed for kitchen equipment may be used. Always follow the degreaser manufacturer's instructions.
- Чайкоо: Rinse the grate thoroughly with clean water to remove all soap or chemical residues.
- Кургатуу: Dry the grate completely before reinstalling it to prevent rust. Air drying or wiping with a clean cloth is recommended.
- Текшерүү: Periodically inspect the grate for any signs of cracks, warping, or excessive wear. Replace the grate if any damage is observed to maintain safety and performance.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Grate wobbles or is unstable. | Improper seating; debris under grate; damaged support points on appliance. | Remove grate, clean support area, re-seat properly. Inspect appliance support points for damage. |
| Excessive rust formation. | Improper drying after cleaning; exposure to moisture. | Ensure grate is thoroughly dried after cleaning. Store in a dry environment if removed for extended periods. |
| Cracks or breakage. | Impact damage; extreme thermal shock; material fatigue. | Replace the grate immediately. Do not use a damaged grate. |
Техникалык шарттар
- Модель номери: 714690
- Бренд: Вулкан Харт
- Бөлүк түрү: Open Top Grate
- Элемент Салмагы: 17.1 фунт
- Продукциянын өлчөмдөрү: 5 x 11 x 13 дюйм
- Өндүрүүчү: Prtst (OEM for Vulcan Hart)
- ASIN: B00EMJO9KW
Кепилдик жана колдоо
As a genuine OEM replacement part, this Vulcan Hart grate is manufactured to high standards. Specific warranty details for replacement parts may vary. Please refer to the original appliance's warranty information or contact Vulcan Hart customer support for details regarding replacement part warranties.
For technical support or inquiries regarding this product, please contact your authorized Vulcan Hart service provider or the distributor from whom the part was purchased. Always provide the model number (714690) and any relevant appliance information when seeking support.
