Norton 32A 01 типтеги түз майдалоочу дөңгөлөк колдонуучусунун колдонмосу

1. Киришүү

This manual provides essential information for the safe and effective use of the Norton 32A Type 01 Straight Grinding Wheel. This product is designed for precision grinding applications in industrial and scientific settings. Please read this manual thoroughly before installation and operation to ensure proper usage and to prevent injury or damage.

The Norton 32A Type 01 Straight Grinding Wheel, model 66253043733, is an 8 x 1/2 x 1-1/4 inch toolroom wheel, featuring 32A 80 H VBE T01 specifications. It is supplied in a pack of 10 units.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ: Improper use of grinding wheels can cause serious injury or death. Always follow ANSI B7.1 safety standards and all applicable local regulations. Always wear appropriate personal protective equipment (PPE) including eye protection, face shield, gloves, and hearing protection.

• Inspect wheels for damage before each use. Do not use cracked or damaged wheels.
• Ensure the grinding machine is in good working order and guards are properly installed.
• Never exceed the maximum operating speed (RPM) specified on the wheel.
• Mount the wheel correctly and securely according to machine manufacturer instructions.
• Do not drop wheels. Handle with care.
• Always use a wheel that is compatible with your grinding machine and application.
• Avoid excessive pressure during grinding, which can lead to wheel breakage.
• Жумуш зонасында туура желдетүүнү камсыз кылыңыз.

3. Продукт бүтүп калдыview

The Norton 32A Type 01 Straight Grinding Wheel is a high-performance abrasive tool designed for precision grinding tasks. Its construction and material composition ensure efficient material removal and a consistent finish.

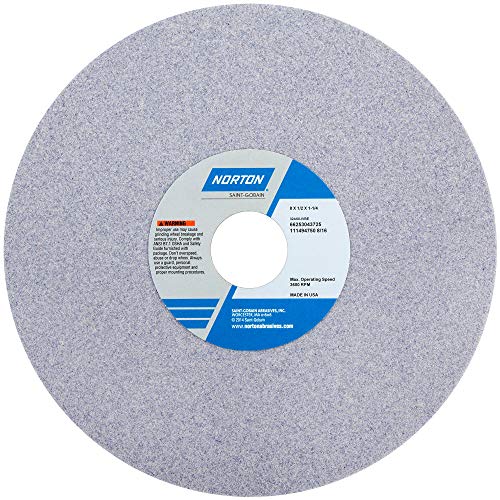

Сүрөт 1: Алдыңкы view of the Norton 32A Type 01 Straight Grinding Wheel. The wheel is light grey with a central label indicating brand, dimensions, and safety warnings.

Негизги өзгөчөлүктөрү:

• Материал: Aluminum Oxide (32A) for effective grinding of various materials.
• Түрү: Medium (80 H) for a balance of material removal and finish.
• Курулуш: Coated for durability and performance.
• Type 01 Straight Wheel: Standard flat profile for general-purpose grinding.
• Өлчөмдөрү: 8 inches diameter, 1/2 inch thickness, 1-1/4 inch arbor hole.

4. Техникалык шарттар

5. Орнотуу жана орнотуу

Proper installation is critical for safety and performance. Always refer to your grinding machine's manual for specific instructions.

1. Электр энергиясын өчүрүү: Ensure the grinding machine is unplugged or powered off and locked out before beginning installation.
2. Текшерүү: Carefully inspect the new grinding wheel for any signs of damage (cracks, chips, or deformities). A damaged wheel must not be used.
3. Шайкештикти текшерүү: Verify that the wheel's maximum operating speed (RPM) is equal to or greater than the machine's operating speed. Ensure the arbor hole size matches the machine's spindle.
4. Монтаждоо:
   • Clean the machine's spindle and flanges.
   • Ички фланецти шпиндельге салыңыз.
   • Carefully slide the grinding wheel onto the spindle, ensuring it sits flush against the inner flange.
   • Place the outer flange onto the spindle, against the wheel.
   • Secure the assembly with the spindle nut, tightening it just enough to hold the wheel firmly without excessive force, which could damage the wheel.
5. Күзөт орнотуу: Reinstall all safety guards securely.
6. Сыноо: Before grinding, allow the machine to run at operating speed for at least one minute in a protected area. Stand clear during this test. If any vibration or unusual noise occurs, stop immediately and re-inspect the installation.

6. Иштөө нускамалары

Follow these guidelines for safe and effective grinding:

1. Жеке коргонуу каражаттары (ЖКК): Always wear safety glasses, a face shield, hearing protection, and appropriate gloves.
2. Жумушчу бөлүгүн камсыздоо: Secure the workpiece firmly to prevent movement during grinding.
3. Майдалоо техникасы:
   • Bring the workpiece into contact with the grinding wheel gradually and smoothly.
   • Apply consistent, moderate pressure. Avoid sudden impacts or excessive force.
   • Use the face of the wheel for grinding. Do not use the side of a Type 01 straight wheel for heavy side grinding, as this can cause wheel breakage.
   • Move the workpiece across the wheel face to ensure even wear and prevent grooving.
4. Муздатуу: If using a wet grinding process, ensure adequate coolant flow. For dry grinding, allow the workpiece and wheel to cool periodically to prevent overheating.
5. Dressing and Truing: Periodically dress the wheel to expose fresh abrasive and maintain its cutting efficiency and shape. Use a proper wheel dresser.
6. Операциядан кийинки: Turn off the machine and allow the wheel to come to a complete stop before leaving the work area or performing any adjustments.

7. Техникалык тейлөө

Proper maintenance extends the life of your grinding wheels and ensures safe operation.

• Сактагыч: Store grinding wheels in a dry, cool place, away from extreme temperatures and humidity. Store them flat or on edge in racks to prevent warping or damage.
• Колдонуу: Always handle wheels carefully to avoid dropping or impacting them.
• Текшерүү: Regularly inspect wheels for wear, cracks, or other damage. Replace worn or damaged wheels immediately.
• кийинүү: Dress the wheel regularly to maintain its cutting surface and concentricity. A dull or glazed wheel can overheat and become unsafe.
• Тазалоо: Keep the grinding machine and work area clean from grinding dust and debris.

8. Кыйынчылыктарды

9. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries regarding your Norton 32A Type 01 Straight Grinding Wheel, please contact Saint Gobain / Norton customer service directly. Refer to the product packaging or the official Norton webакыркы байланыш маалыматтары жана кепилдик шарттары үчүн сайт.

Өндүрүүчү: Saint Gobain

Бренд: Нортон

Webсайт: www.nortonabrasives.com
