Продукт бүттүview
This manual provides essential information for the safe and effective use of the Norton 271Y Aftermarket Furnace Hot Surface Ignitor. This component is a brand new aftermarket replacement designed for furnace applications, ensuring reliable ignition.

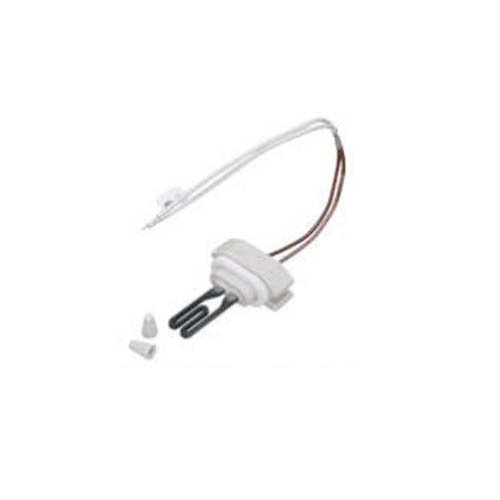

Image: The Norton 271Y Aftermarket Furnace Hot Surface Ignitor, showing the ceramic base, heating element, and attached wiring with two white wire connectors.
Коопсуздук маалыматы
WARNING: Installation and servicing of heating equipment can be hazardous and requires specialized knowledge and training. Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or loss of life. Read and understand these instructions thoroughly before attempting any installation or service. Only qualified service personnel should install or service this ignitor.
- Always disconnect power to the furnace before beginning any installation or maintenance.
- Тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде кол каптарды жана көздү коргоону кийиңиз.
- Ensure proper grounding and wiring connections are made according to local electrical codes and manufacturer specifications.
- Do not touch the ignitor element with bare hands, as oils can reduce its lifespan.
Орнотуу жана орнотуу
This section outlines the general steps for replacing a furnace ignitor. Specific procedures may vary depending on your furnace model. Refer to your furnace's service manual for detailed instructions.
- Электр энергиясын өчүрүү: Locate the main power switch for your furnace and turn it off. For added safety, turn off the circuit breaker supplying power to the furnace.
- Access Ignitor: Open the furnace access panel to locate the existing ignitor. It is typically found near the burner assembly.
- Disconnect Old Ignitor: Carefully disconnect the wiring from the old ignitor. Note the orientation and connection points. Remove any mounting screws or clips securing the old ignitor.
- Жаңы от алдыргычты орнотуу: Mount the new Norton 271Y ignitor in the same position as the old one, ensuring it is securely fastened.
- Зымдарды туташтыруу: Connect the new ignitor's wiring to the furnace's electrical system. Use the provided connectors if necessary, ensuring a secure and insulated connection. Double-check all connections for tightness and correct polarity.
- Коопсуз панелдер: Close and secure all furnace access panels.
- Күчтү калыбына келтирүү: Restore power to the furnace at the circuit breaker and main power switch.
- Сыноо операциясы: Initiate a heating cycle to verify the ignitor functions correctly and the furnace lights properly. Observe for any unusual sounds or smells.
Иштөө принциптери
The Norton 271Y Hot Surface Ignitor operates by heating a silicon carbide element to a very high temperature when electrical current is applied. This glowing element then ignites the gas flowing into the furnace's burners. Once ignition is confirmed by the furnace's flame sensor, the ignitor typically de-energizes until the next call for heat.
Техникалык тейлөө
Regular inspection of your furnace's components, including the ignitor, can help ensure reliable operation. While the ignitor itself is not typically a user-serviceable part for cleaning or repair, periodic visual checks are recommended.
- Жылдык текшерүү: During your annual furnace maintenance, have a qualified technician inspect the ignitor for signs of wear, cracks, or discoloration.
- Булганууну болтурбоо: Ensure the area around the ignitor is free from dust, debris, or oil residue, which can affect its performance and lifespan.
Проблемаларды чечүү
If your furnace is not igniting, the ignitor may be a potential cause. Always consult a qualified technician for diagnosis and repair.
| Симптом | Мүмкүн себеп | Акция |
|---|---|---|
| Furnace not igniting, ignitor does not glow. | No power to ignitor, faulty ignitor, or control board issue. | Check furnace power supply. Inspect ignitor for visible damage. Consult a qualified technician for electrical diagnostics. |
| Ignitor glows but furnace does not light. | Gas supply issue, faulty gas valve, or flame sensor problem. | Ensure gas supply is on. Consult a qualified technician to check gas valve and flame sensor operation. |
| Ignitor glows intermittently or weakly. | Aging ignitor, poor electrical connection, or voltagэ маселе. | Inspect wiring connections. A weak glow often indicates an ignitor nearing the end of its lifespan. Replacement by a technician may be necessary. |
Техникалык шарттар
| Атрибут | Деталь |
|---|---|
| Продукт түрү | Aftermarket Furnace Hot Surface Ignitor |
| Модель номери | CECOMINOD037601 |
| Бренд | Нортон |
| Продукциянын өлчөмдөрү | 6 x 6 x 6 дюйм |
| Элемент Салмагы | 6 унция |
| Өндүрүүчү | Универсал |
| Биринчи жеткиликтүү күн | 25-февраль, 2015-жыл |
Кепилдик маалымат
Specific warranty details for this aftermarket ignitor are not provided in the product data. For information regarding warranty coverage, terms, and conditions, please contact the seller or the manufacturer directly. It is advisable to retain your proof of purchase for any warranty claims.
Кардарларды колдоо
For technical assistance, installation guidance, or troubleshooting beyond the scope of this manual, please contact the seller from whom you purchased this product or a qualified HVAC technician. Always provide your product model number (CECOMINOD037601) and purchase details when seeking support.
Сиз да зыярат кылсаңыз болот Norton Store on Amazon for additional product information, though direct support for aftermarket parts may be handled by the specific seller.
