1. Киришүү
This manual provides essential instructions for the proper installation, operation, and maintenance of your Spyder Auto 444-CCRZ11-LTDRL-BK Projector Headlights. Please read this manual thoroughly before installation and retain it for future reference. These headlights are designed to enhance vehicle visibility and aesthetics with integrated Light Tube Daytime Running Lights (DRL).
2. Коопсуздук маалыматы
- Электрдик иштерди жасоодон мурун, электр тогуна урунуп калбоо же унаанын электр системасына зыян келтирбөө үчүн, унаанын аккумуляторун дайыма сууруп алыңыз.
- Орнотуу учурунда тиешелүү жеке коргоочу шаймандарды, анын ичинде коргоочу көз айнектерди жана кол каптарды кийиңиз.
- Кыска туташуулардын алдын алуу үчүн бардык зымдарды туташтыруу бекем жана тийиштүү түрдө изоляциялангандыгын текшериңиз.
- Do not modify the headlight assembly. Unauthorized modifications can void the warranty and compromise safety.
- Эгерде сиз орнотуу процессинин кайсы бир бөлүгү боюнча күмөн санасаңыз, квалификациялуу автоунаа технигинен жардам сураңыз.
3. Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз:
- One pair of Spyder Auto 444-CCRZ11-LTDRL-BK Projector Headlights (Left and Right)
- High Beam Bulbs (H1 type, pre-installed)
- Low Beam Bulbs (H7 type, pre-installed)
- Wiring harness for DRLs (may be integrated or separate)
4. Орнотуу (Орнотуу)
Professional installation is highly recommended for optimal performance and safety. The following steps are general guidelines and may vary depending on your specific vehicle model.
- Даярдоо: Унааны тегиз жерге токтотуп, кол тормозду басып, кыймылдаткычты өчүрүңүз. Унаанын аккумуляторунун терс терминалын сууруп алыңыз.
- Access Existing Headlights: Depending on your vehicle, you may need to remove the front bumper, grille, or fender liners to access the mounting bolts of the factory headlights. Consult your vehicle's service manual for specific removal procedures.
- Remove Factory Headlights: Disconnect the electrical connectors from the factory headlights. Unbolt and carefully remove the old headlight assemblies.
- Жаңы фараларды орнотуу: Carefully position the new Spyder Auto Projector Headlights into the vehicle's headlight openings. Secure them with the factory mounting bolts. Do not overtighten.
- Зымдарды туташтыруу:
- Connect the main headlight harness to the vehicle's factory headlight connector.
- Connect the DRL wiring. The Light Tube DRLs typically require a separate power connection. This may involve tapping into an ignition-switched power source (e.g., fuse box) or connecting to an existing DRL circuit if your vehicle has one. Ensure proper polarity.
- Сыноо функциясы: Before reassembling the vehicle, reconnect the battery and test all headlight functions: low beam, high beam, turn signals (if integrated), and DRLs.
- Фараларды багыттоо: Properly aim the headlights according to local regulations and vehicle specifications to ensure optimal visibility and prevent blinding oncoming traffic. This often requires a professional aiming station.
- Унааны кайра чогултуу: Once all functions are verified and headlights are aimed, reassemble any removed vehicle components (bumper, grille, etc.).

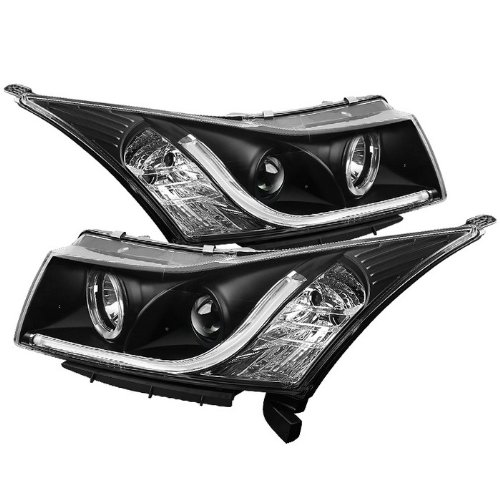

Image: Spyder Auto 444-CCRZ11-LTDRL-BK Projector Headlight. This image shows the complete headlight assembly, illustrating its design and components before installation into the vehicle.
5. Иштөө нускамалары
Once installed, the operation of your Spyder Auto Projector Headlights will largely follow your vehicle's standard lighting controls:
- Алыскы нурлар: Activate via your vehicle's headlight switch. These headlights use H7 bulbs for low beam illumination.
- Алыскы нурлар: Activate via your vehicle's high beam stalk or switch. These headlights use H1 bulbs for high beam illumination.
- Daytime Running Lights (DRLs): The integrated Light Tube DRLs will typically illuminate automatically when the vehicle's ignition is on, provided they are wired correctly to an ignition-switched power source. They are designed to increase your vehicle's visibility during daylight hours.
6. Техникалык тейлөө
- Тазалоо: Clean the headlight lenses regularly with a soft cloth and mild automotive soap or glass cleaner. Avoid abrasive cleaners or harsh chemicals that can damage the lens material or clear coat.
- Лампаны алмаштыруу: If a high beam (H1) or low beam (H7) bulb burns out, replace it with a bulb of the same type and wattage. Refer to your vehicle's service manual for access to the bulb housings. Avoid touching the glass of new bulbs with bare hands, as oils can reduce bulb life.
- Clear Coat Maintenance: Over time, the protective clear coat on the headlight lenses may degrade due to UV exposure and environmental factors. To maintain clarity and prevent yellowing or chipping, regular application of a UV protectant or a headlight clear coat restoration kit may be necessary. If chipping occurs, buffing the surface monthly can help maintain appearance.
- Зымдарды текшерүү: Periodically check all wiring connections for corrosion, fraying, or loose terminals. Ensure all connections remain secure and insulated.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Headlights (low or high beam) do not illuminate. | Blown bulb, loose wiring connection, blown fuse, faulty headlight switch. | Check and replace bulbs. Inspect wiring connections. Check vehicle's fuse box for blown headlight fuses and replace if necessary. Consult a technician if the switch is suspected. |
| DRLs do not illuminate. | Incorrect DRL wiring, loose connection, blown fuse in DRL circuit. | Verify DRL wiring connections and ensure they are connected to an ignition-switched power source. Check for any dedicated DRL fuses. |
| Moisture inside headlight assembly. | Condensation (normal in some conditions), improper seal, damaged housing. | Small amounts of condensation that dissipate quickly are normal. If persistent or excessive, check for proper sealing around the housing and bulb caps. Contact support if damage is suspected. |
| Headlight beam is too high or too low. | Improper headlight aiming. | Adjust headlight aim using the adjustment screws on the back of the housing. Refer to your vehicle's manual or a professional for proper aiming procedures. |
8. Техникалык шарттар
- Модель номери: 444-CCRZ11-LTDRL-BK
- High Beam Bulb Type: H1 (Included)
- Low Beam Bulb Type: H7 (Included)
- DRL Type: Light Tube
- Түсү: Кара турак жай
- Элемент Салмагы: Approximately 408 g (per assembly)
- Ассамблея талап кылынат: No (headlight assembly comes pre-assembled)
9. Кепилдик жана колдоо
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Spyder Auto website. Keep your proof of purchase for warranty claims. If you encounter issues not covered in this manual, please contact Spyder Auto customer service or your authorized dealer for assistance.
