1. Киришүү

This manual provides comprehensive instructions for the safe and efficient operation of your Flysky FS-GT3C RC Transmitter and FS-GR3E Receiver. The FS-GT3C is a 2.4GHz 3-channel radio controller designed for remote control cars and boats, featuring high receiving sensitivity, low power consumption, and stable performance through its AFHDS (Automatic Frequency Hopping Digital System).

Please read this manual thoroughly before using the product to ensure proper setup, operation, and maintenance.

2. Коопсуздук чаралары

• RC моделиңизди ар дайым коопсуз жана жоопкерчиликтүү иштетиңиз.
• Ensure the transmitter and receiver are properly bound and functioning before operation.
• Буюмга зыян келтирбөө үчүн суудан жана нымдан алыс кармаңыз.
• Do not disassemble or modify the product, as this may void the warranty and cause malfunction.
• Колдонулбаган учурда продуктуну салкын, кургак жерде сактаңыз.
• Keep out of reach of small children. Recommended age for use is 14 months and up.

3. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• Flysky FS-GT3C Transmitter
• Flysky FS-GR3E кабыл алгычы
• USB заряддоо кабели
• Binding Plug
• Extra Grip (Large)
• Колдонуучунун Колдонмосу (бул документ)

Figure 3.1: Complete package contents of the Flysky FS-GT3C system.

4. Продукт бүтүп калдыview

The Flysky FS-GT3C is a sophisticated yet user-friendly radio control system. Familiarize yourself with its main components and features:

Figure 4.1: Flysky FS-GT3C Transmitter and FS-GR3E Receiver.

4.1 Өткөргүчтүн өзгөчөлүктөрү

• Арткы жарыктуу LCD экран: Provides clear display of settings and telemetry data.
• Эргономикалык дизайн: Rounded edges and comfortable grip for extended use.
• 90° Rotation Handwheel: Allows for precise steering control.
• Full Angle Gain Antenna: Enhances passive anti-interference capabilities.
• Кайра заряддалуучу Li-ion Батарея: Powers the transmitter, eliminating the need for disposable AA batteries.
• Low Voltage Ойготкуч: Alerts you when the battery needs recharging.

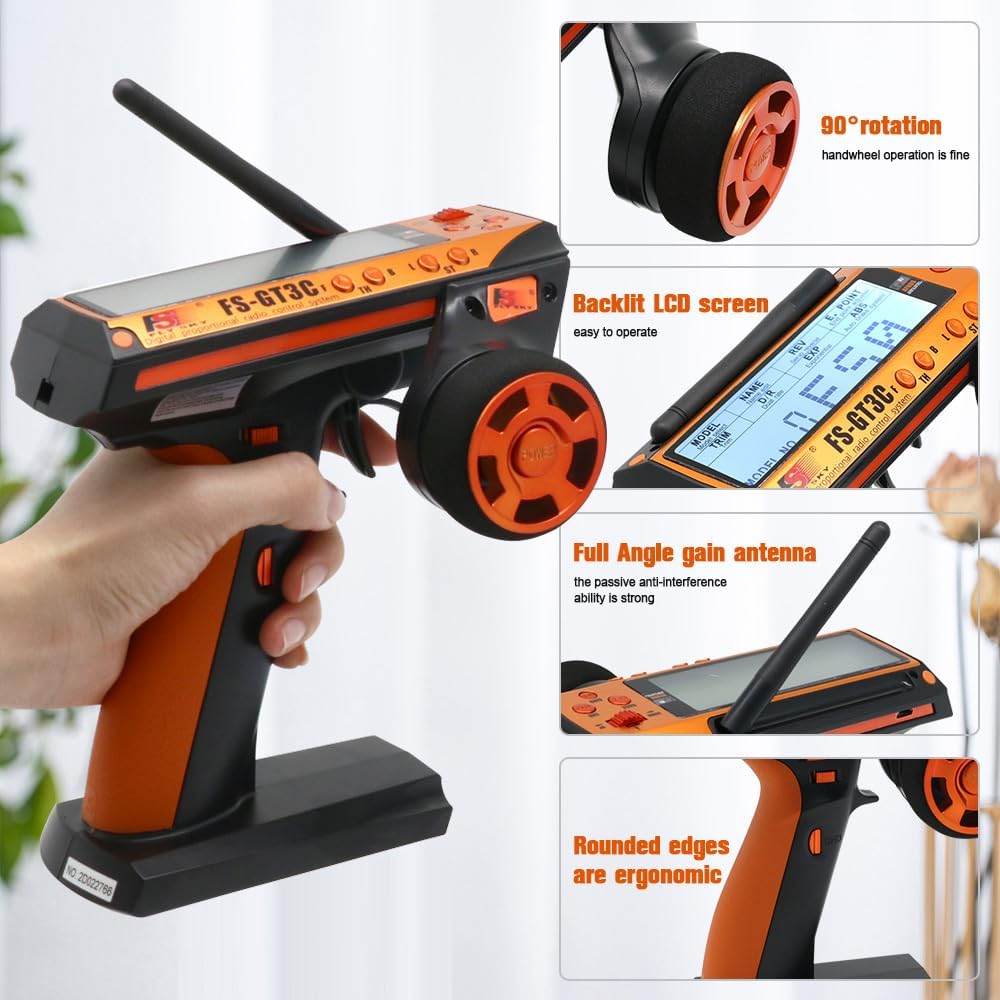

Figure 4.2: Key features of the FS-GT3C Transmitter.

4.2 Transmitter Controls and Display

Refer to the diagram below for a detailed layout of the transmitter's controls and LCD display elements:

Figure 4.3: FS-GT3C Transmitter labeled diagram.

• LCD дисплей: Shows current settings, channel values, and model information.
• Антенна: Transmits the 2.4GHz signal to the receiver.
• Кол дөңгөлөгү: Controls steering (Channel 1).
• дроссель триггери: Controls throttle (Channel 2).
• Троссовка (TH.TRIM): Adjusts the neutral point of the throttle.
• Рулдук тескөө (ST.TRIM): Adjusts the neutral point of the steering.
• Channel 3 Switch (CH3): Controls the third channel, often used for auxiliary functions.
• Buttons (ENTER, DOWN, UP, BACK, END, BIND): Used for menu navigation, setting adjustments, and binding.

5. Орнотуу

5.1 Батареяны орнотуу жана заряддоо

The FS-GT3C transmitter is powered by a rechargeable 3.7V Li-ion battery. To install or replace the battery, open the battery compartment cover located at the bottom of the transmitter handle. Connect the battery and close the cover securely.

To charge the transmitter, connect the included USB charging cable to the charging port on the transmitter and a USB power source (e.g., computer USB port, USB wall adapter). The LCD screen will indicate charging status. A full charge typically takes 1-2 hours.

5.2 Кабылдагычтын туташуусу

The FS-GR3E receiver has three channels. Connect your steering servo to Channel 1 (ST), your Electronic Speed Controller (ESC) to Channel 2 (TH), and any auxiliary components (e.g., lights, winch) to Channel 3 (CH3). Ensure correct polarity when connecting components.

Figure 5.1: FS-GR3E Receiver and Binding Plug.

5.3 Өткөргүчтү жана кабыл алгычты байланыштыруу

Binding is the process of linking the transmitter and receiver so they communicate exclusively. Follow these steps:

1. Ensure the transmitter is turned OFF.
2. Insert the binding plug into the B/VCC port on the FS-GR3E receiver.
3. Connect power to the receiver (e.g., from the ESC or a separate battery). The receiver's LED should flash rapidly.
4. While holding down the BIND button on the transmitter, turn the transmitter ON.
5. The receiver's LED should turn solid, indicating successful binding.
6. Release the BIND button on the transmitter, then turn OFF both the transmitter and receiver.
7. Байланыштыруучу сайгычты кабыл алгычтан чыгарыңыз.
8. Turn on the transmitter first, then the receiver. The receiver's LED should be solid, confirming the link.

For a visual guide on the binding process and other setup procedures, please watch the official product video below:

6. Иштөө нускамалары

Once your transmitter and receiver are successfully bound, you can begin operating your RC model. Always ensure your model is placed on a stable surface and clear of obstacles before powering on.

6.1 Негизги башкаруу каражаттары

Figure 6.1: Steering and Throttle Control.

• Башкаруу башкаруу: Rotate the handwheel clockwise to turn right, and counter-clockwise to turn left.
• дроссель башкаруу: Pull the trigger towards you for forward movement (acceleration). Push the trigger away from you for braking or reverse.

6.2 Меню багыттоо жана орнотуулар

The FS-GT3C features an intuitive menu system accessible via the LCD screen and control buttons. Use the UP/DOWN buttons to navigate through options, ENTER to select, and BACK to return to the previous screen.

Key adjustable settings include:

• ТРИМ: Fine-tunes the neutral position of steering and throttle.
• D/R (Кош ставка): Adjusts the maximum steering angle or throttle throw.
• REV (Тескери): Reverses the direction of a channel's output.
• Экспоненциалдык (экспоненциалдык): Adjusts the sensitivity of the control around the center point.
• ABS (блокировкага каршы тормоз системасы): Provides pulsed braking to prevent wheel lock-up.
• E.POINT (End Point Adjustment): Sets the maximum travel for each channel.
• MODEL NO.: Allows you to save and load settings for up to 10 different RC models.

Consult the on-screen menus for specific adjustments and their effects. Experiment with settings in a safe, open area until you achieve desired control characteristics.

7. Техникалык тейлөө

• Тазалоо: Өткөргүч менен ресиверди тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Эриткичтерди же абразивдүү тазалагычтарды колдонуудан алыс болуңуз.
• Сактагыч: When not in use for extended periods, store the transmitter and receiver in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the battery is partially charged (around 50%) for long-term storage to prolong its lifespan.
• Батареяга кам көрүү: Recharge the transmitter battery regularly. Avoid fully discharging the Li-ion battery, as this can reduce its lifespan.
• Антеннага кам көрүү: Do not bend or apply excessive force to the antenna.

8. Кыйынчылыктарды

If you encounter issues not listed here, or if solutions do not resolve the problem, please contact Flysky customer support.

9. Техникалык шарттар

9.1 Receiver Compatibility

The FS-GR3E receiver is compatible with a range of Flysky transmitters. Refer to the compatibility chart below:

Figure 9.1: FS-GR3E Receiver Compatibility Chart.

10. Кепилдик жана колдоо

Please note the legal disclaimer regarding this product: "Buy as is NO refund". For any technical support or inquiries, please refer to the official Flysky webсайтка же сатуучуга кайрылыңыз.

For additional information and resources, you may visit the official Flysky Store: Flysky Store on Amazon.
