1. Маанилүү коопсуздук нускамалары
Please read these safety instructions carefully before using the Steba SV 100 PROFESSIONAL Sous-Vide Cooker. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ар дайым шайман туура том менен жерге туташтырылган электр розеткасына туташып турганын текшериңизtage (230V).
- Do not immerse the entire appliance in water. Only the stainless steel part and heating element are designed for water contact.
- Keep the water level between the 'MIN' and 'MAX' markings on the appliance. Operating outside these levels can damage the unit or pose a safety risk.
- Do not touch hot surfaces. The heating element and water will become very hot during operation. Use oven mitts or allow to cool before handling.
- Балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
- Do not operate the appliance if the power cord or plug is damaged, or if the appliance malfunctions or has been dropped. Contact customer support for repair.
- Ensure the appliance is securely clamped to a stable pot or container before use.
- Шайманды колдонбогондо жана тазалоодон мурун электр розеткасынан сууруп алыңыз.
2. Продукт бүтүп калдыview
The Steba SV 100 PROFESSIONAL is a high-performance immersion circulator designed for precise sous-vide cooking. It features a powerful pump and accurate temperature control to ensure consistent results.
Компоненттери:
- Башкаруу панели: LCD display for temperature and time settings, and control buttons.
- Жылытуу элементи: Submerged in water to heat it to the desired temperature.
- Суу насосу: Circulates water for even temperature distribution.
- Жөнгө салынуучу Clamp: Secures the device to the side of a cooking pot.
- МИН/МАКСИМАЛДУУ СУУ ДЕҢГЭЭЛИНИН БЕЛГИЛЕРИ: Indicate the safe operating water levels.
3. Орнотуу
Follow these steps to set up your sous-vide cooker for the first time.
- Идишти тандаңыз: Select a heat-resistant pot or container with a minimum depth of 15 cm (approximately 6 inches). The pot should be large enough to accommodate the food you plan to cook and allow for proper water circulation.
- Бышыруучуну тиркөө: Securely attach the Steba SV 100 to the side of your chosen pot using the adjustable clamp. Ensure the device is stable and upright.
- Суу менен толтуруу: Fill the pot with water. Make sure the water level is between the 'MIN' and 'MAX' markings on the stainless steel part of the immersion circulator. Do not overfill or underfill.
- Туташуу кубаты: Plug the power cord into a standard 230V grounded electrical outlet. The display will illuminate.
4. Иштөө нускамалары
The Steba SV 100 features an intuitive control panel for setting temperature and time.

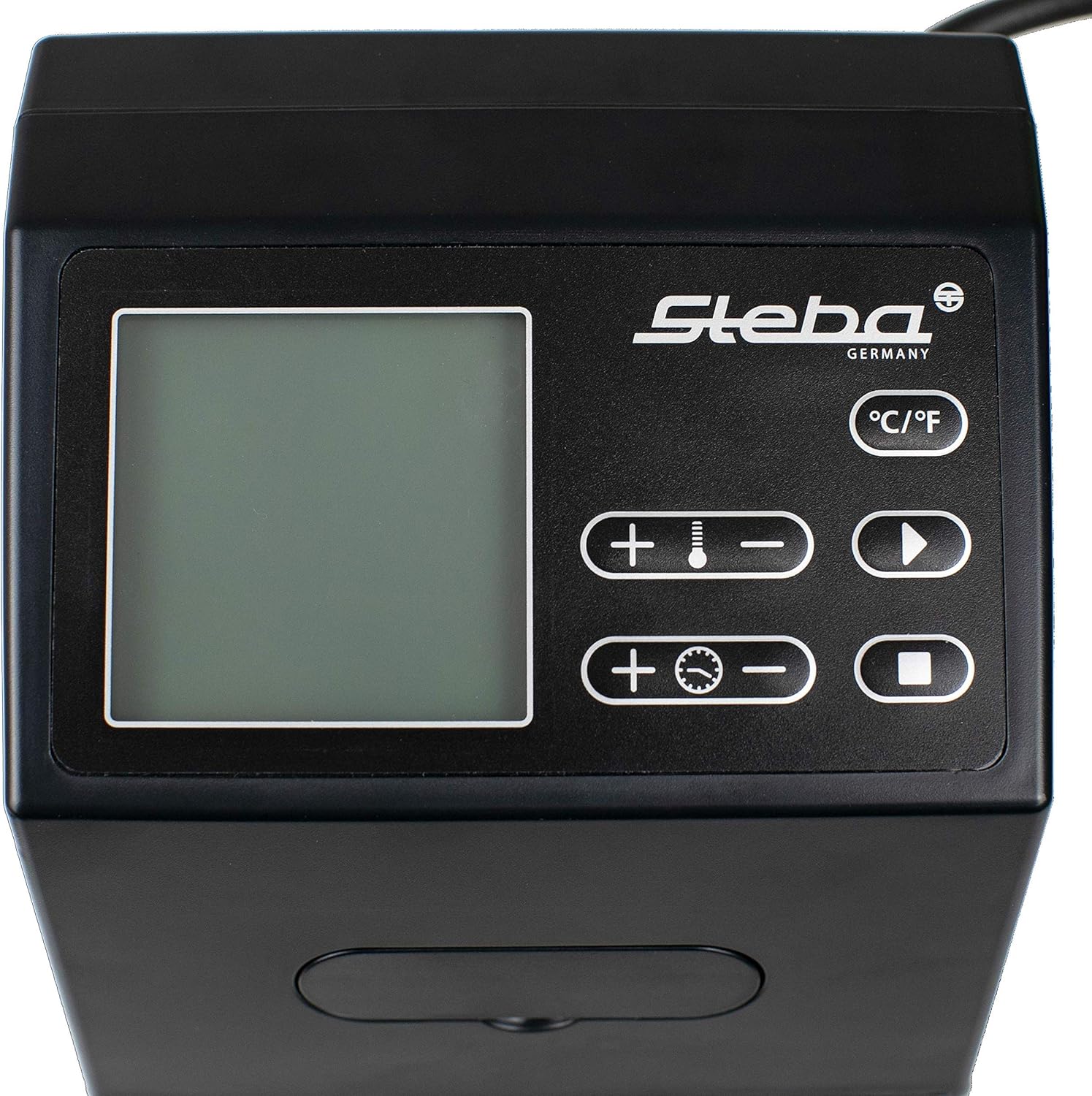

Башкаруу панелинин функциялары:
- LCD дисплей: Shows selected temperature, current water temperature, and timer.
- °C/°F баскычы: Цельсий жана Фаренгейт температура бирдиктери ортосунда которулат.
- Температураны жөндөө баскычтары (+/-): Максаттуу температураны жогорулатуу же азайтуу үчүн колдонулат.
- Timer Adjustment Buttons (+/-): Бышыруу узактыгын орнотуу үчүн колдонулат.
- Баштоо/Токтотуу баскычы (Ойнотуу/Тындыруу сүрөтчөсү): Бышыруу процессин баштайт же тындырат.
Температураны жана убакытты орнотуу:
- With the unit plugged in, the display will show the current water temperature.
- Press the temperature adjustment buttons (+/-) to set your desired cooking temperature. The temperature can be set between 5°C and 99°C with a precision of 0.1°C.
- Press the timer adjustment buttons (+/-) to set your desired cooking time.
- Once temperature and time are set, press the Start/Stop button to begin heating the water. The pump will activate, circulating water at 7.5 L/min.
Sous-Vide Cooking Process:
- Prepare your food and vacuum-seal it in a food-grade, heat-safe pouch.
- Once the water reaches the target temperature, carefully place the sealed food pouch into the water bath. Ensure the pouch is fully submerged.
- The timer will count down the set cooking duration.
- After the cooking time is complete, the unit may beep or stop heating. Carefully remove the food pouch from the water bath.
- For best results, finish meats by searing in a hot pan or on a grill to develop a crust.
5. Техникалык тейлөө жана тазалоо
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Steba SV 100.
Күнүмдүк тазалоо:
- Ар бир колдонгондон кийин шайманды розеткадан сууруп, толук муздаганга чейин күтүңүз.
- Wipe the exterior of the control panel and the stainless steel body with a damp кездеме. Абразивдүү тазалагычтарды колдонбоңуз.
- Ensure no water enters the top electrical components.
Какты тазалоо (зарылына жараша):
Over time, mineral deposits from water may accumulate on the heating element. Descale the unit when you notice reduced performance or visible buildup.
- Fill a pot with water to the 'MAX' line.
- Add 1 cup (240ml) of white vinegar or a descaling solution suitable for kitchen appliances.
- Attach the sous-vide cooker and set the temperature to 60°C (140°F).
- Run the unit for 30 minutes.
- Unplug, allow to cool, and rinse the stainless steel part thoroughly with clean water.
Сактагыч:
Таза жана кургак шайманды салкын, кургак жерде, тике күндүн нурунан жана нымдан алыс сактаңыз.
6. Кыйынчылыктарды
If you encounter issues with your Steba SV 100, refer to the following common problems and solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | Электр энергиясы жок. | Электр шнурунун иштеген розеткага бекем сайылганын текшериңиз. |
| Суу жылыбайт. | Start button not pressed; heating element malfunction. | Ensure the Start/Stop button has been pressed. If still not heating, contact customer support. |
| Water level error (e.g., E01). | Water level is below 'MIN' or above 'MAX'. | Adjust water level to be between the 'MIN' and 'MAX' markings. |
| Inconsistent temperature. | Poor water circulation; mineral buildup. | Ensure food pouches do not block water flow. Perform descaling if necessary. |
| Иш учурунда адаттан тыш ызы-чуу. | Pump obstruction; mineral buildup. | Check for any foreign objects near the pump intake. Perform descaling. |
If the problem persists after trying these solutions, please contact Steba customer support.
7. Техникалык шарттар
Detailed technical specifications for the Steba SV 100 PROFESSIONAL Sous-Vide Cooker.
- Модель номери: 05.10.00
- Күч: 1500 Ватт
- Тtage: 230 вольт
- Power Pump: 7.5 литр/мүнөт
- Температура диапазону: 5°Cден 99°Cге чейин (41°F—210°F)
- Температуранын тактыгы: 0.1°C
- Дисплей түрү: LCD
- Башкаруу ыкмасы: тийүү

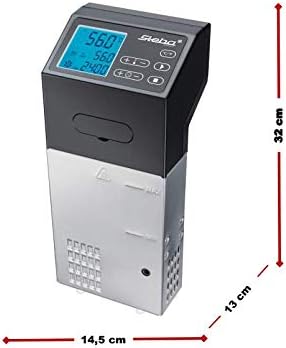

- Өлчөмдөрү (L x W x Y): 13 x 14.5 x 32 см (5.1 x 5.7 x 12.6 дюйм)
- Салмагы: 2 килограмм (4.4 фунт)
- Материал: Пластик, дат баспас болоттон жасалган
- Түсү: Кара, Дат баспас болот
- Суу өткөрбөйт рейтинги: IPX7 (30 мүнөткө 1 метрге чейин чөмүлүү)
- Maximum Pot Capacity: 30 литрге чейин
8. Кепилдик жана колдоо
Steba products are manufactured with quality and durability in mind. For warranty information, please refer to the warranty card included with your purchase or visit the official Steba webсайт.
For technical support, troubleshooting assistance, or spare parts, please contact Steba customer service. Contact details can typically be found on the product packaging or the official Steba webсайт.
