Yamaha RX-V377 5.1-Channel A/V Home Theater Receiver

1. Киришүү

The Yamaha RX-V377 is a 5.1-channel A/V home theater receiver designed to deliver powerful surround sound and advanced features for an immersive audio-visual experience. Key features include a discrete amplifier configuration, YPAO sound optimization, 4K Ultra HD pass-through, and a front USB input for portable devices. This receiver is engineered for high sound clarity and flexible home theater setups.

This manual provides detailed instructions for setting up, operating, and maintaining your RX-V377 receiver, ensuring optimal performance and longevity.

2. Орнотуу

2.1 Таңгактан чыгаруу жана алгачкы текшерүү

Carefully remove all components from the packaging. Ensure all accessories, including the remote control and YPAO microphone, are present. Inspect the receiver for any signs of damage.

2.2 Connecting Your Speakers

The RX-V377 supports a 5.1-channel speaker configuration. For optimal sound, connect your speakers as follows:

• Алдыңкы динамиктер (сол/оң): FRONT L/R терминалдарына туташтырыңыз.
• Борбордук спикер: CENTER терминалына туташыңыз.
• Көлөмдүү динамиктер (сол/оң): SURROUND L/R терминалдарына туташыңыз.
• ЛГурченко: Connect to the SUBWOOFER PRE OUT terminal.

For users who cannot place surround speakers in the rear, the Virtual CINEMA FRONT feature allows for virtual 5-channel surround sound with all speakers positioned at the front.

2.3 Connecting Audio/Video Devices

Utilize the HDMI inputs for high-definition sources such as Blu-ray players, gaming consoles, and streaming devices. The RX-V377 features 4K Ultra HD pass-through, 3D support, and Audio Return Channel (ARC) functionality.

• HDMI: Connect up to 4 HDMI input devices and 1 HDMI output to your TV/projector.
• USB: A front panel USB port allows direct digital connection for iPod/iPhone, providing high-quality audio and charging.
• Оптикалык/коаксиалдык: Digital audio inputs are available for other audio sources.
• Analog Audio/Video: Multiple analog inputs are provided for legacy devices.

2.4 YPAO үн оптималдаштыруу

The Yamaha Parametric Acoustic Optimizer (YPAO) automatically analyzes your room acoustics and adjusts various audio parameters for optimal sound. Connect the supplied YPAO microphone to the front panel and follow the on-screen instructions for automatic speaker setup.

Сүрөт 2.4.1: Алдыңкы view of the Yamaha RX-V377 receiver, showing the YPAO microphone and remote control.

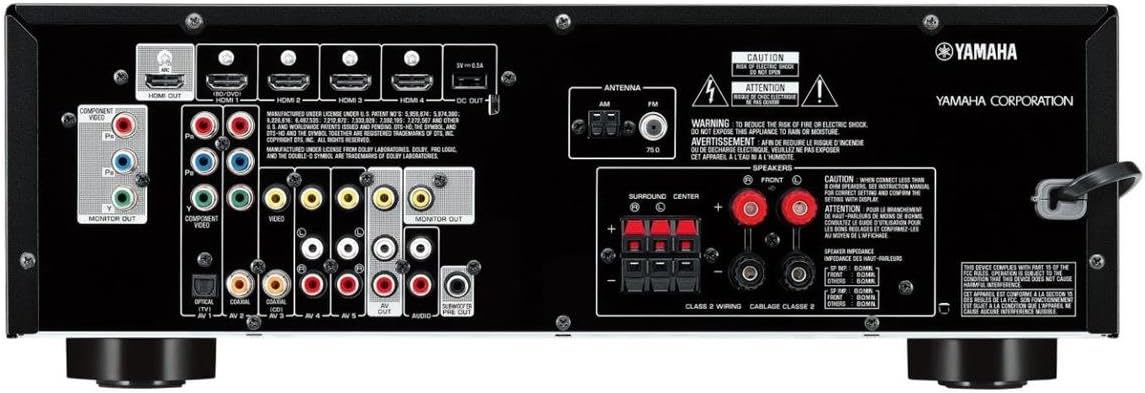

Figure 2.4.2: Rear panel of the Yamaha RX-V377 receiver, illustrating various input and output connections.

2.5 Тармакка туташуу

The RX-V377 supports network features, allowing access to streaming services like Spotify, Pandora, and vTuner. For models with built-in Wi-Fi, direct wireless connectivity simplifies setup and daily use of network sources. An optional YBA-11 Bluetooth wireless adapter can be connected for Bluetooth streaming.

3. Иштөө

3.1 Негизги операция

• SCENE Buttons: Pressing a SCENE button powers on the receiver, selects the input source, and applies a specific DSP mode. These can be customized.
• HDMI CEC: When connected to a CEC-compatible TV, the receiver can power on/off with the TV, and TV remote can control receiver volume.

3.2 Аудиону жакшыртуу

• CINEMA DSP: Yamaha's exclusive CINEMA DSP technology supports HD Audio playback (Dolby TrueHD, DTS-HD Master Audio), providing natural and expansive sound imaging.
• Кошумча бас: This feature enriches powerful bass sound, even with small speakers, by enhancing low-range frequencies.
• Subwoofer Trim Control: Improves sound imaging by preventing overlap between front speaker output and subwoofer frequencies, resulting in a cleaner, more focused soundstage.
• Compressed Music Enhancer: Restores lost frequencies in digitally compressed music formats (like MP3) using sophisticated digital signal processing.

3.3 Көп зоналуу аудио

For models supporting Zone 2 audio, you can enjoy different audio sources in separate rooms. Party Mode allows both zones to play the same source simultaneously with zero audio delay.

3.4 AV Controller App

Control your receiver effortlessly from your smartphone or tablet using the Yamaha AV Controller App (available for iOS and Android). This app allows you to select music, adjust volume, change DSP modes, and access various settings.

4. Техникалык тейлөө

4.1 Тазалоо

To maintain the appearance and performance of your receiver, regularly wipe the exterior with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or chemical cloths, as these may damage the finish. Ensure the unit is powered off and unplugged before cleaning.

4.2 Вентиляция

Ensure adequate ventilation around the receiver to prevent overheating. Do not block ventilation openings or place the unit in an enclosed space without proper airflow. Avoid placing other components directly on top of the receiver.

4.3 Программалык камсыздоо жаңыртуулары

Мезгил-мезгили менен Yamaha текшерүү website for any available firmware updates for your RX-V377 receiver. Updates can improve performance, add new features, or resolve potential issues. Follow the instructions provided with the update carefully.

5. Кыйынчылыктарды

If you encounter issues with your RX-V377 receiver, refer to the following common troubleshooting steps:

• Кубат жок: Check the power cord connection and ensure the power outlet is functional.
• Үн жок: Verify speaker connections, input source selection, and volume levels. Ensure mute is not activated. Run YPAO again if speaker settings seem incorrect.
• Сүрөт жок: Булак, ресивер жана сыналгы ортосундагы HDMI кабелдик байланыштарды ырастаңыз. Ресиверде жана сыналгыда туура киргизүү тандалганын текшериңиз.
• Алыстан башкаруу иштебейт: Check battery levels and ensure there are no obstructions between the remote and the receiver's IR sensor.
• Тармакка туташуу маселелери: Wi-Fi же Ethernet туташууңузду ырастаңыз. Роутериңизди жана кабыл алгычты өчүрүп күйгүзүңүз.

For more detailed troubleshooting, consult the comprehensive owner's manual available on the Yamaha support webсайт.

6. Техникалык шарттар

7. Кепилдик жана колдоо

7.1 Өндүрүүчүнүн кепилдиги

The Yamaha RX-V377 receiver is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage. Retain your proof of purchase for warranty claims.

7.2 Кардарларды колдоо

For technical assistance, product inquiries, or service requests, please contact Yamaha customer support. Visit the official Yamaha webбайланыш маалыматы, көп берилүүчү суроолор жана кошумча ресурстар үчүн сайт.
