Introduction
This manual provides instructions for the proper installation, operation, and maintenance of your Jones Stephens A01-021 Aerators. Please read these instructions carefully before installation and retain them for future reference. These aerators are designed to regulate water flow and conserve water in compatible faucets.
Коопсуздук маалыматы
- Always turn off the water supply to the faucet before attempting any installation or maintenance.
- Use appropriate tools and avoid over-tightening to prevent damage to the aerator or faucet.
- Тумчугуп калуу коркунучун болтурбоо үчүн кичинекей бөлүктөрүн балдардан алыс кармаңыз.
- Ensure proper disposal of old aerators and packaging materials.
Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- Six (6) Jones Stephens A01-021 Aerators
- Clear plastic storage tube

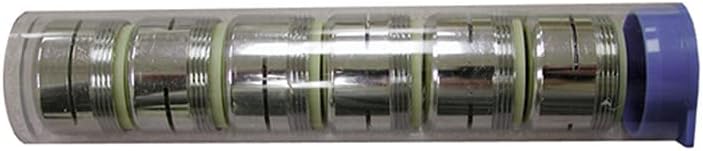

This image displays six Jones Stephens A01-021 aerators, each featuring a metallic body with a light green O-ring, neatly arranged inside a transparent plastic tube. The tube is sealed with a purple cap on one end. These aerators are designed for faucet installation to regulate water flow.
Орнотуу жана орнотуу
Follow these steps to install your new aerator:
- Суу менен камсыздоону өчүрүү: Locate the shut-off valves under your sink and turn them clockwise to completely stop the water flow to the faucet.
- Remove Existing Aerator: Most aerators can be unscrewed by hand. If it is too tight, use an aerator wrench or pliers with a cloth to avoid scratching the faucet finish. Turn counter-clockwise to remove.
- Clean Faucet Spout: Inspect the faucet spout for any debris or mineral buildup. Clean thoroughly to ensure a proper seal with the new aerator.
- Identify Thread Type: The Jones Stephens A01-021 aerators feature dual threads: 15/16"-27 male x 55/64"-27 female. Determine if your faucet has male or female threads and select the appropriate side of the aerator for installation.
- Install New Aerator: Screw the new aerator onto the faucet spout clockwise. Hand-tighten only. Do not use tools to over-tighten, as this can damage the aerator or faucet.
- Суу менен камсыздоону калыбына келтирүү: Slowly turn the water supply valves counter-clockwise to restore water flow.
- Агышууларды текшерүү: Turn on the faucet and check for any leaks around the aerator connection. If a leak occurs, gently tighten the aerator a small amount until the leak stops.
Иштөө нускамалары
Once installed, the aerator operates automatically with your faucet. Simply turn on the faucet as usual. The aerator will mix air into the water stream, providing a consistent, splash-free flow while conserving water.
Техникалык тейлөө
Regular cleaning of your aerator is recommended to maintain optimal water flow and prevent mineral buildup.
- Тазалоо жыштыгы: Clean the aerator every 3-6 months, or more frequently in areas with hard water.
- Тазалоо кадамдары:
- Кранга суу берүүнү өчүрүү.
- Unscrew the aerator from the faucet spout.
- Disassemble the aerator components (screen, washer, flow restrictor).
- Rinse all components under running water to remove loose debris.
- For stubborn mineral deposits, soak the components in a solution of equal parts white vinegar and water for 30 minutes to an hour.
- Калган калдыктарды акырын сүртүү үчүн кичинекей щетканы (мисалы, эски тиш щеткасын) колдонуңуз.
- Rinse thoroughly and reassemble the aerator, ensuring all components are correctly seated.
- Screw the cleaned aerator back onto the faucet spout and restore water supply.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Суунун аз агымы | Clogged aerator screen due to mineral buildup or debris. | Remove and clean the aerator as described in the Maintenance section. |
| Water leaks around the aerator | Aerator not tightened sufficiently, damaged washer, or incorrect installation. | Gently tighten the aerator. If leaking persists, remove, inspect the washer for damage, and re-install carefully. Replace the washer if damaged. |
| Aerator does not fit | Incorrect thread size for your faucet. | Verify your faucet's thread type and size. The A01-021 features 15/16"-27 male x 55/64"-27 female dual threads. |
Техникалык шарттар
- Модель номери: A01021
- Бренд: Жонс Стивенс
- Жип түрү: Dual thread (15/16"-27 male x 55/64"-27 female)
- Саны: 6 aerators per tube
- Материал: Коргошунсуз курулуш
- Элемент Салмагы: Approximately 0.16 ounces (per tube)
- Продукциянын өлчөмдөрү: Болжол менен 8 x 6 x 6 дюйм (таңгактоо)
Кепилдик
Jones Stephens products are manufactured to high-quality standards. For specific warranty information, please refer to the official Jones Stephens webсайтка же түздөн-түз кардарларды колдоо менен байланышыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
Колдоо
For further assistance, technical support, or to inquire about replacement parts, please contact Jones Stephens customer service through their official website or the contact information provided with your purchase. When contacting support, please have your product model number (A01-021) available.
