Huskie Tools S-240 24 мм гидравликалык кесүүчү куралды колдонуучунун колдонмосу

1. Киришүү

This manual provides essential information for the safe and effective operation, maintenance, and care of your Huskie Tools S-240 24mm Manual Hydraulic Cutting Tool. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

The S-240 is a robust manual hydraulic cutting tool designed for cutting various materials, including guy wire, anchor rod, and most overhead and underground cables. Its anvil-style, center-cut blades are engineered to minimize jamming and are easily replaceable in the field. Constructed from high-grade steel with black zinc oxide coating for corrosion resistance, the tool features rubber handle grips for comfortable use. A flip-top latch allows for easy insertion of cables and wires, and the head can rotate up to 180 degrees for optimal positioning and leverage.

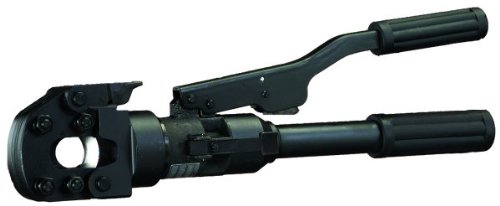

Figure 1: Huskie Tools S-240 Manual Hydraulic Cutting Tool. This image displays the complete tool, highlighting its robust construction, cutting head, and ergonomic handles.

2. Коопсуздук маалыматы

Always prioritize safety when operating any hydraulic cutting tool. Failure to follow safety instructions can result in serious injury or property damage.

• Тиешелүү жеке коргонуу шаймандарын (ЖКК) кийиңиз: Always wear safety glasses, gloves, and other necessary protective gear to prevent injury from flying debris or sharp edges.
• Колдонуудан мурун куралды текшериңиз: Before each use, inspect the tool for any signs of damage, wear, or loose components. Do not use a damaged tool.
• Коопсуз жумуш бөлүгү: Ensure the material to be cut is stable and properly secured to prevent movement during the cutting process.
• Жумуш ордун таза кармоо: Keep the work area free of obstructions and ensure adequate lighting.
• Туура кармоо: Иштеп жаткан учурда аспаптын туткаларын бекем кармап туруңуз.
• Ашыкча жүктөөдөн качыңыз: Do not attempt to cut materials beyond the tool's specified capacity.
• МААНИЛҮҮ ЭСКЕРТҮҮ: Do not cut EHS (Extra High Strength) guy wire with this tool. Cutting EHS guy wire can damage the tool and pose a safety risk.
• Сактагыч: Store the tool in a clean, dry place, out of reach of children and unauthorized personnel.

3. Компоненттери жана өзгөчөлүктөрү

The Huskie Tools S-240 is designed for efficiency and durability. Key features include:

• Anvil Style Center Cut Blades: Designed for clean cuts and to prevent material jamming.
• Алмаштылуучу бычактар: Blades can be easily replaced in the field, extending the tool's lifespan.
• Flip-Top Latch: Allows for quick and easy opening of the tool jaw to insert cables and wires.
• Rotational Head: The tool head can be rotated up to 180 degrees, providing flexibility for optimal wire positioning and operator leverage in various working conditions.
• Туруктуу курулуш: Made of high-grade steel with a black zinc oxide coating for enhanced corrosion resistance.
• Ergonomic Grips: Rubber handle grips provide comfort and a secure hold during operation.

4. Орнотуу

Before initial use, ensure the tool is clean and free from any packaging materials. No complex assembly is required for the S-240 as it is a manual hydraulic tool.

1. Куралды таңгактан чыгаруу: Carefully remove the S-240 from its packaging.
2. Алгачкы текшерүү: Visually inspect the tool for any shipping damage or manufacturing defects. Check that the blades are securely fastened and the handles operate smoothly.
3. Өзүңүз менен таанышыңыз: Understand the function of the flip-top latch, the rotational head mechanism, and the cutting action before attempting to cut any material.

5. Иштөө нускамалары

Follow these steps for safe and effective operation of your S-240 cutting tool:

1. Материалды даярдоо: Identify the material to be cut and ensure it is within the tool's capacity. Remember, do not cut EHS guy wire.
2. Open the Jaw: Engage the flip-top latch to open the cutting jaw.
3. Материалды жайгаштырыңыз: Place the cable or wire into the open jaw, ensuring it is seated properly between the blades. Utilize the 180-degree rotational head to achieve the best angle and leverage for the cut.
4. Close the Latch: Securely close the flip-top latch.
5. Кесүүнү баштоо: With a firm grip on both handles, slowly and steadily squeeze the handles together. The hydraulic mechanism will engage, and the blades will close to cut the material. Apply consistent pressure until the cut is complete.
6. Release and Remove: Once the cut is made, release the handles. Open the flip-top latch and remove the cut material.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your S-240 tool.

• Тазалоо: After each use, clean the blades and jaw area to remove any debris or material residue. Use a dry cloth or a brush. Avoid using harsh chemicals that could damage the tool's finish.
• Майлоо: Жылмакай иштешин камсыз кылуу үчүн, мезгил-мезгили менен айланма чекиттерге жана кыймылдуу бөлүктөргө жеңил машина майын сүйкөп туруңуз.
• Бычакты алмаштыруу: The anvil-style blades are designed for easy field replacement. Refer to the blade replacement kit instructions for detailed steps. Ensure replacement blades are genuine Huskie Tools parts.
• Сактагыч: Store the tool in a clean, dry environment. If storing for extended periods, ensure it is lightly oiled and protected from moisture.

7. Кыйынчылыктарды

If you encounter issues with your S-240 tool, consider the following common troubleshooting steps:

• Tool Not Cutting Effectively:
  • Check if the blades are dull or damaged. Replace if necessary.
  • Ensure the material being cut is within the tool's capacity and not EHS guy wire.
  • Verify that the material is properly seated in the jaw.
• Handles Stiff or Difficult to Operate:
  • Clean any debris from the pivot points.
  • Кыймылдуу бөлүктөргө майлоочу каражаттарды колдонуңуз.
  • Check for any physical obstructions or damage to the handle mechanism.
• Jaw Not Opening/Closing Smoothly:
  • Inspect the flip-top latch for damage or obstruction.
  • Clean and lubricate the latch mechanism.

If problems persist after attempting these steps, contact Huskie Tools customer support for further assistance.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Information regarding product warranty and customer support is typically provided with the product packaging or available on the manufacturer's official website. For specific warranty details or technical assistance, please refer to the documentation included with your purchase or visit the Huskie Tools Store.
