XtremepowerUS 13-inch Sand Filter and 3/4HP Pool Pump Instruction Manual

Маанилүү коопсуздук маалыматы

Read and understand all instructions before installing, operating, or maintaining this product. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.

• Кандайдыр бир тейлөөнү же тейлөөнү аткаруудан мурун ар дайым электр кубатын ажыратыңыз.
• Ensure the pump and filter are installed on a level, solid surface.
• Do not operate the pump if the suction or discharge lines are blocked.
• Never run the pump dry. Ensure the pump is primed with water before starting.
• Балдарды жабдуулардан алыс кармаңыз.
• Use only approved electrical connections and ensure proper grounding.
• Do not exceed the maximum operating pressure of the filter.

Продукт бүттүview

The XtremepowerUS 13-inch Sand Filter with 3/4HP Pool Pump is designed for efficient water filtration in above-ground swimming pools up to 10,000 gallons. It features a durable sand filter tank, a powerful pump, and a digital programmer for automated operation.

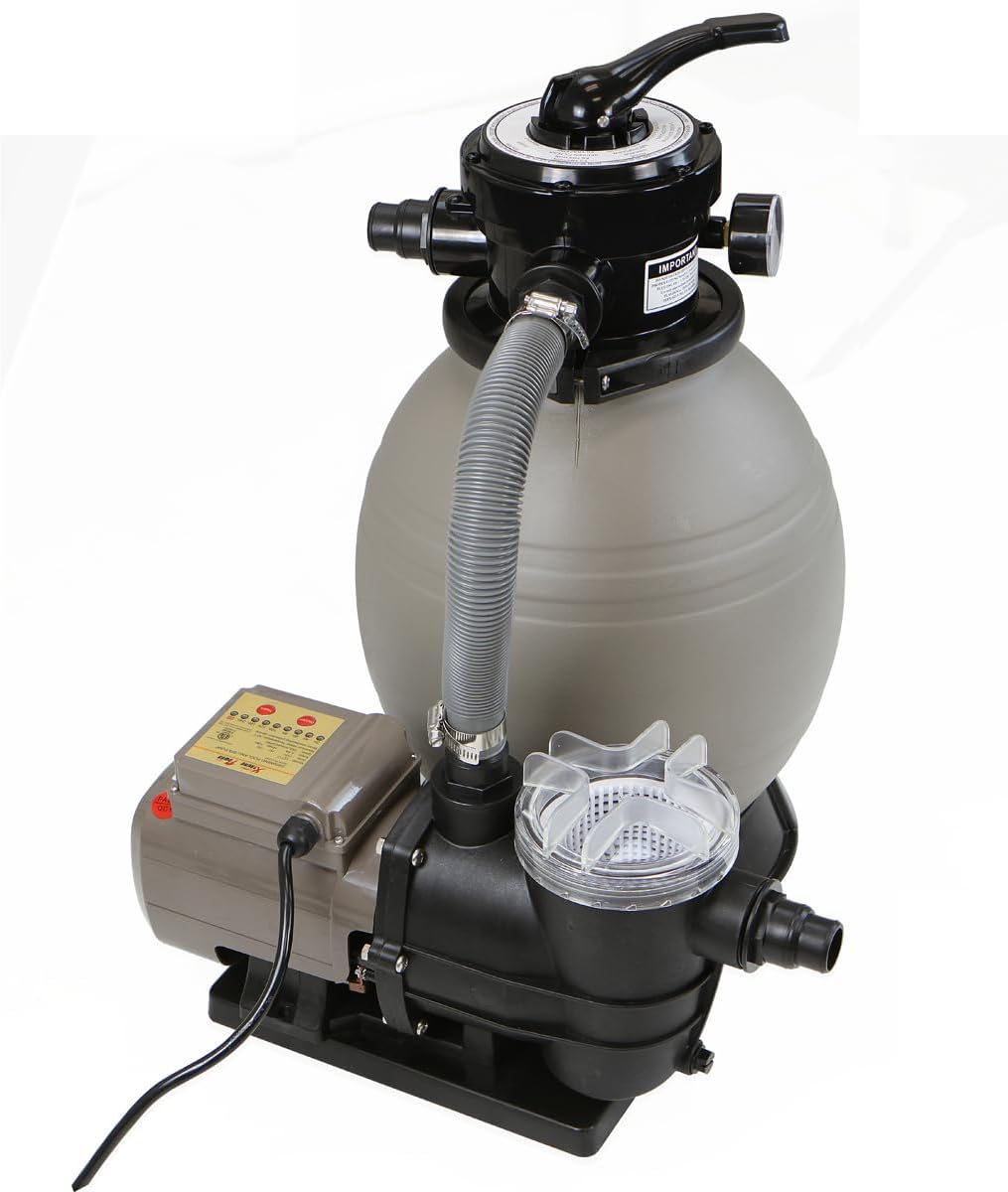

Image: The complete XtremepowerUS 13-inch sand filter and 3/4HP pool pump system, showing the sand tank, pump, and multi-port valve.

Орнотуу жана орнотуу

This system is designed for straightforward installation. Ensure all components are present before beginning.

Компоненттерди текшерүү тизмеси:

• Кум чыпкалоочу бак
• 3/4HP бассейн насосу
• Көп порттуу клапан
• Басым өлчөгүч
• Шлангдар жана Клamps (some adapters/hoses sold separately)
• Pump Basket with Clear Lid
• Digital Programmer/Timer

Этап-этабы менен орнотуу:

1. Позициялоо: Place the filter and pump on a firm, level surface near the pool, ensuring adequate drainage and protection from weather.
2. Кум менен толтуруу: Remove the multi-port valve from the top of the filter tank. Cover the standpipe opening inside the tank to prevent sand from entering. Carefully pour approximately 42 lbs of filter sand (not included) into the tank. Ensure the sand level is appropriate for optimal filtration.
3. Multi-port Valve Installation: Clean any sand from the tank opening. Carefully place the multi-port valve onto the tank, ensuring the standpipe aligns correctly with the valve's opening. Secure the valve to the tank using the provided clamp or flange.
4. Насос туташуу: Connect the pump to the filter tank using the provided hose and clamps. The pump's discharge port connects to the 'PUMP' port on the multi-port valve.
5. Бассейн байланыштары: Connect the pool's skimmer/suction line to the pump's inlet. Connect the pool's return line to the 'RETURN' port on the multi-port valve. This system includes 1.25"/1.5" NPSM threaded connections; ensure compatible hoses and adapters are used.
6. Басым өлчөгүч: Install the pressure gauge into the designated port on the multi-port valve.
7. Электр байланышы: Plug the 3-prong power cord into a properly grounded 115V electrical outlet. The integrated controller allows for programming.

Сүрөт: бурчтуу view of the sand filter and pump, illustrating the connections between the pump and the multi-port valve.

Сүрөт: жакын план view of the hose connection secured with a clamp to the multi-port valve, demonstrating proper assembly.

Иштөө нускамалары

Before starting the pump, ensure all connections are secure and the pump is primed with water.

Насосту толтуруу:

• Ensure the pump basket is full of water.
• Open all suction and return valves to the pool.
• Set the multi-port valve to the 'WASTE' position.
• Turn on the pump. Water should begin to flow. Once a steady stream of water is observed, turn off the pump.
• Proceed with backwashing as described in the Maintenance section.

Multi-port Valve Settings:

The 4-way valve offers multiple settings for various pool maintenance tasks. Always turn off the pump before changing the valve position.

• ФИЛТРАЦИЯ: This is the standard operating mode for daily pool cleaning. Water flows from the pool, through the filter sand, and back to the pool.
• АРТКА ЖУУ: Used to clean the filter sand. Water flows in reverse through the filter, flushing trapped debris out through the waste port.
• ЖУУ: Used after backwashing to flush any remaining dirty water from the valve and pipes to the waste port, and to settle the sand bed.
• КЫШ: Used for winterizing the filter system. Consult your winterization guide for specific instructions.

Сүрөт: деталдуу view of the 4-way multi-port valve, showing the handle and various operational settings.

Digital Programmer/Timer:

The integrated controller allows for programmable operation from 2 to 24 hours. It supports two operational modes:

• Үзгүлтүксүз режим: For daily, recurring filtration cycles.
• Бир цикл режими: For one-time operation.

Refer to the control panel for specific button functions and programming steps. The control panel typically includes ON/OFF and TIME setting buttons.

Image: A collage showing key components: the digital control panel with timer settings, the pump basket, the multi-port valve, and the pressure gauge.

Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө сиздин кум чыпкалоо системаңыздын оптималдуу иштешин жана узак мөөнөттүү иштешин камсыз кылат.

Фильтрди кайра жуу:

Backwash when the pressure gauge reading rises 8-10 PSI above its clean operating pressure, or when water clarity diminishes.

1. Насосту өчүрүңүз.
2. Set the multi-port valve to 'BACKWASH'.
3. Turn on the pump. Allow it to run for 2-3 minutes, or until the water flowing out of the waste port appears clear.
4. Насосту өчүрүңүз.
5. Set the multi-port valve to 'RINSE'.
6. Turn on the pump. Run for 30-60 seconds to rinse the sand bed.
7. Насосту өчүрүңүз.
8. Set the multi-port valve to 'FILTRATION'.
9. Turn on the pump to resume normal operation.

Сүрөт: жакын план view of the pressure gauge, indicating pressure in PSI and bar, essential for monitoring filter performance and determining when to backwash.

Cleaning the Pump Basket:

Periodically check and clean the pump's pre-filter basket to ensure unrestricted water flow.

• Насосту өчүрүп, суунун агып кетишине жол бербөө үчүн бардык керектүү клапандарды жабыңыз.
• Unscrew the clear lid of the pump basket.
• Remove the basket and empty any debris.
• Себетти суу менен жакшылап чайкаңыз.
• Replace the basket and secure the lid, ensuring the O-ring is properly seated for a watertight seal.

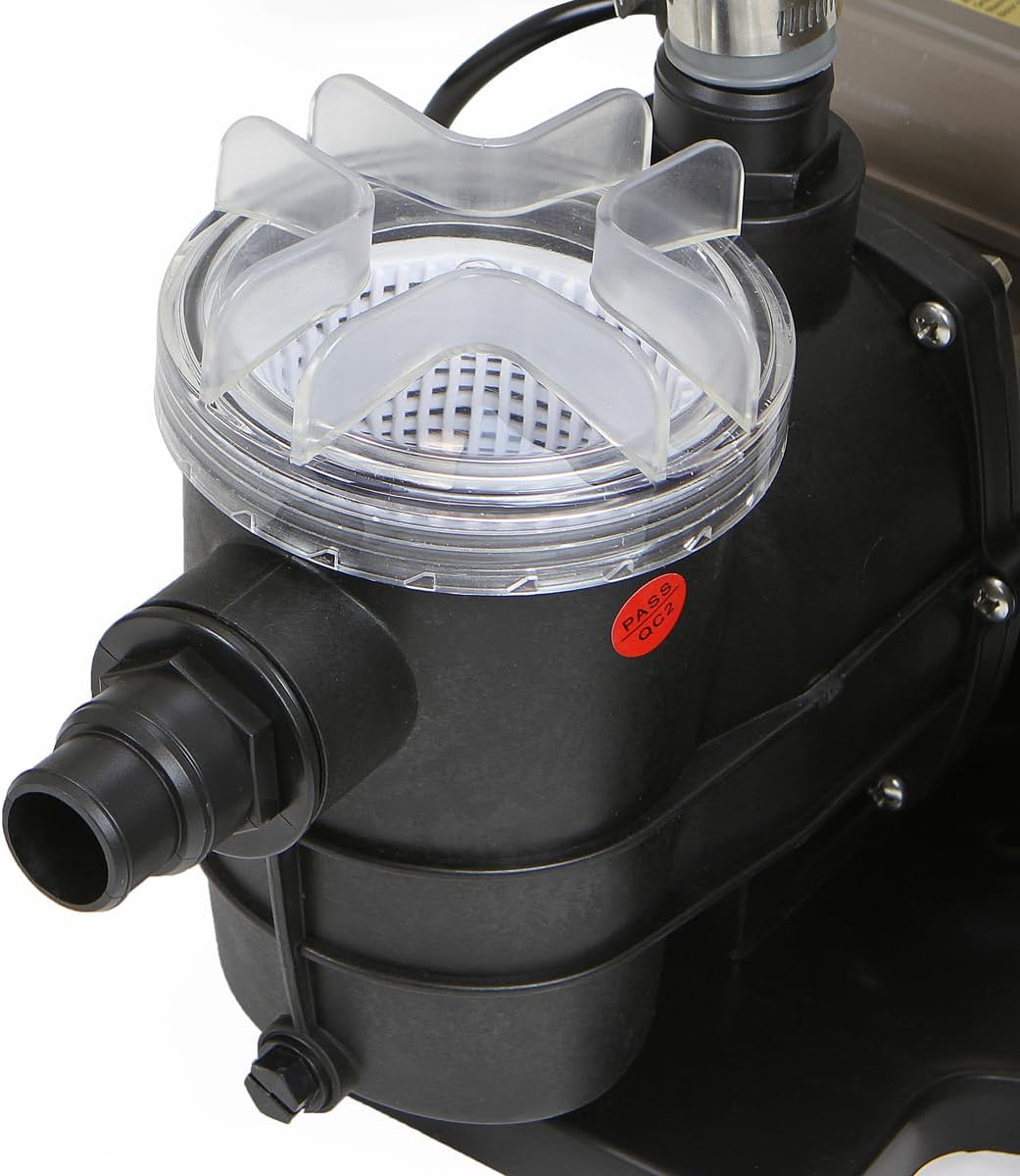

Сүрөт: жакын план view of the pump basket, showing the clear lid and the internal strainer, which collects larger debris before it reaches the pump impeller.

Кумду алмаштыруу:

Filter sand typically lasts 3-5 years, depending on usage and water quality. Replace sand when filtration efficiency significantly decreases despite regular backwashing.

Проблемаларды чечүү

Бул бөлүм сиз кабылышы мүмкүн болгон жалпы көйгөйлөрдү карайт.

Техникалык шарттар

• Бренд: XtremepowerUS
• Модель номери: 75159
• Продукциянын өлчөмдөрү: 17"L x 14"W x 22"H
• Элемент Салмагы: 26 фунт
• Кубат булагы: Электр зымдары
• Тtage: 115 вольт
• Максималдуу агым ылдамдыгы: Мүнөтүнө 44 литр (болжол менен 2,640 галлон/саат)
• Максималдуу көтөрүү бийиктиги: 10 метр
• Материал: ABS пластик
• Стиль: Pool Filter and Pool Pump
• Продукт үчүн атайын колдонуу: Жер үстүндөгү бассейн
• Кумдун кубаттуулугу: 42 фунт
• UPC: 633585757740

Кепилдик жана колдоо

For warranty information or technical support, please refer to the documentation included with your purchase or contact XtremepowerUS customer service directly. Keep your proof of purchase for any warranty claims.
