JBL Spearfishing Profile Line Reel R100W User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the JBL Spearfishing Profile Line Reel, model R100W. Designed for both metal and wood spearguns, this heavy-duty, low-profile reel is engineered for landing large game fish. Please read these instructions thoroughly before use to ensure proper function and safety.

Пакеттин мазмуну

• JBL Spearfishing Profile Line Reel (R100W)
• Монтаждык база
• Анкерлік бурамалар
• Adapter Plates (flat for wood spearguns, curved for metal spearguns)

Image: The JBL Spearfishing Profile Line Reel, featuring its compact design with black spool and bright green components for adjustment and mounting.

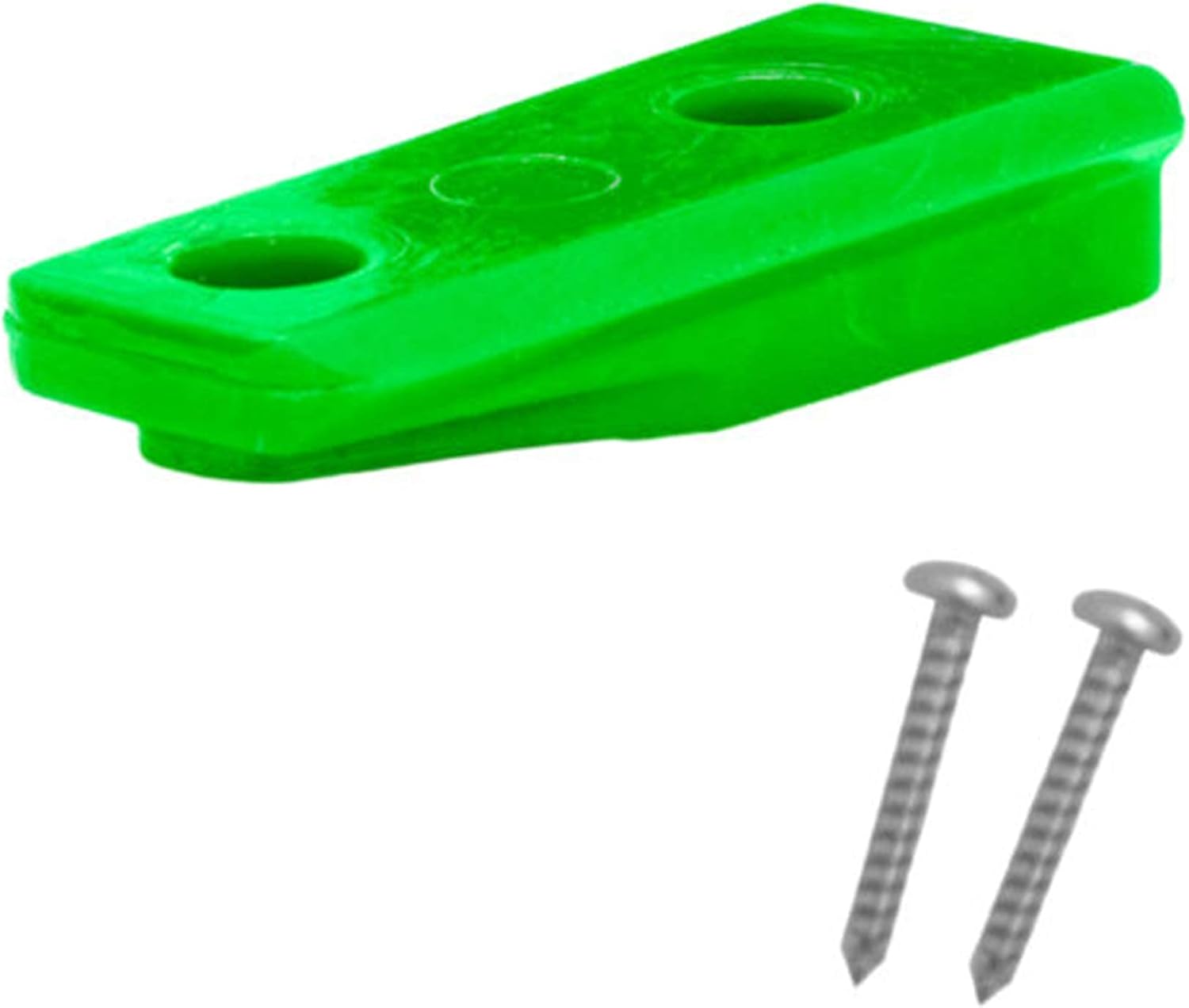

Image: The green mounting base and two anchor screws, essential components for attaching the reel to a speargun.

Орнотуу жана орнотуу

1. Identify Speargun Type: Determine if your speargun is made of wood or metal.
   • For wood spearguns, use the flat adapter plate.
   • For metal spearguns, use the curved adapter plate.
   • Spearguns with dovetail style accessory mounts (e.g., JBL Reaper Series) do not require adapter plates.
2. Position the Mounting Base: Place the appropriate adapter plate (if needed) and the mounting base onto the speargun in the desired location. Ensure it does not interfere with the speargun's trigger mechanism or line release.
3. Secure the Mounting Base: Use the provided anchor screws to firmly attach the mounting base to the speargun. Ensure a secure fit to prevent movement during use.
4. Attach the Reel: Slide the JBL Profile Line Reel onto the secured mounting base. The reel should click into place or be secured with a locking mechanism, if present.
5. Spool the Line: Carefully spool approximately 150 feet of JBL shooting line onto the reel. Ensure the line is evenly distributed to prevent tangles and ensure smooth deployment.

Image: The JBL Profile Line Reel securely mounted on a metal speargun, demonstrating proper installation and line spooling. Note: Reel line is sold separately.

Image: The JBL Profile Line Reel attached to a wooden speargun, illustrating its compatibility with different speargun materials. Note: Reel line is sold separately.

Иштөө нускамалары

The JBL Profile Line Reel features a multi-disc drag system designed for controlling large game fish. Proper operation ensures effective line management and successful retrieves.

1. Adjusting Drag: The drag knob, typically located at the center of the reel, allows you to adjust the tension on the line.
   • Turn clockwise to increase drag tension.
   • Turn counter-clockwise to decrease drag tension.
   • Set the drag to a level that allows the fish to pull line without breaking it, but still provides enough resistance to tire the fish.
2. Line Deployment: When a fish is shot and attempts to swim away, the reel's drag system will allow the line to deploy smoothly. Ensure there are no obstructions that could snag the line.
3. Retrieving Line: To retrieve the line, use the handle to manually wind the line back onto the spool. Maintain appropriate drag settings during retrieval to manage any sudden runs by the fish.

Техникалык тейлөө

Regular maintenance will extend the life and ensure the reliable performance of your JBL Spearfishing Profile Line Reel.

• Колдонгондон кийин жуу: After each use in saltwater, thoroughly rinse the reel with fresh water to remove salt, sand, and debris. This prevents corrosion and maintains smooth operation.
• Inspect Line: Regularly inspect your shooting line for fraying, cuts, or wear. Replace damaged line immediately to prevent loss of fish.
• Бурамаларды текшерүү: Periodically check all mounting screws and connections to ensure they remain tight.
• Майлоо: Apply a small amount of marine-grade lubricant to moving parts, such as the drag system and handle mechanism, as needed. Avoid over-lubrication.
• Сактагыч: Store the reel in a cool, dry place away from direct sunlight and extreme temperatures.

Проблемаларды чечүү

If you encounter issues with your JBL Spearfishing Profile Line Reel, refer to the following common problems and solutions:

• Line Tangles or Snags:
  • Ensure the line is spooled evenly and not overfilled.
  • Check for any burrs or sharp edges on the reel or speargun that could catch the line.
  • Inspect the line for twists; unwind and respool if necessary.
• Drag System Not Functioning Properly:
  • Verify the drag knob is correctly adjusted (clockwise for more tension, counter-clockwise for less).
  • Rinse the reel thoroughly to remove any sand or debris that might be interfering with the drag washers.
  • Эгер көйгөй чечилбесе, JBL кардарларды колдоо кызматына кайрылыңыз.
• Reel Feels Loose on Speargun:
  • Tighten the anchor screws securing the mounting base to the speargun.
  • Ensure the correct adapter plate (flat for wood, curved for metal) is used and properly seated.

Техникалык шарттар

Кепилдик жана колдоо

JBL International has been manufacturing spearfishing gear for over 40 years, known for durability and reliability. For specific warranty information or technical support, please contact JBL customer service directly.

You can visit the official JBL website or refer to the product packaging for the most current contact details.

Онлайн ресурстар:Amazon'догу JBL дүкөнүнө барыңыз
