Introduction
This manual provides detailed instructions for the Casio W-S220C-7BVCF Digital Solar Watch. Designed for active lifestyles, this timepiece features solar power, 100-meter water resistance, and advanced functions like a 120-lap memory stopwatch and dual countdown timers for interval training. Please read this manual thoroughly to ensure proper use and care of your watch.
Image: The Casio W-S220C-7BVCF watch displayed on a wrist, showing its digital interface and white band.
Жайгашуу
Баштапкы заряддоо
Your Casio W-S220C-7BVCF watch is equipped with Tough Solar power, utilizing a solar rechargeable battery. Before initial use, or if the display is blank or dim, expose the watch face to bright light for several hours. Direct sunlight is most effective. Ensure the watch is not covered by clothing during charging. A full charge provides approximately 11 months of operation without further light exposure under normal use.
Image: An illustration highlighting the solar charging capability of Casio watches.
Убакыт жана дата орнотуу
Учурдагы убакытты жана датаны орнотуу үчүн:
- Убакытты эсепке алуу режиминде басып, кармап туруңуз ЖӨНДӨӨ шаар коду өчүп баштаганга чейин баскычты басыңыз. Бул орнотуу режимин көрсөтөт.
- колдонуу ТАНДОО button to cycle through the settings (city code, daylight saving time, 12/24-hour format, seconds, hour, minute, year, month, day).
- колдонуу START/STOP жана ТАПТАК/БӨЛҮҮ buttons (or FWD/REV) to change the flashing value.
- Бардык орнотуулар туура болгондон кийин, басыңыз ЖӨНДӨӨ орнотуу режиминен чыгуу үчүн баскыч.
Иштөө нускамалары
Баскыч функциялары
Your watch features five buttons for various operations:
- ЖӨНДӨӨ: Used to enter and exit setting modes, and to adjust settings.
- РЕЖИМ: Cycles through the different operational modes (Timekeeping, Stopwatch, Timer, Alarm, World Time).
- ТАНДОО: Used to select items within a setting mode or to change display information.
- START/STOP (FWD): Starts and stops the stopwatch or timer. Also used to advance values during setting.
- LAP/SPLIT (REV): Records lap/split times in stopwatch mode. Also used to reverse values during setting.
- ЖАРЫК: Жарыктандыруу үчүн LED арткы жарыгын иштетет.

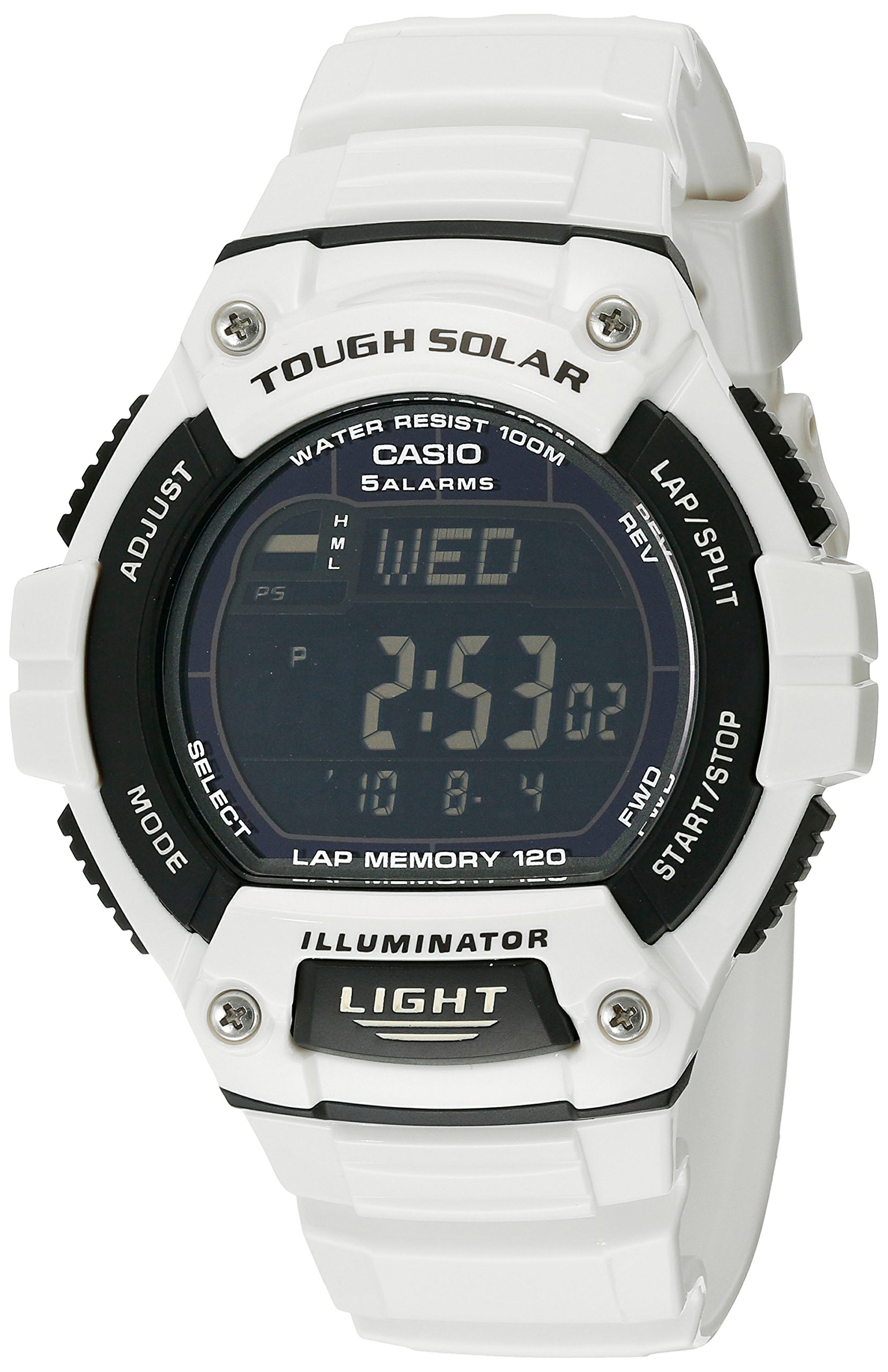

Сүрөт: алдыңкы view of the Casio W-S220C-7BVCF watch, clearly showing the digital display and the labels for each button.
Убакытты сактоо режими
Бул учурдагы убакытты, жуманын күнүн жана датаны көрсөтүүчү демейки режим. басыңыз ТАНДОО button to toggle between different display formats, such as day of the week and month/day.
Секундомер режими
The stopwatch measures elapsed time, split times, and two finishes. It has a 1/100 second accuracy and a 120-lap memory. To use:
- Басыңыз РЕЖИМ until you reach the Stopwatch Mode.
- Басыңыз START/STOP убакытты баштоо үчүн.
- Басыңыз ТАПТАК/БӨЛҮҮ to record lap or split times.
- Басыңыз START/STOP убакытты токтотуу үчүн дагы.
- Басыңыз ЖӨНДӨӨ секундомерди нөлгө коюу үчүн.
Таймер режими
The watch features two countdown timers designed for interval training. These timers operate sequentially.
- In Timekeeping Mode, press РЕЖИМ until you reach the Timer Mode.
- Басып кармап туруңуз ЖӨНДӨӨ until the timer setting starts to flash.
- Колдонуу ТАНДОО to choose between Timer 1 and Timer 2 settings.
- Колдонуу START/STOP жана ТАПТАК/БӨЛҮҮ to set the desired countdown times for each timer.
- Басыңыз ЖӨНДӨӨ орнотуу режиминен чыгуу үчүн.
- To start the timers, press START/STOP. Timer 1 will count down, then automatically transition to Timer 2 after an alert.
- Басыңыз START/STOP again to pause, and to resume. Press ЖӨНДӨӨ to reset the timers.
Ойготкуч режими
The watch includes four daily alarms and one snooze alarm. An hourly убакыт сигналы да жандырылышы мүмкүн.
- Басыңыз РЕЖИМ until you reach the Alarm Mode.
- Колдонуу ТАНДОО сигналдар (AL1, AL2, AL3, AL4, SNZ, SIG) аркылуу айлануу.
- Ойготкучту коюу үчүн, басып кармап туруңуз ЖӨНДӨӨ when the desired alarm is displayed.
- Колдонуу START/STOP жана ТАПТАК/БӨЛҮҮ ойготкуч убактысын коюуга.
- Басыңыз ЖӨНДӨӨ ырастоо жана чыгуу.
- Басыңыз START/STOP to toggle the alarm or hourly signal on/off.
Дүйнөлүк убакыт режими
View the current time in 31 time zones (48 cities + UTC). To use:
- Басыңыз РЕЖИМ until you reach the World Time Mode.
- Колдонуу START/STOP (FWD) and ТАПТАК/БӨЛҮҮ (REV) to scroll through different city codes.
- Басыңыз ТАНДОО to toggle Daylight Saving Time (DST) on or off for the selected city.
LED жарык (жарыктандыруучу)
басыңыз ЖАРЫК button to illuminate the display for easy reading in low-light conditions. The light duration is preset.
Video: A detailed product video showcasing the Casio W-S220C-7BVCF watch from various angles, demonstrating its design and features.
Техникалык тейлөө
Тазалоо
Regularly clean your watch with a soft, dry cloth. For stubborn dirt on the resin band and case, use a mild soap solution and a soft brush, then rinse thoroughly with fresh water and dry completely. Avoid using harsh chemicals or abrasive cleaners.
Суу каршылык
Your watch is water resistant to 100 meters (330 feet). This means it is suitable for swimming, showering, and snorkeling. However, to maintain water resistance, do not operate any buttons while the watch is submerged in water. Avoid exposing the watch to hot water or steam, as this can compromise the seals.
Батареяга кам көрүү
To ensure optimal performance of the solar rechargeable battery, expose the watch to light regularly. If the watch is stored in darkness for extended periods, the battery level may drop, and some functions might be disabled to conserve power. The battery level indicator on the display shows the current charge status.
Проблемаларды чечүү
Жалпы маселелер жана чечимдер
- Бош же күңүрт дисплей: This usually indicates insufficient light exposure. Place the watch in a brightly lit area, preferably direct sunlight, to charge the solar battery.
- Туура эмес убакыт/дата: The time or date may need manual adjustment. Refer to the "Time and Date Setting" section for instructions. Ensure the correct home city and Daylight Saving Time (DST) settings are selected.
- Баскычтар жооп бербейт: If buttons are not responding, the battery level might be very low. Charge the watch as described in "Initial Charging." If the issue persists after charging, a full reset might be necessary (refer to the official Casio manual for specific reset procedures, as this may clear all settings).
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | W-S220C-7BVCF (Module: 3271) |
| Иштин диаметри | 48.97 мм |
| Case Thickness | 13.57 мм |
| Band Width | 24.58 мм |
| Суу каршылык | 100 метр (330 бут) |
| Power Source | Катуу күн (күн энергиясы) |
| Дисплей түрү | Санарип |
| Кыймыл түрү | Кварц |
| Топтун материалы | чайыр |
| Иштин материалы | чайыр |
| Кристалл | Минералдык |
| Болжол менен Батареянын иштөө мөөнөтү | 11 months on full charge (without further light exposure) |
| Кошумча функциялар | LED Light with Afterglow, 4 Daily Alarms + 1 Snooze, Hourly Time Signal, World Time (31 Time Zones), 1/100-second Stopwatch, 2 Countdown Timers, Full Auto-Calendar (to 2099), 12/24-Hour Formats, Button Operation Tone On/Off, Battery Level Indicator, Power Saving Function |
Кепилдик маалымат
This Casio watch is covered by a manufacturer's warranty. For specific terms, conditions, and duration of the warranty, please refer to the warranty card included with your product or visit the official Casio webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
Кардарларды колдоо
For further assistance, detailed operational guides, frequently asked questions, or to contact customer service, please visit the official Casio website. You can also refer to the module number 3271 (found in the specifications) when searching for specific manual downloads or support resources online.
Расмий Casio Webсайт: www.casio.com
