POWERTEC 120V/230V Кош вольттууtage калакчалуу которгуч колдонуучусунун колдонмосу

Introduction

The POWERTEC 120V/230V Dual Voltage Paddle Switch (Model 71007) is an emergency safety switch designed to enhance safety in your workshop and with power tools. This switch features a straightforward design for easy integration into deep gang boxes or standard boxes with an extension ring. It allows for switching both hot and neutral lines or both phases of a 230V line. Its large, color-coded start and stop features, including a prominent red emergency stop paddle, ensure high visibility and quick access for power tool shutdown. The green start button can also be secured with a cable lock for additional safety.

This paddle switch is compatible with a wide range of popular power tools, serving as an excellent replacement for existing switches on equipment such as table saws, drill presses, band saws, router tables, and dust collection systems.

Коопсуздук маалыматы

• Always ensure the power tool is disconnected from the power source before attempting any installation, maintenance, or wiring.
• The switch is built with heavy-duty electrical components. A force range of 40-60 Newtons (9 to 13.5 pounds-force) is required to activate the switch.
• The large red emergency STOP paddle is designed for quick and easy access in emergency situations.
• The green start button can be locked with a cable lock for added safety measures, preventing unintentional startup.
• Ensure proper grounding of the circuit as per the wiring diagram and local electrical codes.
• Installation should be performed by a qualified electrician if you are unsure about the wiring process.

Орнотуу жана орнотуу

The POWERTEC Paddle Switch is designed for easy wiring into deep gang boxes or standard boxes with an extension ring. Please note that the gang box is КИРҮҮ ЭМЕС with the switch.

Монтаждоо

The switch includes M4 screws for mounting. For most domestically sourced switch boxes and box extenders, compatible 6/32" screws will be required (not included). If compatibility is a concern, consider using the POWERTEC 71834 Deep Switch Box with Hardware for a guaranteed fit.

Image: POWERTEC Paddle Switch attached to a gang box. Note that the gang box and power cord are not included.

Wiring Instructions

Refer to the following wiring diagrams for correct installation based on your voltage requirements. Ensure all connections are secure and comply with local electrical codes.

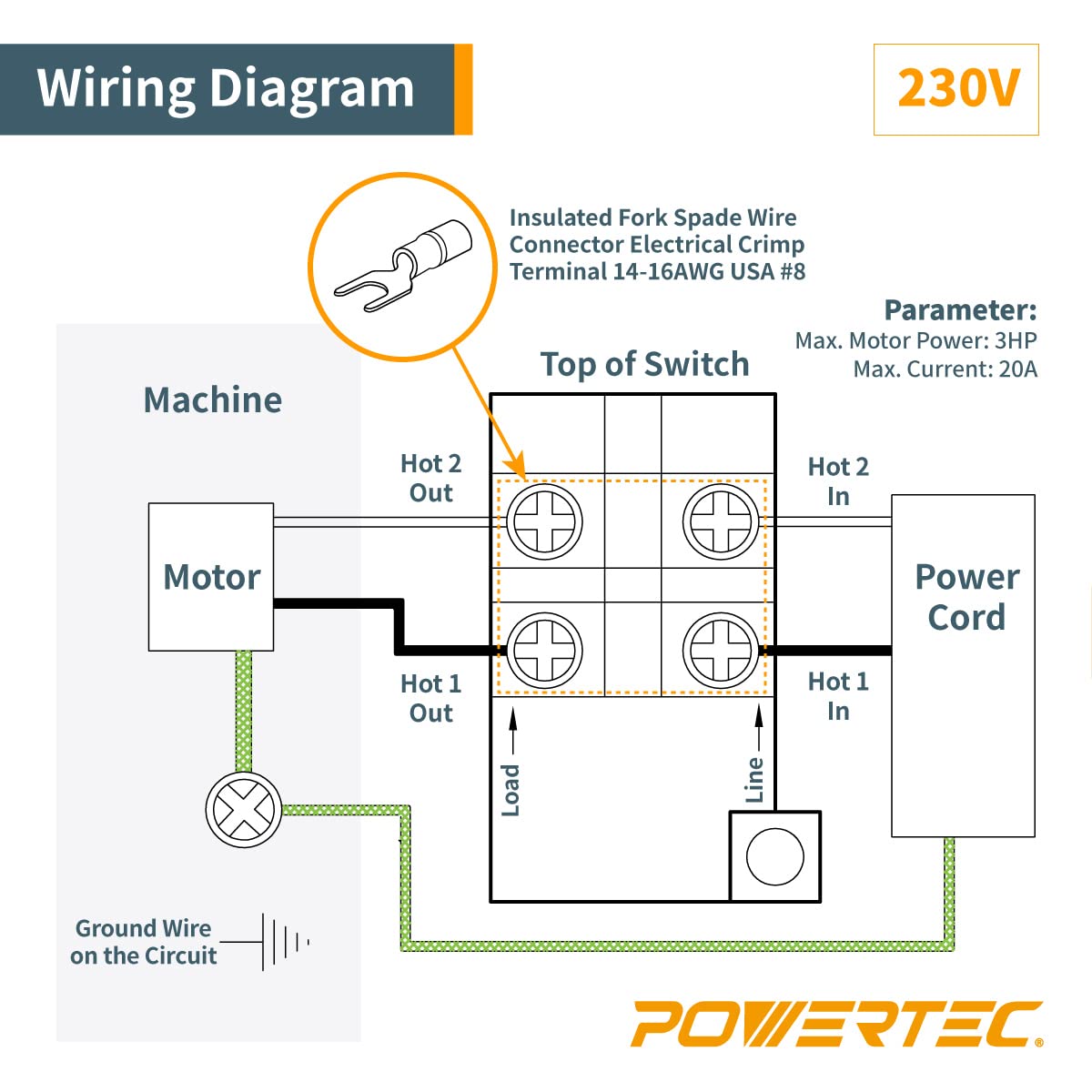

Image: General Wiring Diagram for the POWERTEC Paddle Switch. This diagram illustrates the connection of the motor, power cord, and ground wire to the switch terminals.

Image: Wiring Diagram for 230V applications. This diagram shows connections for Hot 1 In/Out and Hot 2 In/Out, along with the ground wire. Insulated fork spade wire connectors (14-16AWG USA #8) are recommended.

Image: Wiring Diagram for 120V applications. This diagram shows connections for Hot In/Out and 125V Neutral In/Out, along with the ground wire. Insulated fork spade wire connectors (14-16AWG USA #8) are recommended.

Иштөө нускамалары

The POWERTEC Paddle Switch features color-coded buttons for intuitive operation.

• Баштоо: Press the green "START" button. The switch will engage, and power will be supplied to the connected tool.
• To Stop (Normal): Press the red "STOP" button. This will disengage the switch and cut power to the tool.
• Шашылыш токтотуу: In an emergency, firmly strike the large red paddle. This action will immediately cut power to the tool, providing a quick and safe shutdown.

Сүрөт: алдыңкы view of the POWERTEC Paddle Switch, highlighting the large red STOP paddle and the green START button.

Image: A user demonstrating the activation of the large red emergency STOP paddle, which can be easily pressed with a knee for rapid shutdown.

Маанилүү эскертүү: The switch requires a force of 40-60 Newtons (approximately 9 to 13.5 pounds-force) to activate. This ensures a firm and deliberate action for both starting and stopping the connected equipment.

Техникалык тейлөө

The POWERTEC Paddle Switch is designed for durability and requires minimal maintenance. Periodically inspect the switch for any signs of wear, damage, or loose connections. Ensure the paddle moves freely and the buttons operate smoothly. Keep the switch clean and free from dust and debris, especially in woodworking environments. Do not attempt to disassemble the switch; refer to a qualified technician for any repairs beyond basic wiring connections.

Проблемаларды чечүү

If the POWERTEC Paddle Switch is not functioning as expected, consider the following common issues:

• No Power to Tool: Check all wiring connections against the provided diagrams to ensure they are secure and correct. Verify that the power source is active and the circuit breaker has not tripped.
• Switch Not Engaging: Ensure the green "START" button is fully depressed and the required activation force is applied. Check for any obstructions preventing the button from fully engaging.
• Switch Not Disengaging: Ensure the red "STOP" button or paddle is fully depressed. Check for any debris or damage that might prevent the switch from returning to the off position.
• Үзгүлтүксүз иштөө: This could indicate loose wiring connections or internal damage. Re-check all connections. If the issue persists, professional inspection or replacement may be necessary.

For persistent issues or complex electrical problems, it is recommended to consult a qualified electrician or contact POWERTEC customer support.

Техникалык шарттар

Image: Detailed dimension diagram for the POWERTEC Paddle Switch Model 71007, showing measurements in millimeters.

Кепилдик жана колдоо

For warranty information, technical support, or any inquiries regarding your POWERTEC Paddle Switch, please refer to the official POWERTEC website or contact their customer service department directly. Contact details are typically available on the product packaging or the manufacturer's official webсайт.
