Lexus 04945-50080 Disc Brake Pad Shim Instruction Manual

Introduction

This manual provides essential information for the proper installation and maintenance of the Lexus 04945-50080 Disc Brake Pad Shim. Adhering to these instructions ensures optimal performance and longevity of your vehicle's braking system. For safety, it is recommended that installation be performed by a qualified technician.

Продукт бүттүview

The Lexus 04945-50080 Disc Brake Pad Shim is a genuine OEM component designed to reduce noise and vibration in the brake system. Shims are typically installed between the brake pad backing plate and the caliper piston, acting as a dampener to prevent squealing and improve overall braking feel.

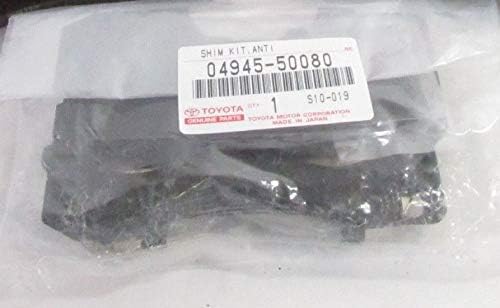

Сүрөт 1: The Lexus 04945-50080 Disc Brake Pad Shim kit, shown in its original sealed packaging. The label clearly displays the part number 04945-50080 and indicates it is a genuine Toyota part, made in Japan. The shim itself is visible through the clear plastic, appearing as a dark, flat component.

Унаа шайкештиги

This brake pad shim is compatible with the following Lexus models:

• 2007-2010 Lexus LS460
• 2008-2010 Lexus LS600hL

Always verify compatibility with your specific vehicle's year, make, and model before installation.

Коопсуздук маалыматы

ЭСКЕРТҮҮ:

• Brake system work requires specialized knowledge and tools. Incorrect installation can lead to brake failure, resulting in serious injury or death.
• Ар дайым тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде коргоочу көз айнектерди жана кол каптарды кийиңиз.
• Унаанын астынан иштөөдөн мурун, анын домкрат таянычтарына бекем бекитилгенин текшериңиз.
• Колдонуудан мурун тормоздун компоненттеринин толугу менен муздашына мүмкүнчүлүк бериңиз.
• Эски тормоз компоненттерин жана суюктуктарын жергиликтүү эрежелерге ылайык жоопкерчилик менен жок кылыңыз.

Орнотуу жана орнотуу

Керектүү куралдар:

• Унаанын домкрат жана домкраттары
• Lug wrench
• Розетка жана храповик топтому
• Brake caliper compression tool
• Зым щетка
• Тормозду тазалагыч
• High-temperature brake lubricant (e.g., silicone-based)

Орнотуу кадамдары:

1. Унааны даярдоо: Park the vehicle on a level surface, engage the parking brake, and block the wheels. Loosen the lug nuts on the wheel(s) where the brake shim will be installed.
2. Көтөрүү жана коопсуз: Safely lift the vehicle using a jack and secure it with jack stands. Remove the lug nuts and the wheel.
3. Remove Caliper and Pads: Carefully remove the brake caliper mounting bolts. Do not let the caliper hang by the brake hose; support it with a wire or bungee cord. Remove the old brake pads.
4. Таза компоненттери: Thoroughly clean the caliper, caliper bracket, and hub assembly using a wire brush and brake cleaner. Ensure all rust, dirt, and old lubricant are removed.
5. Install New Shims: Apply a thin layer of high-temperature brake lubricant to the back of the new brake pads where the shim will contact. Place the new Lexus 04945-50080 brake pad shims onto the backing plates of the new brake pads. Ensure they are seated correctly and do not interfere with any moving parts.
6. Жаңы падчаларды орнотуу: Insert the new brake pads with shims into the caliper bracket. Ensure they slide freely.
7. Компресс поршень: Use a brake caliper compression tool to retract the caliper piston(s) to accommodate the new, thicker brake pads.
8. Калиперди кайра орнотуу: Carefully position the caliper over the new pads and rotor. Reinstall and torque the caliper mounting bolts to the manufacturer's specifications.
9. Дөңгөлөктү кайра орнотуу: Дөңгөлөктү кайра орнотуп, гайкаларды кол менен бекемдеңиз.
10. Lower Vehicle and Torque: Lower the vehicle to the ground. Torque the lug nuts to the manufacturer's specifications in a star pattern.
11. Сыноо тормоздору: Before driving, pump the brake pedal several times until a firm pedal feel is achieved. Drive slowly in a safe area and test the brakes to ensure proper function.

Иштетүү жөнүндө ойлор

Once installed, the brake pad shims operate passively as part of your vehicle's braking system. Their primary function is to dampen vibrations and reduce noise. No specific user operation is required for the shims themselves. However, proper break-in procedures for new brake pads should be followed as recommended by the brake pad manufacturer to ensure optimal performance of the entire braking system.

Техникалык тейлөө

Regular inspection of your vehicle's braking system is crucial for safety and performance. During routine brake inspections (typically every 10,000-15,000 miles or as recommended by your vehicle manufacturer), check the following:

• Тормоздук тактанын эскириши: Ensure brake pads have sufficient friction material remaining.
• Ротордун абалы: Inspect rotors for excessive wear, scoring, or warping.
• Калипер функциясы: Verify that calipers are moving freely and not seizing.
• Shim Condition: Check that the brake pad shims are still securely in place and not damaged or corroded. Replace shims if they show signs of wear or damage.
• Brake Fluid Level and Condition: Ensure brake fluid is at the proper level and appears clean.

Эгерде кандайдыр бир көйгөйлөр байкалса, диагностика жана оңдоо үчүн квалификациялуу техникке кайрылыңыз.

Проблемаларды чечүү

If you experience any of the following issues after installing new brake pads with shims, consider these troubleshooting steps:

• Brake Squeal/Noise:
  • Ensure shims are correctly installed and lubricated.
  • Verify brake pads are seated properly.
  • Check for proper caliper movement and lubrication of caliper pins.
  • Inspect rotors for uneven wear or glazing.
• Vibration During Braking:
  • Check for warped brake rotors.
  • Ensure lug nuts are properly torqued.
  • Inspect wheel bearings and suspension components.
• Жумшак тормоз педалы:
  • This is usually not related to shims. Check for air in the brake lines, low brake fluid, or a faulty master cylinder.

For persistent issues, seek professional automotive service.

Техникалык шарттар

Кепилдик маалымат

For specific warranty details regarding the Lexus 04945-50080 Disc Brake Pad Shim, please refer to the official Lexus warranty documentation provided with your purchase or contact an authorized Lexus dealer. Warranty terms typically cover manufacturing defects and may vary based on region and purchase conditions.

Кардарларды колдоо

If you have questions about the Lexus 04945-50080 Disc Brake Pad Shim, require technical assistance, or need to report an issue, please contact your authorized Lexus dealer or the seller from whom the product was purchased. Provide your vehicle's VIN and the part number for efficient support.

You can find contact information for authorized Lexus service centers on the official Lexus webсайт: www.lexus.com/dealers
