TTI BS407 Precision Milli/Micro Ohmmeter User Manual

Продукт бүттүview

The TTI BS407 is a high-precision digital microohmmeter designed for accurate resistance measurements from 1 micro-ohm up to 20 kilo-ohms. It features a 4-wire connection method to eliminate lead resistance errors, ensuring high accuracy for critical applications. This instrument is suitable for a wide range of industrial and scientific testing requirements.

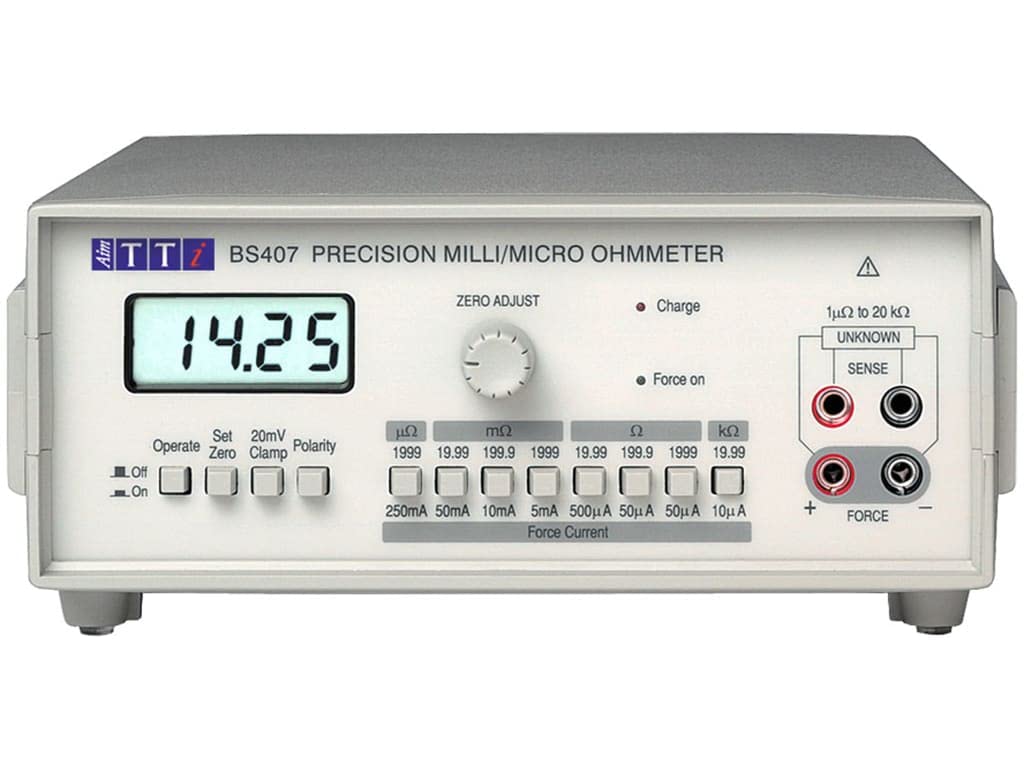

The image displays the front panel of the TTI BS407 Precision Milli/Micro Ohmmeter. Key features visible include the digital display, the 'ZERO ADJUST' knob, buttons for 'Operate', 'Set Zero', '20mV Clamp', and 'Polarity', and the input terminals for 'SENSE' and 'FORCE' connections. Below the display, various resistance ranges (µΩ, mΩ, Ω, kΩ) and corresponding force currents (250mA, 50mA, 10mA, 5mA, 500µA, 50µA, 50µA, 10µA) are indicated.

Орнотуу жана Байланыштар

Before operating the BS407, ensure it is placed on a stable, level surface and connected to a suitable power source. The instrument uses a 4-wire connection method for precise resistance measurements.

Кубат туташуу:

• Connect the provided power cord to the instrument's power input at the rear.
• Plug the other end into a standard AC power outlet.
• Ensure the power switch on the front panel is in the 'Off' position before connecting.

4-Wire Measurement Connection:

The 4-wire (Kelvin) connection method eliminates the resistance of the test leads from the measurement, providing higher accuracy, especially for low resistance values.

1. Identify the 'SENSE' terminals (red and black) and 'FORCE' terminals (red and black) on the front panel.
2. Connect the 'FORCE' leads to the points on the component or circuit where the test current will be injected. The red 'FORCE' terminal is positive (+), and the black 'FORCE' terminal is negative (-).
3. Connect the 'SENSE' leads as close as possible to the points where the voltage drop across the component is to be measured. The red 'SENSE' terminal corresponds to the positive voltage sense, and the black 'SENSE' terminal to the negative voltagе сезим.
4. Ensure good contact between the test leads and the component under test to prevent measurement errors.

Иштөө нускамалары

This section details the steps for performing resistance measurements using the BS407.

Basic Measurement Procedure:

1. Күйгүзүү: Flip the 'On/Off' switch on the front panel to the 'On' position. The display will illuminate.
2. Нөлдү тууралоо: Before connecting the test leads to the component, ensure the leads are open-circuited (not touching anything). Use the 'ZERO ADJUST' knob to fine-tune the display to read zero. For more precise zeroing, press the 'Set Zero' button.
3. Select Range and Force Current: The BS407 automatically selects the appropriate range. However, you can observe the selected range (µΩ, mΩ, Ω, kΩ) and the corresponding force current (e.g., 250mA, 50mA, 10mA, 5mA, 500µA, 50µA, 10µA) indicated by the LEDs below the display. The instrument will apply the necessary force current for the selected range.
4. Сыноолорду туташтыруу: Connect the 4-wire test leads to the component as described in the "Setup and Connections" section.
5. Өлчөөнү окуу: The resistance value will be displayed on the large digital readout.
6. Полярдуулук: If measuring components with inherent polarity or when observing voltage drop, the 'Polarity' button can be used to reverse the current direction if needed, or to observe the polarity of the measured voltage.
7. 20mV Clamp: The '20mV Clamp' function limits the voltage across the device under test to 20mV, which is useful for testing sensitive components like thermistors or fuses without causing self-heating errors.
8. Operate Button: The 'Operate' button initiates or holds a measurement cycle.

Understanding Display Indicators:

• Санариптик дисплей: Shows the measured resistance value.
• Range Indicators: LEDs illuminate next to µΩ, mΩ, Ω, or kΩ to indicate the active measurement range.
• Force Current Indicators: LEDs illuminate next to the current values (e.g., 250mA, 50mA) to show the applied test current.
• Кубат көрсөткүчү: Indicates the internal battery charging status (if applicable, or internal capacitor charge for measurement).
• Force On Indicator: Confirms that the force current is being applied to the test leads.

Техникалык тейлөө

Proper maintenance ensures the longevity and accuracy of your TTI BS407.

• Тазалоо: Use a soft, dry cloth to clean the exterior of the instrument. Do not use abrasive cleaners or solvents.
• Сактагыч: Store the instrument in a clean, dry environment away from direct sunlight and extreme temperatures.
• Калибрлөө: For continued accuracy, periodic calibration by a qualified service center is recommended. Refer to the manufacturer's guidelines for calibration intervals.
• Lead Inspection: Regularly inspect test leads for any signs of wear, damage, or corrosion. Replace damaged leads immediately to ensure safe and accurate operation.

Проблемаларды чечүү

Бул бөлүмдө сиз кабылышы мүмкүн болгон жалпы маселелерди чечүү жолдору каралган.

Техникалык шарттар

Кепилдик жана колдоо

For information regarding product warranty, technical support, or service, please contact AIM-TTI Instruments directly or refer to their official webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.

Өндүрүүчү: AIM-TTI Instruments

Webсайт: www.aimtti.com (Note: This is a general manufacturer website, specific support details may vary.)
