1. Бүттүview
The WAC Lighting HR-LED87-27-DB is a versatile round LED button light designed for both recessed and surface-mounted installations. It features a low profile and shallow installation depth, making it suitable for various applications such as under cabinets, shelves, curios, and displays. This light operates on 24V and provides 2700K soft white illumination.

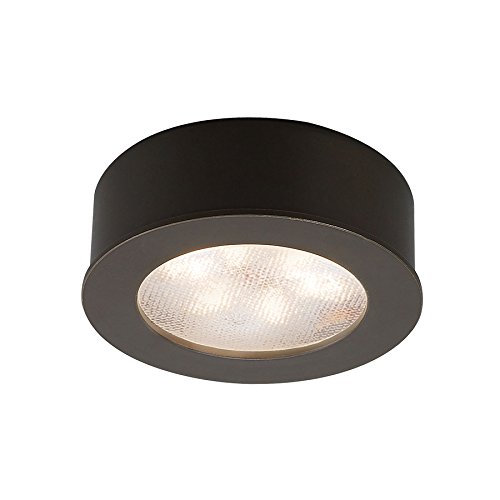

Image: The WAC Lighting HR-LED87-27-DB Round LED Button Light in Dark Bronze finish.
Негизги өзгөчөлүктөрү:
- All steel construction, suitable for recessed or surface mounting.
- Про азfile and shallow installation depth for discreet integration.
- Smooth and continuous dimming to 15% using an Electronic Low Voltage (ELV) dimmer.
- Includes 72-inch wires and a cutout template for recessed installations.
- Requires a Class 2 power supply (sold separately).
- 4.8W high-powered LED, 2700K color temperature, 180 lumens, G4 base, with a 70,000-hour rated life.
- UL & cUL listed for damp жерлер.
2. Коопсуздук маалыматы
Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Always disconnect power at the circuit breaker or fuse box before installation, servicing, or cleaning.
- Орнотуу квалификациялуу электрик тарабынан бардык тиешелүү улуттук жана жергиликтүү электр эрежелерине ылайык жүргүзүлүшү керек.
- Ensure the product is used with a compatible Class 2, 24V power supply as specified in this manual. Using an incompatible power supply may damage the fixture and void the warranty.
- Do not modify the product in any way; doing so voids the warranty and may pose safety risks.
- Бул арматура г үчүн ылайыктууamp locations but should not be exposed to direct water spray or submersion.
- Жарык күйүп турганда диоддук жарык булагына түз кароодон качыңыз.
3. Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- 1 x HR-LED87-27-DB LED Button Light
- Mounting Hardware (for recessed and surface mounting)
- 72-inch Wires
- Cutout Template (for recessed installations)
4. Орнотуу жана орнотуу
4.1 Баштоодон мурун
Ensure power is disconnected at the circuit breaker. Review all instructions and gather necessary tools (e.g., screwdriver, wire strippers, drill, hole saw for recessed installation).
4.2 Электр энергиясы менен камсыздоого талаптар
This LED button light requires a Class 2, 24V remote or plug-in transformer (not included). Compatible models include: EN-2460-RB2, EN-24100-RB2, EN-2460-P-AR, EN-24100-277-RB2-T. Up to 20 button lights can be wired in series to one power supply, depending on the power supply's maximum load. Refer to the power supply's instructions for specific wiring details.
Image: Compatible Class 2 enclosed electronic transformers and general wiring guidelines. Note the input, output, minimum load, and maximum fixture run for each model.
4.3 Монтаждоо параметрлери
The HR-LED87-27-DB can be installed as either a recessed or surface-mounted fixture. The necessary hardware for both options is included.

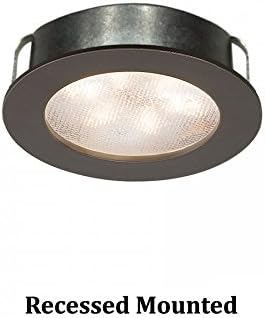

Image: The WAC Lighting HR-LED87-27-DB LED button light shown in a recessed mounted configuration.
Image: Diagram illustrating the dimensions for both surface mount (2-1/4 inches diameter, 7/8 inches height) and recessed mount (2-1/4 inches diameter, 5/8 inches visible height, 1-7/8 inches depth) installations.
4.3.1 Ичине оюк орнотуу
- Use the provided cutout template to mark the desired location. Ensure adequate clearance behind the mounting surface for the fixture's depth (approximately 1-7/8 inches).
- Cut a hole of the specified diameter (refer to the dimensions diagram) using an appropriate hole saw or tool.
- Connect the light's 72-inch wires to the Class 2 power supply wiring. Observe proper polarity (typically red to positive, black to negative).
- Gently push the light into the cutout until the spring clips engage and secure it in place.
4.3.2 Жер үстүндөгү орнотуу
- Керектүү монтаждоо жерин белгилеңиз.
- Secure the provided mounting hardware (e.g., screws) to the surface, ensuring it aligns with the light fixture's mounting points.
- Connect the light's 72-inch wires to the Class 2 power supply wiring. Observe proper polarity.
- Attach the light fixture to the mounting hardware, ensuring it is securely fastened.
4.4 Wiring Multiple Lights
Multiple button lights can be wired in series. Ensure the total wattage of all connected lights does not exceed the maximum load of the Class 2 power supply. Secondary wiring for Class 2 transformers does not require conduit; however, non-metallic sheathed cable may be used for secondary wiring in walls and ceilings in accordance with local codes.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү
Once installed and connected to a compatible power supply, the light can be controlled via the connected wall switch or dimmer.
5.2 Күңүрттөө функциясы
This fixture supports smooth and continuous dimming down to 15% when used with an Electronic Low Voltage (ELV) dimmer. Ensure your dimmer is specifically rated for ELV LED loads to ensure optimal performance and prevent flickering or damage.
6. Кароо жана тейлөө
To maintain the appearance and performance of your LED button light, follow these simple guidelines:
- Тазалоодон мурун, автоматтык өчүргүчтөн жабдууга берилүүчү кубат өчүрүлгөнүн текшериңиз.
- Аспапты жумшак, кургак же бир аз кургак чүпүрөк менен сүртүңүзamp кездеме.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish or electrical components.
- LED жарык булагы интеграцияланган жана колдонуучу алмаштыра албайт.
7. Кыйынчылыктарды
If you experience issues with your LED button light, refer to the table below for common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт | Түзмөккө кубат жок Бошоң зымдар байланышы Бузулган электр энергиясы | Автоматтык өчүргүчтү текшерип, электр кубаты күйүп турганын текшериңиз. Бардык зым байланыштары коопсуз экендигин текшериңиз. Test the power supply with a multimeter or replace if suspected faulty. |
| Жарык туура эмес жыпылыктайт же күңүрттөйт | Шайкеш келбеген диммер Электр кубаты туура эмес Бошоң зымдар | Ensure an ELV dimmer is used and is compatible with LED loads. Verify a Class 2, 24V power supply is installed. Бардык зымдарды туташтыргычтын бекемдигин текшериңиз. |
| Жарыктын чыгышы аз | Туура эмес электр энергиясыtage Too many lights on one power supply | Verify the power supply provides 24V. жалпы ват камсыз кылууtage of connected lights does not exceed the power supply's maximum load. |
If the problem persists after attempting these solutions, please contact WAC Lighting customer support.
8. Продукттун спецификациялары
| Спецификация | Деталь |
|---|---|
| Бренд | WAC жарыктандыруу |
| Модел | HR-LED87-27-DB |
| Түс | Dark Bronze |
| Ачык түстүн температурасы | 2700K жумшак ак |
| Материал | Эритме болот |
| Жарык булагы түрү | LED |
| Ватtage | 4.8 Вт |
| Lumens | 180 |
| Тtage | 24 вольт |
| Лампанын базасы | G4 |
| Бааланган сааттар | 70,000 саат |
| Продукциянын өлчөмдөрү | 2.25"L x 0.88"W x 2.25"H |
| Орнотуу түрү | Recessed or Surface Mounted |
| Караңгылык | Smooth and continuous to 15% with ELV dimmer |
| Стандарттар | UL & cUL Listed for Damp Жайгашкан жерлер |
| UPC | 790576290737 |
9. Кепилдик маалыматы
This WAC Lighting product is covered by a 5-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. For complete details on warranty terms, conditions, and limitations, please refer to the official WAC Lighting webсайтына кириңиз же алардын кардарларды колдоо бөлүмүнө кайрылыңыз.
10. Кардарларды колдоо кызматы
For further assistance, technical support, or to inquire about replacement parts, please visit the official WAC Lighting webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.
