1. Продукт бүтүп калдыview
The Comfast CF-WR150N is a versatile 150M high-speed 802.11n wireless device designed to enhance and extend your Wi-Fi network. It functions as a personal assistant for your existing router, improving transfer rates and expanding coverage.
This device supports three primary operating modes: Access Point (AP), Repeater, and Router, offering flexible solutions for various networking needs. It is backward compatible with all 802.11b/g/n devices.

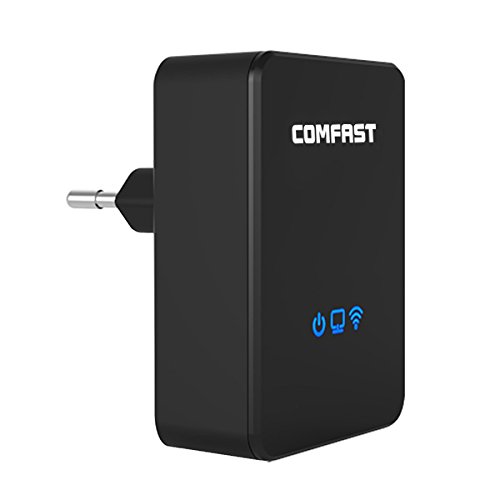

Сүрөт 1.1: Алдыңкы view of the Comfast CF-WR150N Wireless Repeater.
2. Пакеттин мазмуну
Before proceeding with setup, please verify that all items are present in the package:
- 1 x Comfast CF-WR150N Wireless Repeater
- 1 x Network Cable (Ethernet Cable)
- 1 х Колдонуучунун колдонмосу (бул документ)
- 1 x Кепилдик картасы

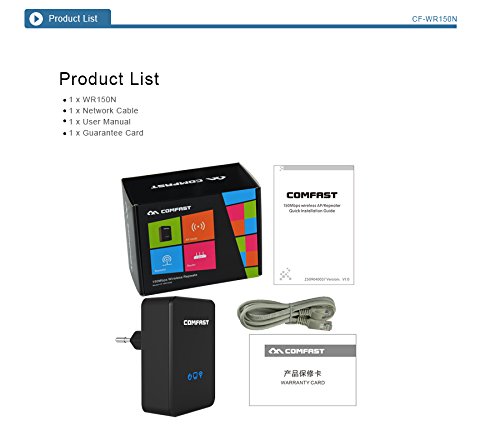

Figure 2.1: Contents included in the Comfast CF-WR150N product package.
3. Аппараттын компоненттери
Familiarize yourself with the various parts and indicators of the CF-WR150N device:

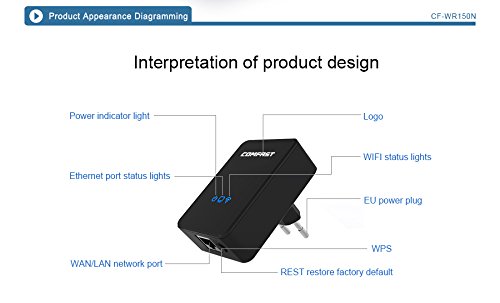

Figure 3.1: Detailed diagram of the CF-WR150N's external components and indicators.
- Кубаттуулук көрсөткүчү: Кубаттын абалын көрсөтөт.
- Ethernet Port Status Lights: Indicate activity on the WAN/LAN port.
- WAN/LAN Network Port: Used for wired connections.
- EU Power Plug: For connecting to a power outlet.
- WPS баскычы: For quick and secure wireless setup.
- REST (Reset) Button: Заводдун демейки жөндөөлөрүн калыбына келтирүү үчүн колдонулат.
- Логотип: Comfast brand logo.
- WIFI Status Lights: Indicate wireless network activity.
4. Орнотуу жана конфигурациялоо
The Comfast CF-WR150N can be configured to operate in three distinct modes: Access Point (AP) Mode, Repeater Mode, and Router Mode. Choose the mode that best suits your network requirements.
4.1. General Setup Steps
- Күйгүзүү: Plug the CF-WR150N into a standard power outlet. Wait for the power indicator light to stabilize.
- Түзмөккө туташуу:
- Зымсыз туташуу: On your computer or mobile device, search for available Wi-Fi networks. Connect to the network named "COMFAST_XXXX" (where XXXX are the last four digits of the device's MAC address). No password is required for the initial connection.
- Зымдуу туташуу: Connect your computer directly to the CF-WR150N's WAN/LAN port using the provided Ethernet cable.
- Мүмкүнчүлүк Web Интерфейс: ачуу а web browser and enter the default IP address (usually 192.168.10.1 or 192.168.1.254) into the address bar. Refer to the label on the device or the quick start guide for the exact IP.
- Кирүү: Enter the default username and password (typically "admin" for both).
- Иштөө режимин тандоо: Once logged in, you will be prompted to select the desired operating mode (AP, Repeater, or Router).
4.2. Operating Modes Explained

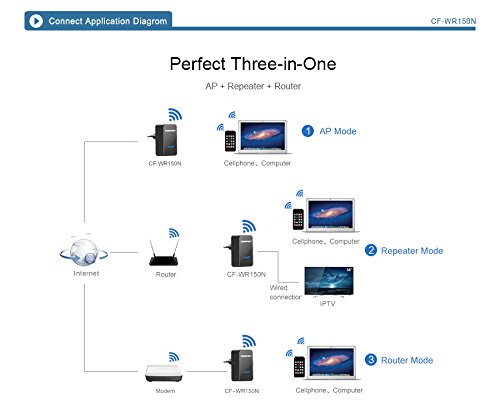

Figure 4.1: Application diagram showing AP, Repeater, and Router modes.
- AP режими (кирүү чекити): In this mode, the CF-WR150N connects to a wired network (e.g., from a modem or router) and broadcasts a new wireless network. This is ideal for adding Wi-Fi capability to a wired-only network.
- Repeater Mode (Range Extender): This mode extends the coverage of an existing wireless network. The CF-WR150N connects wirelessly to your main router's Wi-Fi signal and re-broadcasts it, effectively eliminating Wi-Fi dead zones.
- Багыттоочу режим: When configured as a router, the CF-WR150N connects directly to your internet service provider's modem via the WAN/LAN port and creates a new wireless network, providing internet access to connected devices.
4.3. WPS Setup (Wireless Protected Setup)
For a quick and secure wireless connection to your existing router in Repeater Mode, you can use the WPS function:

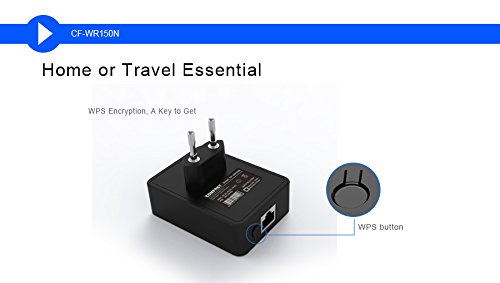

Figure 4.2: Location of the WPS button on the CF-WR150N.
- Plug the CF-WR150N into a power outlet near your main router.
- Негизги роутериңиздеги WPS баскычын басыңыз.
- Within two minutes, press the WPS button on the CF-WR150N.
- The devices will automatically establish a secure connection. The Wi-Fi status light on the CF-WR150N will indicate a successful connection.
5. Иштетүү жана колдонуу
Once configured, the CF-WR150N operates automatically based on the selected mode. Ensure the device is placed in an optimal location for signal coverage.

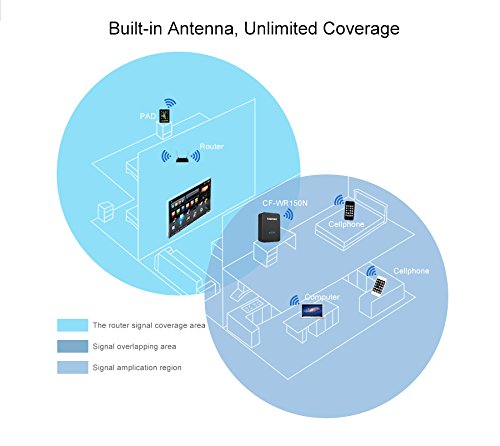

Figure 5.1: Illustration of signal coverage extension with the CF-WR150N.
For Repeater Mode, place the CF-WR150N approximately halfway between your router and the area where you need improved Wi-Fi signal. Avoid placing it in areas with significant interference or physical obstructions.
6. Техникалык тейлөө
To ensure optimal performance and longevity of your Comfast CF-WR150N, consider the following maintenance tips:
- Программалык камсыздоонун жаңыртуулары: Comfast кызматкерин мезгил-мезгили менен текшерип туруңуз website for any available firmware updates. Updating firmware can improve performance, add new features, and fix bugs.
- Тазалоо: Аппаратты таза жана чаңдан алыс кармаңыз. Сыртын сүртүү үчүн жумшак, кургак чүпүрөктү колдонуңуз. Суюк тазалагычтарды же аэрозолдорду колдонбоңуз.
- Вентиляция: Ensure the device has adequate ventilation to prevent overheating. Do not cover the device or place it in an enclosed space.
- Кайра иштетилүүдө: If you experience network issues, a simple restart of the device (unplugging and re-plugging after 10 seconds) can often resolve minor glitches.
7. Кыйынчылыктарды
This section addresses common issues you might encounter with your Comfast CF-WR150N.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| кирүү мүмкүн эмес web башкаруу интерфейси. | Incorrect IP address, device not powered on, or network configuration issue. |
|
| Орнотуудан кийин интернетке кирүү мүмкүн эмес. | Incorrect mode configuration, weak signal (Repeater Mode), or ISP issue. |
|
| Тез-тез үзүлүүлөр же ылдамдыктын жайлашы. | Interference, poor placement, or network congestion. |
|
| Forgot login password or device settings are corrupted. | Password forgotten or misconfiguration. |
|
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Comfast |
| Модель номери | CF-WR150N |
| Байланыш түрү | Wi-Fi |
| Зымсыз түрү | 802.11b, 802.11g, 802.11n |
| Зымсыз байланыш стандарты | 802.11b, 802.11g, 802.11n |
| Маалыматтарды өткөрүү ылдамдыгы | 150 Megabits Per Second (as per product description, not 750 from spec list) |
| Жыштык тилкесинин классы | Single-Band (implied by 802.11n 150M, Dual-Band from spec list seems incorrect for 150M) |
| Өзгөчөлүктөр | Кирүү чекити режими, LED көрсөткүчү |
| Элемент Салмагы | 180 г |
| Пакеттин өлчөмдөрү | 13.8 x 10.4 x 6.2 см |
| Биринчи жеткиликтүү күн | 1-июль 2014-жыл |
Note: Data Transfer Rate and Frequency Band Class are based on the primary product description. Some specification lists may contain discrepancies.
9. Кепилдик жана колдоо
For detailed information regarding the product warranty, please refer to the Кепилдик картасы included in your product package. This card contains specific terms, conditions, and duration of the warranty.
For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact Comfast customer support through the channels provided on the Guarantee Card or the official Comfast webсайт.
