Brandt AP113114 1965 H6 MAEL Dryer Belt Instruction Manual

1. Киришүү

This manual provides essential information for the proper installation and maintenance of the Brandt AP113114 1965 H6 MAEL dryer belt. This elastic belt is designed for use in various washing machines and dryers, ensuring efficient operation of your appliance.

2. Коопсуздук маалыматы

Always disconnect the appliance from the power supply before attempting any installation or maintenance. Wear appropriate personal protective equipment, such as gloves, to prevent injury. If you are unsure about any step, consult a qualified technician. Keep children and pets away from the work area.

3. Продукт сүрөттөлүшү

The 1965 H6 MAEL belt is an elastic drive belt specifically designed for various dryer and washing machine models. It features a Type H profile with 6 ribs (teeth) and a pitch of 1.56mm. The belt's elasticity allows for a snug fit and efficient power transmission. Its nominal length under tension is 1965 mm, while its new, relaxed length is approximately 1900 mm.

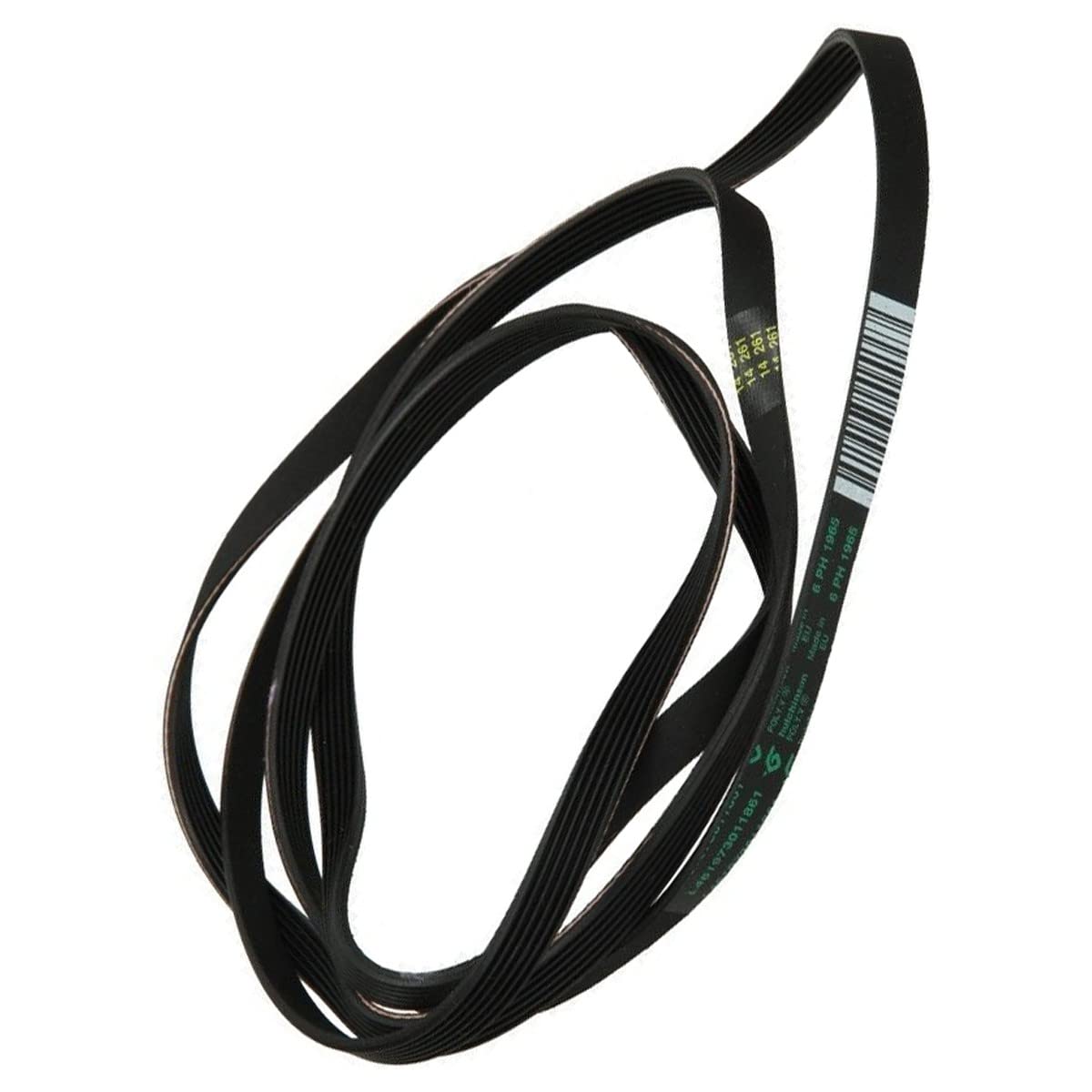

Figure 3.1: General appearance of the 1965 H6 MAEL dryer belt.

4. Шайкештик

This belt is compatible with a wide range of washing machines and dryers from various brands. Always verify your appliance's model number to ensure correct fitment. Compatible brands include, but are not limited to, BRANDT, THOMSON, VEDETTE, FAGOR, SANGIORGIO, CURTISS, PROLINE, and CONTINENTAL EDISON.

Белгилүү шайкеш моделдер:

• Whirlpool: AWZ420F, SOLE 2000, SOLE 2003, SOLE 2004, SOLE 2005, SOLE 2006
• Bauknecht: TRAK6560, TRAK6561, TRAS6110
• Bosch: WTE84101, WTE84302, WTE86300, WTE86301, WTE86303, WTS84502, WTS84507, WTS84511, WTS84570, WTS84590, WTS86510, WTV74100
• Brandt: ETE100, ETE123, ETE124, ETE331, ETE351, ETE352, ETE353, ETE361, ETE363, ETE364, ETE503, ETE504, ETE525, ETE6116, ETE6330, ETE6505, BTCE45, ETE101F, ETE104F, ETE121F, ETE501F, ETE521F, ETE701F, ETE751F, ETE754F, SC30, SM10, SM15, SM20, SMC23, SME13, ETE102, ETE103, SEC35, SME25
• Proline: SLE65
• Thomson: AIR675T, SL302DDFT, SL502DDFT, SL602T, SL612, AIR403, AIR409C

5. Орнотуу боюнча көрсөтмөлөр

Replacing a dryer belt typically involves accessing the drum and motor assembly. The following steps are general guidelines; always refer to your appliance's specific service manual for detailed instructions.

1. Даярдоо: Disconnect the dryer from the power outlet. Move the dryer away from the wall to allow access to the rear or front panels.
2. Мүмкүнчүлүк: Depending on your dryer model, you may need to remove the top panel, front panel, or rear panel to gain access to the drum and motor.
3. Эски курду алып салуу: Locate the old belt. It will typically be wrapped around the dryer drum and the motor pulley. Carefully remove the old belt. Note its routing for reference.
4. Жаңы кур орнотуу: Place the new 1965 H6 MAEL belt around the dryer drum. Ensure the ribbed side of the belt faces the drum.
5. Route Belt: Route the belt around the motor pulley and the idler pulley (if present). The idler pulley provides tension to the belt. This step often requires significant force due to the belt's elasticity. A new belt may appear shorter than the old, stretched belt. Do not hesitate to apply firm pressure to stretch it into place, provided you have confirmed the correct belt dimension.
6. Чыңалууну текшерүү: Once installed, rotate the drum manually to ensure the belt is properly seated and moves smoothly without slipping.
7. Кайра чогултуу: Reattach all panels and secure them.
8. Сыноо: Plug the dryer back into the power outlet and run a short cycle to confirm proper operation.

6. Операциялык кароо

Once installed, the belt operates automatically as part of the dryer's drive system. Ensure that the dryer is not overloaded, as excessive weight can put undue strain on the belt and motor, potentially leading to premature wear or failure.

7. Техникалык тейлөө

The dryer belt is a wear-and-tear component. Regular maintenance involves:

• Визуалдык текшерүү: Periodically inspect the belt for signs of wear, such as cracks, fraying, or glazing.
• Чыңалууну текшерүү: A loose belt can cause the drum to slip. If the drum is not turning or is turning intermittently, the belt may be stretched or broken.
• Алмаштыруу: Replace the belt immediately if any signs of significant wear or damage are observed to prevent further damage to the appliance.

8. Кыйынчылыктарды

If your dryer is not functioning correctly after belt replacement, consider the following:

• Drum Not Turning:
  • Ensure the belt is correctly routed around the drum and motor pulley.
  • Verify the belt is not slipping.
  • Check for any obstructions preventing the drum from rotating freely.
• адаттан тыш үндөр:
  • A new belt might make some noise initially as it seats. If noises persist, re-check belt alignment and ensure no other components are rubbing.
• Belt Breaks Quickly:
  • Ensure the correct belt size was installed.
  • Inspect pulleys for sharp edges or damage that could cut the belt.
  • Check for motor or drum bearing issues that could cause excessive friction.

Эгерде бузулууларды жоюу кадамдары маселени чечпесе, анда квалификациялуу шайман оңдоочу адиске кайрылуу сунушталат.
