Foscam FN3004H/B 4-Channel NVR/Network Video Recorder

1. Киришүү

This user manual provides comprehensive instructions for the Foscam FN3004H/B 4-Channel Network Video Recorder (NVR). The FN3004H/B is designed for managing and recording video from up to four 960p (1.3MP) IP cameras, offering real-time high-definition video monitoring and recording capabilities. It is accessible via standard web browsers and supports ONVIF compatible IP cameras. The NVR features VGA and HDMI outputs for display connectivity and USB ports for external storage backup.

2. Коопсуздук маалыматы

To ensure safe operation and prolong the lifespan of your NVR, please adhere to the following safety guidelines:

• Ensure proper ventilation around the NVR unit. Do not block any ventilation openings.
• Do not expose the NVR to water, moisture, or any liquids.
• Use only the power adapter supplied with the device. Using unauthorized adapters may cause damage or fire.
• Avoid placing the NVR in environments with extreme temperatures (too hot or too cold) or high humidity.
• Тазалоодон же кандайдыр бир техникалык тейлөө иштерин жүргүзүүдөн мурун электр кубатынан ажыратыңыз.
• Do not attempt to open or repair the NVR unit yourself. Refer all servicing to qualified personnel.

3. Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

• Foscam FN3004H/B NVR Unit
• Кубаттуу адаптер
• USB чычкан
• Network Cable
• Quick Start Guide
• Колдонуучунун колдонмо CD

4. Продукт бүтүп калдыview

4.1. NVR Unit and Ports

Familiarize yourself with the physical components and connection ports of the Foscam FN3004H/B NVR.

4.1-сүрөт: Алдыңкы жана каптал view of the Foscam FN3004H/B NVR, showing the HDMI and VGA output ports.

4.2-сүрөт: Жакын пландагы жагы view of the Foscam FN3004H/B NVR, highlighting the HDMI and VGA video output ports.

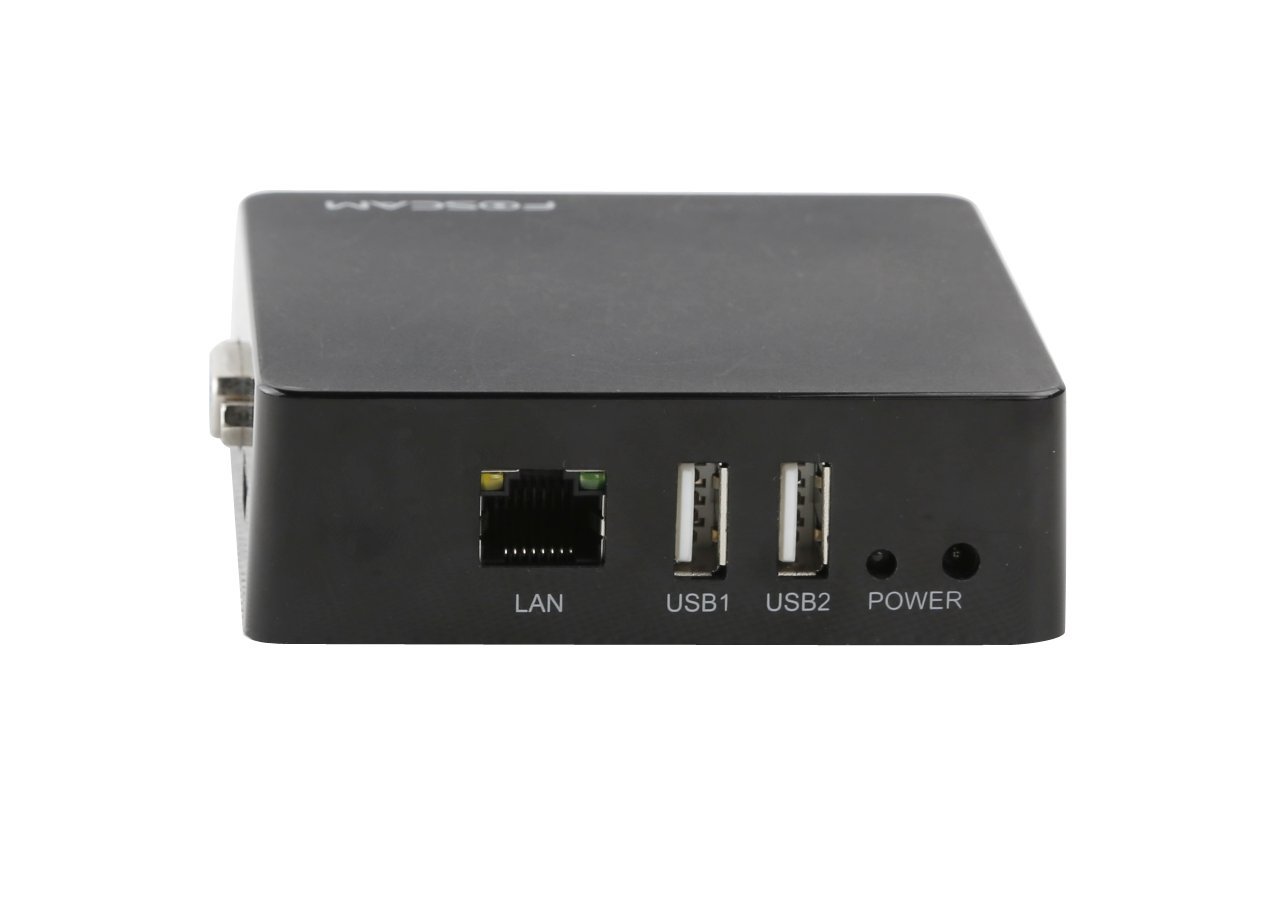

4.3-сүрөт: Арткы view of the Foscam FN3004H/B NVR, displaying the LAN port, two USB ports (USB1, USB2), and the Power input.

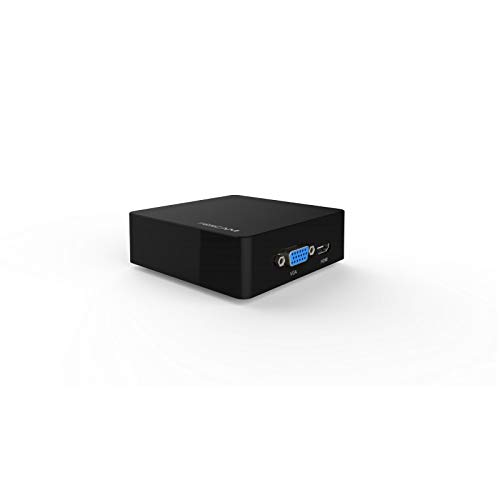

4.4-сүрөт: Angled perspective of the Foscam FN3004H/B NVR, showing its compact size and some of its connectivity options.

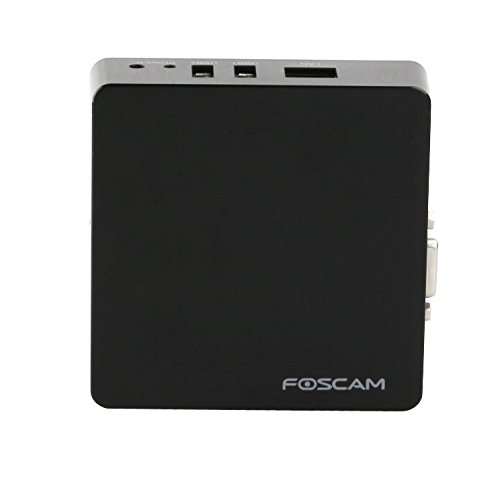

4.5-сүрөт: Жогорудан төмөн view of the Foscam FN3004H/B NVR, showing the Foscam logo and the overall compact design.

• HDMI чыгышы: Connects the NVR to an HDMI-compatible display (e.g., TV, monitor) for high-definition video output.
• VGA чыгаруу: Connects the NVR to a VGA-compatible display for video output.
• LAN порту: Connects the NVR to your network router or switch using an Ethernet cable for internet access and camera communication.
• USB порттору (USB1, USB2): Used for connecting a USB mouse for local control, external USB storage devices for backup, or other USB peripherals.
• Кубат киргизүү: Connects the supplied power adapter to power the NVR unit.

5. Орнотуу

5.1. Физикалык байланыш

1. Туташуу кубаты: Plug the provided power adapter into the NVR's Power Input port, then connect it to a power outlet.
2. Тармакка туташуу: Connect one end of the network cable to the NVR's LAN port and the other end to an available port on your router or network switch.
3. Дисплейди туташтыруу: Connect a monitor to the NVR using either the HDMI or VGA output port.
4. USB чычканды туташтыруу: Insert the USB mouse into one of the NVR's USB ports (USB1 or USB2).
5. (Optional) Connect External Storage: If you plan to use an external hard drive for additional storage or backup, connect it to an available USB port.

5.2. Баштапкы конфигурация

1. Күйгүзүү: Once all physical connections are made, the NVR will power on automatically.
2. Access NVR Interface: You can access the NVR's interface directly via the connected monitor and mouse, or through a web browser on a PC connected to the same network. For PC access, use the discovery tool provided on the user manual CD to find the NVR's IP address.
3. Тармак орнотуулары: During the initial setup wizard, configure the NVR's network settings. It is recommended to use DHCP for automatic IP address assignment, or set a static IP address if required by your network setup.
4. Камералар кошуу: The NVR will automatically search for ONVIF compatible IP cameras on your network. Follow the on-screen prompts to add and configure your cameras. Ensure your cameras are powered on and connected to the network.
5. Storage Formatting: If you have connected an external hard drive, navigate to the storage settings within the NVR interface and format the drive for recording. Ensure you select the correct local disk for formatting.

6. NVRди иштетүү

6.1. Колдонуучу интерфейсинин навигациясы

• Жергиликтүү башкаруу: Use the connected USB mouse to navigate the NVR's graphical user interface on the connected monitor. Right-click to access the main menu.
• Web Интерфейс: ачуу а web browser on your PC and enter the NVR's IP address to access the web-based interface. This provides full control and configuration options.

6.2. Түз эфир View

After adding cameras, you can view live feeds. The NVR supports simultaneous display of up to four camera feeds.

6.3. Жаздыруу

NVR ар кандай жаздыруу режимдерин сунуштайт:

• Тынымсыз жаздыруу: Records video constantly.
• Кыймылды аныктоо жазуусу: Камералар кыймылды аныктаганда гана жаздырат.
• Пландаштырылган жаздыруу: Records during specific times set by the user.

Ensure sufficient storage space is available. The NVR supports external storage via USB for extended recording capacity.

6.4. Ойнотуу

Кайраview foo жазылганtage:

1. Access the Playback menu from the NVR interface.
2. Select the desired camera, date, and time range.
3. Foo аркылуу өтүү үчүн ойнотуу башкаруу элементтерин (ойнотуу, тындыруу, алдыга жылдыруу, артка түрүү) колдонуңузtage.

6.5. Remote Access

The NVR can be accessed remotely via standard PC web browsers, allowing you to view live feeds and manage settings from anywhere with an internet connection. Refer to the detailed user manual on the CD for remote access configuration, including port forwarding if necessary.

7. Техникалык тейлөө

7.1. Микропрограмманы жаңыртуу

Regularly check for and apply firmware updates to ensure optimal performance, security, and access to new features. Firmware updates can typically be found on the Foscam official webсайт.

7.2. Тазалоо

Clean the exterior of the NVR unit with a soft, dry cloth. Do not use liquid cleaners or aerosols. Ensure ventilation openings are free from dust and debris to prevent overheating.

7.3. Маалыматтын резервдик көчүрмөсү

Маанилүү жаздырылган азыктардын камдык көчүрмөсүн мезгил-мезгили менен сактап туруңузtage to an external USB storage device to prevent data loss.

8. Кыйынчылыктарды

Бул бөлүмдө NVR менен кездешиши мүмкүн болгон жалпы көйгөйлөр каралат.

• Кубат жок:
  Чечим: Check if the power adapter is securely connected to the NVR and the power outlet. Verify the power outlet is functional.
• Монитордо видео чыгышы жок:
  Чечим: Ensure the HDMI or VGA cable is securely connected to both the NVR and the monitor. Verify the monitor is set to the correct input source (HDMI/VGA).
• Тармакка туташуу мүмкүн эмес:
  Чечим: Check if the Ethernet cable is properly connected to the NVR's LAN port and your router. Verify your router is functioning correctly. Ensure the NVR's network settings (IP address, subnet mask, gateway) are correctly configured (DHCP is recommended for ease of use).
• Камералар көрүнбөйт:
  Чечим: Confirm that your IP cameras are powered on and connected to the network. Ensure they are ONVIF compatible. Re-scan for cameras in the NVR's camera management settings and add them if necessary.
• Recording Issues / No Recording:
  Чечим: Check the status of the connected hard drive (if any) in the NVR's storage settings. Ensure it is formatted and has sufficient free space. Verify that recording schedules or motion detection settings are correctly configured.
• System Unresponsive or Freezing:
  Чечим: Try restarting the NVR by disconnecting and reconnecting the power. If the issue persists, consider performing a factory reset (refer to the full user manual for instructions, as this will erase settings).

9. Техникалык шарттар

10. Кепилдик жана колдоо

The Foscam FN3004H/B NVR is guaranteed for a Full Year from the date of purchase. This warranty and US-based support are offered exclusively by Foscam Digital Tech.

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Foscam Digital Tech support directly. Refer to the contact information provided in your product packaging or on the official Foscam webсайт.
