1. Киришүү
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your EMAX E350 Stationary Air Compressor. The EMAX E350 series is an industrial-grade, 10 horsepower, 2-stage, 4-cylinder pressure-lubricated air compressor designed for demanding applications. It features an 80-gallon tank and operates on single-phase power, delivering robust performance with a focus on durability and quiet operation.
Сүрөт 1: Алдыңкы view of the EMAX E350 Stationary Air Compressor.
2. Коопсуздук маалыматы
Always prioritize safety when operating and maintaining the air compressor. Failure to follow safety instructions can result in serious injury or equipment damage.
Жалпы коопсуздук чаралары:
- Электр коопсуздугу: Ensure the compressor is connected to a properly grounded 230 Volt, single-phase power supply. All wiring must comply with local electrical codes. Refer to the wiring installation warning on the unit for specific wire gauge requirements based on distance to subpanel.
- басым коопсуздугу: Never exceed the maximum operating pressure of 175 PSI. Regularly inspect hoses, fittings, and the tank for damage. The powder-coated ASME CRN tank is rated at 200 PSI.
- Кыймылдуу бөлүктөр: Keep hands, hair, and clothing clear of moving parts, especially the pulleys and belts. The unit is equipped with an OSHA-approved steel belt guard for protection.
- Вентиляция: Ысыктын топтолушун алдын алуу жана абанын туура киришин камсыз кылуу үчүн компрессорду жакшы желдетилген жерде иштетиңиз.
- Жеке коргонуу каражаттары (ЖКК): Always wear appropriate PPE, including safety glasses, hearing protection, and gloves, when operating or servicing the compressor.
- Ашыкча жүктөн коргоо: The magnetic starter provides overload protection. Do not bypass or tampкоопсуздук шаймандары менен.
3. Орнотуу жана орнотуу
Proper installation is crucial for optimal performance and longevity of your EMAX E350 compressor.
Жайгашкан жери:
- Place the compressor on a level, solid surface capable of supporting its 1066 pounds weight.
- Желдетүү жана техникалык тейлөө үчүн түзмөктүн айланасында жетиштүү боштук бар экенин камсыз кылыңыз.
Электр байланышы:
- The compressor requires a 230 Volt, single-phase electrical supply.
- Consult a qualified electrician for proper wiring to ensure compliance with all local and national electrical codes.
- Important Wiring Warning: For 7.5 HP use only #6 wire when running 50' or less to subpanel, use #4 wire when over 50'. Failure to do so will cause capacitor and motor failure, thus voiding your warranty.
2-сүрөт: Каптал view of the compressor, highlighting the electrical connection area.
4. Операция
Operating your EMAX E350 compressor is straightforward, but understanding its features will enhance efficiency.
Компрессорду ишке киргизүү:
- Ensure all connections are secure and the power supply is ready.
- Activate the magnetic starter. This provides a safe and protected start, offering overload protection from the moment you power up.
- The low 1750 RPM industrial-grade motor offers exceptional torque and runs efficiently, making it suitable for cold weather starts and reducing electricity consumption.
Аткаруу:
- The compressor delivers a robust 38 CFM (Cubic Feet per Minute) at 100 PSI (Pounds per Square Inch).
- It has a maximum operating pressure of 175 PSI.
- Recommended uses include drilling, air brushing, spraying, and nailing.
Продукт бүттүview Видео:
Watch this official product video for a visual guide to the EMAX E350 Air Compressor's features and benefits.
Video: EMAX E350 Air Compressor Overview (Duration: 2:11). This video demonstrates key features such as CFM and PSI ratings, single-phase power connection, the powder-coated ASME CRN tank, the patented 2-stage low RPM pressure-lubricated pump, magnetic starter, oil pressure gauge, spin-on oil filter, and manual ball valve tank drain.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and reliable performance of your EMAX E350 compressor.
Насос тейлөө:
- The patented 2-stage low RPM pressure-lubricated pump is designed for a 70,000-hour operational lifespan.
- Monitor the oil pressure using the integrated oil pressure gauge.
- The convenient spin-on oil filter is reusable, eliminating the need for expensive upgrades.
- The low RPM pump runs cooler, reduces friction, and minimizes heat buildup, contributing to a prolonged pump life.
- Swedish-style disk valves are used for durability and reliability, and they can be serviced in minutes.

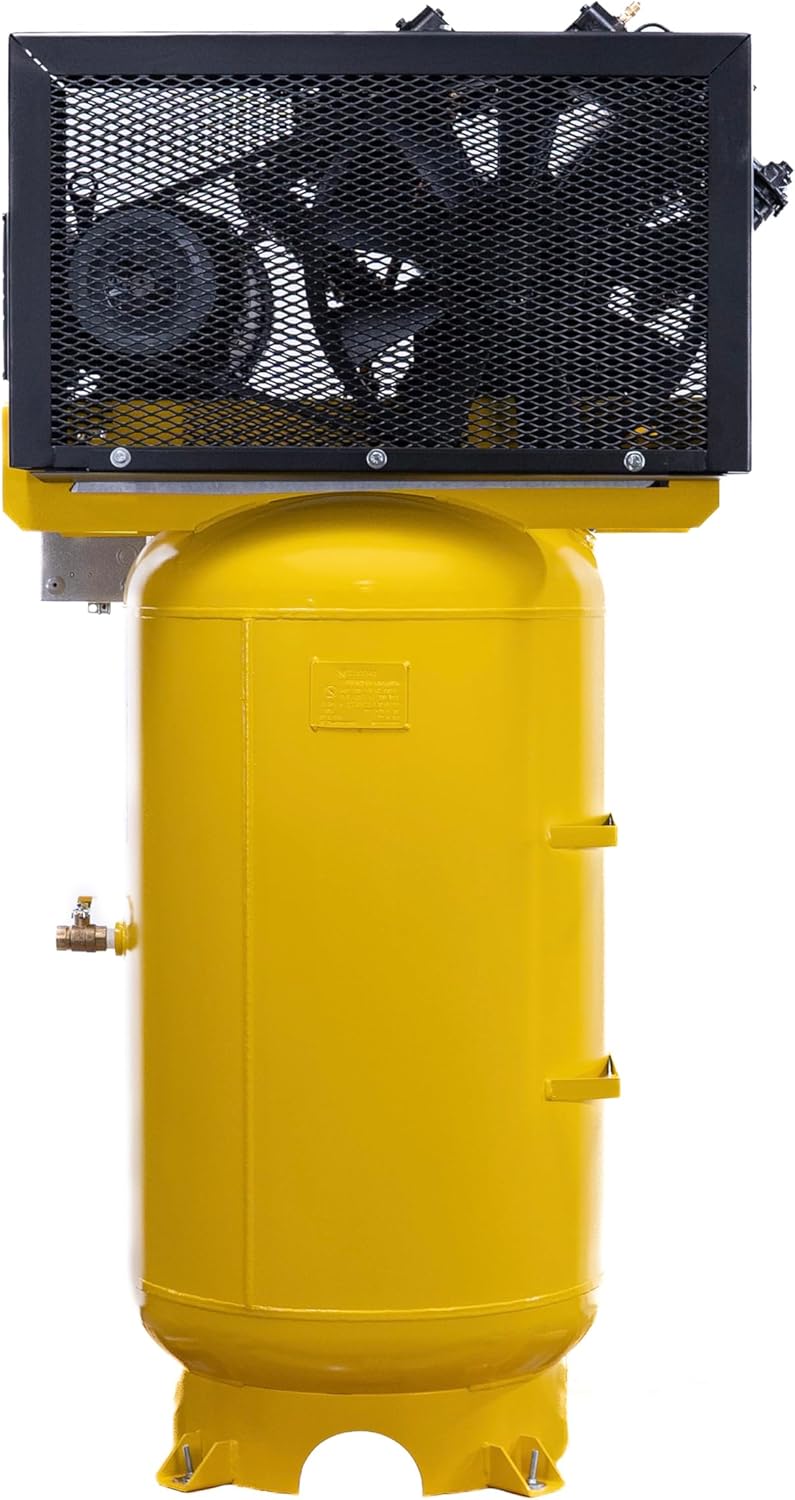

3-сүрөт: Жогорку view of the compressor, showing the pump assembly and motor.
Танкты тейлөө:
- Regularly drain condensation from the 80-gallon tank using the manual ball valve tank drain for easy maintenance. This prevents rust and corrosion inside the tank.
4-сүрөт: Бурчтуу view of the compressor tank, showing the manual drain valve at the base.
6. Кыйынчылыктарды
This section provides solutions to common issues you might encounter with your EMAX E350 air compressor.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Компрессор иштебейт | No power; Overload tripped; Motor issue | Check power connection and circuit breaker. Reset magnetic starter. Consult an electrician if motor issues persist. |
| Төмөнкү аба басымы / Жай басымдын топтолушу | Air leaks; Clogged air filter; Worn pump components | Check all connections for leaks. Inspect and clean/replace air filter. Contact EMAX support for pump inspection. |
| Ашыкча ызы-чуу же титирөө | Loose components; Worn bearings; Improper installation | Tighten all bolts and fasteners. Inspect belts and pulleys. Ensure unit is on a stable, level surface. |
| Агылган абадагы май | Overfilled oil; Worn piston rings | Check oil level and drain excess if overfilled. Contact EMAX support for pump repair if piston rings are suspected. |
For issues not listed here or if solutions do not resolve the problem, please contact EMAX customer support.
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | EMAX |
| Модель аты | EI10V080V1 |
| Бөлүмдүн номери | PE10V080V1 |
| Тtage | 230 вольт |
| Power Source | Электр |
| Максималдуу күч | 10 Ат күчү |
| Мотор кубаты | 10 Horsepower (1750 RPM) |
| Кубаттуулугу | 80 галлон |
| Ызы-чуу деңгээли | 76 dB (Silent Operation) |
| CFM @ 100 PSI | 38 CFM |
| Максималдуу PSI | 175 PSI |
| Насос түрү | 2-Сtage, 4-Cylinder, Pressure Lubricated |
| Pump Lifespan | 70,000 hours (expected) |
| Танк түрү | Powder Coated ASME CRN Tank (Rated at 200 PSI) |
| Материал | Solid Cast Iron Construction |
| Элемент Салмагы | 1066 фунт |
| Продукциянын өлчөмдөрү | 27 x 42 x 71.5 дюйм |
| Сертификаттар | ETL Listed, CSA, ASME, CRN Certified |
8. Кепилдик жана колдоо
EMAX compressors are manufactured in the USA and come with a comprehensive warranty for peace of mind.
Кепилдик камтуу:
- 1 Year Standard Warranty: Covers manufacturing defects and material flaws for one year from the date of purchase.
- 5 Year Extended Warranty: Provides extended coverage for five years.
- Lifetime Extended Pump Coverage: Offers lifetime coverage for the pump, ensuring long-term reliability of the core component.
For warranty claims, technical support, or any inquiries, please refer to the contact information provided with your purchase documentation or visit the official EMAX webсайт.
