1. Киришүү
The Power Probe IV is an advanced automotive diagnostic tool designed to assist technicians in testing electrical circuits and signals within vehicles. It combines multiple diagnostic functions into a single, ergonomic device, providing detailed information for efficient troubleshooting. This manual provides essential information for the safe and effective use of your Power Probe IV.
For more information, visit the official Power Probe webсайт: Power Probe IV
Image 1.1: The Power Probe IV diagnostic tool kit, including the main unit, carrying case, and various connection accessories.
2. Негизги өзгөчөлүктөрү
The Power Probe IV offers a comprehensive set of features for automotive electrical diagnostics:
- Power and Ground Supply: Capable of supplying battery ground and power for functional component testing.
- Digital Volt and Ohmmeter: Integrated for precise circuit testing, measuring AC/DC Voltage, Resistance, Hertz, Frequency, and Pulse Width.
- Large Color LCD Screen: Provides clear, easy-to-read information with an intuitive user menu.
- Сигнал сыноо: Supports AC-RMS, AC peak-to-peak, frequency, and pulse width measurements.
- Эргономикалык дизайн: Features a heavy-duty, water and solvent-resistant housing for durability and comfortable use.
- Айлана коргоосу: Equipped with an automatic resetting 8 Amp өчүргүч.
- Wide Voltage диапазону: Operates within a 12-24 Volt range.
- Шайкештик: Works with all Power Probe test leads and accessories.

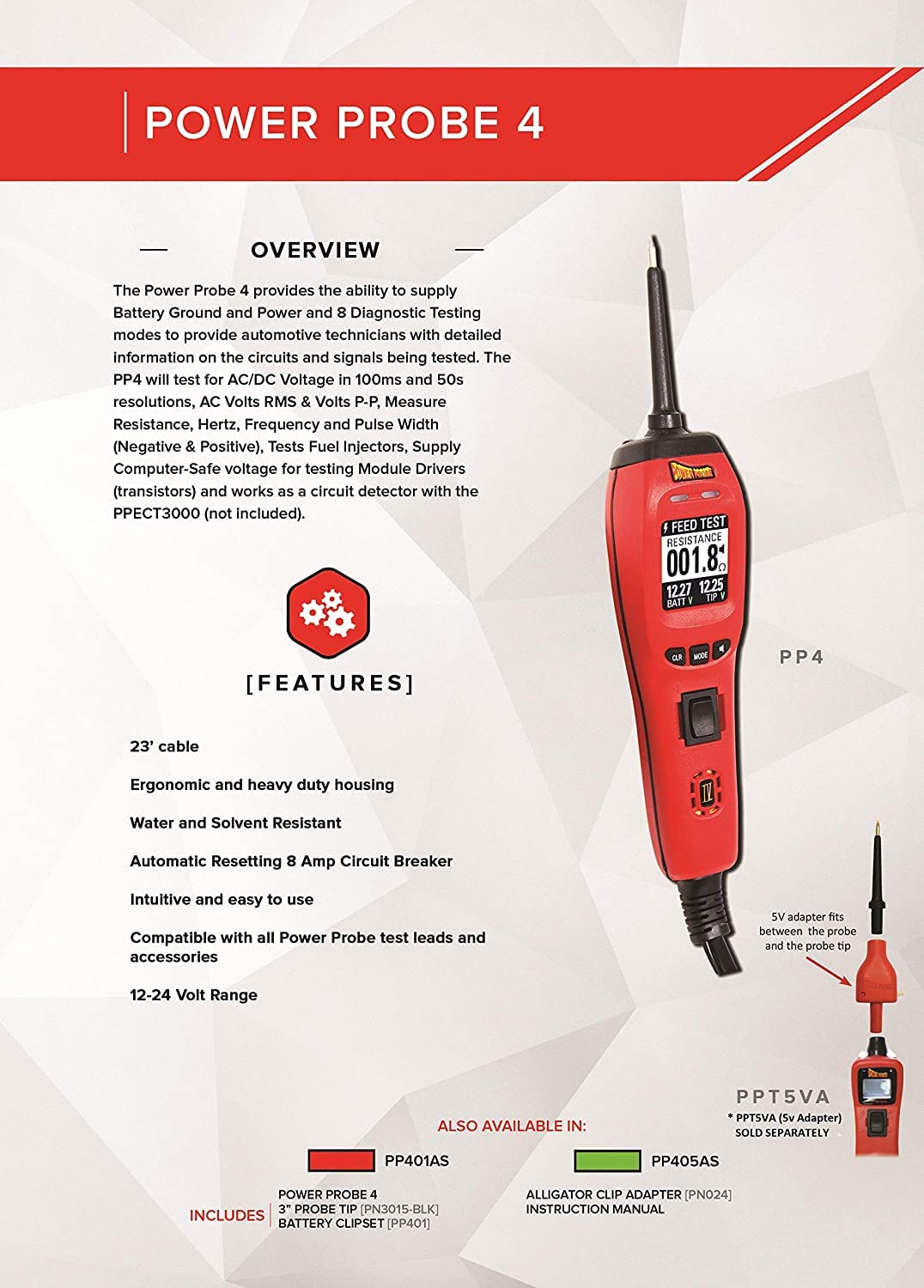

Image 2.1: Visual representation of the Power Probe IV's key features and design elements.
3. Кутуда эмне бар
Your Power Probe IV package typically includes the following items:
- Power Probe IV Unit (Model PP401AS)
- Battery Clip Set
- Instruction Manual
- Коргоочу куту
4. Орнотуу жана баштапкы туташуу
Before using your Power Probe IV, ensure a proper connection to the vehicle's battery.
- Connect the Red Clip: Attach the red battery clip to the positive (+) terminal of the vehicle's 12V or 24V battery.
- Connect the Black Clip: Attach the black battery clip to the negative (-) terminal of the vehicle's battery or a suitable chassis ground point.
- Күйгүзүү: The Power Probe IV will power on automatically once connected. The LCD screen will illuminate, indicating it is ready for use.
Коопсуздук эскертүүсү: Always ensure secure connections to prevent accidental disconnections or short circuits. Do not connect the Power Probe IV to voltages exceeding its specified operating range (12-24V).
5. Иштөө нускамалары
The Power Probe IV features an intuitive interface with various modes for different diagnostic tasks. Familiarize yourself with the tool's controls and display.
5.1 Tool Overview жана Controls
Image 5.1: Diagram illustrating the main components and controls of the Power Probe IV.
- Текшерүү кеңеши: Сыноо үчүн схемаларды байланыштыруу үчүн колдонулат.
- Кол чырак: Жумуш аймагын жарык кылат.
- Red/Green LEDs: Indicate positive (red) or negative (green) voltagзонддун учунда.
- Түстүү экран: Displays measurement data and menu options.
- CLR Button (Left): Clears minimum/maximum readings or scrolls up in menus.
- MODE Button (Center): Ар кандай иштөө режимдерин тандайт.
- Рокер которуштуруу: Applies battery positive or negative voltagзонддун учуна чейин.
- Баяндамачы: Provides audible feedback for certain functions.
5.2 Diagnostic Modes and Functions
басыңыз РЕЖИМ button to cycle through the available diagnostic modes:
Сүрөт 5.2: Бүттүview of the Power Probe IV's primary diagnostic capabilities.
- Power Up Mode:
Actively tests components like motors, lights, and fans by supplying power or ground. Use the rocker switch to apply voltagзонддун учуна чейин.
Image 5.3: Using the Power Probe IV to measure voltage at a battery terminal.
- Min/Max Readings:
Captures and displays minimum and maximum voltage spikes or drop-outs in circuits, useful for intermittent fault detection.
- Continuity & Resistance:
Tests the continuity of wires and components, and measures resistance (Ohms) to identify open circuits or shorts.
Image 5.4: Testing a fuse for continuity within a vehicle's fuse box.
- Жыштык (Гц):
Measures the frequency of signals, essential for testing computer sensors and Pulse Width Modulation (PWM) circuits.
Image 5.5: The Power Probe IV displaying a frequency reading.
- Driver Test Mode:
Safely tests computer circuits that control relays, solenoids, and motors without causing damage.
- AC RMS, Peak to Peak:
Measures AC Root Mean Square (RMS) and Peak-to-Peak voltage outputs from alternators and sensors to verify correct operation.
Image 5.6: AC RMS Voltage дисплей.
Image 5.7: AC Peak to Peak Voltage дисплей.
- Fuel Injector Test Mode:
Reads operating values of individual fuel injectors, allowing technicians to compare them and identify faulty injectors.
Image 5.8: Testing a fuel injector with the Power Probe IV.
6. Техникалык тейлөө
Proper maintenance ensures the longevity and accuracy of your Power Probe IV.
- Тазалоо: Куралды жарнама менен сүртүңүзamp кирди жана кирди кетирүү үчүн кездеме. Катуу химиялык заттардан же абразивдүү тазалагычтардан алыс болуңуз.
- Сактагыч: Store the Power Probe IV in its protective carrying case when not in use to prevent damage. Keep it in a dry environment.
- Кабелдик текшерүү: Regularly inspect the power cable and test leads for any signs of wear, cuts, or damage. Replace damaged components immediately.
- Текшерүү кеңеши: Ensure the probe tip is clean and sharp for optimal contact.
7. Кыйынчылыктарды
If you encounter issues with your Power Probe IV, consider the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Курал күйбөйт. | Incorrect or loose battery connection. Vehicle battery is dead. | Ensure red and black clips are securely connected to the correct battery terminals. Verify vehicle battery voltage. |
| No reading on screen. | Probe tip not making good contact. Circuit is open or dead. | Ensure firm contact with the circuit. Check for continuity or voltagэ. |
| Автоматтык өчүргүч тез-тез иштен чыгат. | Overload on the circuit being tested. Short circuit detected. | Reduce the load on the circuit or investigate for a short circuit before reapplying power. The breaker resets automatically. |
| Туура эмес окуулар. | Poor connection. Damaged probe tip or cable. | Clean probe tip and ensure solid connection. Inspect cables for damage. |
If problems persist, contact Power Probe customer support for assistance.
8. Техникалык шарттар
| Атрибут | Деталь |
|---|---|
| Модель номери | PP401AS |
| Бренд | Power Probe |
| Power Source | Battery Powered (Vehicle Battery 12-24V) |
| Элемент Салмагы | 3 фунт |
| Продукциянын өлчөмдөрү | 4 x 8 x 4 дюйм |
| Кабелдин узундугу | 23 фут (болжол менен) |
| Circuit Breaker | Automatic Resetting 8 Amp |
| Дисплей | Чоң түстүү LCD |
9. Кепилдик жана колдоо
For warranty information, technical support, or service inquiries, please refer to the official Power Probe webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
Optional protection plans may be available for extended coverage. Please check with your retailer or Power Probe for details.
