Introduction
This instruction manual provides essential information for the proper use, maintenance, and care of your Hakko T15-IL Conical Soldering Tip. Adhering to these guidelines will ensure optimal performance and longevity of the tip. This tip is designed for precision soldering applications, offering a fine point for intricate work.
Продукт бүттүview
The Hakko T15-IL is a conical soldering tip, measuring 0.1mm at its point and 12.7mm in length. It is specifically designed for use with Hakko FM-2027 soldering handpieces and compatible soldering stations. This tip is ideal for fine pitch components and delicate soldering tasks where precision heat application is critical.

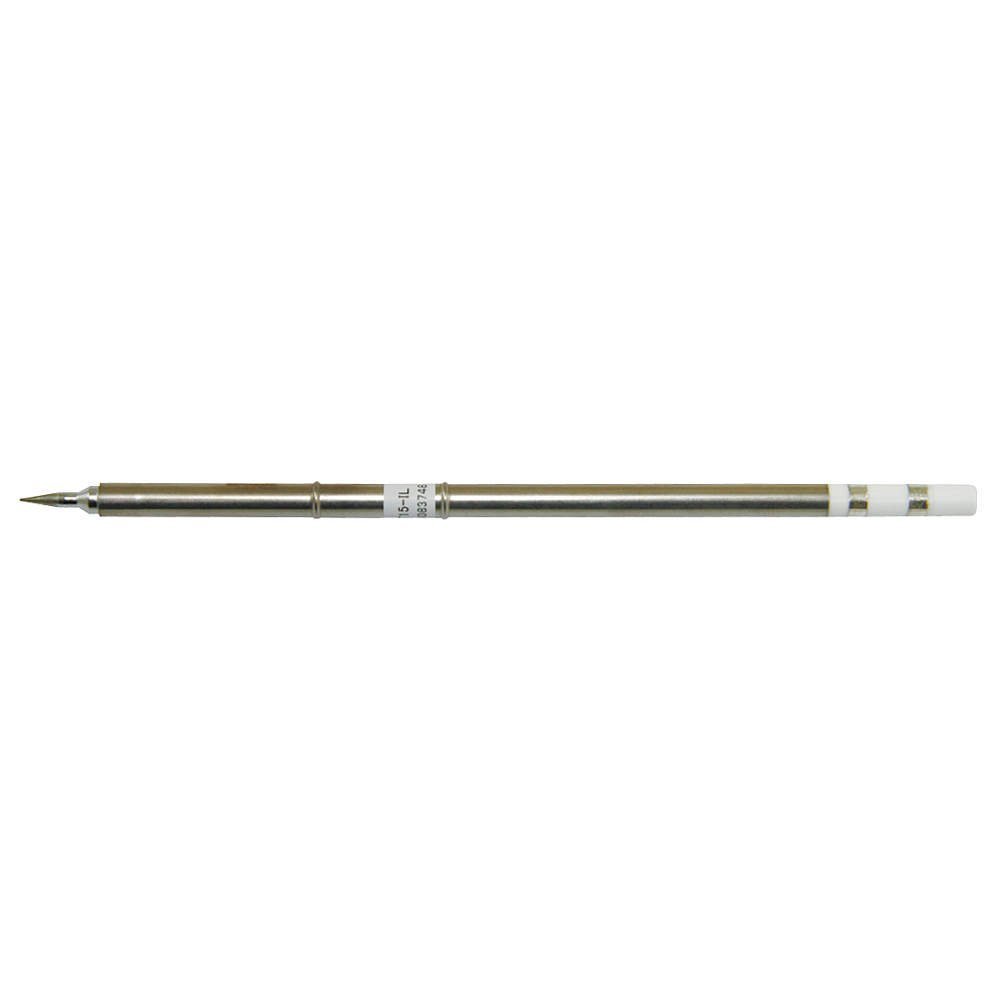

Image 1: Hakko T15-IL Conical Soldering Tip. This image shows the slender, conical shape of the soldering tip, designed for precision work. The tip is metallic grey with a white band near the base, indicating its model number and manufacturing details.
Негизги өзгөчөлүктөрү:
- Conical Shape: Provides a fine point for precision soldering.
- Өлчөмдөрү: 0.1mm tip diameter, 12.7mm length.
- Шайкештик: Designed for use with Hakko FM-2027 soldering handpieces.
- Материал: Constructed for efficient heat transfer and durability.
Коопсуздук маалыматы
Always prioritize safety when working with soldering equipment. Failure to follow safety precautions can result in injury or damage to property.
- Ысык беттер: Soldering tips reach very high temperatures. Always assume the tip is hot. Do not touch the tip or the metal parts of the handpiece.
- Көздү коргоо: Көзүңүздү ширетүүчү түтүндөн жана газдардын чачырашынан коргоо үчүн ар дайым коопсуздук көз айнегин тагыныңыз.
- Вентиляция: Solder fumes can be harmful. Work in a well-ventilated area or use a fume extractor.
- Күйүүчү материалдар: Keep flammable materials away from the soldering area.
- Өчүрүү: Always turn off and unplug the soldering station when not in use or before performing maintenance.
- Туура куралдар: Use appropriate tools for handling hot tips, such as heat-resistant pads or stands.
Жайгашуу
Before using the Hakko T15-IL tip, ensure your soldering station and handpiece are compatible and in good working order. This tip is designed for Hakko FM-2027 handpieces.
- Өчүрүү: Ensure the soldering station is turned off and unplugged from the power outlet.
- Муздатуу: If replacing an existing tip, allow the old tip and handpiece to cool completely to a safe temperature.
- Remove Old Tip (if applicable): Carefully remove the old tip from the FM-2027 handpiece. Refer to your handpiece's manual for specific instructions on tip removal.
- Жаңы кеңеш киргизүү: Gently insert the T15-IL conical tip into the heating element of the FM-2027 handpiece. Ensure it is fully seated and secure. Do not force the tip.
- Secure Handpiece: Place the handpiece securely in its stand.
- Күйгүзүү: Plug in and power on your soldering station. Allow the tip to reach the set temperature.
- Pre-tinning: Once the tip reaches operating temperature, immediately apply a small amount of solder to the tip. This "tins" the tip, protecting it from oxidation and ensuring efficient heat transfer.
Иштөө нускамалары
Proper operating technique is crucial for effective soldering and tip longevity.
- Температураны жөндөө: Set your soldering station to the appropriate temperature for the solder and components you are using. Consult your solder's datasheet for recommended temperatures.
- Таза кеңеш: Before each use, and periodically during use, clean the tip using a damp sponge or brass wool to remove old solder and oxidation.
- Solder колдонуу: Bring the clean, tinned tip into contact with both the component lead and the PCB pad simultaneously.
- Feed Solder: Once heat is transferred, feed solder onto the joint, not directly onto the tip. The solder should flow smoothly and create a shiny, concave fillet.
- Remove Solder and Tip: Remove the solder wire first, then the soldering tip. Avoid dragging the tip across the board.
- Re-tinning: After each joint, or if the tip appears dull, re-tin the tip with a small amount of fresh solder. This helps prevent oxidation.
Техникалык тейлөө
Regular maintenance extends the life of your soldering tip and ensures consistent performance.
- Күнүмдүк тазалоо: Clean the tip frequently during use with a damp cellulose sponge or brass wire cleaner.
- Re-tinning: Always re-tin the tip with fresh solder before placing the iron back in its stand and before turning off the station. This protective layer prevents oxidation.
- Ашыкча ысыктан сактаныңыз: Do not operate the tip at excessively high temperatures for prolonged periods, as this can accelerate oxidation and reduce tip life.
- эскирүү үчүн текшерүү: Periodically inspect the tip for signs of wear, pitting, or excessive oxidation that cannot be removed by cleaning. Replace the tip if it is significantly degraded.
- Туура сактоо: Store tips in a dry, clean environment when not in use.
Проблемаларды чечүү
If you encounter issues with your soldering tip, consider the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Tip not heating or heating slowly | Poor connection to handpiece; faulty handpiece or station; incorrect tip for station. | Ensure tip is fully seated. Check handpiece and station connections. Consult your soldering station manual. |
| Solder does not wet the tip (beads up) | Tip is oxidized; insufficient temperature; tip is worn out. | Clean and re-tin the tip thoroughly. Increase temperature if safe for components. Replace tip if severely oxidized or worn. |
| Начар ширетүүчү муундар | Insufficient heat transfer; dirty tip; incorrect temperature. | Ensure tip is clean and tinned. Verify correct temperature setting. Ensure good contact with both pad and lead. |
Техникалык шарттар
Detailed specifications for the Hakko T15-IL Conical Soldering Tip:
| Атрибут | Нарк |
|---|---|
| Модель номери | T15-IL |
| Кеңеш түрү | Конус |
| Учактын диаметри | 0.1мм |
| Узундук | 12.7мм |
| Compatible Handpiece | Hakko FM-2027 |
| Продукциянын өлчөмдөрү | 8.5 x 2 x 0.25 дюйм |
| Элемент Салмагы | 0.16 унция |
| Өндүрүүчү | Hakko |
| Өндүрүлгөн өлкө | Жапония |
Кепилдик жана колдоо
For specific warranty information regarding your Hakko T15-IL soldering tip, please refer to the documentation provided with your original purchase or visit the official Hakko webсайт. Кепилдик шарттары, адатта, өндүрүш кемчиликтерин камтыйт.
For technical support, product inquiries, or to purchase additional Hakko products, please visit the official Hakko store or contact their customer service directly.
Official Hakko Store: Hakko Store on Amazon
