STANLEY FATMAX автоматтык кулпулоочу лентасы 8м метрикалык гана колдонуучу колдонмосу

1. Продукт бүтүп калдыview

The STANLEY FATMAX Autolock Tape is a precision measuring tool designed for durability and ease of use. Its compact, ergonomic bi-material case provides enhanced grip and comfort. The unique Autolock technology ensures the blade extends and holds its position without needing to press a separate lock button, retracting smoothly with a simple button press.

Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:

• Patented Reverse Lock Mechanism: Provides greater control and extends blade life.
• Blade Armor Coating: Applied to the first 80mm for double the blade life, complemented by a Mylar coating for 10 times more abrasion resistance.
• Wide 32mm Blade: Ensures easy readability and improved blade standout up to 3.4m for single-person measurements.
• 3-Rivet Hook: 40% stronger than standard 2-rivet hooks for enhanced durability.
• Detachable Hook Feature: Includes magnetic and XL hooks for improved efficiency and versatility.

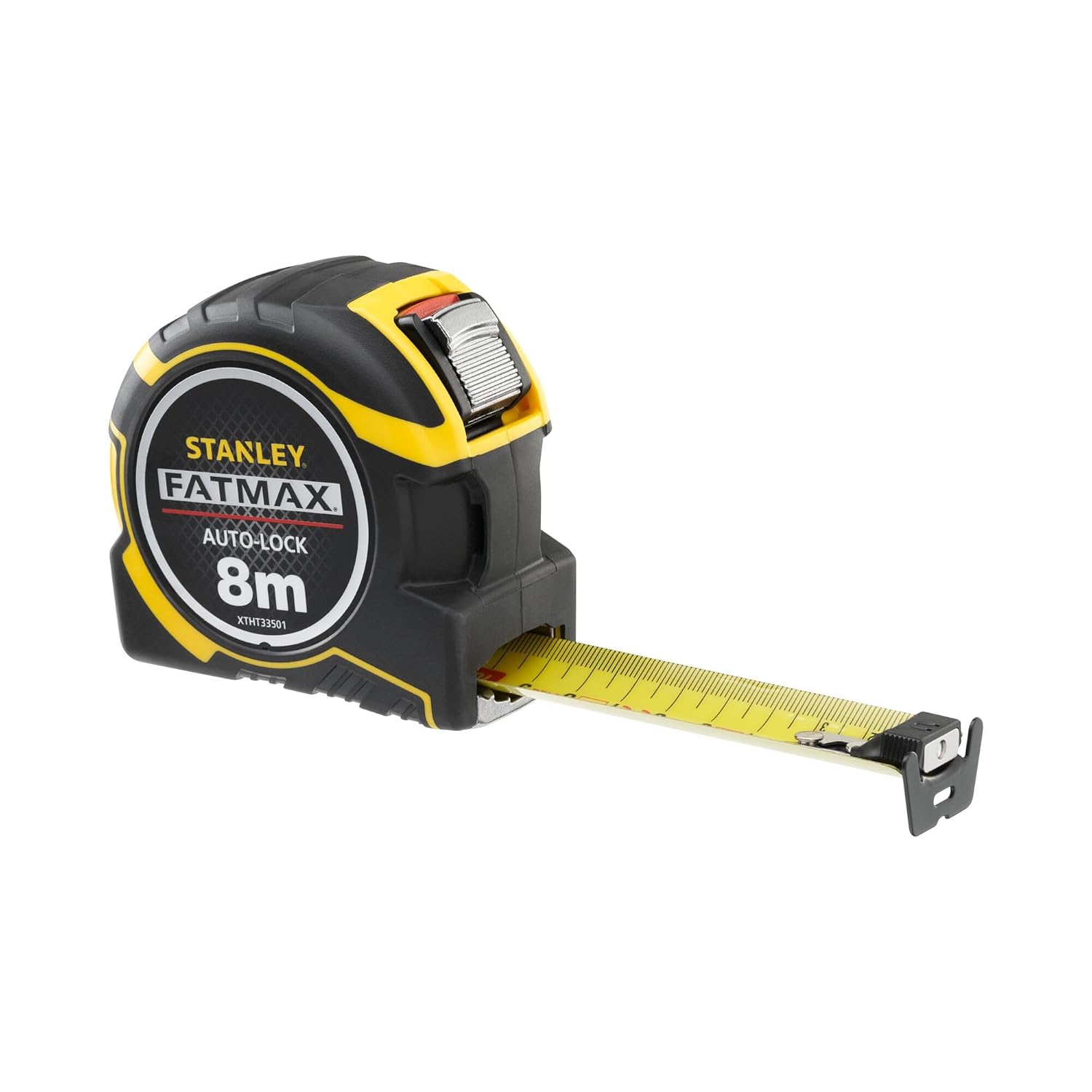

Figure 1.1: STANLEY FATMAX Autolock Tape Measure (8m Metric Only)

2. Орнотуу

The STANLEY FATMAX Autolock Tape is ready for immediate use out of the box. No assembly is required for the main unit. However, the product includes interchangeable hooks that can be attached or detached based on your measurement needs.

2.1 Attaching/Detaching Interchangeable Hooks

The tape measure comes with a standard hook and additional magnetic and XL hooks. These can be swapped to suit different measuring scenarios.

• To attach a hook: Align the hook with the end of the tape blade and slide it into place until it clicks securely.
• To detach a hook: Gently press the release mechanism (if present) or slide the hook off the end of the blade.

Figure 2.1: Diagram illustrating the interchangeable magnetic and XL hooks.

3. Иштөө нускамалары

3.1 Extending the Blade

To extend the blade, simply pull the tape out from the casing. The Autolock mechanism will automatically engage, holding the blade at the desired length without needing to press a separate lock button. This allows for easy one-handed operation.

Figure 3.1: Extending the tape blade for measurement.

3.2 Retracting the Blade

To retract the blade, locate the large button on the top of the tape measure casing. Press and hold this button to disengage the Autolock mechanism, allowing the blade to smoothly retract back into the case. Release the button to stop retraction at any point.

Figure 3.2: Pressing the button to retract the blade.

3.3 Using the Tru-Zero End Hook

The Tru-Zero end hook is designed to provide accurate measurements for both inside and outside dimensions. When measuring an outside dimension (hooking the tape onto an edge), the hook will extend slightly to account for its own thickness. When measuring an inside dimension (butting the tape against a surface), the hook will retract to ensure the measurement starts precisely from the inside edge of the hook. Always ensure the hook is flush against the surface for accurate readings.

Figure 3.3: The Tru-Zero end hook in use for precise measurements.

4. Техникалык тейлөө

Proper maintenance will ensure the longevity and accuracy of your STANLEY FATMAX Autolock Tape.

• Тазалоо: Wipe the blade and casing with a clean, dry cloth after each use, especially if exposed to dust, dirt, or moisture. Avoid using abrasive cleaners or solvents.
• Сактагыч: Store the tape measure in a dry environment, away from extreme temperatures and direct sunlight.
• Бычакты багуу: The Mylar and Blade Armor coatings provide excellent protection, but avoid kinking or bending the blade sharply, as this can damage the coating and affect accuracy.
• Илмек текшерүү: Periodically check the end hook for any damage or bending, as this can impact measurement accuracy.

5. Кыйынчылыктарды

Бул жерде кээ бир жалпы маселелер жана алардын мүмкүн болуучу чечимдери:

• Blade does not retract smoothly:

  Ensure the retraction button is fully depressed. Check for any debris or obstructions in the blade opening. If the issue persists, the internal spring mechanism may be worn. This is typically not user-serviceable.
• Autolock mechanism slips or does not hold:

  This can sometimes occur with heavy use or if the internal mechanism accumulates dust. Try to gently clean the blade and the opening. If the issue persists, the internal locking mechanism may be worn. This is not user-serviceable.

• End hook is loose or detached:

  Ensure the hook is properly seated and clicked into place. If it frequently detaches, inspect the attachment point for wear or damage. If the hook is lost, replacement hooks may be available from STANLEY customer service.

• Туура эмес өлчөөлөр:

  Verify that the Tru-Zero end hook is functioning correctly (moving freely for inside/outside measurements). Ensure the blade is not bent or damaged. Compare measurements with a known accurate standard if possible.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact STANLEY customer support.

6. Техникалык шарттар

7. Кутуда эмне бар

The STANLEY FATMAX Autolock Tape package includes:

• 1 x FatMax® Autolock Pocket Tape 8m (Width 32mm) (Metric only)

Note: Additional interchangeable hooks (magnetic, XL) may be included depending on the specific product variant or region. Refer to your product packaging for exact contents.

8. Кепилдик жана колдоо

For detailed warranty information, product registration, and customer support, please visit the official STANLEY webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.

Официалдуу Webсайт: www.stanleytools.eu

Please have your product model number (XTHT0-33501) and purchase date ready when contacting support.
