JET 14" x 40" Variable-Speed Woodworking Lathe Instruction Manual

Introduction

This manual provides essential instructions for the safe and effective operation, setup, and maintenance of your JET 14" x 40" Variable-Speed Woodworking Lathe. Designed for versatility in woodturning projects, this lathe features a sliding and pivoting headstock, variable speed control, and robust construction. Please read this manual thoroughly before operating the machine to ensure proper use and to maximize the lifespan of your equipment.

Figure 1: ашыкview of the JET 14" x 40" Variable-Speed Woodworking Lathe.

Коопсуздук чаралары

Always prioritize safety when operating the lathe. Failure to follow safety guidelines can result in serious injury.

• Before turning on the lathe, ensure all jewelry is removed and any loose hair is securely tied back.
• Wear appropriate personal protective equipment (PPE), including safety glasses or a face shield, hearing protection, and dust mask.
• Ensure the workpiece is securely mounted and balanced before starting the lathe.
• Always use an adequate length tool rest for the type of work being performed.
• Keep hands and fingers clear of the rotating workpiece and moving parts.
• Do not wear loose clothing that could get caught in the machinery.
• Иш аянты таза, жакшы жарык жана тоскоолдуктар жок болушун камсыз кылыңыз.

Жайгашуу

Proper setup is crucial for stable and safe operation.

1. Даярдоо бөлүгү:

   Layout the centers on both ends of the wood piece by drawing lines diagonally from corner to corner. Use a spur center to locate the center of the wood and seat it into the piece with a hammer to create a secure starting point.



   Figure 2: Marking the center points on the workpiece.

2. Mounting the Workpiece:

   Engage the tailstock into the center of the workpiece. Turn the handwheel to engage the tailstock spindle until it is adequately tight, ensuring the workpiece is held firmly between the headstock and tailstock. Tighten down the tailstock lever and the quill lock to secure the workpiece in place.



   Figure 3: Securing the workpiece with the tailstock.

3. Куралдын эс алуусун тууралоо:

   Ensure you use an adequate length tool rest for the type of work you are going to be doing. Position the tool rest as close to the workpiece as possible without touching it, to ensure it supports the cutting tool effectively.

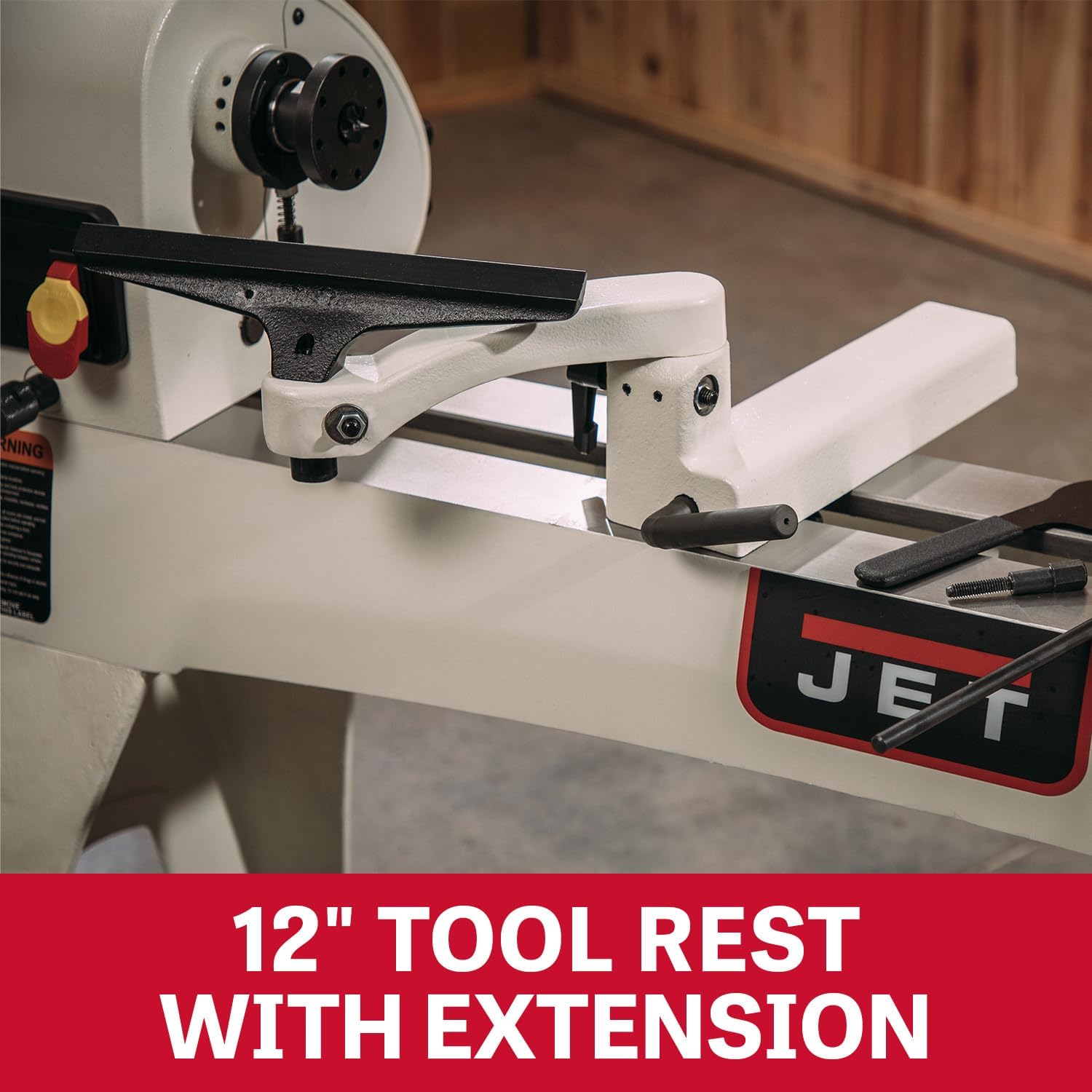

   Figure 4: The 12" tool rest with extension provides stable support.
4. Ылдамдык тандоо:

   Select the appropriate speed range (Low, Medium, High) for the size of the workpiece you are turning. Adjust the actual speed using the RPM selector. The lathe offers variable speeds from 400-3,000 RPM.



   Figure 5: Speed control and key features of the lathe.

Иштөө нускамалары

Follow these steps for effective woodturning:

1. Initial Balance Check:

   Turn the lathe on and ensure your piece of wood is balanced. If the workpiece vibrates excessively, turn off the lathe and re-adjust its position or mounting.

2. Shaping the Workpiece:

   Once balanced, begin turning the piece to start forming your desired shape. Periodically lay your tool on the wood piece to ensure it's not jumping. Continue readjusting the tool rest as close to the piece as possible to ensure it supports the cutting tool.



   Figure 6: Demonstrating woodturning with a chisel.

3. Applying Tools:

   At a low RPM, apply the tool against the piece with slow movements and light, consistent pressure. Be sure to work from larger depth of cut sections to smaller depth of cut sections. You may need to change the tool rest out to a smaller one to get into tighter and smaller spots.

4. Headstock Adjustment:

   The sliding headstock pivots 360 degrees with 7 positive locking positions (0, 30, 60, 90, 120, 180, and 270 degrees), allowing for versatile turning operations, including outboard turning for larger pieces.



   Figure 7: The headstock can slide and rotate 360 degrees for various turning needs.

Техникалык тейлөө

Regular maintenance ensures optimal performance and longevity of your lathe.

• Tool Sharpening: Periodically sharpen your chisels and other turning tools to maintain effective cutting edges. Dull tools can lead to poor results and increased effort.
• Тазалоо: After each use, clean wood dust and debris from the lathe bed, headstock, tailstock, and motor area. This prevents buildup that can affect performance and cause wear.
• Майлоо: Refer to the detailed lubrication schedule in the full product manual for specific points and types of lubricants.
• Белдик текшерүү: Regularly inspect the drive belt for wear, cracks, or damage. Replace if necessary to maintain consistent power transmission.

Проблемаларды чечүү

Бул бөлүм сиз кабылышы мүмкүн болгон жалпы көйгөйлөрдү карайт.

• Ашыкча титирөө:
  • Ensure the workpiece is properly centered and securely mounted.
  • Check if the lathe is securely fastened to its stand or workbench and is level.
  • Verify that the tool rest is positioned correctly and tightly locked.
• Motor Not Starting/Running:
  • Check the power connection and ensure the lathe is plugged into a functional outlet.
  • Коопсуздук ачкычы толугу менен салынганын текшериңиз.
  • Электр шнурунда кандайдыр бир бузулуулар бар экенин текшериңиз.
• Начар кесүү көрсөткүчтөрү:
  • Ensure your turning chisels are sharp. Dull tools will not cut efficiently.
  • Adjust the lathe speed to match the material and turning operation.
  • Verify the tool rest is close enough to the workpiece to provide adequate support.

Татаал маселелер үчүн кардарларды колдоо бөлүмүнө кайрылыңыз.

Техникалык шарттар

Кепилдик

The JET 14" x 40" Variable-Speed Woodworking Lathe comes with a 5 жылдык кепилдик for residential use. If used for commercial or industrial purposes, the warranty defaults to a 2-Year Warranty. Please retain your proof of purchase for warranty claims.

8-сүрөт: JET 5 жылдык кепилдик.

Колдоо

For additional support, parts, or service, please contact Jet customer service or visit their official store.

• Онлайн колдоо: зыярат кылыңыз Jet Store on Amazon продукт маалымат жана ресурстар үчүн.
• Кардарларды тейлөө: Refer to the contact information provided with your product packaging or on the official Jet webтүз жардам сайты.
