Introduction
This manual provides comprehensive instructions for the safe and efficient operation, setup, maintenance, and troubleshooting of your Fein KBB60 60mm Metal Core Drilling Unit. Please read this manual thoroughly before using the device to ensure proper handling and to prevent injury or damage.
The Fein KBB60 is a robust and powerful metal core drilling unit designed for professional use, featuring a 1400 Watt motor, two-speed gearbox, and a strong magnetic holding power of 11000 Newton for secure attachment to ferromagnetic materials.
Коопсуздук нускамалары
Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, and gloves when operating the drilling unit. Ensure the workpiece is securely clamped and the magnetic base has full contact with a clean, flat, ferromagnetic surface before starting. Disconnect power before performing any maintenance or changing accessories.
- кубат менен камсыз кылуу Voltage аспаптын аталыш тактасында көрсөтүлгөн.
- Жумушчу жерди таза жана жакшы жарыктандырыңыз. Башаламан же караңгы жерлер кырсыкка чакырат.
- Жарылуучу чөйрөдө, мисалы, күйүүчү суюктуктар, газдар же чаң бар жерде электр шаймандарын иштетпеңиз.
- Электр шайманын иштетип жатканда балдарды жана жанында тургандарды алыс кармаңыз.
- Кокусунан баштоодон алыс болуңуз. Которуштуруудан мурун өчүргүч өчүрүлгөн абалда экенин текшериңиз.
- Колдонмоңуз үчүн туура куралды колдонуңуз. Куралды мажбурлабаңыз.
- Куралдарды этияттык менен сактаңыз. Кесүүчү аспаптарды курч жана таза кармаңыз.
- Кыймылдуу бөлүктөрдүн туура эмес түзүлүшү же байланышы, тетиктердин сынышы жана аспаптын иштешине таасир эте турган башка шарттарды текшериңиз.
Пакеттин мазмуну
Таңгактан чыгарганда, төмөндө көрсөтүлгөн бардык компоненттердин бар экенин жана бузулбаганын текшериңиз:
- 1 x Fein KBB60 Metal Core Drilling Unit
- 1 х көтөрүп Case
- 1 x Coolant Tank
- 1 x Lashing Strap
- 1 x Swarf Hook
- 2 x борборлоштурулган төөнөгүчтөр
- 1 x Contact Guard
- 1 x Socket Head Wrench 5mm
- 1 x Ташуу туткасы
Figure 1: Fein KBB60 drilling unit and its complete set of accessories, including the carry case, coolant tank, lashing strap, swarf hook, centering pins, contact guard, socket head wrench, and carry handle.
Жайгашуу
- Ташуу туткасын бекитүү: Secure the extra carry handle to the designated mounting points on the unit for easier transport.
- Mounting the Coolant Tank: Attach the integrated coolant tank to the unit. Ensure it is securely fastened and fill it with appropriate cutting fluid.
- Installing the Core Drill Bit:
- Агрегаттын розеткадан ажыратылганын текшериңиз.
- Insert the centering pin into the core drill bit.
- Insert the core drill bit with the centering pin into the Weldon holder.
- Tighten the set screws on the Weldon holder firmly using the provided 5mm socket head wrench to secure the drill bit.
- Агрегатты жайгаштыруу: Place the magnetic foot on a clean, flat, ferromagnetic surface. Ensure full contact for maximum magnetic holding power (11000 Newton). Activate the magnetic base switch.
- Туташуу күчү: Plug the 3.8-meter power cable into a suitable power outlet.

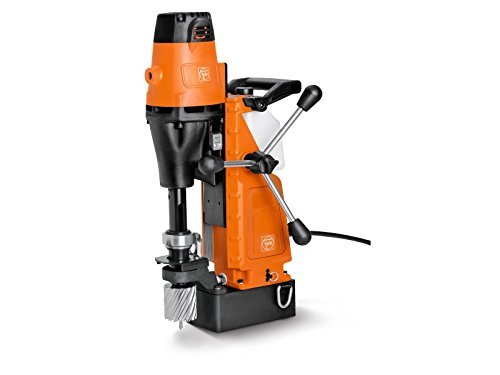

Figure 2: The Fein KBB60 drilling unit prepared for use, showing the magnetic base, drill bit, and control handles.
Иштөө нускамалары
- Ылдамдыкты тандоо: The unit features a mechanical 2-speed gearbox. Select the appropriate speed (330 rpm for 1st gear, 660 rpm for 2nd gear) based on the material and drill bit diameter. Lower speeds are generally for larger diameters and harder materials.
- Магниттин активдештирилиши: Ensure the magnetic base is firmly engaged with the workpiece before starting the motor. The magnetic holding power is 11000 Newton.
- Моторду ишке киргизүү: Turn on the motor using the power switch. Allow the motor to reach full speed before engaging the drill bit with the workpiece.
- Бургулоо: Use the feed hand wheel to slowly lower the drill bit into the workpiece. Apply steady, even pressure. The feed hand wheel can be moved from one side to the other for user convenience.
- Coolant Flow: Ensure the coolant system is active and providing sufficient lubrication and cooling to the drill bit during operation, especially for deep holes or hard materials.
- Monitoring Drilling Depth: The extra-long drill shaft allows for a cutting depth of up to 75mm. Monitor the depth to avoid over-drilling.
- Операцияны токтотуу: Once the drilling is complete, retract the drill bit from the workpiece using the feed hand wheel, then turn off the motor. Finally, deactivate the magnetic base.
Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your Fein KBB60 drilling unit.
- Тазалоо: After each use, clean the unit, especially the magnetic base and the drill bit holder, to remove metal chips and dust. Use the provided swarf hook to clear debris.
- Муздаткыч системасы: Regularly check the coolant tank for fluid level and refill as needed. Clean the coolant lines and nozzles to prevent blockages.
- Магниттик база: Keep the magnetic foot clean and free of debris to ensure maximum holding power. Any foreign material can reduce the magnetic force.
- Кабельдер жана байланыштар: Inspect the power cable and all connections for signs of wear, cuts, or damage. Replace damaged cables immediately. The motor wiring is concealed for protection.
- Drill Bit Holder: Ensure the Weldon holder is clean and the set screws are in good condition. Replace if worn or damaged.
- Сактагыч: Store the unit in its carry case in a dry, secure location when not in use.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | No power supply; faulty cable; internal electrical issue. | Check power outlet and cable connection. Inspect cable for damage. If problem persists, contact service. |
| Magnetic base not holding securely. | Dirty or uneven workpiece surface; non-ferromagnetic material; insufficient material thickness. | Clean the workpiece surface. Ensure it's ferromagnetic and thick enough. Check magnetic base for damage. |
| Drill bit not cutting efficiently or overheating. | Dull drill bit; insufficient coolant; incorrect speed setting; excessive feed pressure. | Replace or sharpen drill bit. Check coolant level and flow. Adjust speed and feed pressure. |
| Ашыкча титирөө же ызы-чуу. | Loose drill bit; worn bearings; damaged motor. | Ensure drill bit is securely tightened. If noise persists, contact qualified service personnel. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | KBB 60 |
| Киргизүү күчү | 1400 Ватт |
| Чыгуу күчү | 770 Ватт |
| 1st Gear Speed | 330 об/мин |
| 2nd Gear Speed | 660 об/мин |
| Max. Carbide Core Drill Diameter | 60 мм |
| Max. HSS Core Drill Diameter | 60 мм |
| Max. Core Drill Drilling Depth | 75 мм |
| Core Drill Holder | Weldon |
| Инсульт | 92 мм |
| Magnetic Holding Power | 11000 Ньютон |
| Кабелдин узундугу | 3.8 метр |
| Салмагы | 23.9 кг |
| Magnetic Foot Dimensions | 191 x 102 мм |
| Power Source | жоон |
| Материал | Металл |
Кепилдик
The Fein KBB60 60mm Metal Core Drilling Unit comes with a 6 айлык кепилдик on the product from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. Please retain your purchase receipt as proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, neglect, unauthorized repairs, or normal wear and tear.
Кардарларды колдоо
For technical assistance, spare parts, or warranty claims, please contact your authorized Fein dealer or the manufacturer's customer service. When contacting support, please have your product model number (KBB 60) and serial number (if applicable) ready.
For more information, you may visit the official Fein webсайтына кириңиз же жергиликтүү дистрибьюторуңузга кайрылыңыз.
