Fortin EVO-Key Universal Immobilizer Bypass Module User Manual

1. Киришүү

The Fortin EVO-Key is a universal immobilizer bypass module designed for automotive applications. It facilitates the integration of remote start or security systems by temporarily bypassing the vehicle's factory immobilizer system, allowing the engine to start without the physical presence of a transponder key. This manual provides essential information for the proper installation, operation, and maintenance of your EVO-Key module.

2. Продукт бүтүп калдыview

The EVO-Key module is a compact electronic device engineered to integrate seamlessly with various vehicle immobilizer systems. It comes preloaded, simplifying the initial setup process for compatible vehicles. Its primary function is to provide a secure and reliable method for remote starting vehicles equipped with transponder-based immobilizers.

2.1-сүрөт: Жогорку view of the Fortin EVO-Key module, showing the Fortin logo and textured surface.

2.2-сүрөт: Арткы view of the Fortin EVO-Key module, displaying the various wiring harness connectors for vehicle integration.

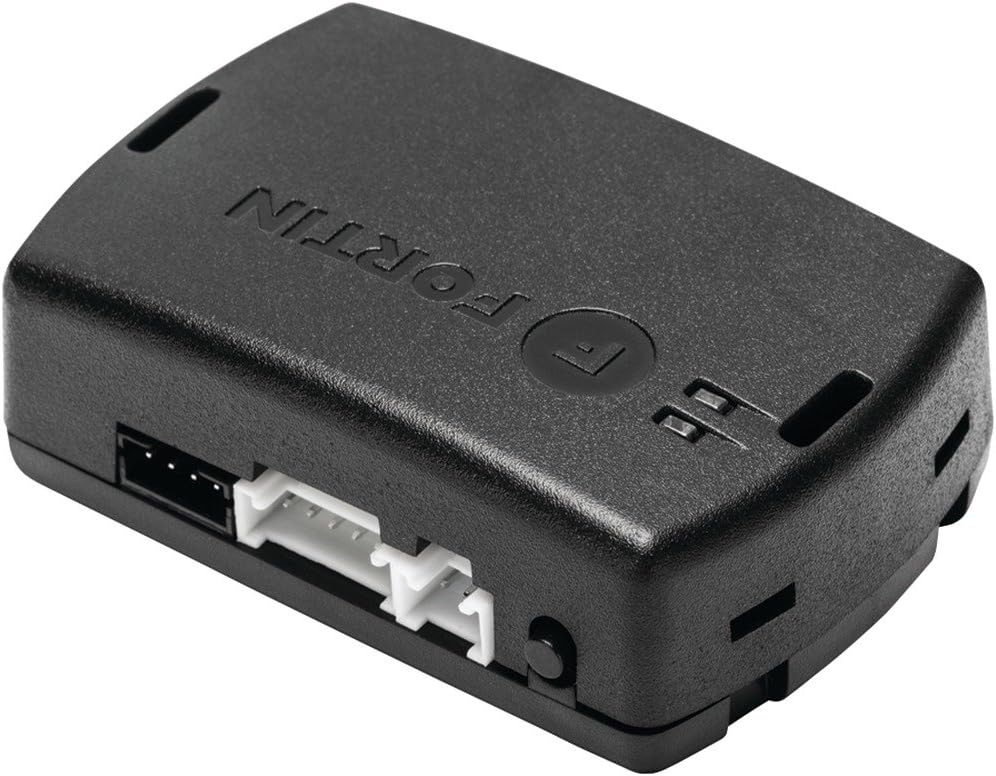

2.3-сүрөт: Бурчтуу view of the Fortin EVO-Key module, highlighting the side profile and connector ports.

3. Орнотуу жана орнотуу

Installation of the Fortin EVO-Key module requires technical knowledge of automotive electrical systems and vehicle immobilizer protocols. It is strongly recommended that installation be performed by a certified professional installer.

3.1. Унаа шайкештиги

Before installation, verify the compatibility of the EVO-Key module with your specific vehicle make, model, and year. Refer to the official Fortin website for the most up-to-date compatibility list and detailed vehicle-specific wiring diagrams and programming instructions.

3.2. General Installation Steps (Professional Installation Recommended)

1. Даярдоо: Disconnect the vehicle's battery before beginning any wiring.
2. Зымдар: Connect the EVO-Key module to the vehicle's electrical system and the remote start/security system according to the vehicle-specific wiring diagram provided by Fortin. Ensure all connections are secure and properly insulated.
3. Программалоо: Although the module is preloaded, vehicle-specific programming may still be required to synchronize it with your vehicle's immobilizer system. Follow the detailed programming instructions available on the Fortin website for your specific vehicle.
4. Сыноо: After installation and programming, reconnect the battery and thoroughly test the remote start and immobilizer bypass functions to ensure correct operation.

4. Иштөө нускамалары

Once properly installed and programmed, the Fortin EVO-Key module operates automatically in conjunction with your remote start or security system. It requires no direct user interaction for its primary function.

• When a remote start command is initiated by your remote start system, the EVO-Key module will temporarily bypass the vehicle's immobilizer.
• This allows the engine to start without the need for a physical key in the ignition.
• Upon engine shutdown or disarming of the remote start system, the immobilizer function is restored to its normal state.

5. Техникалык тейлөө

The Fortin EVO-Key module is designed for long-term reliability and requires no routine user maintenance. To ensure optimal performance:

• Бардык зымдардын туташууларынын бекем жана дат баспагандыгын текшериңиз.
• Keep the module free from excessive moisture, dust, and extreme temperatures.
• Avoid physical damage to the module or its wiring.

6. Кыйынчылыктарды

If you experience issues with your Fortin EVO-Key module or the associated remote start/security system, consider the following troubleshooting steps:

• Vehicle Fails to Remote Start:
  • Бардык зымдардын туташууларынын туура жана коопсуз экенин текшериңиз.
  • Confirm the module was programmed correctly for your specific vehicle.
  • Check the remote start system for any error codes or malfunctions.
• Immobilizer Warning Light:
  • If the immobilizer warning light illuminates during remote start, it may indicate an issue with the bypass module's operation or programming.
  • Re-verify programming steps or consult Fortin's technical support resources.
• Жалпы бузулуу:
  • Ensure the vehicle's battery is fully charged and in good condition.
  • Consult the Fortin website for specific troubleshooting guides and firmware updates.

For complex issues, it is recommended to contact a professional automotive electronics technician or Fortin technical support.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For detailed warranty information, technical support, and additional resources, please refer to the official Fortin webсайт. Кепилдиктин шарттары жана шарттары аймакка жана сатуучуга жараша өзгөрүшү мүмкүн.

• Официалдуу Webсайт: www.fortin.ca
• Техникалык колдоо: Consult the support section on the Fortin webбайланыш маалыматы жана көп берилүүчү суроолор үчүн сайт.
