M-Wave 21 Function Mini Folding Tool Instruction Manual

Introduction

This manual provides essential instructions for the safe and effective use, maintenance, and care of your M-Wave 21 Function Mini Folding Tool. Please read this manual thoroughly before using the tool and retain it for future reference.

The M-Wave 21 Function Mini Folding Tool is a compact and versatile multi-tool designed for bicycle maintenance and adjustments on the go. Its folding design allows for easy portability.

Коопсуздук маалыматы

• Always wear appropriate safety gear, such as gloves and eye protection, when performing maintenance.
• Ensure the tool is clean and dry before and after use to prevent corrosion and maintain grip.
• Do not apply excessive force to the tool, as this may damage the tool or the bicycle components.
• Балдар жетпеген жерде сактаңыз.
• Store the tool in its folded position when not in use to prevent accidental injury.

Компоненттер бүттүview

The M-Wave 21 Function Mini Folding Tool integrates a variety of essential bicycle maintenance tools into a single compact unit. Below is a list of the included functions:

• Allen Keys: 2мм, 2.5мм, 3мм, 4мм, 5мм, 6мм, 8мм
• Screwdrivers: Phillips head, Flat head
• Box Wrenches: 8мм, 9мм, 10мм, 15мм
• Chain Riveting Tool: For chain repair
• Spoke Adjusters: 3.2mm, 3.3mm, 3.5mm, Mavic compatible
• Torx Wrench: T25
• Tire Lever: For tire removal
• Бөтөлкө ачкыч: For convenience

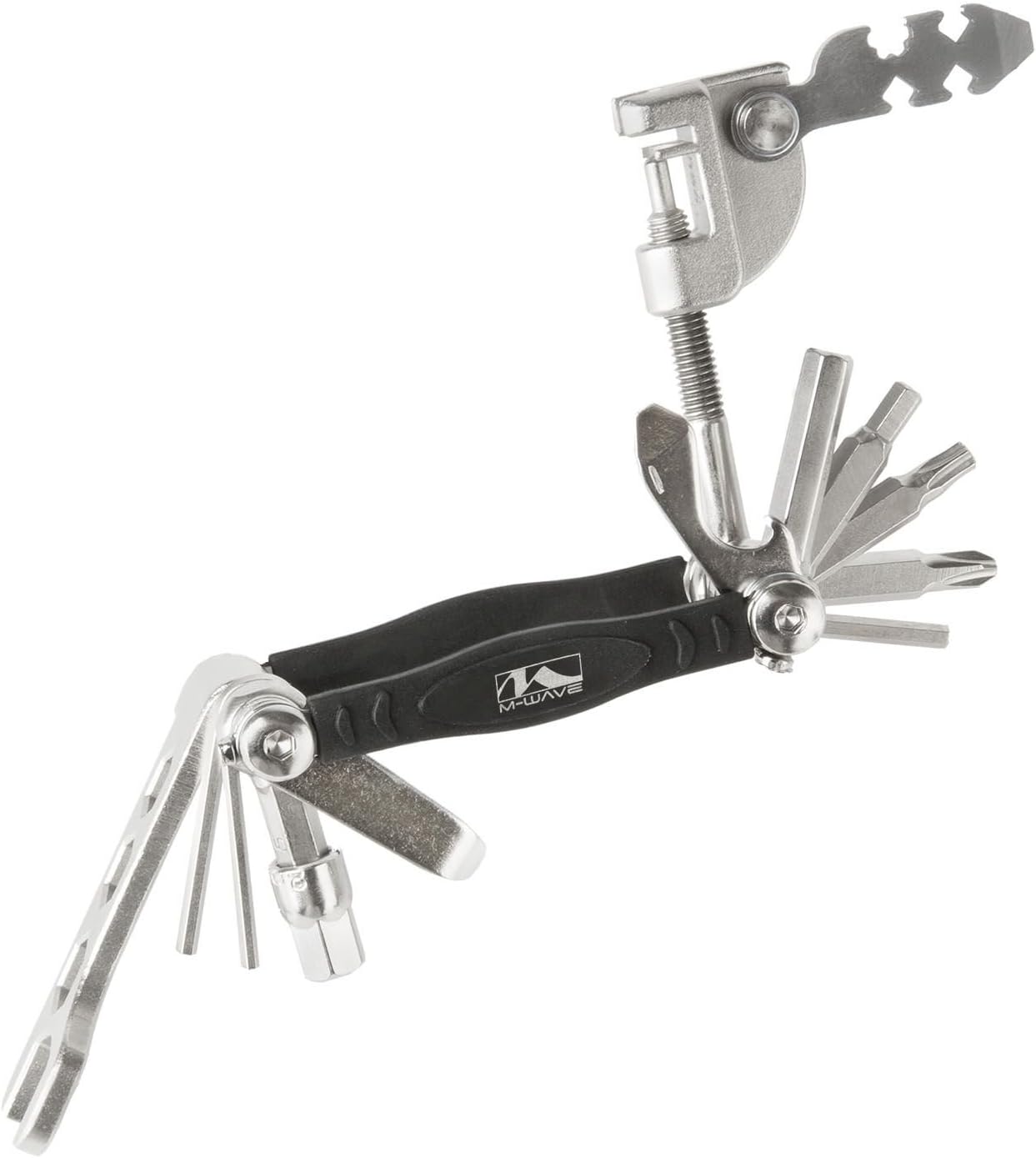

Image: The M-Wave 21 Function Mini Folding Tool in its unfolded state, displaying its array of integrated tools.

Орнотуу жана иштетүү

Unfolding the Tool

To access the individual tools, gently unfold the desired tool from the main body. The tools are designed to pivot smoothly. Ensure the tool is fully extended and stable before applying force.

Using Specific Tools

1. Allen Keys (2mm - 8mm): Select the appropriate size for hex bolts on your bicycle components (e.g., stem, seatpost, brake levers). Insert the key fully into the bolt head and turn clockwise to tighten, counter-clockwise to loosen.
2. Screwdrivers (Phillips/Flat Head): Use for adjusting derailleur limit screws, brake caliper screws, or other components requiring Phillips or flat head screwdrivers.
3. Box Wrenches (8mm, 9mm, 10mm, 15mm): The 15mm wrench is commonly used for axle nuts. The smaller sizes are for various nuts on the bicycle. Ensure the wrench fits snugly to avoid stripping the nut.
4. Chain Riveting Tool:
   1. Position the chain link with the pin to be removed or inserted into the tool's cradle.
   2. Align the tool's pin with the chain pin.
   3. Slowly turn the handle to push the chain pin through the link. For reassembly, align the new pin and push it back into place.

   Note: Chain repair requires careful alignment to prevent chain damage. Consult a bicycle mechanic if unsure.
5. Spoke Adjusters (3.2mm, 3.3mm, 3.5mm, Mavic): Select the correct size for your spoke nipples. Place the adjuster onto the nipple and turn to tighten or loosen spokes for wheel truing.
6. T25 Torx ачкычы: Used for components that utilize Torx head bolts, such as some disc brake rotors or chainring bolts.
7. Tire Lever: Insert the curved end under the tire bead and pry it over the rim. Use a second lever if necessary to fully remove the tire.
8. Бөтөлкө ачкыч: Бөтөлкөдөгү суусундуктарды ачуу үчүн.

Техникалык тейлөө

• Тазалоо: After each use, wipe down the tool with a clean, dry cloth to remove dirt, grease, and moisture. For stubborn grime, use a mild degreaser and then wipe dry.
• Майлоо: Periodically apply a small amount of light oil to the pivot points of the folding tools to ensure smooth operation and prevent rust.
• Сактагыч: Store the tool in a dry environment, preferably in a protective pouch or tool bag, to prevent corrosion and damage.
• Текшерүү: Regularly inspect the tool for any signs of wear, damage, or loose components. Discontinue use if the tool is damaged.

Проблемаларды чечүү

• Tool feels stiff or difficult to unfold: Майлоочу майды айланма чекиттерге бир аз өлчөмдө сүйкөп, шаймандарды алдыга-артка иштетип, майлоочу майды бөлүштүрүңүз.
• Дат баскан тактар ​​пайда болот: Clean the rust spots with a fine abrasive pad or steel wool, then apply a rust-inhibiting oil. Ensure the tool is stored in a dry place.
• Chain riveting tool pin bends: This usually indicates improper alignment with the chain pin or excessive force. Ensure the chain pin is perfectly centered before applying pressure.

Техникалык шарттар

Кепилдик жана колдоо

M-Wave products are manufactured to high-quality standards. For warranty information or technical support, please refer to the M-Wave official webсайтына кириңиз же сатуучуңузга кайрылыңыз. Кепилдик боюнча дооматтар үчүн сатып алганыңызды тастыктаган документти сактап коюңуз.

Кошумча жардам алуу үчүн, сиз иш сапары менен болот M-Wave Store on Amazon.
