Introduction
The Focal 165AC 6.5" Coaxial Kit is designed to deliver high-fidelity audio performance in automotive environments. Featuring an aluminum inverted dome tweeter and a 20% fiberglass filled ABS chassis, these speakers are engineered for durability and sound clarity. This manual provides essential information for the proper setup, operation, and maintenance of your Focal 165AC coaxial speakers.

Image: The Focal 165AC 6.5" Coaxial Kit, showing both speakers with their protective grilles.
Коопсуздук маалыматы
Please read and understand all safety instructions before installing or operating the speakers. Failure to do so may result in injury or damage to the product.
- Ensure all power to the vehicle's audio system is disconnected before installation.
- Динамиктерди ашыкча нымдуулукка же өтө жогорку температурага дуушар кылбаңыз.
- Do not attempt to disassemble or modify the speakers. This will void the warranty.
- Always use appropriate tools and follow vehicle-specific installation guidelines.
- Эгерде кандайдыр бир кадамдар боюнча күмөн санасаңыз, кесипкөй орнотуучуга кайрылыңыз.
Кутуда эмне бар
Your Focal 165AC 6.5" Coaxial Kit includes the following components:
- Two (2) Focal 165AC 6.5" Coaxial Speakers
- Standard accessories for installation (e.g., mounting hardware, grilles, wiring)


Image: Individual Focal 165AC speakers, showing the protective grille and overall design.
Орнотуу жана орнотуу
The Focal 165AC speakers are designed for easy integration into most vehicle audio systems. For optimal performance and to avoid damage, professional installation is recommended.
Монтаждоо маселелери:
- These are 6.5-inch coaxial speakers. Ensure your vehicle has appropriate mounting locations and depth clearance.
- Refer to the dimension diagram for precise measurements to confirm compatibility with your vehicle's speaker openings.

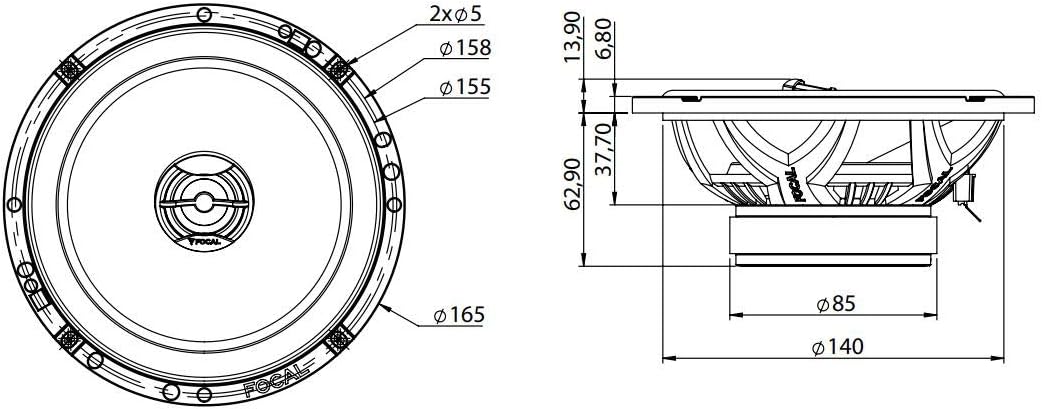

Image: Technical diagram showing the dimensions of the Focal 165AC speaker for installation planning.
Зымдар:
- Connect the positive (+) terminal of the speaker to the positive output of your ampкөтөргүч/башкы бирдик.
- Connect the negative (-) terminal of the speaker to the negative output of your ampкөтөргүч/башкы бирдик.
- Ensure secure connections to prevent signal loss or short circuits.

Сүрөт: Арткы view of the Focal 165AC speaker, highlighting the wiring terminals.
Орнотуу үчүн негизги өзгөчөлүктөр:

Image: Diagram illustrating key features of the Focal Access 165 AC, including the DFS Dual Fiberglass Structure cone, ABS basket, 85mm magnet, and integrated crossover.
Иштөө нускамалары
Once properly installed, your Focal 165AC speakers are ready for use. Connect them to a compatible car audio head unit or ampөмүрлүү.
Кубат менен иштөө:
- Номиналдуу күч: 60W RMS
- Максималдуу күч: 120 Вт чокусу
- Сиздин камсыз кылуу amplifier's output matches the speaker's power handling capabilities to prevent damage and achieve optimal sound.
Sound Quality Features:
- The Aluminum inverted dome tweeter provides clear and precise high-frequency reproduction.
- The 20% Fiberglass filled ABS chassis contributes to the speaker's rigidity and acoustic performance.
- менен а Sensitivity of 92 dB, these speakers are efficient and can produce significant volume with moderate power.

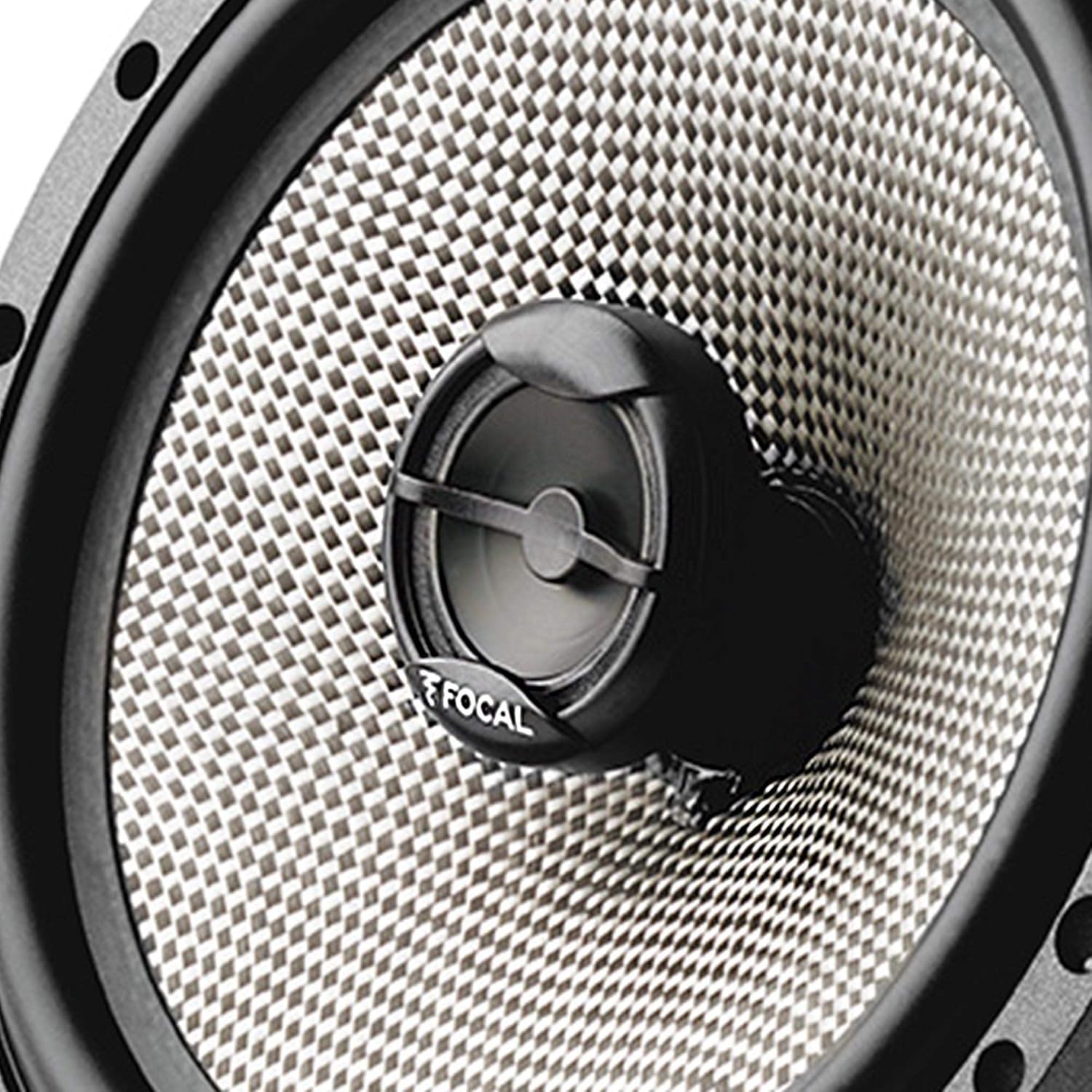

Сүрөт: деталдуу view of the aluminum inverted dome tweeter on the Focal 165AC speaker.
Техникалык тейлөө
Proper maintenance ensures the longevity and performance of your Focal 165AC speakers.
- Regularly clean the speaker grilles and surrounds with a soft, dry cloth to remove dust and debris.
- Avoid using harsh chemicals or abrasive cleaners, as these can damage the speaker components.
- Protect speakers from direct sunlight and extreme temperature fluctuations, which can degrade materials over time.
- Ensure no foreign objects obstruct the speaker cones or tweeters.
Проблемаларды чечүү
If you encounter issues with your Focal 165AC speakers, refer to the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Динамиктен үн жок | Loose or incorrect wiring connection; Amplifier/head unit issue; Speaker damage. | Check all wiring connections for proper polarity and secure fit. Verify ampКөтөргүч/башкы блок күйгүзүлүп, иштеп жатат. Мүмкүн болсо, башка жакшы белгилүү динамик менен текшерип көрүңүз. |
| Distorted Sound | Overpowering (clipping) from amplifier; Incorrect gain settings; Damaged speaker cone/tweeter; Loose mounting. | Үнүн азайтуу же amplifier gain. Check speaker for physical damage. Ensure speakers are securely mounted. |
| Алсыз же бүдөмүк үн | Incorrect wiring polarity; Low power input; Obstruction. | Verify correct positive/negative wiring. Ensure amplifier provides sufficient power. Check for any obstructions on the speaker grille or cone. |
If problems persist after attempting these solutions, contact Focal customer support or a qualified car audio technician.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | 165AC |
| Монтаж түрү | Коаксиалдуу |
| Динамик түрү | Коаксиалдуу |
| Динамик өлчөмү | 6.5 дюйм |
| Номиналдуу күч | 60 Вт |
| Max Power | 120 Вт |
| Сезимталдуулук | 92 дБ |
| Frequency Response | 20 Гц - 20 кГц |
| Tweeter түрү | Aluminum inverted dome tweeter |
| Шасси материалы | 20% Fiberglass filled ABS chassis |
| Продукциянын өлчөмдөрү | 17"D x 15.25"W x 9.75"H |
| Элемент Салмагы | 5 фунт |
| Байланыш технологиясы | Коаксиалдуу, зымдуу |
| Сунушталган Колдонуулар | Машина |
Кепилдик жана колдоо
Focal products are manufactured to high standards and come with a limited warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Focal webсайт.
For technical support, troubleshooting assistance, or warranty claims, please contact Focal customer service through their official channels. Keep your proof of purchase for warranty validation.
Кайтаруу саясаты: This product typically has a 30-day return policy (refund/replacement). Please check with your retailer for specific return details.
Коргоо пландары: Кеңейтилген коргоо пландарын сатып алууга болот. 2 жылдык же 3 жылдык коргоо пландары сыяктуу варианттар үчүн сатуучуга кайрылыңыз.
