Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Hunter 99179 Original Ceiling Fan Remote Control and Canopy Kit. This kit is specifically designed to enhance the functionality of Hunter "Original" series ceiling fans by adding remote control capabilities for fan speeds and lighting.
The kit includes a remote control unit and a canopy designed to house the receiver. It integrates with your existing two-wire fan setup, offering convenient control over three fan speeds and the fan's light fixture.
Маанилүү коопсуздук маалыматы
- Электр коопсуздугу: Always disconnect power at the circuit breaker or fuse box before attempting any installation, maintenance, or repair. Failure to do so can result in serious injury or death.
- Шайкештик: This kit is designed for use ГАНА with Hunter "Original" series ceiling fans. It is not compatible with other fan models or brands.
- Downrod Requirement: Installation requires a downrod of 12 inches or longer (sold separately). The receiver unit is designed to fit within the canopy, which necessitates sufficient space provided by a longer downrod.
- Кесиптик орнотуу: If you are unfamiliar with electrical wiring or ceiling fan installation, it is recommended to consult a qualified electrician.
- Жергиликтүү коддор: Ensure all installation procedures comply with local electrical codes and ordinances.
- Продукттун бүтүндүгү: Do not modify the product or use it for purposes other than its intended use.

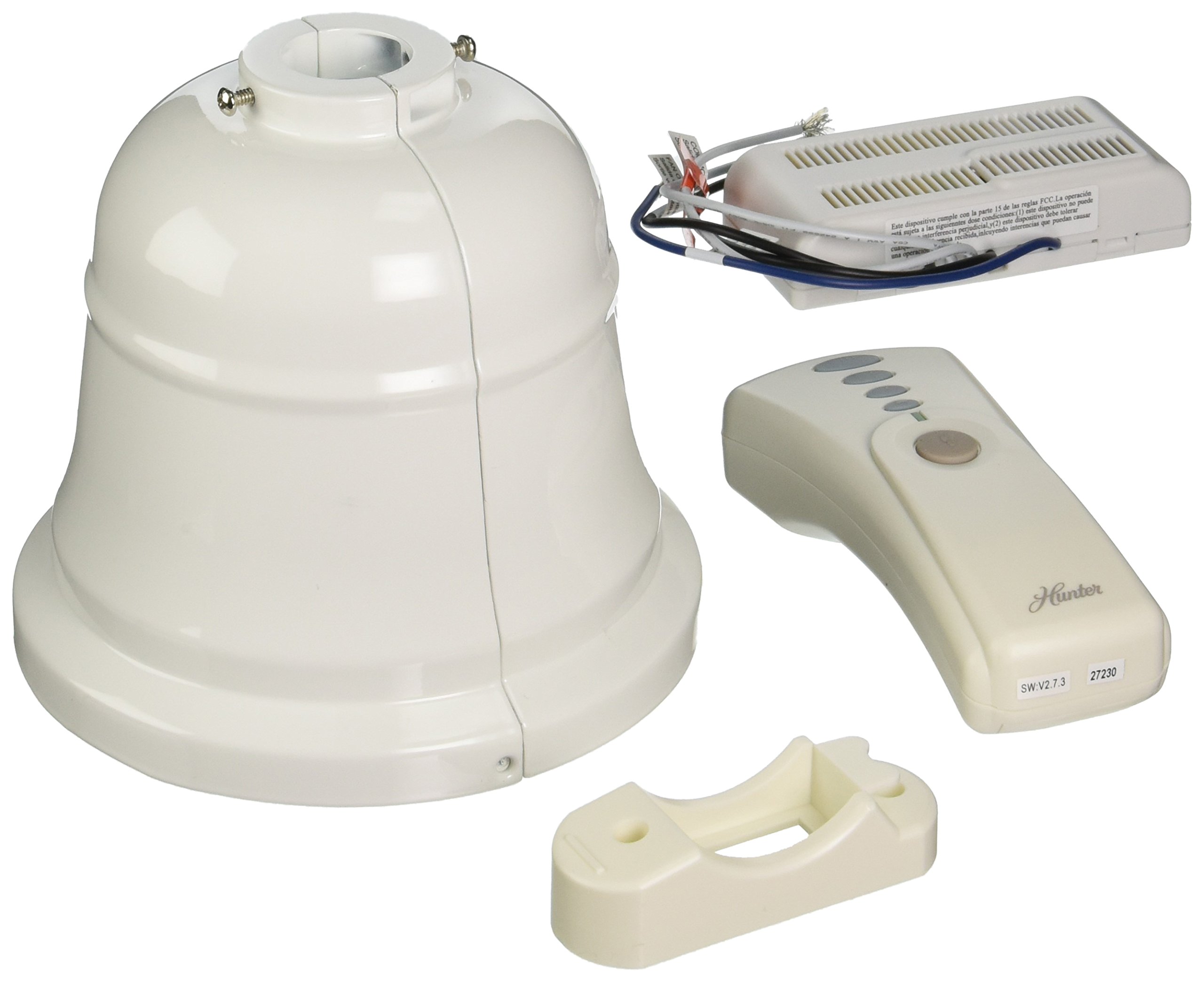

Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- Алыстан башкаруу бирдиги
- Remote Receiver
- Canopy (for receiver housing)
- Mounting Hardware (screws, wire nuts, etc. - specific items may vary)
Image: A Hunter ceiling fan, representative of the type of fan compatible with the 99179 remote and canopy kit.
Орнотуу жана орнотуу
Follow these steps carefully to install your Hunter 99179 Remote Control and Canopy Kit:
- Электр энергиясын өчүрүү: Before starting, turn off the electrical power to your ceiling fan at the main circuit breaker or fuse box.
- Кирүү зымдары: Carefully lower the existing canopy from your Hunter Original ceiling fan to expose the wiring connections.
- Эски кабыл алгычты алып салыңыз (эгер бар болсо): If an old receiver is present, disconnect its wiring and remove it.
- Жаңы кабыл алгычты орнотуу: Connect the new remote receiver's wires to the corresponding fan and household wires. Ensure all connections are secure using wire nuts. The receiver is designed to fit within the new canopy.
- Position Canopy: Carefully tuck the wired receiver into the new canopy. Ensure no wires are pinched.
- Коопсуз чатыр: Mount the new canopy securely to the fan's mounting bracket. Confirm that the downrod is at least 12 inches long to accommodate the receiver within the canopy.
- Күчтү калыбына келтирүү: Once installation is complete and all connections are secure, restore power to the ceiling fan at the circuit breaker.
- Алыстан башкаруу: Follow the instructions provided with the remote control unit to pair it with the newly installed receiver. This typically involves pressing a button on the remote within a short time after restoring power.
Эскертүү: The new canopy is designed to accommodate the receiver. Some older Hunter Original fan mounting plates or downrods may not be compatible with the new canopy's dimensions. Verify fit before final installation.
Иштөө нускамалары
Your Hunter 99179 remote control provides convenient operation of your ceiling fan and light:
- Желдетүүчү ылдамдыкты көзөмөлдөө: Use the designated buttons on the remote to cycle through three fan speeds (Low, Medium, High) or to turn the fan off.
- Жарыкты башкаруу: Use the light button to turn the fan light on or off. Some remotes may also support dimming functions if your fan and light kit are compatible.
- Батареяны алмаштыруу: If the remote control stops responding, replace the batteries. Refer to the remote's specific instructions for battery type and replacement procedure.
Техникалык тейлөө
To ensure optimal performance and longevity of your Hunter 99179 kit:
- Тазалоо: Periodically wipe the remote control and canopy with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Батареяны текшерүү: Replace remote control batteries as needed to maintain reliable operation.
- Зымдарды текшерүү: Annually, or if issues arise, ensure all electrical connections within the canopy are secure and free from corrosion. Always disconnect power before inspection.
Проблемаларды чечүү
If you encounter issues with your remote control and canopy kit, refer to the following common solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Remote not responding / Fan or light not working |
|
|
| Canopy does not fit / Receiver cannot be housed |
|
|
| Башка аппараттардын кийлигишүүсү |
|
|
Техникалык шарттар
- Модель номери: 99179
- Өндүрүүчү: Hunter Fan Company
- Продукциянын өлчөмдөрү: Болжол менен 6 x 6 x 7 дюйм
- Элемент Салмагы: Болжол менен 2.35 фунт
- Тtage: 120 вольт
- Кубат булагы: Электрдик
- Материал: Металл
- Тастыктоо: ETL тизмеленген
- Колдонуу: Ceiling fan remote control and canopy accessory
- Өзгөчө өзгөчөлүгү: Heavy Duty construction
- Шайкеш түзмөктөр: Hunter "Original" series ceiling fans
Кепилдик маалымат
No specific warranty description is provided for the Hunter 99179 Remote Control and Canopy Kit in the product details. For warranty inquiries, please contact Hunter Fan Company directly or refer to the documentation included with your original Hunter "Original" ceiling fan.
Кардарларды колдоо
For further assistance, technical support, or to inquire about parts, please visit the official Hunter Fan Company webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.
Hunter Fan Company Webсайт: Amazon'догу Hunter дүкөнүнө барыңыз
