Reef Octopus OCTO Regal 150 SSS Protein Skimmer колдонуучусунун колдонмосу

1. Introduction and Overview

The Reef Octopus OCTO Regal 150 SSS Space Saver Protein Skimmer is designed to provide efficient filtration for marine aquariums. This unit is suitable for aquariums up to 210 gallons with light filtration demands, 160 gallons with medium demands, and 100 gallons with high demands. Its compact footprint and hybrid conical body are engineered for optimal performance in sumps with limited space.

The Regal 150 SSS features a high-quality cast acrylic construction that allows for complete disassembly, simplifying cleaning and maintenance. It is equipped with a Reef Octopus Controllable DC 2500S Pinwheel Pump, offering variable speed technology for precise control over air and water flow rates. This DC pump technology provides enhanced efficiency and allows users to adjust skimmer performance with ease.

Сүрөт 1.1: Бүттүview of the Reef Octopus OCTO Regal 150 SSS Protein Skimmer and its VarioS Controller.

2. Коопсуздук нускамалары

• Always unplug the skimmer and pump from the power outlet before performing any maintenance, cleaning, or assembly.
• Ensure all electrical connections are kept dry and away from water.
• Do not operate the pump dry. Ensure it is fully submerged in water during operation.
• This product is designed for indoor use only, specifically for marine aquarium applications.
• Балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
• Inspect the power cord and pump for any damage before each use. Do not use if damaged.

3. Пакеттин мазмуну

Таңгакты ачканда бардык компоненттердин бар экенин жана бузулбаганын текшериңиз:

• Skimmer Body (Collection Cup, Neck, Reaction Chamber, Base)
• Reef Octopus Controllable DC 2500S Pinwheel Pump
• VarioS Controller for DC Pump
• Air Silencer
• Output Pipe Assembly
• Metric to 1.25” PVC Adapter
• Drain Hose for Collection Cup

4. Орнотуу нускамалары

4.1 Алгачкы даярдоо

1. Жуучу компоненттери: Thoroughly rinse all skimmer components with fresh water to remove any manufacturing residues or dust. Do not use soap or detergents.
2. Ассамблея: Assemble the skimmer body according to the diagrams provided in the packaging. Ensure all O-rings and seals are properly seated to prevent leaks.

4.2 Sump Placement

Place the assembled skimmer in the designated skimmer section of your aquarium sump. The recommended sump water depth for optimal performance is between 7 дюймдан 8.5 дюймга чейин.

4.3 Pump and Controller Connection

1. Насосту туташтыруу: Securely attach the DC 2500S Pinwheel Pump to the skimmer body.
2. Air Line: Connect the air line from the pump's air intake to the air silencer.
3. Контроллер туташуу: Connect the pump's power cable to the VarioS Controller.
4. Кубат туташуу: Plug the VarioS Controller's power adapter into a grounded electrical outlet.

Image 4.1: Skimmer base showing the pump connection point.

Image 4.2: Detail of the air intake and water output connections on the skimmer.

5. Иштөө нускамалары

5.1 Initial Start-up and Break-in

Upon initial start-up, the skimmer will require a break-in period, typically lasting several days to a few weeks. During this time, micro-bubbles may be excessive, and skimmate production may be inconsistent. This is normal as the skimmer surfaces condition and oils dissipate.

• Start the pump at a lower speed setting (e.g., speed 2 out of 5) on the VarioS Controller.
• Gradually increase the speed over the break-in period as the skimmer stabilizes.

5.2 VarioS Controller Operation

The VarioS Controller allows you to adjust the pump's speed and thus the skimmer's performance.

Image 5.1: Close-up of the VarioS Controller with speed settings and control buttons.

• Кубат баскычы: Press to turn the pump ON/OFF.
• Ылдамдыкты жөндөө: Use the '+' and '-' buttons to increase or decrease the pump's speed. There are 5 controllable energy-efficient power settings.
• Ток режими: The controller may feature a feed mode (e.g., 15min or 60min buttons) which temporarily shuts off the skimmer for feeding, then restarts automatically.
• Skimmate Adjustment: Adjust the water level within the skimmer neck by fine-tuning the pump speed and the output gate valve. A higher water level in the neck typically produces wetter skimmate, while a lower level produces drier skimmate. Aim for a consistent, dark, and thick skimmate for optimal nutrient export.

6. Техникалык тейлөө

6.1 Collection Cup Cleaning

The collection cup should be emptied and cleaned regularly, typically every few days to once a week, depending on the bioload of your aquarium.

• Unplug the skimmer.
• Remove the collection cup.
• Utilize the integrated drain hose to empty the skimmate into a waste container.
• Rinse the collection cup and neck thoroughly with fresh water. A brush may be used to remove stubborn deposits.
• Reinstall the collection cup, ensuring a tight seal.

6.2 Skimmer Body and Pump Cleaning

Periodically, the entire skimmer body and pump should be cleaned to maintain efficiency. The skimmer's cast acrylic construction allows for complete disassembly.

• Unplug the skimmer and remove it from the sump.
• Disassemble the skimmer components.
• Clean all parts, including the reaction chamber, air silencer, and output pipe, using fresh water and a soft brush. For stubborn algae or calcium deposits, a mild vinegar solution can be used, followed by a thorough rinse.
• Насос тейлөө: Disassemble the pump and clean the impeller, volute, and pump housing. Ensure no debris is obstructing the impeller.
• Reassemble all components, ensuring all O-rings are clean and properly seated.

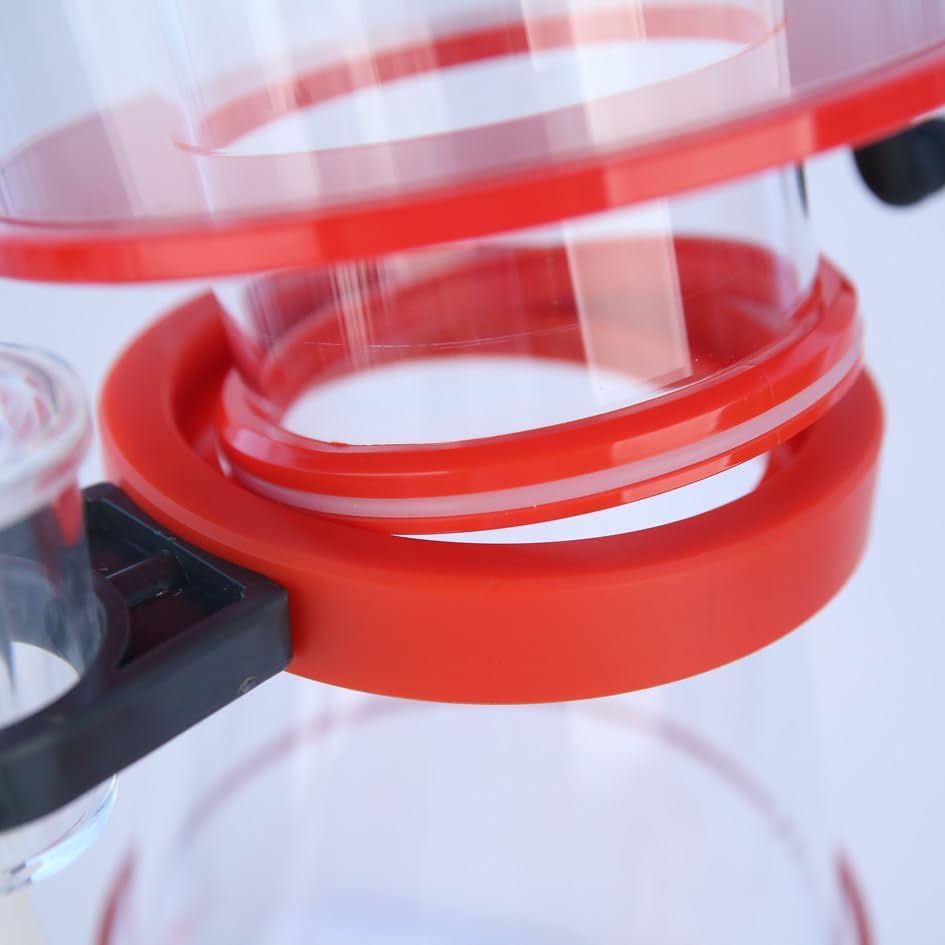

Сүрөт 6.1: Мисample of a red O-ring seal, critical for proper assembly and preventing leaks.

7. Кыйынчылыктарды

8. Техникалык шарттар

Image 8.1: Label on the DC Skimmer Pump showing model and specifications.

9. Кепилдик жана колдоо

For specific warranty information, please refer to the documentation included with your purchase or visit the official Reef Octopus website. For technical support or replacement parts, please contact your retailer or the manufacturer directly.
