Portronics Health Key III 3D Digital Pedometer User Manual

1. Продукт бүтүп калдыview

The Portronics Health Key III 3D Digital Pedometer is designed to accurately track your daily physical activity. It utilizes advanced 3D sensor technology to count steps, measure distance, and estimate calories burned, helping you monitor your fitness progress.

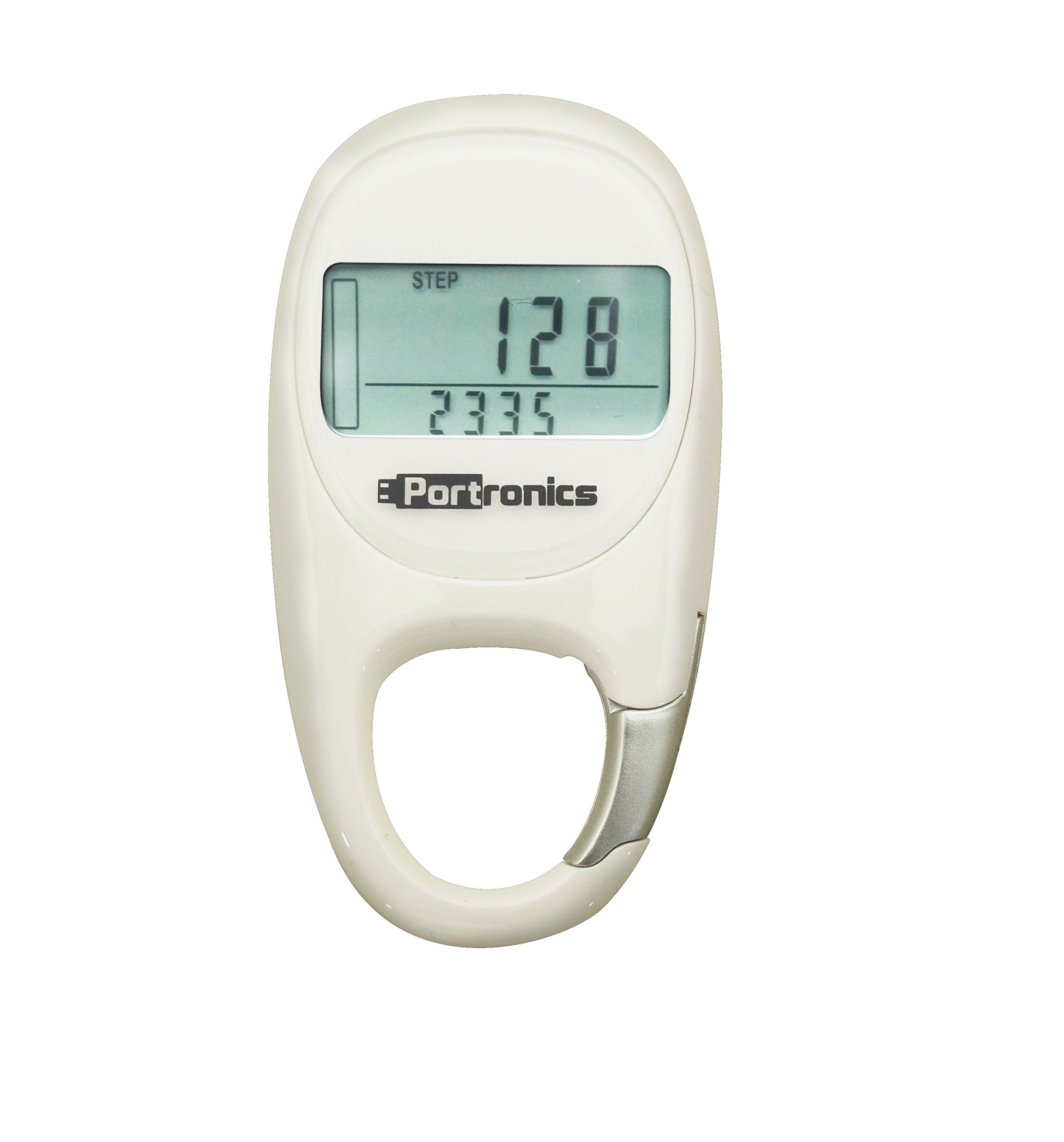

1-сүрөт: Фронт view of the Portronics Health Key III 3D Digital Pedometer. The device is white with a clear digital display and control buttons visible below the screen.

2. Орнотуу

2.1 Пакеттен чыгаруу

Carefully remove the pedometer and all accessories from the packaging. Verify that all components are present:

• Portronics Health Key III 3D Digital Pedometer
• Колдонуучунун Колдонмосу (бул документ)
• Battery (if not pre-installed)

2.2 Батареяны орнотуу

The Portronics Health Key III uses a Lithium-Ion Polymer battery. If the battery is not pre-installed or needs replacement:

1. Аппараттын артындагы батарея бөлүкчөсүнүн капкагын табыңыз.
2. Use a small coin or screwdriver to gently open the cover.
3. Insert the Lithium-Ion Polymer battery, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Батарея уясынын капкагын ордуна коюп, аны бекитиңиз.

Абайлаңыз: Ensure correct battery polarity. Incorrect installation may damage the device. Dispose of used batteries responsibly.

2.3 Баштапкы күйгүзүү жана негизги орнотуулар

After battery installation, the device should power on automatically. If not, press and hold the "MODE" button for a few seconds. You will then need to set up basic information:

1. Убакыт жана дата: Follow the on-screen prompts to set the current time (12/24-hour format) and date. Use the "SET" or "ADJUST" buttons to change values and "MODE" to confirm.
2. Колдонуучу Profile: Input your personal data for accurate tracking. This typically includes:
   • Салмагы: Enter your body weight in kilograms (kg) or pounds (lb).
   • Бийиктиги: Enter your height in centimeters (cm) or inches (in).
   • Кадам узундугу: This can be estimated or measured. A common estimate is (Height in cm) * 0.415 for men and (Height in cm) * 0.413 for women. For best accuracy, measure your actual stride length over 10 steps and divide by 10.
3. Unit Preference: Select your preferred units for distance (kilometers/miles) and weight (kg/lb).

Once all settings are confirmed, the pedometer is ready for use.

3. Иштөө нускамалары

3.1 Wearing the Pedometer

For optimal accuracy, wear the Portronics Health Key III pedometer securely on your waist, close to your hip bone. Ensure it is positioned vertically and does not swing freely. It can also be placed in a pocket, but waist placement generally yields more accurate results.

3.2 Дисплейди түшүнүү

The 2-inch display shows various metrics. Use the "MODE" button to cycle through different display screens:

• Кадамдар: Жасалган кадамдардын жалпы саны.
• Аралык: Total distance covered in kilometers or miles.
• Калориялар: Болжолдуу күйгөн калория.
• Көнүгүү убактысы: Duration of active movement.
• Саат: Учурдагы убакыт.

3.3 Data Reset

To reset your daily activity data (steps, distance, calories, exercise time) to zero:

1. Navigate to the desired data screen (e.g., Steps).
2. Press and hold the "RESET" button for approximately 3 seconds until the display shows "0" or flashes.
3. Release the button. Your daily data is now reset.

Эскертүү: Some models may automatically reset daily data at midnight. Refer to the device's specific behavior.

3.4 Эстутум функциясы

The pedometer may store historical data for a certain period (e.g., 7 days). To view past data, press the "MEMORY" or "HISTORY" button (if available) and use the "ADJUST" buttons to scroll through previous days' records.

4. Техникалык тейлөө

4.1 Тазалоо

To clean your pedometer, gently wipe the surface with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water. Do not use abrasive cleaners, solvents, or immerse the device in water.

4.2 Батареяны алмаштыруу

When the battery indicator appears low or the display becomes dim, replace the Lithium-Ion Polymer battery following the instructions in Section 2.2. Always use the specified battery type.

4.3 Сактоо

If storing the pedometer for an extended period, remove the battery to prevent leakage and potential damage to the device. Store it in a cool, dry place away from direct sunlight and extreme temperatures.

5. Кыйынчылыктарды

5.1 Заводдук абалга кайтаруу

If the device malfunctions persistently, a factory reset may resolve the issue. Consult the Portronics support website or contact customer service for specific instructions on performing a factory reset for your model, as this procedure can vary.

6. Техникалык шарттар

• Бренд: Портроника
• Модел: Health Key III 3D Digital Pedometer
• Түсү: White (as per product listing, other colors may exist for the model)
• Экрандын өлчөмү: 2 дюйм
• Сенсор түрү: Pedometer (3D Digital)
• Батарея түрү: Литий-ион полимери
• ASIN: B00TK7P7KC

7. Кепилдик жана колдоо

7.1 Кепилдик маалыматы

Portronics products typically come with a limited warranty against manufacturing defects. The specific warranty period and terms may vary by region and product. Please retain your purchase receipt as proof of purchase for warranty claims. For detailed warranty information, visit the official Portronics webсайтка же кардарларды колдоо менен байланышыңыз.

7.2 Кардарларды колдоо

If you encounter any issues not covered in this manual or require further assistance, please contact Portronics customer support:

• Webсайт: www.portronics.com/support (Чыгampшилтеме, чыныгы шилтеме ар кандай болушу мүмкүн)
• Электрондук почта: support@portronics.com (Чыгample email, actual email may vary)
• Телефон: Refer to the Portronics webаймактык байланыш номерлери үчүн сайт.

When contacting support, please have your product model (Health Key III 3D Digital Pedometer) and ASIN (B00TK7P7KC) ready.
