Introduction
This manual provides essential information for the safe and efficient use of your Smeg SF6922NPZ built-in electric oven. Please read these instructions carefully before installation, use, or maintenance. Keep this manual for future reference.
Коопсуздук маалыматы
Жалпы коопсуздук:
- Духовканы жергиликтүү эрежелерге ылайык квалификациялуу техник орнотконун текшериңиз.
- Балдарга мешти көзөмөлсүз иштетүүгө жол бербеңиз.
- The oven surfaces become hot during operation. Avoid contact with heating elements.
- Ысык идиштерди же аксессуарларды кармаганда ар дайым духовкага арналган кол каптарды колдонуңуз.
- Мештин ичинде же жанында күйүүчү материалдарды сактабаңыз.
- Кандайдыр бир тазалоодон же тейлөөдөн мурун шайманды кубаттан ажыратыңыз.
Электр коопсуздугу:
- тtage and frequency of the electrical supply match the specifications on the appliance rating plate.
- Do not use adapters, multiple sockets, or extension cords.
- Электр кабели бузулуп калса, коркунучту болтурбоо үчүн аны өндүрүүчү, анын тейлөө агенти же ушуга окшогон квалификациялуу адамдар алмаштырышы керек.
Орнотуу & Орнотуу
The Smeg SF6922NPZ is a built-in electric oven designed for integration into kitchen cabinetry. Proper installation is crucial for safety and performance.
Пакеттен чыгаруу
Remove all packaging materials and accessories from the oven. Inspect the appliance for any damage incurred during transit. Report any damage to your retailer immediately.
Орнотуу талаптары
- Духовканын айланасында жетиштүү желдетүүнү камсыз кылыңыз.
- The cabinet material must be heat-resistant.
- Электр байланышы орнотулгандан кийин жеткиликтүү болушу керек.
Монтаждоо өлчөмдөрү
Refer to the diagram below for precise installation dimensions. The oven requires a minimum cabinet width and height for proper fitting and ventilation.
Сүрөттүн сүрөттөлүшү: A technical diagram illustrating the required cutout dimensions for installing the Smeg SF6922NPZ built-in oven. Key measurements include a minimum width of 560mm, a height range of 583-585mm, and overall oven dimensions of approximately 597mm width, 592mm height, and 550mm depth.
The oven dimensions are approximately 59.7 cm (width) x 59.2 cm (height) x 56 cm (depth). The required cabinet opening should accommodate these measurements with appropriate clearances for ventilation.
Иштөө нускамалары
Your Smeg SF6922NPZ oven features 10 cooking functions, a Vapor Clean function, and 20 automatic programs, controlled via a large LCD display with touch controls.
Башкаруу панелиview
The oven is equipped with a touch control panel and an LCD display. Use the touch interface to select functions, set temperatures, and program cooking times.
Сүрөттүн сүрөттөлүшү: A Smeg SF6922NPZ built-in oven integrated into a modern kitchen cabinet, showcasing its sleek black finish and touch control panel. The image provides a visual context of the oven within a home environment.
Негизги операция
- Жандыруу: Press the power button or touch the display to activate the oven.
- Функция тандоо: Use the touch controls to navigate through the 10 available functions (e.g., conventional, fan-assisted, grill, pizza).
- Температураны жөндөө: Adjust the temperature between 30°C and 280°C using the dedicated controls.
- Timer & Program: Set the cooking duration using the timer. The programmable timer allows for delayed start and end of cooking. An acoustic signal indicates the end of cooking.
Атайын функциялар
- буу тазалоо: A cleaning function utilizing steam. Refer to the Maintenance section for details.
- Defrost by Time/Weight: Specific programs for defrosting food based on duration or weight.
- Leavening: A function designed for optimal dough rising.
- Ишемби режими: Allows the oven to operate for an extended period without direct user interaction, suitable for religious observances.
- Pizza функциясы: Optimized for baking pizzas, often utilizing the included refractory stone.
Аксессуарларды колдонуу
The oven comes with several accessories to enhance your cooking experience:
- 1 deep tray (40 mm)
- 1 traditional enamel tray (20 mm)
- 2 grids with back stop
- 1 tray support
- Refractory stone, pizza peel, and cover (for pizza function)
- 1 full-extension telescopic guide (non-mobile)

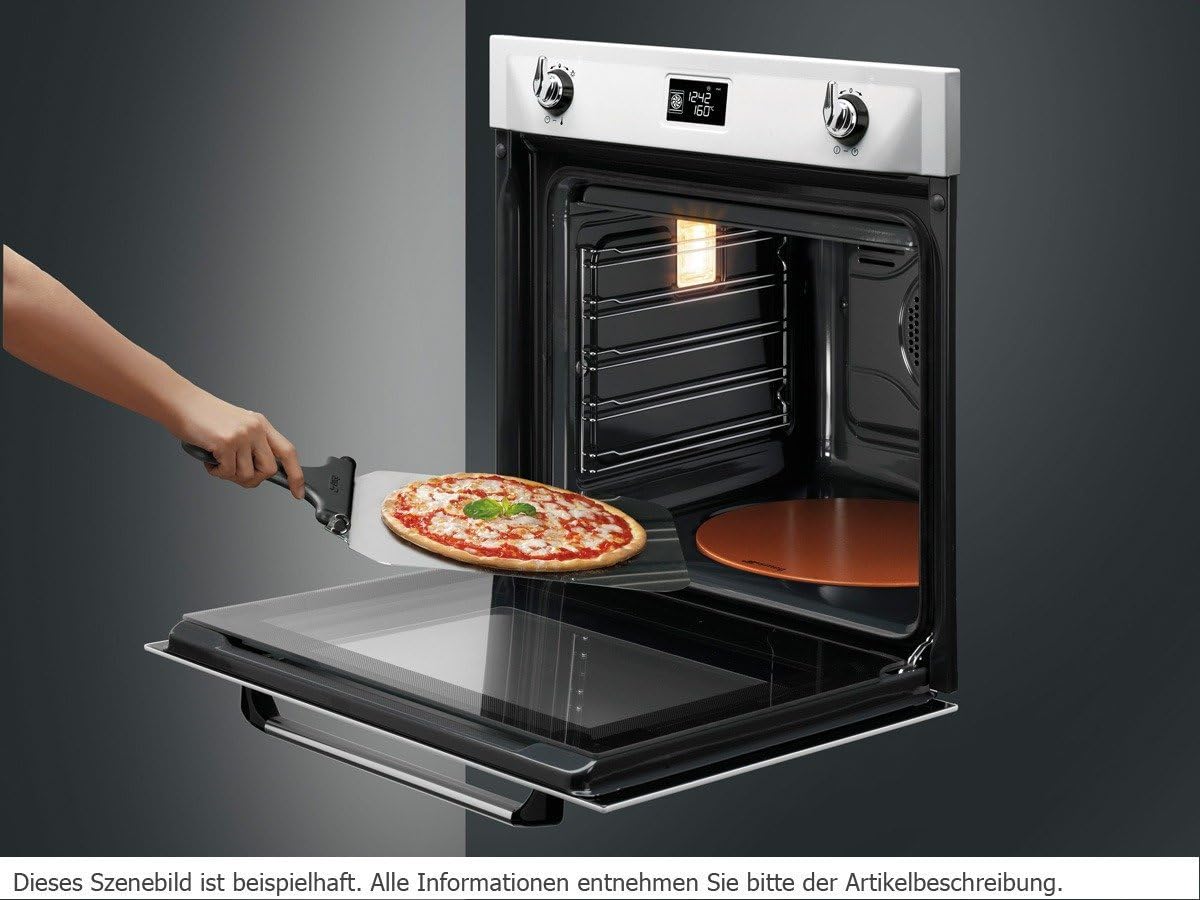

Сүрөттүн сүрөттөлүшү: A hand using a pizza peel to insert a freshly prepared pizza into the Smeg SF6922NPZ oven. The oven interior and a pizza stone are visible, highlighting the pizza function.

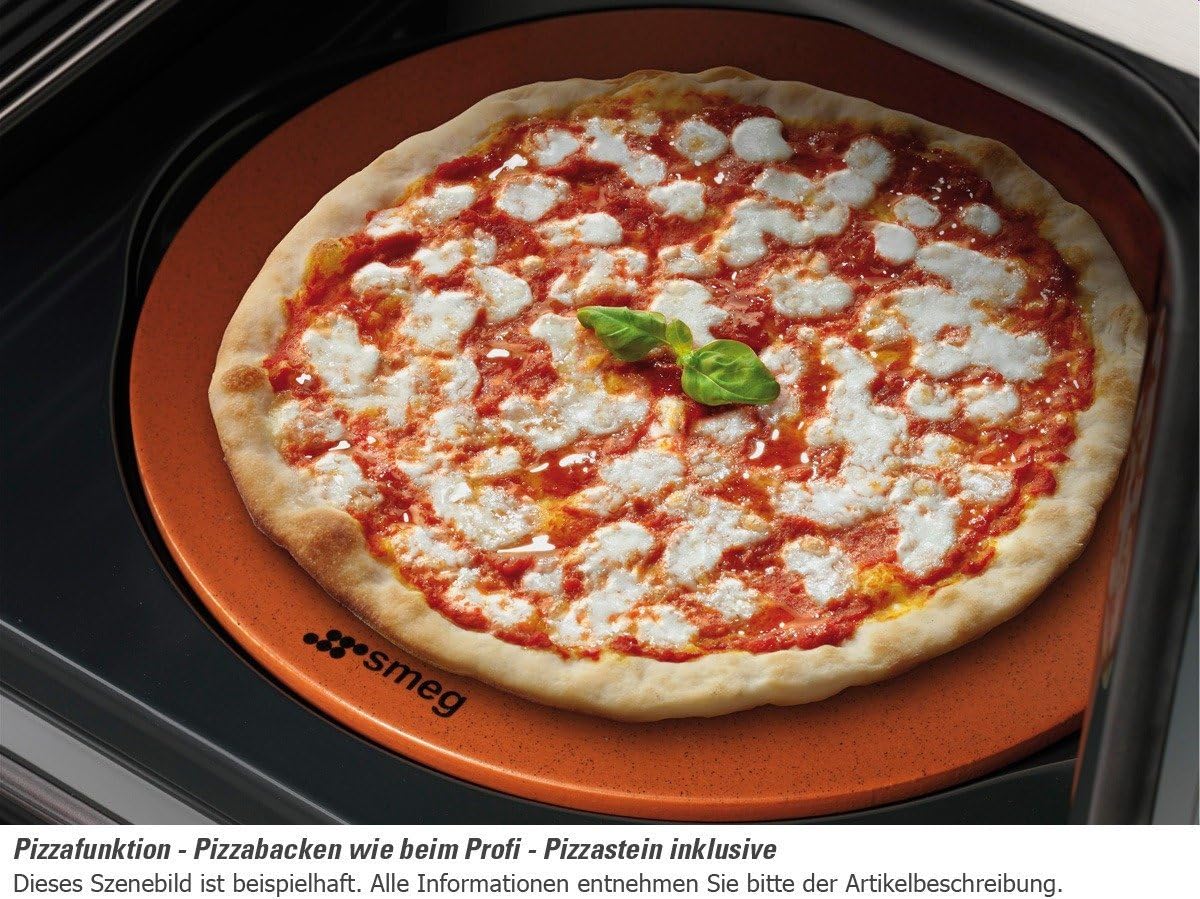

Сүрөттүн сүрөттөлүшү: A perfectly baked pizza with melted cheese and basil, resting on a round Smeg-branded refractory pizza stone inside the oven. This image demonstrates the result of using the pizza function.
Сүрөттүн сүрөттөлүшү: Жакын план view of the telescopic runners inside the oven, showing a baking tray extended for easy access. This feature allows for comfortable handling of hot dishes.
Тейлөө жана тазалоо
Regular cleaning and maintenance ensure the longevity and optimal performance of your Smeg SF6922NPZ oven.
Жалпы тазалоо
- Always allow the oven to cool down completely before cleaning.
- Use a soft cloth and mild detergent for external surfaces. Avoid abrasive cleaners or harsh chemicals.
- The oven interior is enameled. For light soiling, wipe with a damp кездеме.
- The full-glass inner door has a smooth surface for easy cleaning.
Сүрөттүн сүрөттөлүшү: The Smeg oven with its door fully open, highlighting the smooth, full-glass inner surface designed for effortless cleaning. This feature simplifies maintenance of the oven interior.
Vapor Clean Function
The Vapor Clean function uses steam to soften food residues, making them easier to remove. Follow these steps:
- Духовканын түбүндөгү атайын көңдөйгө болжол менен 200 мл суу куюңуз.
- Select the Vapor Clean function.
- Циклдин аякташына уруксат бериңиз.
- Once the oven has cooled, wipe away softened residues with a sponge or cloth.
Алынуучу коргоочу капкак
The oven includes a removable, dishwasher-safe protective cover for easy cleaning.
Сүрөттүн сүрөттөлүшү: Жакын план view of a removable protective cover inside the Smeg oven, designed for easy cleaning and maintenance. This cover can be detached and is dishwasher-safe.
Эшик тейлөө
The oven features a Soft Close door system and triple glazing to maintain low external temperatures.
Сүрөттүн сүрөттөлүшү: A visual representation of the Smeg oven door's triple glazing, showing multiple layers of glass. This design ensures low external temperatures during operation, enhancing safety.
Проблемаларды чечүү
Before contacting customer service, please consult the following table for common issues and solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Меш күйбөйт. | No power supply; door not closed properly; child lock activated. | Check power connection; ensure door is fully closed; deactivate child lock. |
| Духовка ысыбайт. | Incorrect function/temperature setting; fuse tripped. | Verify settings; check household fuse box. |
| Бир калыпта эмес бышыруу. | Food placed incorrectly; oven overloaded. | Ensure proper spacing; avoid overloading; use recommended shelf positions. |
| Дисплей ката кодун көрсөтөт. | Ички бузулуу. | Note the error code and contact Smeg customer service. |
Бул чечимдерди колдонууга аракет кылгандан кийин көйгөй чечилбесе, Smeg кардарларды колдоо кызматына кайрылыңыз.
Техникалык шарттар
Detailed technical specifications for the Smeg SF6922NPZ Built-in Electric Oven.
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | SF6922NPZ |
| Бренд | Smeg |
| Type | Камтылган электр меши |
| Түс | Кара |
| Кубаттуулугу | 65 литр |
| Өлчөмдөрү (L x W x Y) | 59.7 x 56 x 59.2 см |
| Салмагы | 44.2 килограмм |
| Энергетикалык класс | A |
| Жылытуу ыкмасы | Электр |
| Функциялар | 10 functions (including Vapor Clean, Defrost, Leavening, Sabbath, Pizza) |
| Башкаруу түрү | Touch Control, LCD Display |
| Температура диапазону | 30°Cден 280°Cге чейин |
| Эшиктин өзгөчөлүктөрү | Soft Close, Triple Glazing, Removable Full-Glass Inner Door |
| Камтылган аксессуарлар | Deep tray, enamel tray, grids, tray support, refractory stone, pizza peel, telescopic guide. |
Кепилдик жана колдоо
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Smeg webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
Запастык бөлүктөрдүн болушу: Information regarding the availability of spare parts is currently unavailable. Please contact Smeg customer service for further details.
Contact Smeg: For technical assistance, service requests, or to inquire about spare parts, please visit the Smeg official website contact page or refer to the contact details provided in your product documentation.
