EMOS E0041 санариптик сырткы жана имарат ичиндеги термометр колдонуучусунун колдонмосу

1. Киришүү

This manual provides comprehensive instructions for the proper setup, operation, and maintenance of your EMOS E0041 Digital Outdoor and Indoor Thermometer. Please read this manual thoroughly before using the device to ensure correct functionality and to prevent damage.

The EMOS E0041 thermometer features a clear, easy-to-read display with large digits, designed for straightforward temperature monitoring. It accurately measures both indoor and outdoor temperatures with a resolution of 0.1 °C.

2. Пакеттин мазмуну

• EMOS E0041 Digital Thermometer Unit
• Wired Outdoor Sensor (2 meters cable length)
• User Manual

3. Коопсуздук маалыматы

• Do not expose the main unit to direct moisture or extreme temperatures.
• The outdoor sensor is designed for outdoor use but should be protected from direct heavy rain or snow for prolonged durability.
• Use only 2 x 1.5 V AAA micro batteries. Do not mix old and new batteries, or different types of batteries.
• Колдонулган батарейкаларды жергиликтүү эрежелерге ылайык жок кылыңыз.
• Аппаратты балдар жетпеген жерде сактаңыз.

4. Продукт бүтүп калдыview

The EMOS E0041 thermometer consists of a main display unit and a wired outdoor sensor. The display shows both indoor ('IN') and outdoor ('OUT') temperatures simultaneously.

Сүрөт 4.1: Алдыңкы view of the EMOS E0041 Digital Thermometer, displaying indoor and outdoor temperatures.

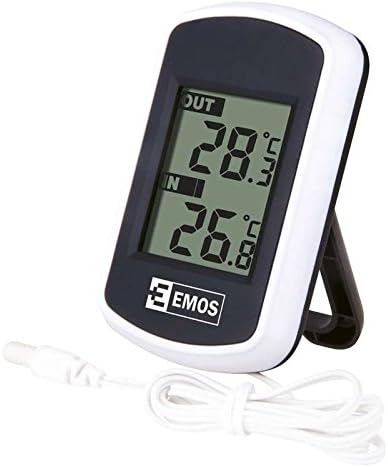

Figure 4.2: The EMOS E0041 thermometer unit with its wired outdoor sensor cable.

5. Орнотуу

5.1 Батареяны орнотуу

1. Locate the battery compartment on the back of the thermometer unit.
2. Батарея бөлүкчөсүнүн капкагын ачуу үчүн ылдый жылдырыңыз.
3. Insert two (2) 1.5 V AAA micro batteries, ensuring the correct polarity (+/-) as indicated inside the compartment.
4. Replace the battery compartment cover. The display should activate.

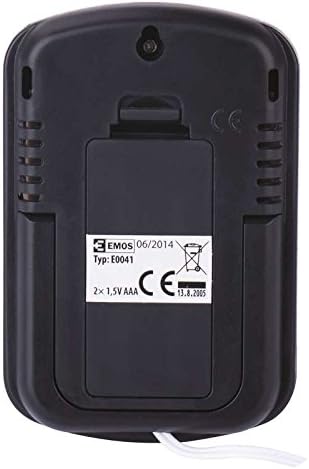

5.1-сүрөт: Арткы view of the thermometer, highlighting the battery compartment.

5.2 Сенсордун жайгашуусу

The wired outdoor sensor has a 2-meter cable. For accurate outdoor temperature readings:

• Route the sensor cable through a window frame or a small opening to the outside.
• Position the sensor in a shaded area, away from direct sunlight, heat sources, or reflective surfaces, which can affect temperature accuracy.
• Ensure the sensor is protected from direct heavy precipitation.

5.3 Монтаждоо параметрлери

The EMOS E0041 thermometer is designed for versatile placement:

• Турган: Utilize the integrated stand on the back of the unit to place it on a flat surface, such as a desk or shelf.
• Дубалга орнотуу: Use the hanging hole located on the back of the unit to mount it on a wall using a screw or nail (not included).

5.2-сүрөт: Арткы view showing the integrated stand and wall mounting option.

6. Иштөө нускамалары

6.1 Кубат күйгүзүлдү

The device powers on automatically once batteries are correctly installed. There is no separate power button.

6.2 Reading Temperatures

The large LCD display simultaneously shows two temperature readings:

• The upper reading, labeled 'OUT', indicates the temperature measured by the wired outdoor sensor.
• The lower reading, labeled 'IN', indicates the temperature measured by the internal sensor within the main unit.

Both temperatures are displayed in degrees Celsius (°C) with a resolution of 0.1 °C.

7. Техникалык тейлөө

7.1 Тазалоо

To clean the thermometer unit, gently wipe it with a soft, damp кездеме. Абразивдүү тазалоочу каражаттарды, эриткичтерди колдонбоңуз же түзмөктү сууга салбаңыз.

7.2 Батареяны алмаштыруу

When the display becomes dim or the readings are inconsistent, it is time to replace the batteries. Follow the battery installation steps in Section 5.1. Always replace both AAA batteries simultaneously.

8. Кыйынчылыктарды

• Дисплей жок же күңүрт дисплей:
  Check if the batteries are inserted correctly with the right polarity. Replace old batteries with new 1.5 V AAA batteries.
• Incorrect outdoor temperature reading:
  Ensure the outdoor sensor is properly connected to the main unit. Verify the sensor is placed in a shaded area, away from direct sunlight or heat sources.
• Incorrect indoor temperature reading:
  Ensure the main unit is not placed near heat sources (e.g., radiators, direct sunlight) or cold drafts (e.g., open windows).
• Display shows '---' or 'LL.L' / 'HH.H':
  This indicates the temperature is outside the measurable range or the sensor connection is faulty. Check sensor connection and ensure temperatures are within the specified operating range.

9. Техникалык шарттар

10. Кепилдик жана колдоо

For warranty information or technical support, please refer to the official EMOS webсайтына кириңиз же жергиликтүү сатуучуңузга кайрылыңыз. Сатып алуунун далили катары сатып алуу дүмүрчөгүңүздү сактап коюңуз.
