1. Киришүү
This manual provides essential instructions for the safe assembly, operation, and maintenance of your Razor A5 Lux Kick Scooter. The A5 Lux is designed for riders aged 8 and up, supporting weights up to 220 pounds (100 kg). It features extra-large urethane wheels for a smooth ride, a super-strong, height-adjustable aluminum T-tube, and a larger deck to accommodate taller riders. Please read this manual thoroughly before use to ensure proper function and safety.
2. Коопсуздук маалыматы
Riding a scooter can be a hazardous activity. Certain conditions may cause the equipment to fail without fault of the manufacturer. The scooter is intended for use on flat, dry, paved surfaces free of loose debris. Always wear appropriate safety gear and follow these guidelines:
- Ар дайым каска, чыканак жана тизе үчүн капкак кийиңиз.
- Wear athletic shoes with rubber soles.
- Түнкүсүн же начар көрүнгөн шарттарда минбеңиз.
- Avoid water, sand, gravel, dirt, leaves, and other debris.
- 220 фунт (100 кг) деген максималдуу салмак чегинен ашпаңыз.
- Always check the scooter before riding to ensure all components are secure and functioning correctly.
- Айланаңыздан кабардар болуп, коргонууга өтүңүз.
3. Орнотуу
3.1 Скутерди ачуу
To unfold your Razor A5 Lux Kick Scooter:
- Скутерди тегиз жерге коюңуз.
- Locate the patented folding mechanism near the front wheel.
- Press the release button or lever (specific mechanism may vary slightly by model year) and pull the handlebar stem upwards until it locks into place. Ensure it clicks securely.
- Unfold the handlebars by pulling them outwards until they lock into position.
3.2 Adjusting Handlebars
The handlebar height can be adjusted to suit the rider's preference:
- Тез бошотуучу клапанды табыңызamp рулдун сабында.
- Тез чыгарылуучу cl ачыңызamp.
- Slide the handlebar T-bar up or down to the desired height.
- Тез чыгарылуучу clamp рулда эч кандай кыймыл жок экенин текшериңиз.

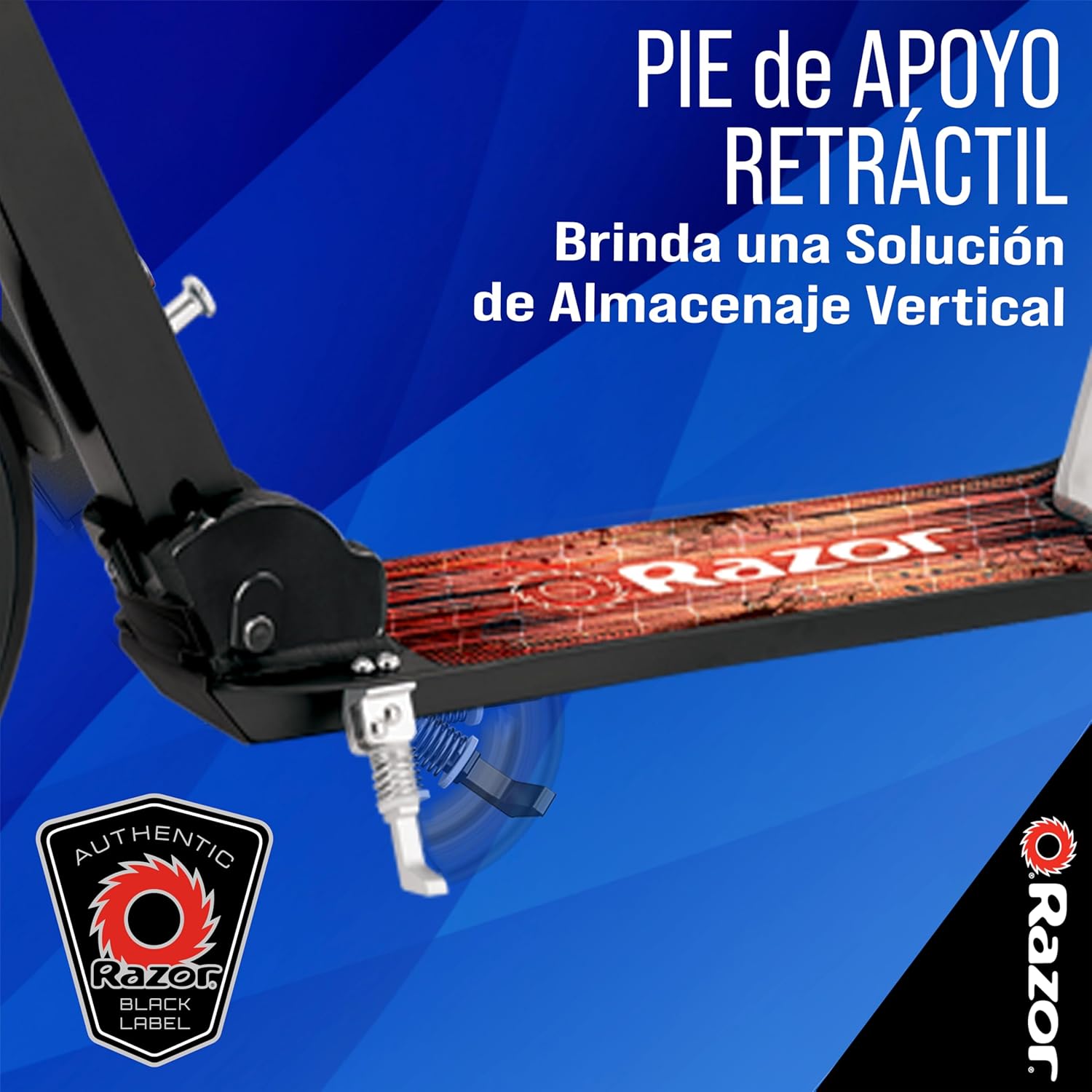

3.3 Kickstand Deployment
The scooter is equipped with a retractable kickstand for convenient parking and storage.
4. Иштөө нускамалары
4.1 Скутерге минүү
To ride, place one foot firmly on the deck and push off with the other foot. Steer by leaning gently in the desired direction. The large 8-inch urethane wheels provide a smooth and comfortable ride over various surfaces.
4.2 Тормозду колдонуу
The Razor A5 Lux features a patented rear fender brake. To engage the brake, apply pressure to the rear fender with your heel. This will slow down and stop the scooter.
4.3 Продукт бүттүview and Ride Demonstration
5. Техникалык тейлөө
Үзгүлтүксүз техникалык тейлөө скутериңиздин узак жана коопсуз иштешин камсыздайт.
5.1 Тазалоо
Скутерди жарнама менен сүртүңүзamp cloth to remove dirt and debris. Avoid using harsh chemicals or abrasive cleaners. Do not use high-pressure washers.
5.2 Wheel and Bearing Inspection
Periodically check the wheels for wear and tear. Ensure the bearings spin freely. If wheels or bearings are worn, replace them with genuine Razor replacement parts.
5.3 Fastener Checks
Before each ride, inspect all fasteners, including the handlebar clamp, folding mechanism, and wheel axles, to ensure they are properly tightened. Loose fasteners can compromise safety.
6. Кыйынчылыктарды
This section addresses common issues you might encounter with your Razor A5 Lux Kick Scooter.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Handlebars feel loose or wobbly | Тез-релиз clamp жетишерлик бекемделбейт. | Тез чыгарылуучу cl ачыңызamp, adjust the handlebar to the desired height, and close the clamp firmly. Ensure the clamp lever is fully engaged. |
| Scooter does not fold or unfold easily | Folding mechanism is stiff or obstructed. | Apply a small amount of lubricant to the folding mechanism. Ensure no debris is blocking the mechanism. Refer to the 'Unfolding the Scooter' section. |
| Wheels do not spin freely or make noise | Подшипниктердеги кир же таштандылар, же подшипниктердин эскиргендиги. | Clean the wheels and bearings. If the issue persists, consider replacing the wheel bearings. |
| Brake is not effective | Rear fender brake is worn or misaligned. | Inspect the brake for wear. Ensure the fender is properly aligned to make contact with the wheel. Replace if significantly worn. |
7. Техникалык шарттар
- Бренд: устара
- Модель аты: A5 Lux
- Түсү: Black Label
- Жаш аралыгы: Чоңдор (8 жаштан жогоркулар үчүн сунушталат)
- Салмак чеги: 220 фунт (100 кг)
- Продукциянын өлчөмдөрү (LxWxH): 33.9" x 18" x 38.6" (86.1 см x 45.7 см x 98 см)
- Элемент Салмагы: 3.81 килограмм (8.4 фунт)
- Дөңгөлөктөрдүн саны: 2
- Дөңгөлөк материалы: Полиуретан
- Дөңгөлөктүн көлөмү: 200 Миллиметр (8 дюйм)
- Дөңгөлөктүн түрү: Катуу
- Рамка материалы: Алюминий
- Рулдун түрү: Жөнгө салынуучу
- Тутканын бийиктиги: 38 дюйм (96.5 см)
- Кармап түрү: Контурланган
- Тормоз стили: Арткы тормоздоо
- Токтотуу түрү: Катуу
8. Кепилдик маалыматы
The Razor A5 Lux Kick Scooter comes with a 90-day Limited Manufacturer's Warranty. This warranty covers manufacturing defects in materials and workmanship. It does not cover normal wear and tear, damage due to misuse, neglect, accident, or improper assembly/maintenance. Please retain your proof of purchase for warranty claims.
9. Кардарларды колдоо кызматы
For further assistance, replacement parts, or warranty inquiries, please contact Razor customer service. Refer to the official Razor webакыркы байланыш маалыматы жана колдоо булактары үчүн сайт.
Өндүрүүчү: Razor USA, ЖЧК
Webсайт: www.razor.com (Аймактык вариацияларды текшериңиз)
