1. Продукт бүтүп калдыview
The ELCO Lighting EL602W is a 6-inch Super Sloped Baffle Trim designed for recessed lighting fixtures. This trim is engineered to provide efficient light distribution and a clean, finished appearance for residential applications. Its sloped baffle design helps to reduce glare and direct light effectively within a space.

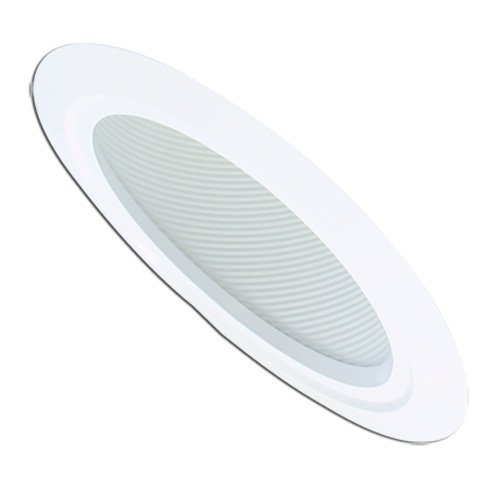

Image 1.1: The ELCO Lighting EL602W 6-inch Super Sloped Baffle Trim, shown in white. This component is designed to fit into a 6-inch recessed housing, providing a finished look and directing light with its sloped interior.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Электр тогуна урунуу коркунучу бар. Орнотуудан же тейлөөдөн мурун сактагычты же автоматтык өчүргүчтү электр кубатынан ажыратыңыз.
- Always ensure the power supply is turned off before beginning any installation or maintenance.
- Орнотуу процессинин кандайдыр бир бөлүгүнө ишенбесеңиз, квалификациялуу электрик менен кеңешиңиз.
- нымдуу же г орнотууга болбойтamp locations unless the fixture is specifically rated for such environments.
- Бардык туташуулардын коопсуз экенин жана жергиликтүү электр эрежелерине ылайык келгенин текшериңиз.
3. Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- 1 x ELCO Lighting EL602W 6" Super Sloped Baffle Trim
- (Additional mounting hardware may be included with the recessed housing, not this trim.)
4. Орнотуу жана орнотуу
This trim is designed to be installed into a compatible 6-inch recessed lighting housing (sold separately). Follow these general steps:
- Турак жайды даярдоо: Ensure the recessed housing is properly installed in the ceiling and all electrical connections to the housing are complete and secure.
- L орнотууamp (эгер бар болсо): Эгерде сиздин турак жайыңыз талап кылсаamp to be installed before the trim, insert the appropriate lamp type into the socket within the housing.
- Insert the Trim: Align the trim with the opening of the recessed housing. Gently push the trim upwards into the housing.
- Тримди бекитиңиз: The trim typically uses torsion springs or friction clips to hold it in place. Ensure these mechanisms engage securely with the housing to hold the trim flush against the ceiling.
- Сыноо: Once the trim is securely in place, restore power to the circuit and test the light fixture.
Refer to your specific recessed housing's instruction manual for detailed installation steps, as methods may vary.
5. Иштөө нускамалары
The EL602W baffle trim itself does not have operational controls. Its function is passive, designed to direct and diffuse light from the installed lamp within the recessed housing. Operation of the light fixture is controlled by the wall switch or dimmer connected to the circuit.
6. Техникалык тейлөө
The EL602W trim requires minimal maintenance:
- Тазалоо: To clean the trim, ensure power is off at the circuit breaker. Use a soft, dry or slightly damp cloth to wipe the surface. Avoid abrasive cleaners or solvents, as they may damage the finish.
- Lamp Алмаштыруу: Эгерде лamp needs replacement, carefully remove the trim by pulling it down from the ceiling (disengaging the springs/clips). Replace the lamp according to the housing manufacturer's instructions, then re-install the trim.
7. Кыйынчылыктарды
If you encounter issues with your recessed lighting fixture, consider the following:
- Жарык күйбөйт:
- Электр өчүргүч өчүрүлгөнүн текшериңиз.
- Дубалдагы өчүргүчтүн "ON" абалында экенин текшериңиз.
- l текшериңизamp is correctly installed and not burnt out.
- Confirm electrical connections to the housing are secure.
- Trim Not Sitting Flush:
- Ensure the torsion springs or friction clips are properly engaged with the housing.
- Check for any obstructions within the housing or ceiling opening.
Эгерде көйгөйлөр чечилбесе, квалификациялуу электрикке кайрылыңыз.
8. Техникалык шарттар
| Атрибут | Деталь |
|---|---|
| Модель номери | EL602W |
| Бренд | ELCO Lighting |
| Өлчөмү | 6-inch (nominal) |
| Type | Super Sloped Baffle Trim |
| Колдонмо | Турак жай классы |
| Форма | Тегерек |
| Пакеттин өлчөмдөрү | 7 x 7 x 3 дюйм |
| Салмагы | 1.5 фунт |
| Өндүрүүчү | Elco Lighting |
9. Кепилдик маалыматы
Specific warranty details for the ELCO Lighting EL602W trim are typically provided by the manufacturer or the point of purchase. Please retain your proof of purchase for any warranty claims. For detailed warranty terms and conditions, please visit the official ELCO Lighting webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.
10. Кардарларды колдоо кызматы
For technical assistance, product inquiries, or support, please contact ELCO Lighting directly:
- Өндүрүүчү: Elco Lighting
- Webсайт: www.elcolighting.com (Эскертүү: Бул толтургуч URL, please verify the official webсайт.)
- Продукциянын таңгагына же өндүрүүчүнүн расмий өкүлүнө кайрылыңыз webакыркы байланыш маалыматы үчүн сайт.
