DCS RF24T1 Outdoor Beer Dispenser User Manual

1. Коопсуздук боюнча маанилүү маалымат

Please read all instructions carefully before installing, operating, or servicing this appliance. Failure to follow these instructions may result in property damage, personal injury, or death. Keep this manual for future reference.

• Электр коопсуздугу: Ensure the appliance is connected to a properly grounded electrical outlet. Do not use extension cords or adapter plugs. Disconnect power before cleaning or servicing.
• Сыртта колдонуу: This appliance is designed for outdoor use. Ensure it is protected from direct rain and extreme weather conditions.
• Вентиляция: Maintain adequate ventilation around the unit. Do not block any ventilation openings.
• Күйүүчү материалдар: Бензинди же башка күйүүчү бууларды жана суюктуктарды ушул же башка шайманга жакын жерде сактабаңыз же колдонбоңуз.
• Балдар: Keep children away from the appliance. Do not allow them to play with or inside the unit.
• Оор прибор: Бул шайман оор. Орнотуу учурунда жаракат алуунун алдын алуу үчүн туура көтөрүү ыкмаларын жана жардамды колдонуңуз.

2. Продукт бүтүп калдыview

The DCS RF24T1 Outdoor Beer Dispenser is a 5.8 cubic foot freestanding appliance designed to store and dispense kegged beverages in an outdoor environment. It features a durable stainless steel construction suitable for various weather conditions.

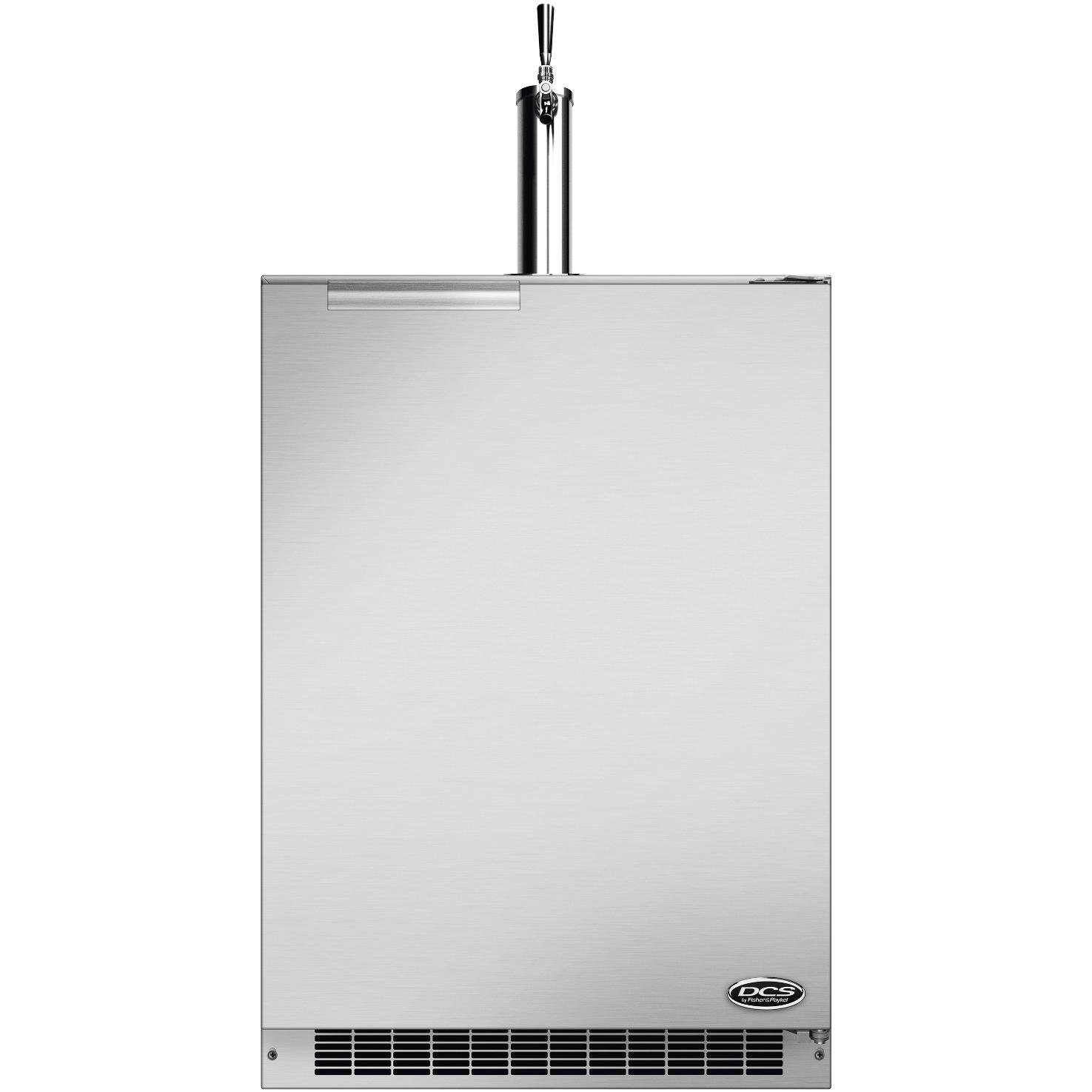

Сүрөт 1: Алдыңкы view of the DCS RF24T1 Outdoor Beer Dispenser, showcasing its stainless steel finish and single door design.

Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:

• 5.8 куб фут сыйымдуулугу
• Дат баспас болоттон жасалган курулуш
• Туруктуу орнотуу
• Single Door Design
• Integrated Water Dispenser (for cleaning or glass rinsing)

3. Орнотуу & Орнотуу

3.1 Пакеттен чыгаруу

Carefully remove all packaging materials. Inspect the unit for any shipping damage. Report any damage to your dealer immediately. Keep packaging materials until the unit has been inspected.

3.2 Орнотуу

• Place the dispenser on a flat, level, and sturdy surface capable of supporting its weight (approximately 136 pounds) plus the weight of a full keg.
• Ensure there is at least 4 inches (10 cm) of clearance at the back and sides for proper ventilation.
• Avoid direct sunlight and heat sources. While designed for outdoor use, extreme heat can affect performance.
• This unit is freestanding. Do not enclose it in cabinetry without ensuring adequate ventilation.

3.3 Электрдик туташуу

Connect the appliance to a dedicated, grounded 115V AC, 60Hz electrical outlet. The circuit should be protected by a 15-amp fuse or circuit breaker. Do not use a two-prong adapter or extension cord.

3.4 Алгачкы тазалоо

Before first use, clean the interior of the dispenser with a mild detergent and warm water. Rinse thoroughly and dry. Clean the beer lines and tap system according to the manufacturer's instructions for your specific tap kit (not included with the dispenser unit).

4. Операция

4.1 Loading a Keg

1. Диспенсердин эшигин ачыңыз.
2. Carefully place the keg inside the unit. Ensure it is stable and centered.
3. Connect the tap coupler to the keg valve following the tap kit instructions.
4. Connect the CO2 line to the regulator and the regulator to the CO2 tank.
5. Adjust the CO2 pressure as recommended by your beer supplier (typically 10-12 PSI).
6. Диспенсердин эшигин бекем жабыңыз.

4.2 Температураны көзөмөлдөө

The dispenser features an internal thermostat. Use the control panel, typically located inside the unit or on the front panel, to set the desired temperature. Allow several hours for the unit to reach the set temperature after initial setup or after loading a new, warm keg.

4.3 Сыра берүү

To dispense beer, place a glass under the tap faucet. Pull the tap handle forward completely to open the flow. Push the handle back completely to close the flow. Avoid partially opening the tap, as this can cause excessive foam.

4.4 Суу диспенсери

The integrated water dispenser can be used for rinsing glasses or for cleaning purposes. Ensure the unit is connected to a water supply line if this feature is to be utilized. Refer to your plumbing instructions for proper water line connection.

5. Техникалык тейлөө жана тазалоо

5.1 Тышкы тазалоо

Clean the stainless steel exterior with a soft cloth and a mild stainless steel cleaner. Avoid abrasive cleaners or scouring pads, which can scratch the surface. Wipe in the direction of the grain.

5.2 Ички тазалоо

Regularly clean the interior with a mild detergent and warm water. Remove any spills promptly. Ensure the drain pan is emptied and cleaned regularly to prevent odors and mold growth.

5.3 Beer Line and Tap Cleaning

For optimal taste and hygiene, the beer lines and tap system should be cleaned every 2-3 weeks, or with every keg change. Use a specialized beer line cleaning solution and follow the instructions provided with your tap cleaning kit. This is crucial to prevent bacterial buildup and off-flavors.

5.4 Конденсатордун катушкаларын тазалоо

Periodically (every 3-6 months), clean the condenser coils located at the back or bottom of the unit. Dust and debris can accumulate, reducing cooling efficiency. Use a soft brush or vacuum cleaner to gently remove buildup. Disconnect power before cleaning.

6. Кыйынчылыктарды

Кызматка кайрылуудан мурун, кайраview төмөнкү жалпы маселелер жана чечимдер:

7. Техникалык шарттар

8. Кепилдик жана колдоо

This product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. For technical support, parts, or service inquiries, please contact DCS customer service or your authorized dealer. Keep your purchase receipt and model number handy when contacting support.

Онлайн ресурстар: For additional information, product registration, or to locate an authorized service provider, visit the official DCS webсайт.
