Rossmax TE100 3-in-1 көп функциялуу термометр колдонуучусунун колдонмосу

1. Киришүү

Thank you for choosing the Rossmax TE100 3-in-1 Multifunction Thermometer. This device is designed for accurate and convenient temperature measurement using infrared technology. It can measure temperature from the forehead, ear, and ambient environment. Please read this manual thoroughly before use to ensure safe and effective operation.

Key features of your Rossmax TE100 thermometer include:

• Multifunction 3-in-1 (forehead, ear, ambient) infrared system.
• High/low temperature indicator.
• 9 memory recall function.
• Fever alarm with 3 LED indicators (normal, mild fever, fever).

2. Коопсуздук маалыматы

Please observe the following safety precautions to ensure proper use of the thermometer:

• This device is intended for measuring human body temperature and ambient temperature. Do not use it for other purposes.
• Аппаратты балдар жетпеген жерде сактаңыз.
• Do not drop the thermometer or expose it to strong shocks.
• Avoid direct sunlight, high temperatures, or high humidity.
• Аппаратты өзүңүз ажыратпаңыз же оңдоого аракет кылбаңыз.
• Consult a physician for interpretation of temperature readings, especially for children. Self-diagnosis based on temperature readings alone is not recommended.
• Ensure the sensor is clean before each use to maintain accuracy.

3. Продукт бүтүп калдыview

Familiarize yourself with the components of your Rossmax TE100 thermometer:

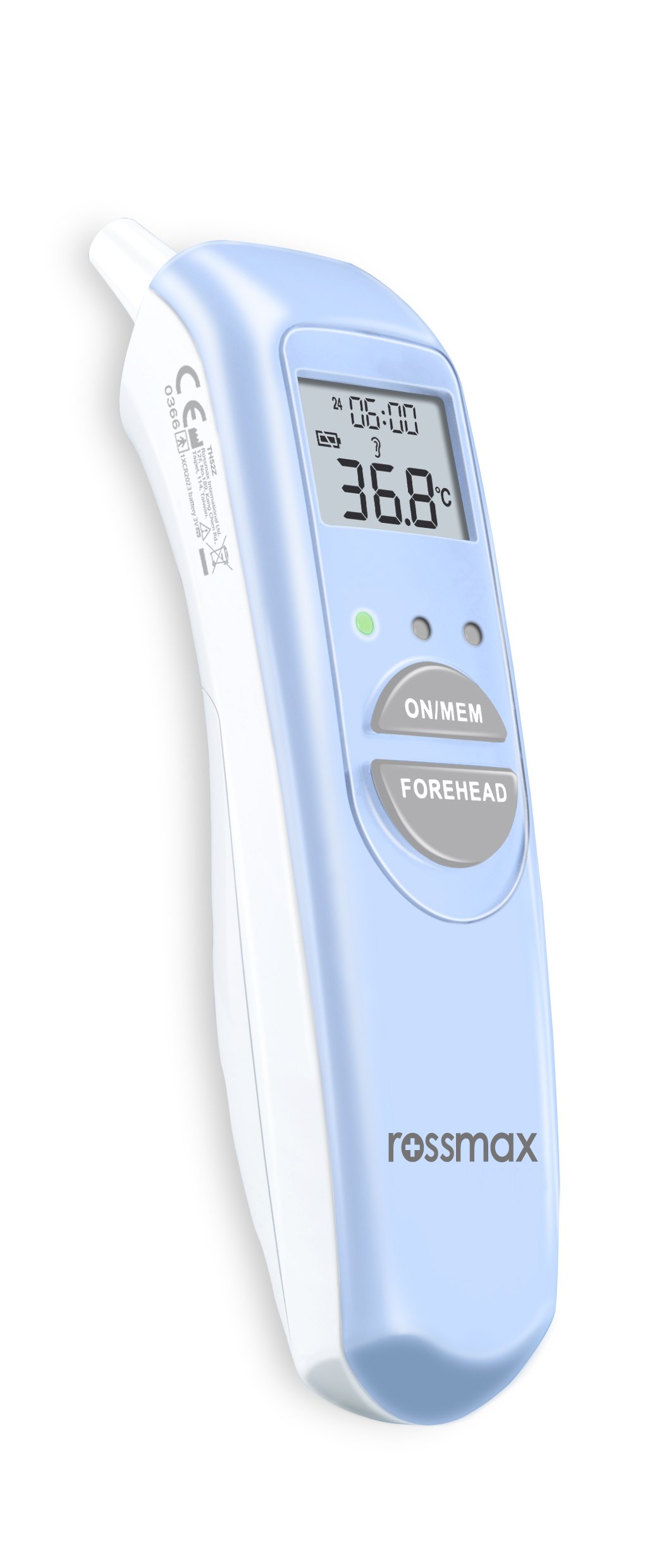

This image displays the Rossmax TE100 thermometer. It features a digital display showing a temperature of 36.8°C, time, and battery indicator. Below the display are two buttons: 'ON/MEM' and 'FOREHEAD'. A small green indicator light is visible above the buttons. The device has a sleek, ergonomic design with a white and light blue casing.

• Дисплей экраны: Shows temperature readings, time, battery status, and mode indicators.
• ON/MEM Button: Powers the device on/off and recalls stored memory readings.
• FOREHEAD Button: Initiates forehead temperature measurement.
• Сенсордук зонд: Located at the tip, used for ear and forehead measurements.
• Батарея бөлүмү: Located at the bottom, houses the CR2032 battery.

4. Орнотуу

4.1 Батареяны орнотуу

1. Locate the battery compartment cover at the bottom of the thermometer.
2. Gently slide or unclip the cover to open it.
3. Insert one CR2032 3V lithium battery, ensuring the correct polarity (+/-) as indicated inside the compartment.
4. Батарея уясынын капкагын бекем жабыңыз.

4.2 Баштапкы күйгүзүү

басыңыз ON / MEM button to turn on the thermometer. The device will perform a self-test, and the last reading or current time will be displayed. The thermometer is ready for use when the measurement icon appears.

5. Иштөө нускамалары

5.1 Forehead Temperature Measurement

1. Ensure the thermometer is in forehead mode (indicated by a forehead icon on the display). If not, press the МАГА режимдерин которуу үчүн баскыч.
2. Gently place the sensor probe flat against the center of the forehead.
3. басып, кармап туруңуз МАГА баскычы.
4. Slowly slide the thermometer across the forehead towards the temple.
5. Release the button once you reach the temple. The temperature reading will be displayed with an audible beep.

5.2 Ear Temperature Measurement

1. Remove the forehead cap to expose the ear probe.
2. Gently insert the probe into the ear canal. For accurate readings, ensure the probe is aimed towards the eardrum.
3. басыңыз ON / MEM button to initiate measurement.
4. Hold still until an audible beep indicates the measurement is complete and the temperature is displayed.

5.3 Ambient Temperature Measurement

1. Ensure the thermometer is in ambient mode (indicated by a house or room icon).
2. The device will automatically display the current room temperature. No button press is required for continuous ambient monitoring.

5.4 Эстутумду кайра чакыруу

The Rossmax TE100 stores up to 9 previous temperature readings.

1. With the device turned on, briefly press the ON / MEM баскычын кайра-кайра.
2. Each press will cycle through the stored readings from most recent to oldest.

5.5 Fever Alarm and LED Indicators

The thermometer features a fever alarm and LED indicators to help interpret temperature readings:

• Жашыл LED: Indicates normal temperature.
• Сары LED: Indicates mild fever (febrícula).
• Кызыл LED: Indicates fever (fiebre), often accompanied by an audible alarm.

6. Техникалык тейлөө

6.1 Тазалоо

Regular cleaning ensures accurate readings and prolongs the life of your thermometer.

• Wipe the sensor probe gently with an alcohol swab or a cotton swab moistened with alcohol (70% isopropyl alcohol is recommended).
• Абразивдүү тазалагычтарды колдонбоңуз же аппаратты сууга салбаңыз.
• Allow the sensor to dry completely before taking another measurement.
• Clean the main body of the thermometer with a soft, dry cloth.

6.2 Батареяны алмаштыруу

When the low battery indicator appears on the display, replace the battery as described in Section 4.1. Use only a CR2032 3V lithium battery.

6.3 Сактоо

Store the thermometer in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its protective case if provided.

7. Кыйынчылыктарды

If you encounter issues with your Rossmax TE100 thermometer, refer to the following common problems and solutions:

• Түзмөк күйбөйт: Батарея туура орнотулганын жана заряды жетиштүү экендигин текшериңиз. Зарыл болсо, батареяны алмаштырыңыз.
• Туура эмес окуулар: Ensure the sensor probe is clean and properly positioned. Avoid taking measurements immediately after physical activity, eating, or bathing. Allow the thermometer to acclimatize to room temperature for at least 30 minutes if moved from a significantly different environment.
• Дисплейдеги ката билдирүүсү: Refer to the specific error code in the full user manual (if available) or contact customer support. Common errors might indicate ambient temperature outside operating range or a device malfunction.
• No beep sound: Check if the sound function is enabled (if applicable, refer to full manual).

If the problem persists, contact Rossmax customer support or your retailer.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For further assistance or technical support, please visit the official Rossmax webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.
