Streamlight 69270 TLR-6 тактикалык курал жарыгы колдонуучусунун колдонмосу

1. Киришүү

The Streamlight TLR-6 is an ultra-compact weapon light designed to provide bright white light and an integrated red aiming beam. It is specifically engineered for secure attachment to the trigger guard of compatible subcompact handguns, offering enhanced visibility and aiming capabilities in low-light conditions.

Сүрөт 1: Алдыңкы view of the Streamlight TLR-6 Tactical Weapon Light.

2. Негизги өзгөчөлүктөрү

• Коопсуз тиркеме: Designed for tool-less attachment to the trigger guard of compatible handguns.
• Жарык жарыктандыруу: Features a white LED with 100 lumens output, 2,000 candela, and an 89-meter beam distance.
• Integrated Red Aiming Laser: Provides a precise red aiming beam with an output of <5mW and a class 3R wavelength of 640-660nm.
• Бир нече иштөө режимдери: Offers light-only, light & laser, and laser-only modes for versatile use.
• Ambidextrous Controls: Equipped with momentary/steady on/off switches accessible from both sides.
• Туруктуу курулуш: Made from impact-resistant polymer, tested for 1-meter impact resistance.
• Натыйжалуу батарея системасы: Allows for tool-less battery replacement without removing the unit from the weapon.

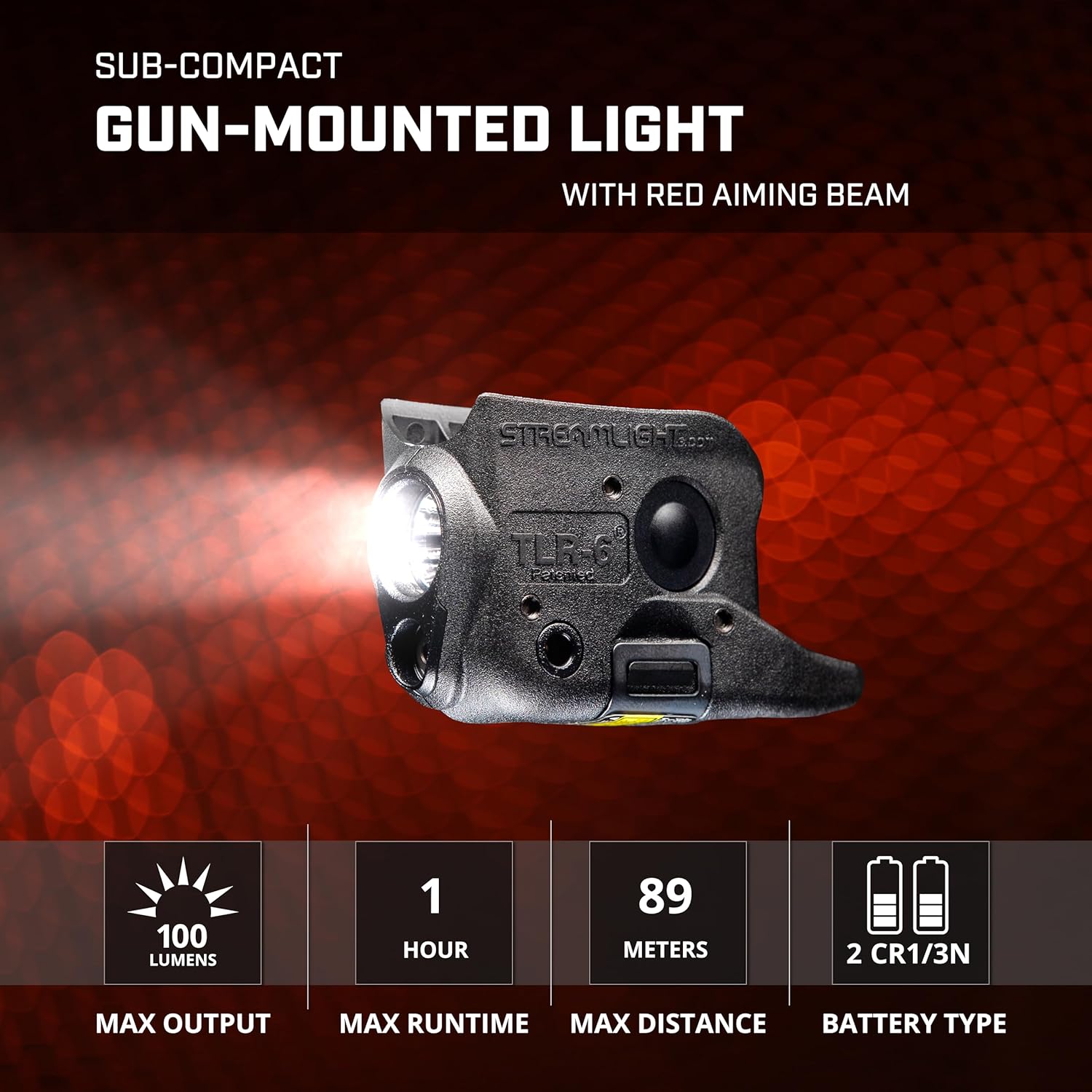

Figure 2: ашыкview of TLR-6 key performance specifications.

3. Шайкештик

The Streamlight TLR-6 (Model 69270) is specifically designed for the following Glock subcompact handguns:

• Glock 42
• Glock 43
• Glock 43X (Non-Rail or MOS versions only)
• Glock 48 (Non-Rail or MOS versions only)

Please refer to Streamlight's official TLR fit guide for the most up-to-date and comprehensive compatibility information before purchase or installation.

Figure 3: Visual guide to compatible Glock models.

4. Орнотуу жана орнотуу

The TLR-6 is designed for easy, tool-less attachment to the trigger guard of compatible firearms. The package includes all necessary components for installation.

4.1 Пакеттин мазмуну

Figure 4: Contents included in the TLR-6 package.

• TLR-6 unit
• CR 1/3N battery (included)
• .050 hex wrench (for laser adjustment)
• Иштөө нускамалары
• Streamlight логотибинин чаптамасы
• Стримлайт Стронг брошюрасы

4.2 Орнотуу кадамдары

1. Ensure the firearm is unloaded and safe before beginning installation.
2. Separate the two halves of the TLR-6 unit by removing the screws (if pre-assembled).
3. Carefully position the two halves around the trigger guard of your compatible Glock handgun.
4. Align the screw holes and reinsert the screws, tightening them securely to ensure a snug fit. Do not overtighten.
5. Verify that the TLR-6 is firmly attached and does not interfere with the firearm's operation.

Figure 5: The TLR-6 securely attached to a Glock handgun.

5. Иштөө нускамалары

The TLR-6 features ambidextrous momentary/steady on/off switches located on both sides of the unit. It offers three distinct operating modes:

• Light Only Mode: Activates only the white LED light.
• Laser Only Mode: Activates only the red aiming laser.
• Light & Laser Mode: Activates both the white LED light and the red aiming laser simultaneously.

5.1 Которуу режимдери

To cycle through the modes, press and hold both ambidextrous switches simultaneously until the desired mode is active. The unit will remember the last selected mode when turned off and on again using a single switch press.

5.2 Momentary and Steady On

• Убактылуу күйгүзүү: Press and hold either ambidextrous switch. The light/laser will remain on as long as the switch is held. Release to turn off.
• Туруктуу: Quickly press and release either ambidextrous switch. The light/laser will remain on until the switch is pressed and released again.

5.3 Лазердик тууралоо

The red aiming laser can be adjusted for windage and elevation using the provided .050 hex wrench. Locate the small adjustment screws on the unit and make small, incremental turns to fine-tune the laser's point of aim.

Figure 6: Illustration of different beam patterns (TLR-6 uses a focused beam).

6. Батарея маалыматы

The Streamlight TLR-6 is powered by two CR1/3N lithium metal batteries, which are included with the unit. The design allows for tool-less battery replacement without needing to remove the light from the firearm, preserving your laser's zero.

6.1 Батареяны алмаштыруу

1. Бирдиктин өчүрүлгөнүн текшериңиз.
2. Locate the battery compartment door, typically on the side of the unit.
3. Батарея бөлүмүнүн эшигин ачыңыз.
4. Remove the old batteries and insert new CR1/3N batteries, observing the correct polarity (+/-).
5. Батарея уясынын эшигин бекем жабыңыз.

Average battery life is approximately 11 hours for the laser, and 1 hour for the light/laser combination.

7. Техникалык тейлөө

Regular maintenance ensures optimal performance and longevity of your TLR-6. Keep the unit clean and free from debris.

• Тазалоо: жумшак колдонуу, damp cloth to wipe down the exterior of the unit. Avoid abrasive cleaners or solvents that could damage the polymer housing or lens.
• Линзага кам көрүү: Gently clean the light lens and laser aperture with a lens cloth or cotton swab to maintain clarity and beam quality.
• Батареянын байланыштары: Periodically inspect battery contacts for corrosion. Clean with a pencil eraser or cotton swab if necessary.
• Сактагыч: When storing the unit for extended periods, remove the batteries to prevent leakage and damage.

8. Кыйынчылыктарды

9. Техникалык шарттар

10. Кепилдик маалыматы

The Streamlight TLR-6 is covered by a Limited Lifetime Warranty. For detailed information regarding warranty terms, conditions, and claims, please refer to the official Streamlight webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.

11. Customer Support & Resources

For additional support, frequently asked questions, or to download the official user manual in PDF format, please visit the Streamlight webсайтына кириңиз же төмөндөгү шилтемени колдонуңуз:

• Колдонуучунун колдонмосун жүктөп алуу (PDF)
• Visit the Official Streamlight Store on Amazon

Сунуш 65 Эскертүү: Бул продукт Калифорния штатында рак жана тубаса кемтик же башка репродуктивдүү зыян алып келген химиялык заттарды камтыйт.
