Goodman 2.5 Ton 14.3 SEER2 R-32 Air Conditioner Only Split System Instruction Manual

1. Киришүү

This manual provides essential information for the installation, operation, and maintenance of your Goodman 2.5 Ton 14.3 SEER2 R-32 Air Conditioner Only Split System. This system is designed for efficient cooling and consists of two primary components: the Goodman GLXS4BA3010 Outdoor Air Conditioner and the Goodman AMST30BU1300 Multi-Position Air Handler.

Important Note: This system is designed for cooling only and does not provide heat. For heating functionality, a heat pump system or an additional HKTS series heat kit must be installed.

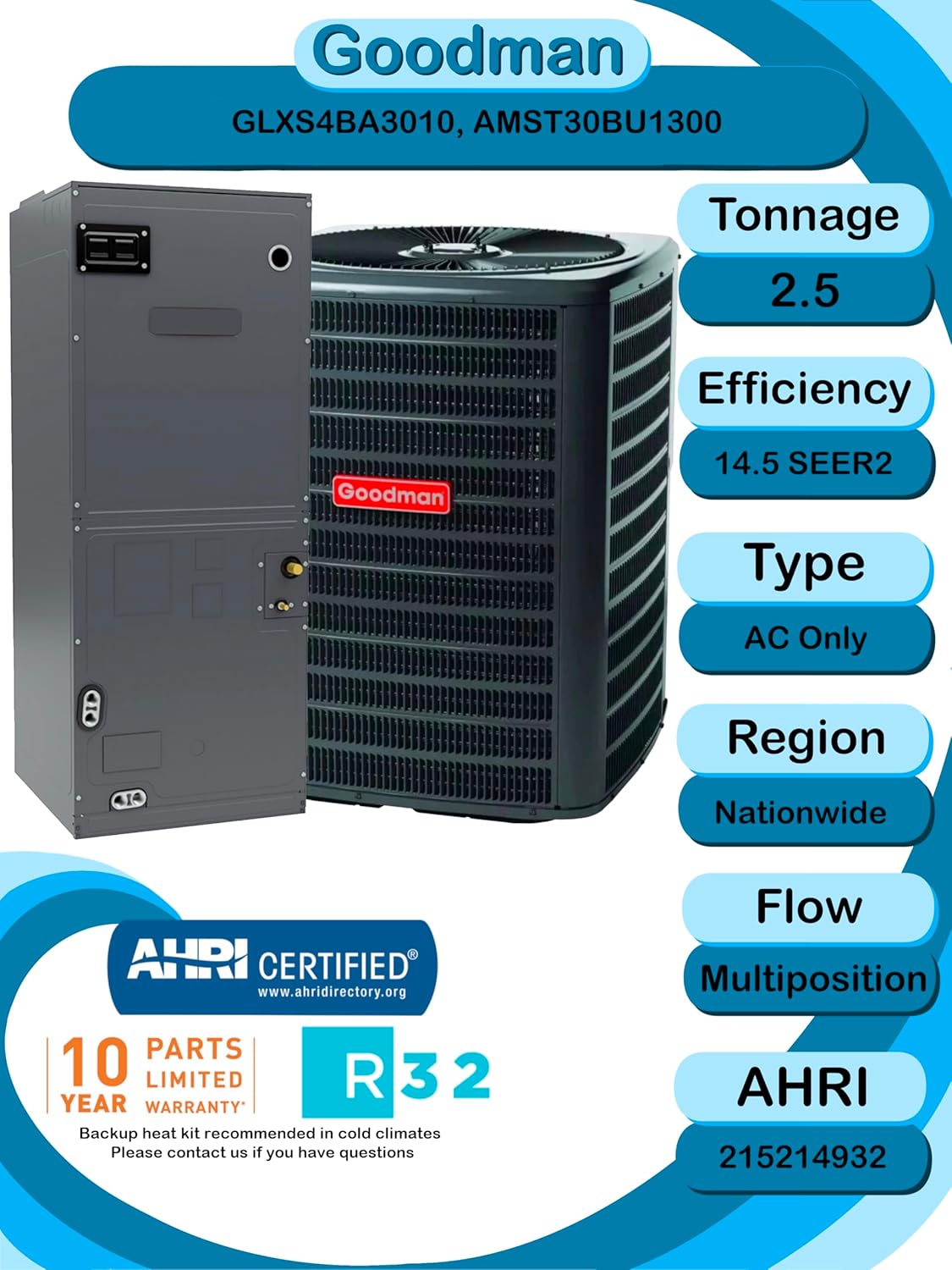

Figure 1: Goodman 2.5 Ton Air Conditioner and Air Handler Split System. This image displays both the outdoor condenser unit and the indoor air handler, illustrating the complete split system.

2. Коопсуздук маалыматы

Installation and servicing of this HVAC system must be performed by a qualified, licensed HVAC technician. Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or death. Read all instructions thoroughly before proceeding.

• Электр коопсуздугу: Ensure all power to the unit is disconnected before performing any service or maintenance.
• Муздаткычты иштетүү: This system uses R-32 refrigerant. R-32 is slightly flammable. Proper handling and leak detection procedures are critical during installation and servicing.
• Жеке коргонуу каражаттары: Always wear appropriate safety gear, including gloves and eye protection, when working with HVAC equipment.
• Тазалоо: Maintain adequate clearance around the outdoor unit for proper airflow and service access.

3. Системанын компоненттери

3.1. Outdoor Air Conditioner (GLXS4BA3010)

The GLXS4BA3010 is a 2.5 Ton 14.3 SEER2 Single Stage Straight Cool unit. It is designed for user-friendliness, featuring accessible service valves, gauge ports, and inspection points. The unit comes pre-charged for 15 feet of tubing, simplifying initial setup.

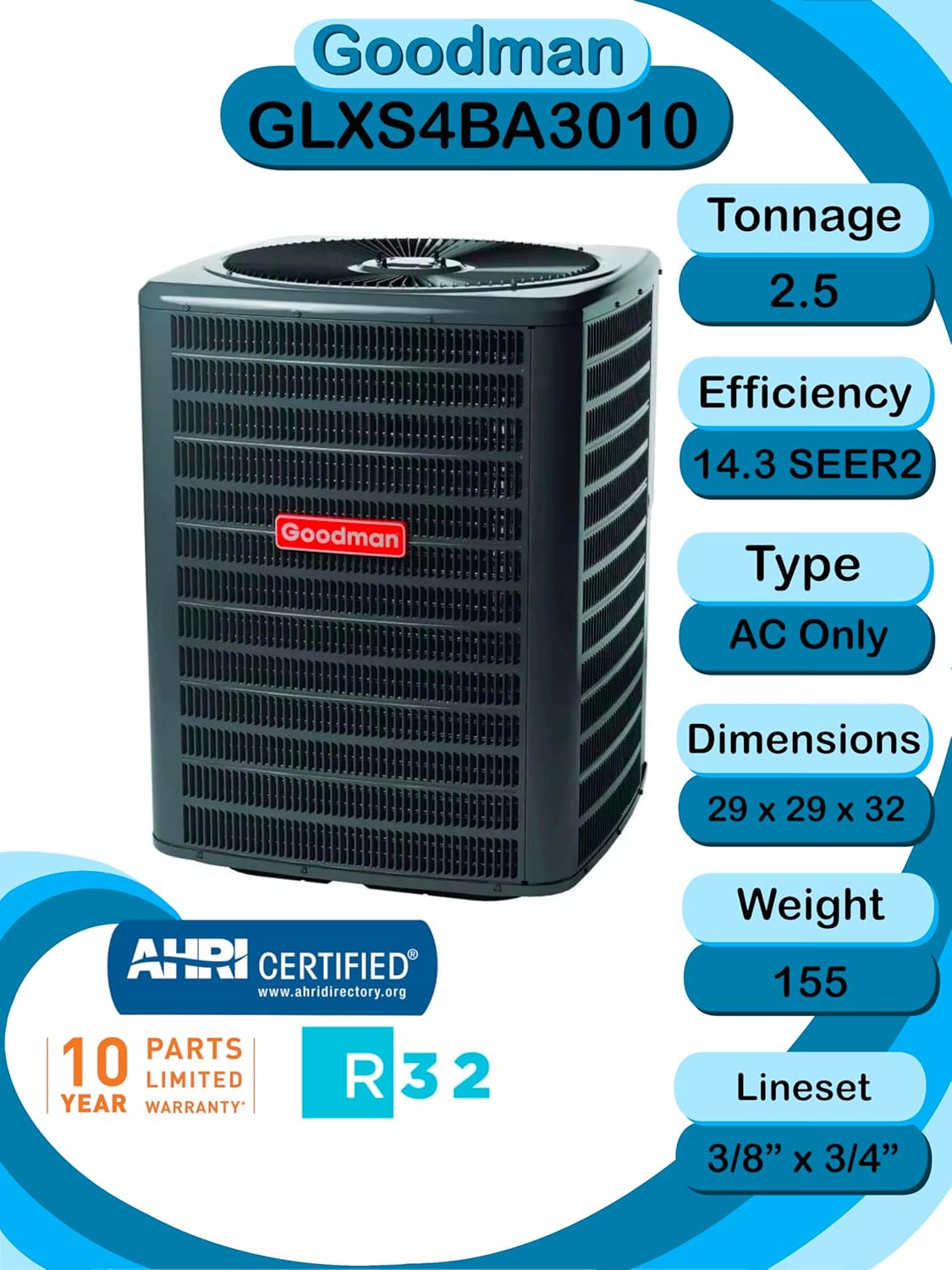

Figure 2: Goodman GLXS4BA3010 Outdoor Air Conditioner. This image shows the exterior of the outdoor condenser unit, highlighting its robust construction.

3.2. Indoor Air Handler (AMST30BU1300)

The AMST30BU1300 is a Multi-Position Air Handler constructed with corrosion-resistant aluminum and features grooved tubing for enhanced heat transfer. It includes internal factory-installed thermal expansion valves for optimized cooling and a direct-drive, 9-speed ECM blower motor for efficient airflow. The coil mounting track allows for flexible installation options.

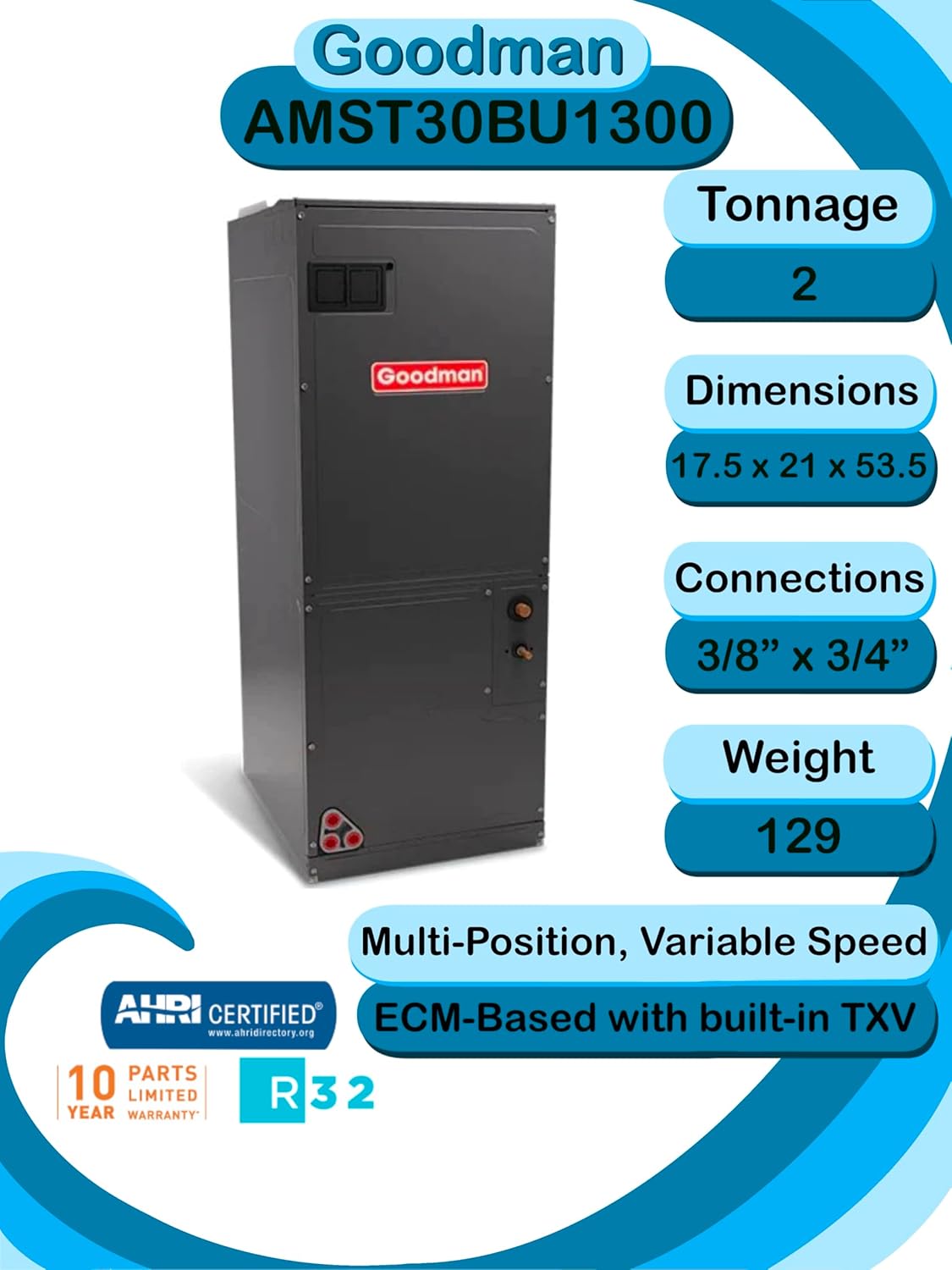

Figure 3: Goodman AMST30BU1300 Indoor Air Handler. This image displays the indoor air handler unit, which works in conjunction with the outdoor air conditioner.

4. Орнотуу жана орнотуу боюнча эске алынуучу жагдайлар

Professional installation is required for this system to ensure proper function, safety, and warranty validity. The system is AHRI certified under certificate number 215214932.

4.1. Air Handler Positioning

The Goodman AMST30BU1300 air handler offers flexible installation in upflow, horizontal right, or horizontal left configurations. Ensure the chosen position aligns with your ducting design and space requirements.

4.2. Coil Matching

It is crucial that the indoor coil is correctly matched with your furnace or air handler. If your furnace is in a horizontal configuration, a horizontal coil is required. For upflow or downflow furnaces, a vertical (A-coil) is necessary. Consult a qualified technician to ensure proper matching.

4.3. Heating Options

As this is a cooling-only system, a separate heat source is required for colder climates. This can be a furnace or an electric heat kit (HKTS series) added to the air handler. For downflow installations, an optional downflow kit must be purchased separately.

4.4. Refrigerant Compatibility (R-32)

This system utilizes R-32 refrigerant. R-32 is not backwards compatible with older refrigerants like R-410A. If replacing either the outdoor condenser or the indoor coil, both components must be replaced with R-32 compatible units. A 'Dragonfly Kit' may be required to ensure communication between an R-32 based coil and an older furnace, if such a configuration is deemed safe and compliant by a qualified technician.

5. Иштөө нускамалары

Your Goodman 2.5 Ton Air Conditioner is designed to provide efficient cooling for your home. The system operates by absorbing heat from the indoor air and expelling it outside, effectively lowering the indoor temperature.

• Муздатуу цикли: The indoor air handler's evaporator coil absorbs heat from your home's air. The refrigerant then carries this heat to the outdoor condenser unit, where it is released into the outside atmosphere.
• Аба агымы: The direct-drive, 9-speed ECM blower motor in the air handler ensures consistent and efficient air circulation throughout your home.
• Термостат башкаруу: Use your thermostat to set the desired indoor temperature. The system will cycle on and off to maintain this setting.

6. Техникалык тейлөө

Regular maintenance is essential for optimal performance, energy efficiency, and longevity of your HVAC system. It is recommended to schedule annual professional maintenance checks.

• Аба чыпкасын алмаштыруу: Regularly check and replace your air filter according to manufacturer recommendations (typically every 1-3 months). A dirty filter restricts airflow and reduces efficiency.
• Тышкы блокту тазалоо: Keep the area around the outdoor condenser unit clear of debris, leaves, and vegetation to ensure proper airflow. Periodically clean the coils with a soft brush or hose.
• Дренаж: Ensure the condensate drain line is clear and free of obstructions to prevent water backup.
• Кесиптик текшерүү: A qualified technician should inspect the system annually to check refrigerant levels, electrical connections, and overall system health.

7. R-32 Refrigerant Information

The Goodman 2.5 Ton Air Conditioner utilizes R-32 refrigerant, a newer generation refrigerant with several advantages:

• Жогорку натыйжалуулугу: R-32 is approximately 40% more efficient than R-410A, meaning less refrigerant is needed per system.
• Lower Environmental Impact: It has a smaller global warming potential (GWP) compared to R-410A.
• Тутануучулук: R-32 is classified as a A2L refrigerant, meaning it is slightly flammable. This necessitates specific safety protocols and specialized tools for handling and installation by certified technicians.

Due to its unique properties, R-32 systems require compatible components. Mixing R-32 with R-410A or other refrigerants is not permitted and can damage the system or create safety hazards. Always ensure all components (outdoor unit, indoor coil) are designed for R-32 when replacing or installing a new system.

8. Кыйынчылыктарды

If your system is not operating correctly, perform the following basic checks before contacting a service technician:

• Муздатуу жок: Check the thermostat setting to ensure it is set to 'Cool' and the desired temperature is below the current room temperature. Verify that the circuit breaker for the outdoor unit and indoor air handler has not tripped.
• Кыскартылган аба агымы: Check the air filter for excessive dirt and replace if necessary. Ensure no vents are blocked.
• адаттан тыш үндөр: Listen for any unusual sounds. Some noises are normal during operation, but grinding, squealing, or loud banging may indicate a problem.

For any issues beyond these basic checks, contact a qualified HVAC service technician. Do not attempt complex repairs yourself, as this can void your warranty and pose safety risks.

9. Техникалык шарттар

10. Кепилдик жана колдоо

This Goodman system comes with a 10-year warranty on all parts when installed by a qualified installer and registered online within 60 days of installation. Please retain your proof of purchase and installation records.

For warranty claims, technical support, or to locate a qualified installer, please refer to the official Goodman website or contact their customer service. Accessories such as thermostats, heat kits, and outdoor sensors are sold separately.

Figure 4: Goodman 10-Year Limited Warranty. This image depicts the warranty shield, signifying the 10-year parts warranty offered by Goodman.
