ANSMANN 9V 300mAh NiMH кайра заряддалуучу батареясы (2 даана) боюнча колдонмо

1. Киришүү

This manual provides essential information for the safe and effective use of your ANSMANN 9V 300mAh NiMH rechargeable batteries. These batteries are designed for devices requiring high power consumption and feature a low self-discharge rate, making them suitable for a wide range of applications.

Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:

• Төмөн өзүн-өзү разряд: Retains approximately 80% of its initial capacity after one year, significantly reducing the need for frequent recharging.
• High Cycle Stability: Can be recharged up to 1000 times, offering a long operational lifespan.
• Алдын ала заряддалган: Ready for immediate use upon purchase.
• Кең температура диапазону: Operates effectively in temperatures from -20°C to +50°C.
• Эстутум эффектиси жок: Can be charged at any time without reducing capacity.

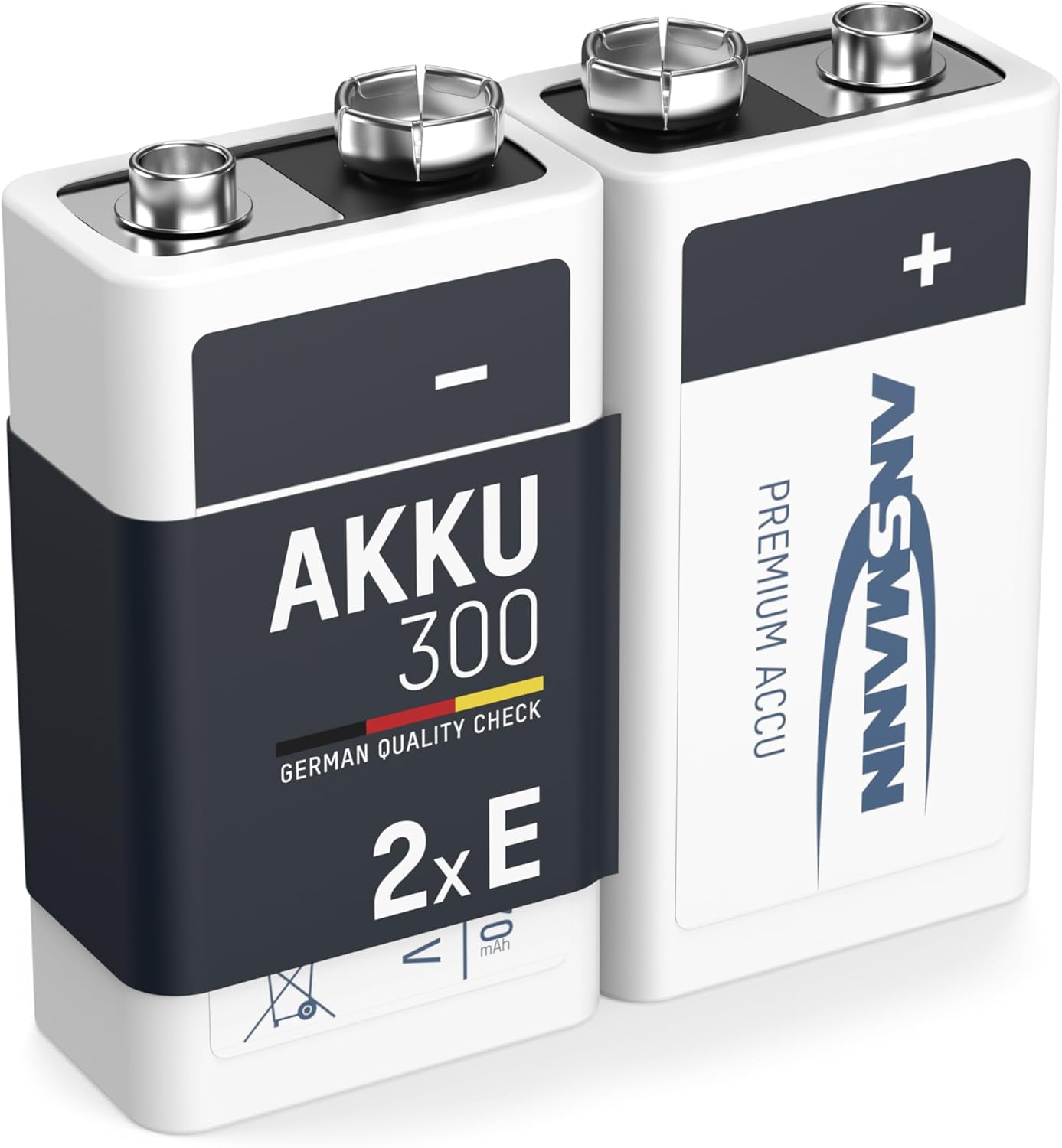

This image displays two ANSMANN 9V 300mAh NiMH rechargeable batteries, highlighting their design and key branding.

2. Орнотуу

2.1 Алгачкы колдонуу

ANSMANN maxE 9V rechargeable batteries are supplied pre-charged and are ready for immediate use. However, for optimal performance and to ensure full capacity, it is recommended to fully charge the batteries before their first extended use.

2.2 Заряддоо

Use a compatible NiMH battery charger designed for 9V batteries. Ensure the charger is appropriate for the battery's chemistry (NiMH) and voltage (8.4V nominal). Follow the instructions provided with your battery charger for safe and effective charging.

• Insert the batteries into the charger, observing correct polarity (+/-).
• Заряддагычты кубат булагына туташтырыңыз.
• Charging times will vary depending on the charger model and the battery's state of charge.
• The batteries can be charged with a high charging current, allowing for relatively short charging times.

3. Иштөө нускамалары

3.1 Түзмөктүн шайкештиги

These 9V NiMH rechargeable batteries are suitable for a wide range of electronic devices that typically use disposable 9V alkaline batteries. Common applications include:

• Алыстан башкаруу каражаттары
• Toys and modeling equipment
• Wireless microphones and audio equipment
• Smoke detectors and alarms
• Медициналык жабдуулар
• Flashlights and portable lighting
• Test and measurement devices (e.g., multimeters)

This image showcases the versatility of ANSMANN 9V batteries, demonstrating their suitability for a range of everyday electronic devices including toys, camera flash units, and wireless computer mice.

3.2 Insertion into Devices

Always ensure correct polarity when inserting batteries into a device. Match the positive (+) and negative (-) terminals of the battery with the corresponding markings in the device's battery compartment. Incorrect insertion can damage both the battery and the device.

4. Техникалык тейлөө жана кам көрүү

4.1 Кубаттоо практикасы

• Recharge batteries when they show signs of depletion to maintain optimal performance.
• Avoid overcharging by using a smart charger that automatically stops charging when batteries are full.
• Due to the minimal memory effect of NiMH technology, batteries can be recharged even if not fully discharged.

4.2 Сактоо

Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is advisable to store them with a partial charge (around 50%). The low self-discharge characteristic of these batteries ensures they retain charge well during storage.

4.3 Коопсуздук эрежелери

Observe the following safety guidelines to prevent damage or injury:

• Батарея терминалдарын кыска туташтырбаңыз.
• Do not expose batteries to fire or extreme heat.
• Do not disassemble, crush, or puncture batteries.
• Do not mix new and old batteries, or batteries of different types or brands.
• Батареяларды балдар жетпеген жерде сактаңыз.
• Dispose of depleted batteries according to local regulations for rechargeable batteries.

This image displays a series of universal safety icons related to rechargeable batteries. These icons typically warn against improper handling such as disassembling, short-circuiting, exposing to fire, mixing with other battery types, or disposing of in regular waste.

5. Кыйынчылыктарды

5.1 Батарея заряддалбай жатат

• Заряддагычты текшерүү: Ensure the charger is functioning correctly and is compatible with NiMH 9V batteries.
• Байланыштарды текшерүү: Verify that the batteries are inserted correctly into the charger with proper polarity.
• Батареянын абалы: If a battery has been deeply discharged for an extended period, some chargers may struggle to initiate charging. Try a refresh or recondition cycle if your charger has this feature.

5.2 Reduced Operating Time

• Толук заряд: Колдонуудан мурун батарейкалар толук заряддалганын текшериңиз.
• Түзмөктүн кубаттуулугун керектөө: Some devices consume more power than others. Operating time will vary significantly based on the device.
• Батареянын жашы: Over time and after many charge cycles, the capacity of rechargeable batteries can gradually decrease.
• Температура: Extreme cold can temporarily reduce battery performance and capacity.

This image visually represents the ANSMANN 9V battery's ability to perform reliably across a wide temperature range, from -20°C to +50°C, ensuring consistent power in various environmental conditions.

5.3 Corrosion on Battery Terminals

• Таза терминалдар: If minor corrosion is present, gently clean the battery terminals and device contacts with a dry cloth or a cotton swab dipped in rubbing alcohol.
• Туура сактоо: Ensure batteries are stored in a dry environment. Avoid storing them in humid conditions or in devices for very long periods without use, especially if the device is prone to moisture.
• Колдонууну токтотуу: If corrosion is significant or appears to be leaking, discontinue use and dispose of the battery safely.

6. Техникалык шарттар

This image illustrates the physical size of the ANSMANN 9V battery in comparison to other common battery types (AAA, AA, C, D), providing its dimensions as 26.5 x 17.5 x 48.5 mm.

7. Кепилдик жана колдоо

7.1 Өндүрүүчүнүн Кепилдиги

ANSMANN offers a 2 жылдык Өндүрүүчүнүн Кепилдиги for these rechargeable batteries. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

7.2 Кардарларды колдоо

For technical assistance, warranty claims, or further inquiries, please contact ANSMANN customer support through their official website or the retailer from whom the product was purchased. Provide your product model number (5035453-590-1) and details of your issue for efficient support.

You can visit the official Ansmann store for more information: Ansmann Store
