Продукт бүттүview
The Promed 2020 nail drill is a professional-grade device designed for precise and efficient manicure and pedicure applications. It is suitable for both natural and artificial nail treatment, offering advanced features for ease of use and reliable performance.
This image shows the Promed 2020 control unit with its speed dial, LED indicators, and the connected handpiece.
Коопсуздук эскертүүлөрү
Always wear protective eyewear when operating the nail drill, as flying particles and dust can be generated.
Do not touch the rotating bit to avoid burns.
Пакеттин мазмуну
The Promed 2020 package typically includes the following items:
- 1x Promed the file 2020 башкаруу бирдиги
- 1x Handpiece
- 1x Электр кабели
- 1x Колдонуучунун колдонмосу
The complete Promed 2020 package, including the control unit, handpiece, power adapter, cables, and a blue carrying case.
Продукт өзгөчөлүктөрү
The Promed 2020 boasts a modern design and technical innovations for optimal performance:
- Ergonomic, powerful, vibration-free stainless steel handpiece.
- Professional quick-release chuck for easy bit changes.
- 5 LEDs for speed indication.
- 1 LED for foot pedal indication (foot pedal optional).
- Safety Stop function.
- ASC (Automatic Speed Control).
- All-in-one controller for intuitive operation.
- Continuously adjustable speed up to 20,000 RPM.
- Suitable for natural and artificial nails, as well as professional foot care.

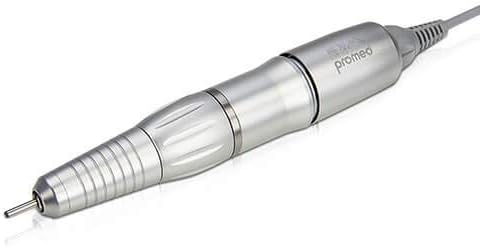

А деталдуу view of the Promed 2020 handpiece, highlighting its sleek, metallic design and ergonomic grip.
Жайгашуу
Follow these steps to set up your Promed 2020 nail drill:
- Place the Promed 2020 control unit on a stable, flat surface.
- Connect the handpiece cable to the designated port on the control unit. Ensure a secure connection.
- Connect the power cable to the control unit and then plug it into a suitable electrical outlet (100-240V, 50/60Hz).
- Insert the desired nail drill bit into the handpiece's chuck. Ensure the bit is fully inserted and securely fastened before operation.
The Promed 2020 handpiece with a conical nail drill bit securely inserted, ready for use.
Операция
To operate your Promed 2020 nail drill, follow these instructions:
- Күйгүзүү: Turn the main speed dial on the control unit clockwise to power on the device. The LEDs will illuminate, indicating the current speed setting.
- Ылдамдыкты жөндөө: Rotate the speed dial to increase or decrease the rotation speed of the handpiece. The 5 LEDs indicate speed levels (e.g., 3,000, 6,000, 10,000, 15,000, 20,000 RPM).
- Changing Rotation Direction: Use the direction switch (left/right) on the control unit to change the rotation direction of the drill bit as needed for different applications or user preference.
- Using the Handpiece: Hold the handpiece firmly and apply gentle, consistent pressure to the nail surface. Avoid excessive pressure to prevent damage to the nail or the device.
- Өчүрүү: Turn the speed dial counter-clockwise until it clicks into the 'off' position.
Bit Changing
The handpiece features a professional quick-release chuck. To change a bit, ensure the device is off and the bit has stopped rotating. Gently pull the current bit out and insert the new bit firmly until it clicks into place. Do not force bits.
Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your Promed 2020:
- Тазалоо: After each use, gently wipe the handpiece and control unit with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in liquids.
- Bit Care: Clean drill bits regularly according to their material and manufacturer's instructions. Store bits in a clean, dry place.
- Сактагыч: Store the Promed 2020 in a cool, dry place, away from direct sunlight and moisture.
Проблемаларды чечүү
If you encounter any issues with your Promed 2020, refer to the table below for common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөй жатат. | Электр энергиясы жок. | Check power cable connection and wall outlet. |
| Handpiece not rotating. | Handpiece not securely connected. | Ensure the handpiece cable is fully inserted into the control unit. |
| Bit is loose or wobbling. | Bit not properly inserted. | Turn off the device, remove the bit, and re-insert it firmly into the chuck until it clicks. |
| Адаттан тыш ызы-чуу же титирөө. | Бузулган бит же ички көйгөй. | Replace the bit. If the problem persists, discontinue use and contact customer support. |
Техникалык шарттар
- Модел: Promed 2020
- Бренд: Убадаланган
- Кубат булагы: Электр зымдары
- Тtage: 100-240V, 50/60Hz
- Макс. Ылдамдыгы: 20,000 RPM (continuously adjustable)
- Handpiece Material: Дат баспаган болот
- Продукциянын өлчөмдөрү: 10.01 x 19.99 x 15.01 cm (Control Unit)
- Салмагы: 449.06 grams (approx. total)
- Өндүрүлгөн: Германияда жасалган
Кепилдик жана колдоо
For warranty information or technical support, please refer to the official Promed website or contact your local Promed distributor. Keep your purchase receipt as proof of purchase.
This product is manufactured in Germany, ensuring high quality and reliability.
