1. Киришүү
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Kaiser EH 6355 Em built-in electric oven. Please read these instructions carefully before using the appliance and keep them for future reference.
Сүрөт 1: Алдыңкы view of the Kaiser EH 6355 Em built-in electric oven, showcasing its black finish and bronze Empire design elements.
2. Коопсуздук нускамалары
Always adhere to the following safety guidelines to prevent accidents and ensure proper functioning of the oven:
- Мешти биринчи жолу колдонуудан мурун квалификациялуу техник туура орноткондугун текшериңиз.
- Do not allow children to operate the oven unsupervised. The oven surfaces can become very hot during operation.
- Always use oven mitts when handling hot dishes or oven accessories.
- Never use abrasive cleaners or sharp objects to clean the oven interior or exterior, as this can damage surfaces.
- Keep flammable materials away from the oven during operation.
- Электр зымы бузулган болсо, коркунучту болтурбоо үчүн аны өндүрүүчү, анын тейлөө агенти же ушуга окшогон квалификациялуу адамдар алмаштырышы керек.
3. Продукт бүтүп калдыview
The Kaiser EH 6355 Em is a 60 cm built-in electric oven featuring a classic Empire design with modern functionality. Key components include:
- Башкаруу баскычтары: Electromechanical rotary knobs for function selection and temperature control.
- Аналогдук саат: Electronic analog timer with automatic shut-off and acoustic signal.
- Меш эшиги: Triple-glazed for improved insulation, with a removable inner glass pane for easy cleaning.
- Меш боштугу: Features catalytic self-cleaning panels and Easy Clean enamel for simplified maintenance.
- Аксессуарлар: Includes a rotisserie spit, baking tray, and oven rack.
Figure 2: The oven's distinctive Empire design with bronze accents and branding.
3-сүрөт: Детальдуу view of the electromechanical control knobs, used for selecting oven functions and setting temperature.
Figure 4: The electronic analog clock, which functions as a timer and provides automatic shut-off.
4. Орнотуу жана орнотуу
The Kaiser EH 6355 Em oven is designed for built-in installation into a standard 60 cm kitchen cabinet. Professional installation is recommended.
4.1 Пакеттен чыгаруу
- Бардык таңгактоочу материалдарды кылдаттык менен алып салыңыз.
- Inspect the oven for any signs of damage. If damaged, do not install and contact your supplier.
- Retain packaging for potential future transport or service.
4.2 Электрдик туташуу
- электр менен камсыз кылуу Voltage and frequency specified on the oven's rating plate.
- Меш туура жерге туташтырылышы керек.
- The electrical connection should be made by a qualified electrician.
4.3 Шкафты орнотуу
- Ensure the cabinet opening dimensions match the oven's dimensions (refer to Section 7: Specifications).
- Provide adequate ventilation around the oven to prevent overheating.
- Secure the oven into the cabinet using the provided screws.

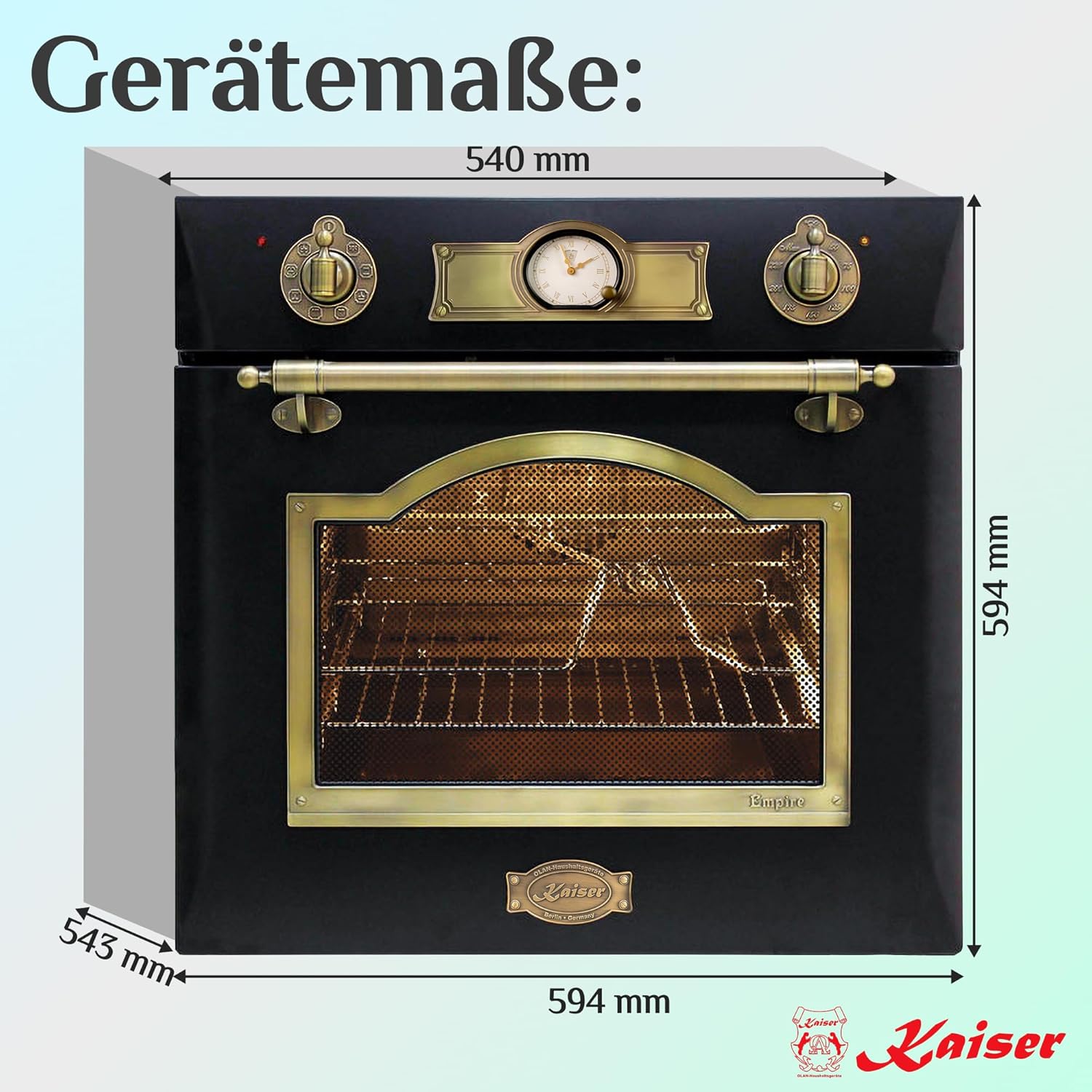

Figure 5: Diagram illustrating the external dimensions of the Kaiser EH 6355 Em oven for installation planning.
5. Иштөө нускамалары
Your Kaiser EH 6355 Em oven offers 8 multifunction cooking modes. Familiarize yourself with the controls before use.
5.1 Убакытты коюу
- Биринчи туташууда же кубаттан кийинtage, the clock will need to be set.
- Refer to the specific instructions in the full user manual for setting the electronic analog clock.
5.2 Бышыруу функциясын тандоо
- Turn the left control knob to select the desired cooking function (e.g., Top/Bottom Heat, Convection, Grill, Rotisserie).
5.3 Температураны коюу
- Turn the right control knob to set the desired temperature for your chosen function.
- The oven will begin to heat up once both function and temperature are set.
5.4 Таймерди колдонуу
- The analog clock can be used as a minute minder or to program the cooking duration.
- When programmed for cooking duration, the oven will automatically switch off after the set time. An acoustic signal will sound.
5.5 Бышыруу режимдери
The oven features 8 cooking modes, including:
- Top/Bottom Heat: Traditional baking and roasting.
- Конвекция (вентилятор менен): For even cooking on multiple levels.
- Infrared Grill: Гриль жасоо жана кызартуу үчүн.
- Rotisserie: For roasting poultry or large cuts of meat evenly.
- Эритүү: Тоңдурулган тамактарды жумшак эритүү.
Figure 6: The oven interior, highlighting the hot air system for uniform heat distribution and the circulation system for cooling.
Figure 7: The oven door, featuring triple glazing and a convenient recipe table printed on the inner glass for quick reference.
6. Техникалык тейлөө жана тазалоо
Үзгүлтүксүз тазалоо жана тейлөө мешиңиздин иштөө мөөнөтүн узартат жана оптималдуу иштешин камсыз кылат.
6.1 Catalytic Self-Cleaning
- The oven is equipped with catalytic panels that absorb grease and food residues.
- During normal operation at high temperatures (above 200°C), these panels oxidize and break down residues.
- For heavy soiling, run the oven at its maximum temperature for approximately one hour.
- After cooling, wipe away any remaining ash with a damp кездеме.
6.2 Easy Clean Enamel
- The oven interior is coated with Easy Clean enamel, making it smooth and easy to wipe clean.
- Use a soft cloth and mild detergent for cleaning. Avoid abrasive sponges or harsh chemicals.
6.3 Тышкы тазалоо
- Сырткы беттерди жумшак чүпүрөк жана абразивдүү эмес тазалоочу каражат менен тазалаңыз.
- For bronze elements, use a specialized cleaner suitable for metal finishes to maintain their appearance.
6.4 Oven Door Cleaning
- The inner glass pane of the oven door can be removed for thorough cleaning. Refer to the full manual for instructions on how to safely remove and reattach it.
7. Кыйынчылыктарды
If you encounter issues with your oven, consult the following table before contacting service.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Меш ысыбайт | No power supply; Function/temperature not set; Timer not set correctly | Check power connection; Ensure function and temperature knobs are set; Set the timer or ensure it's not in automatic shut-off mode. |
| Бышыруу натыйжалары бирдей эмес | Incorrect temperature/function; Overloading oven; Improper placement of dishes | Verify settings; Avoid overcrowding; Use appropriate rack positions. |
| Мештин жарыгы иштебей жатат | Лампочка бузулган же бош | Духовканын лампочкасын алмаштырыңыз (духовка муздап, электр тармагынан ажыратылганын текшериңиз). |
| тамак бышыруу учурунда ашыкча түтүн | Food spillage; Excessive fat/grease | Clean oven interior thoroughly; Use a drip tray for fatty foods. |
8. Техникалык шарттар
Detailed technical specifications for the Kaiser EH 6355 Em built-in electric oven:
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Кайзер |
| Модель номери | EH 6355 Em |
| Type | Камтылган электр меши |
| Өлчөмү | 60 см |
| Түс | Black with Bronze Accents |
| Жылытуу ыкмасы | Multifunction (Top/Bottom Heat, Convection, Grill, Rotisserie) |
| Number of Cooking Functions | 8 |
| Энергия эффективдүүлүгү классы | A |
| Көңдөй көлөмү | 67 литр |
| Энергияны керектөө (шарттуу) | 0.90 кВт/саат/цикл |
| Energy Consumption (Convection) | 0.81 кВт/саат/цикл |
| Башкаруу түрү | Electromechanical Rotary Knobs |
| Таймер | Electronic Analog Clock with Automatic Shut-off |
| Тазалоо системасы | Catalytic Self-Cleaning, Easy Clean Enamel |
| Духовканын эшиги | Triple Glazed, Removable Inner Glass |
| Өлчөмдөрү (W x Y x D) | 594 мм x 594 мм x 543 мм |
Figure 8: The EU energy label for the Kaiser EH 6355 Em oven, indicating its A-class energy efficiency.
Figure 9: Product data sheet providing detailed energy consumption and volume information for the oven.
9. Кепилдик жана колдоо
Your Kaiser EH 6355 Em oven comes with a manufacturer's warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official Kaiser webсайт.
For technical support, spare parts, or service requests, please contact your retailer or an authorized Kaiser service center. When contacting support, please have your model number (EH 6355 Em) and serial number ready.
Information regarding returns and refunds within 30 days of receipt, or for defective/damaged products, can typically be found on the retailer's help pages where the product was purchased.
