1. Продукт бүтүп калдыview
The VILTROX JY-120-C1 is a wireless remote shutter release system designed to operate your camera remotely, minimizing camera shake and enhancing image sharpness. It utilizes a 2.4MHz frequency for reliable wireless control and features a low power consumption design for extended use.

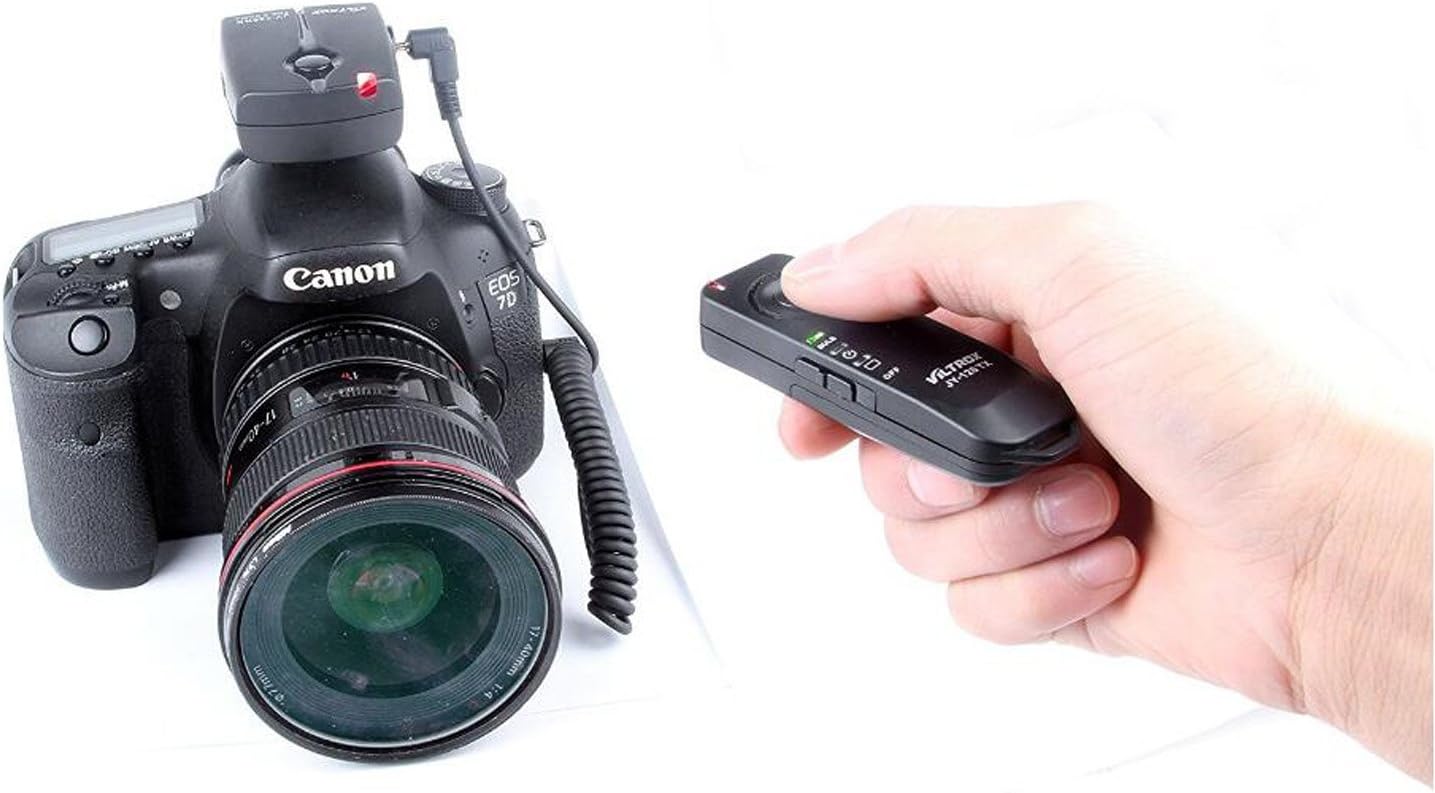

Image: The VILTROX JY-120-C1 wireless remote shutter release system, showing the receiver mounted on a Canon EOS camera and the transmitter held in a user's hand.
2. Пакеттин мазмуну
- 1 x Transmitter (JY-120 TX)
- 1 x Receiver (JY-120 RX)
- 1 x Camera Connection Cable
- Колдонуучунун Колдонмосу (бул документ)
3. Компоненттерди идентификациялоо
3.1. Transmitter (JY-120 TX)

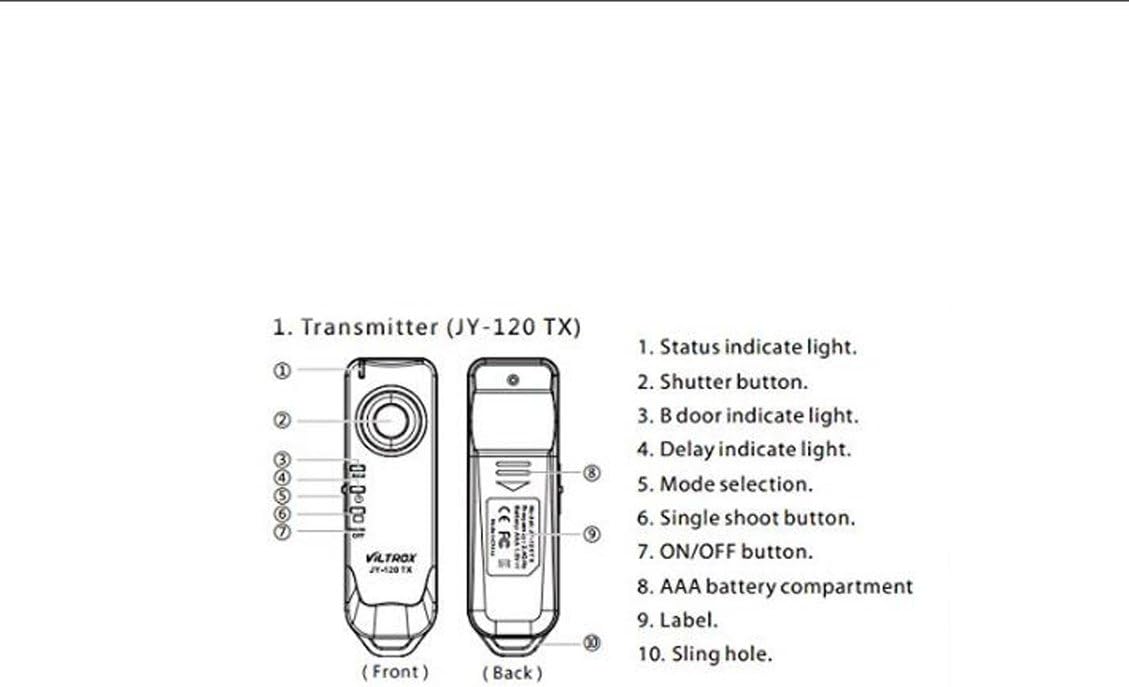

Image: Diagram illustrating the front and back views of the JY-120 TX Transmitter with numbered components.
- Статус индикаторунун жарыгы
- Shutter Button (two-stage: focus/shutter)
- Bulb Mode Indicator Light
- Delay Indicator Light
- Режим тандоо которуштуруу
- Single Shoot Button
- ON/OFF баскычы
- AAA батарея отсеги
- Белги
- Sling Hole
3.2. Receiver (JY-120 RX)

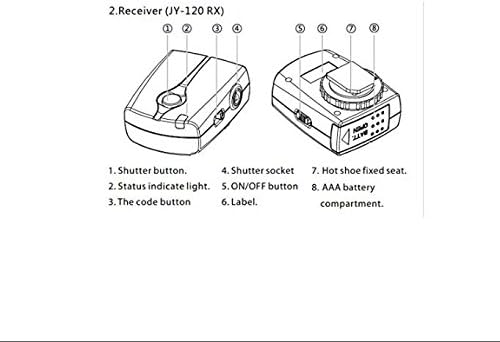

Image: Diagram illustrating the top and side views of the JY-120 RX Receiver with numbered components.
- Shutter Button (manual trigger)
- Статус индикаторунун жарыгы
- Code Button (for pairing)
- Shutter Socket (for camera connection cable)
- ON/OFF баскычы
- Белги
- Hot Shoe Fixed Seat
- AAA батарея отсеги

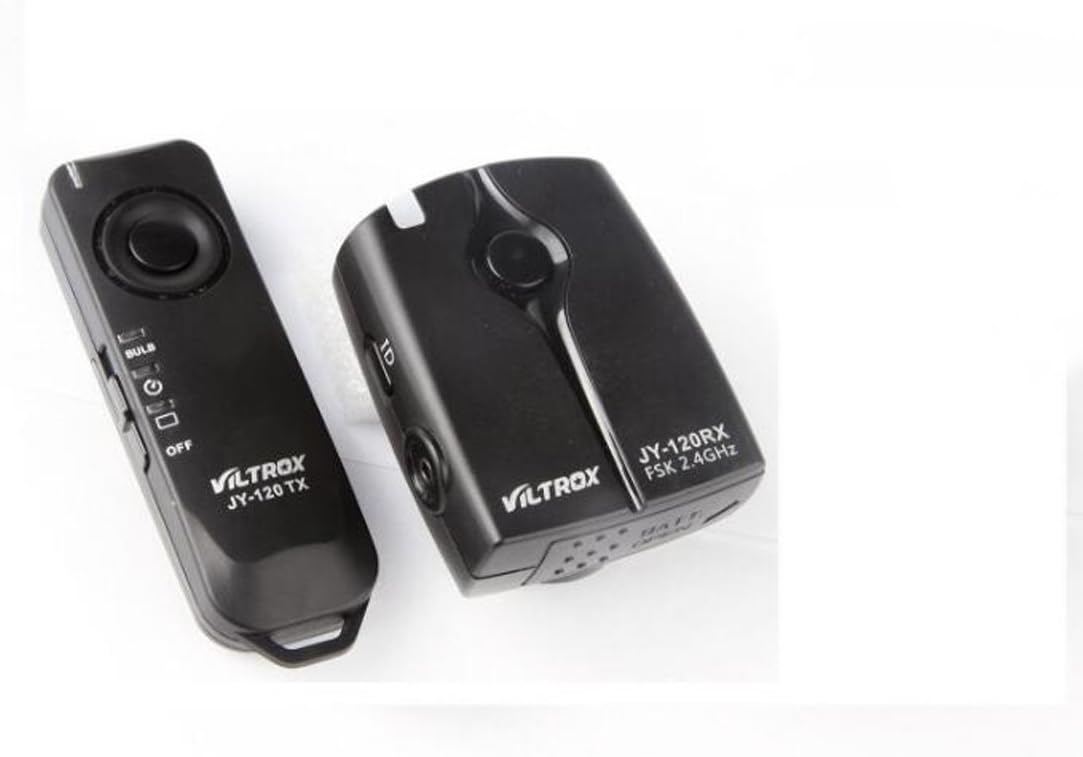

Image: The VILTROX JY-120 TX Transmitter and JY-120 RX Receiver shown together.
4. Орнотуу
4.1. Батареяны орнотуу
The Transmitter (JY-120 TX) requires 1x AAA 1.5V battery. The Receiver (JY-120 RX) requires 2x AAA 1.5V batteries.
- Open the battery compartment cover on both the Transmitter and Receiver.
- Insert the AAA batteries according to the polarity indicators (+/-) inside the compartments.
- Батарея отсеги капкактарын бекем жабыңыз.
4.2. Камерага туташуу
- Mount the Receiver (JY-120 RX) onto your camera's hot shoe. Use the hot shoe fixed seat (7) to secure it.
- Connect one end of the provided camera connection cable to the Shutter Socket (4) on the Receiver.
- Connect the other end of the cable to your camera's remote control terminal.
Image: The VILTROX JY-120-C1 receiver attached to a Canon EOS camera, demonstrating the setup.
4.3. Pairing (Code Setting)
The Transmitter and Receiver are typically pre-paired. If interference occurs or if you are using multiple units, you may need to re-pair them.
- Ensure both the Transmitter and Receiver are powered OFF.
- Turn ON the Receiver (JY-120 RX) using its ON/OFF button (5). The Status Indicator Light (2) will flash green.
- Within 30 seconds of powering on the Receiver, press and hold the Code Button (3) on the Receiver. The Status Indicator Light will change to alternating red and green flashes.
- While the Receiver's light is flashing red/green, turn ON the Transmitter (JY-120 TX) using its ON/OFF button (7) and press its Shutter Button (2).
- After approximately 3-5 seconds, the Receiver's Status Indicator Light will change to a flashing orange, indicating successful pairing.
5. Иштөө нускамалары
5.1. Жапкычты негизги бошотуу
- Ensure both Transmitter and Receiver are powered ON and paired.
- Press the Shutter Button (2) on the Transmitter halfway down to activate autofocus. The Transmitter's Status Indicator Light (1) will turn green.
- Press the Shutter Button (2) fully down to trigger the camera's shutter. The Transmitter's Status Indicator Light will turn orange.
5.2. Mode Selection (Transmitter)
The Transmitter (JY-120 TX) features a Mode Selection Switch (5) to choose between different shooting modes:
- Бир атуу режими: For taking a single photo with each full press of the shutter button.
- Үзгүлтүксүз атуу режими: For taking multiple photos as long as the shutter button is held down. (Camera must also be set to continuous shooting mode).
- Лампочка режими: For long exposure photography.
- Камераны "Лампа" режимине коюңуз.
- Set the Transmitter's Mode Selection Switch (5) to the "Bulb" position.
- Press the Shutter Button (2) fully down once to open the shutter. The Bulb Mode Indicator Light (3) will illuminate.
- Press the Shutter Button (2) fully down again to close the shutter.
- 2-Second Delay Mode: For a delayed shutter release.
- Set the Transmitter's Mode Selection Switch (5) to the "2S" position.
- Press the Shutter Button (2) fully down. The Delay Indicator Light (4) will illuminate, and the shutter will trigger after 2 seconds.
Сүрөт: деталдуу view of the VILTROX JY-120 TX Transmitter, highlighting its controls.
6. Техникалык тейлөө
- Түзмөктү кургак кармаңыз. Аны сууга же жогорку нымдуулукка тийгизбеңиз.
- Clean the device with a soft, dry cloth. Do not use strong detergents or solvents.
- Аппаратты түшүрүүдөн же катуу таасирлерден сактаныңыз.
- Агып кетпеш үчүн аппарат узак убакыт бою колдонулбаса, батареяларды алып салыңыз.
- Күн тийбеген, салкын, кургак жерде сактаңыз.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | Батареялар өлүп калган же туура эмес орнотулган. | Батареянын полярдуулугун текшерип, жаңы AAA батарейкалары менен алмаштырыңыз. |
| Shutter does not trigger. |
|
|
| Башка түзмөктөргө кийлигишүү. | Frequency conflict. | Re-pair the units to reset the communication code. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Иштөө жыштыгы | 2449.86 МГц |
| Transmitter батареясы | 1x AAA 1.5V |
| Кабылдагычтын батареясы | 2x AAA 1.5V |
| Transmitter Size (L x W x H) | 85 x 26 x 16 мм |
| Receiver Size (L x W x H) | 60 x 47 x 35 мм |
| Батареянын иштөө мөөнөтү | Supports approx. 1000 launches within normal range |
| Өткөрүүчү аралык | Approx. 100 meters (under open and uninvolved environment) |
| Transmitter Салмагы | 16 г (батареядан тышкары) |
| Алуучу Салмагы | 34г (батареяларды эсепке албаганда) |
| Шайкеш камералар | Canon EOS 1100D, 1000D, 650D, 600D, 550D, 500D, 450D, 400D, 350D, 300D, 60D, 60Da, 70D, 700D, 100D, 1200D, 760D, T6s, T6i, T5i, T3i, T5, T3 (and others compatible with C1 type remote) |
Image: A table detailing the technical specifications of the VILTROX JY-120-C1.
9. Кепилдик жана колдоо
Кепилдик жөнүндө маалымат жана техникалык колдоо алуу үчүн, расмий VILTROX компаниясына кайрылыңыз webсайтка кайрылыңыз же жергиликтүү дистрибьютериңиз менен байланышыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
Official VILTROX Store: VILTROX расмий дүкөнү
